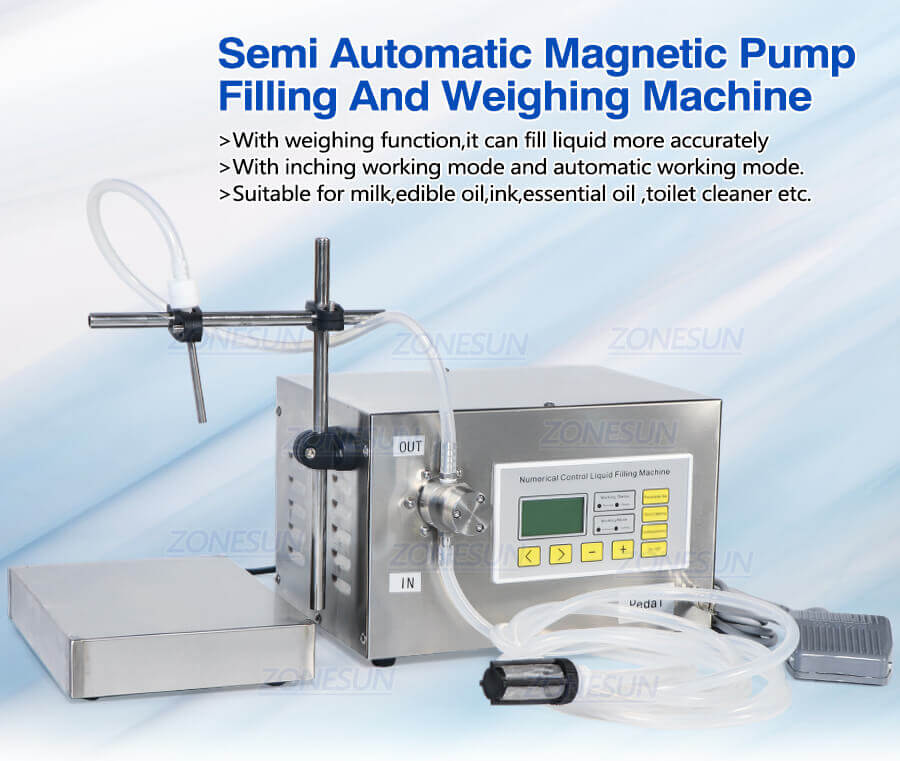

Magnetic Pump Weighing Filling Machine

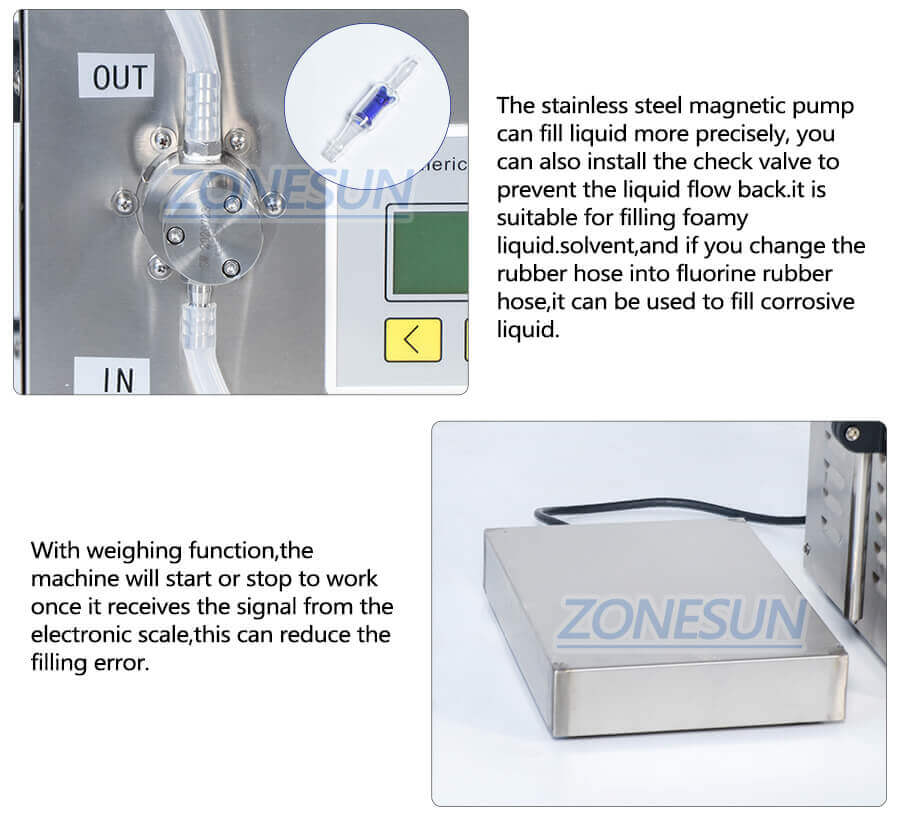

The weighing and filling machine controls the panel to pump liquid. The electronic scale detects the weight in real time and send the signal back to the system. The pump will stop to work immediately after reaching the set amount. This kind of filling method can reduce filling error greatly. It is widely used in medicine, chemical industry, food, beverage, wine, industrial oil, cosmetics and other industries.
Share to
Product Description:
The weighing and filling machine controls the panel to pump liquid. The electronic scale detects the weight in real time and send the signal back to the system. The pump will stop to work immediately after reaching the set amount. This kind of filling method can reduce filling error greatly. It is widely used in medicine, chemical industry, food, beverage, wine, industrial oil, cosmetics and other industries.
Product Parameters:
| Machine Model | ZS-MP251W |
| Machine Power | 110/220V 50-60HZ 100W |
| Pump | Magnetic Pump |
| Max Flow Rate | 3500ML/min |

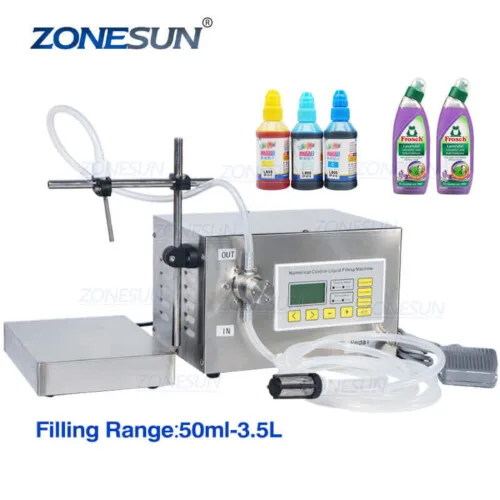

| Filling Range | 50ml-3500ml |
| Weighing Range | 30g-10kg |
| Filling Error | About ±1g |
| Hose Diameter | 6mm( ID ) /10mm( OD ) |
| Hose Length | 2m( inlet ) /1m( outlet ) |
| Filling Nozzle Diameter | 6mm /8mm |
| Liquid Temperature | <120℃ |
| Max Suction Distance | 4m |
| Max Head of Delivery | 4m |
| Suitable Liquid | milk,ink,cooking oil,essential oil etc |

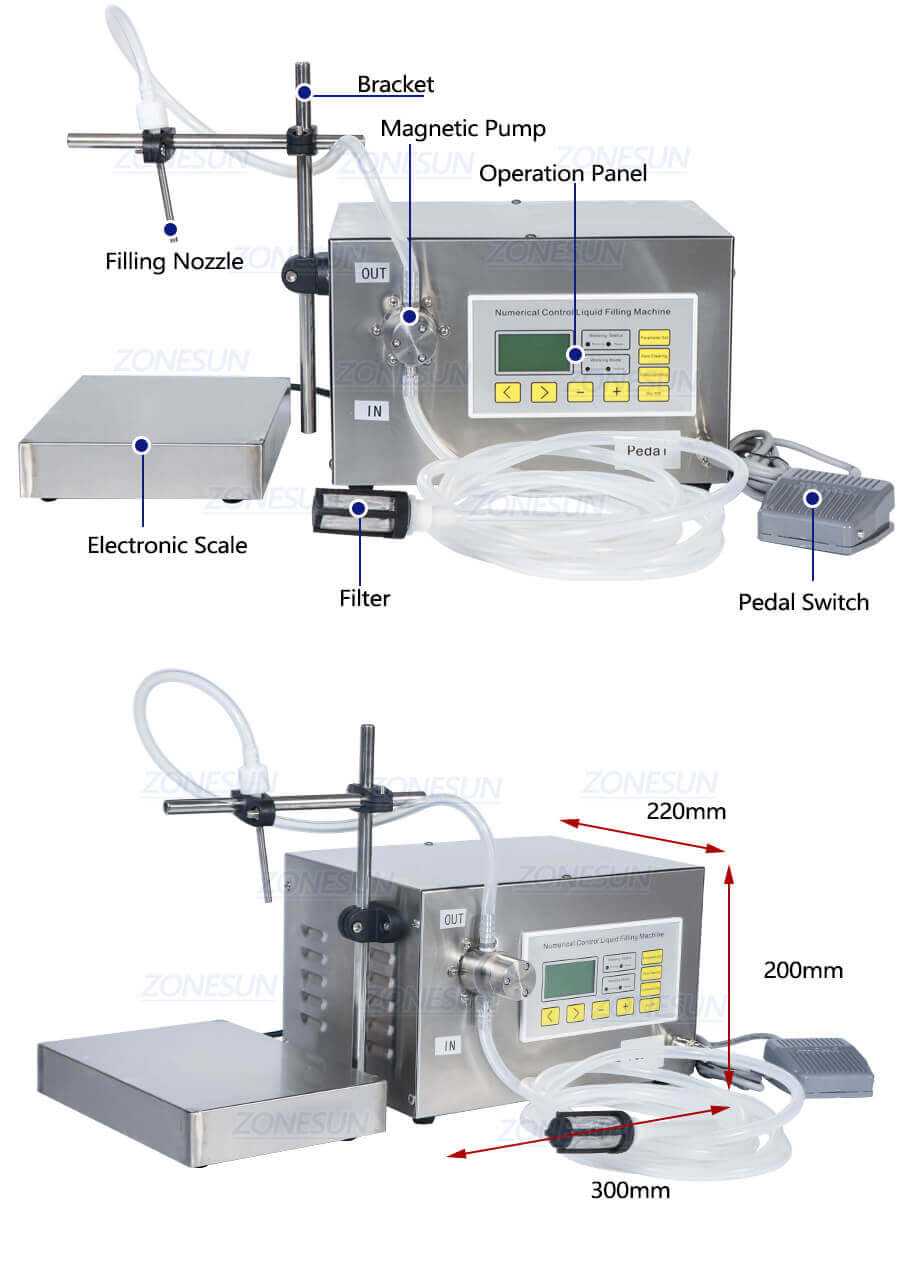

| Machine Size | About 220*300*200mm |
| Machine Weight | About 7.2kg |
| Package Size | About 400*370*240mm |
| Package Weight | About 7.8kg |
