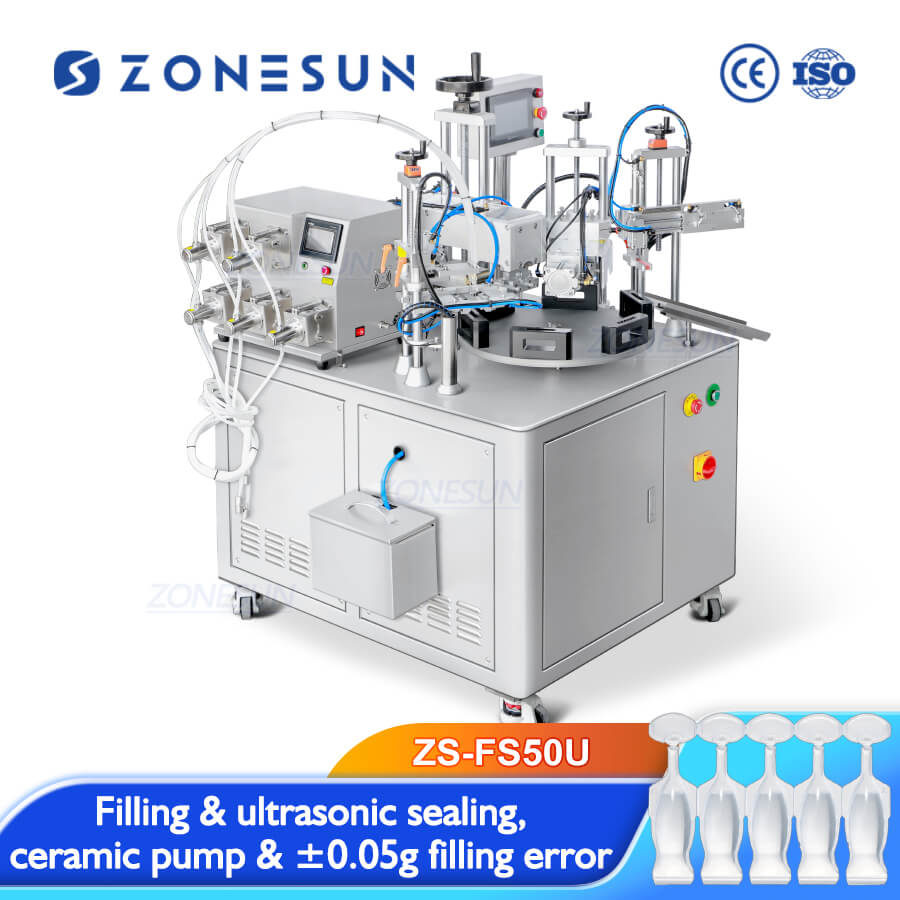

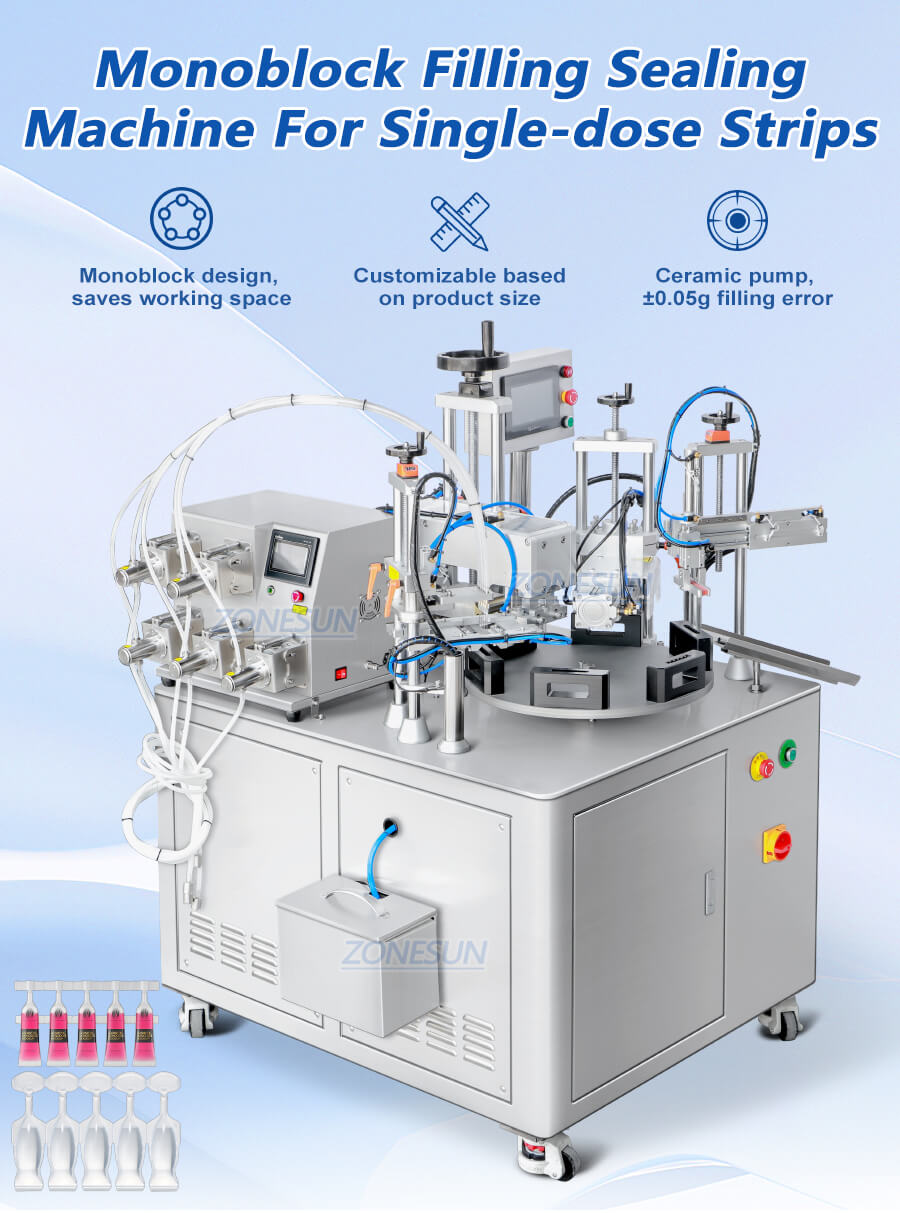

Monodose Strip Tube Filling Sealing Machine
Monodose strip tube filling sealing machine is with function of filling and sealing,multifunctional and help you save working space.It is equipped with ceramic pump,which can fill liquid accurately.The fixing mold can be customized according to product size.This machine is widely used in cosmetics,daily chemical industries.
Share to
Produst Description:
Monodose strip tube filling sealing machine is with function of filling and sealing,multifunctional and help you save working space.It is equipped with ceramic pump,which can fill liquid accurately.The fixing mold can be customized according to product size.This machine is widely used in cosmetics,daily chemical industries.
Product Parameters:
| Machine model | ZS-FS50U |
| Power supply | 110/220V 50Hz/60Hz Single Phrase |
| Power | 2.6KW |
| Air pressure | 0.6Mpa |
| Recommend filling range | 0.5-15ml |
| Sealing speed | 13-15 rows/minute |
| Filling accuracy | ±0.05g |
| Sealing height | 50-150mm |
| Ultrasonic frequency | 20KHz |
| Sealing diameter | 50-1350mm |
| Body material | 304 stainless steel |

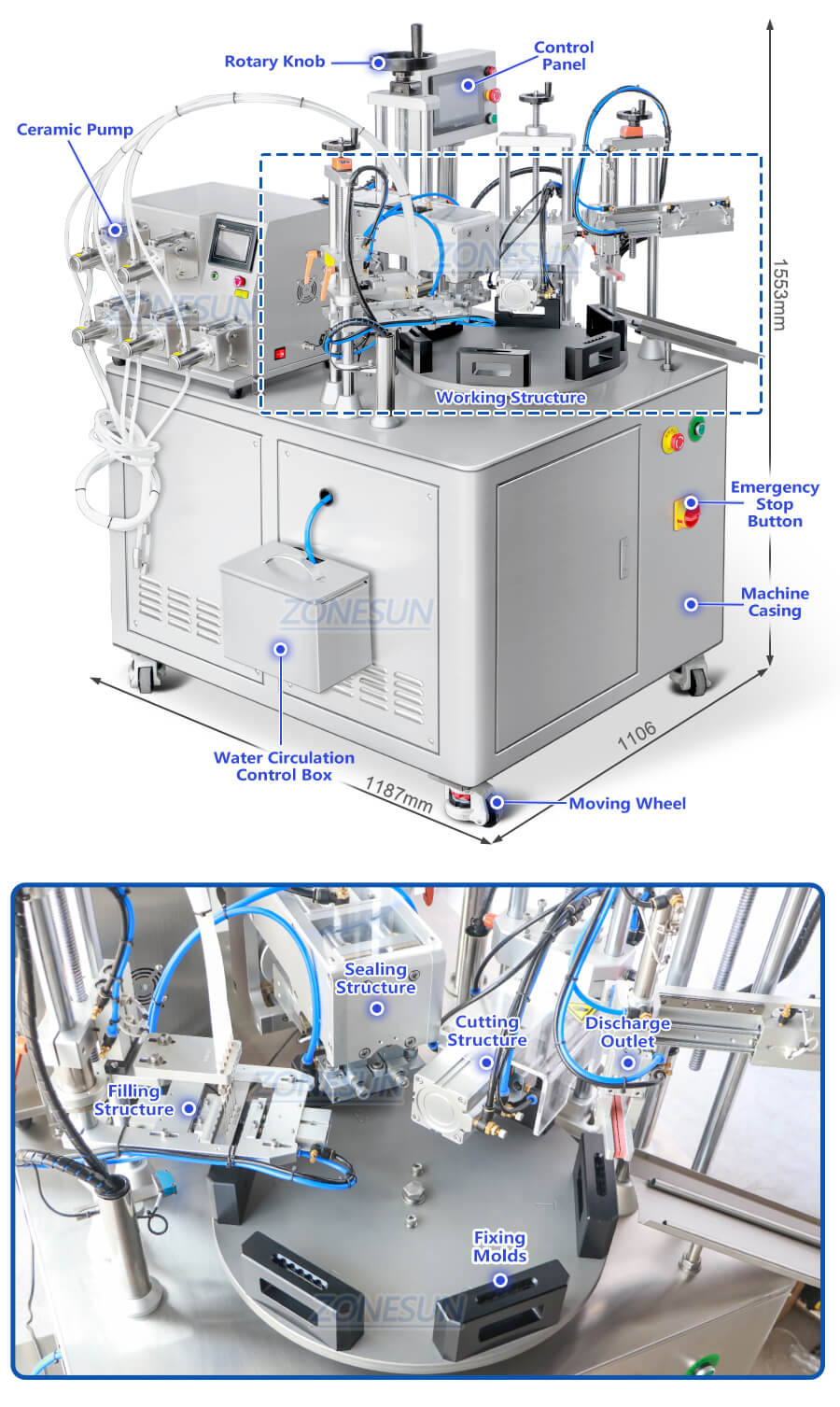

| Machine size | L1187*W1106*H1553mm |
| Machine weight | About 350kgs |
| Component | Brand | Origin |
| Frequency inverter | Delta | Taiwan,China |
| PLC | Mitsubishi | Japan |
| Relay | Omron | Japan |
| Touch screen | Weinview | China |
| Proximity sensor | Sick, Autonics | Germany, Korea |
| Cylinder | Airtac / Xingchen | Taiwan,China |
| Solenoid valve | Airtac | Taiwan |
| Motor | ZD | China |
| Indexer | Youde | China |

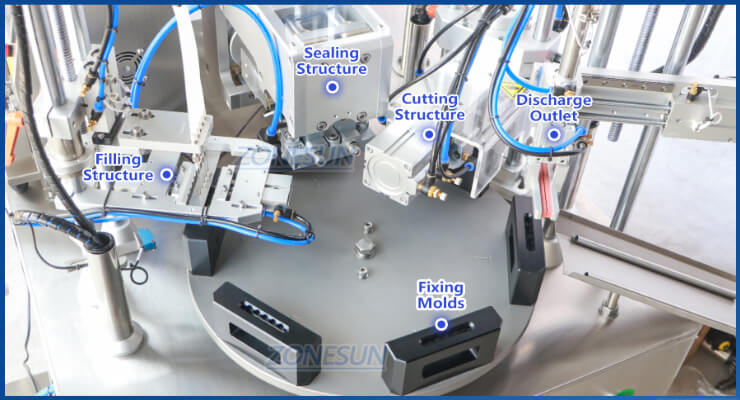

Product Details:

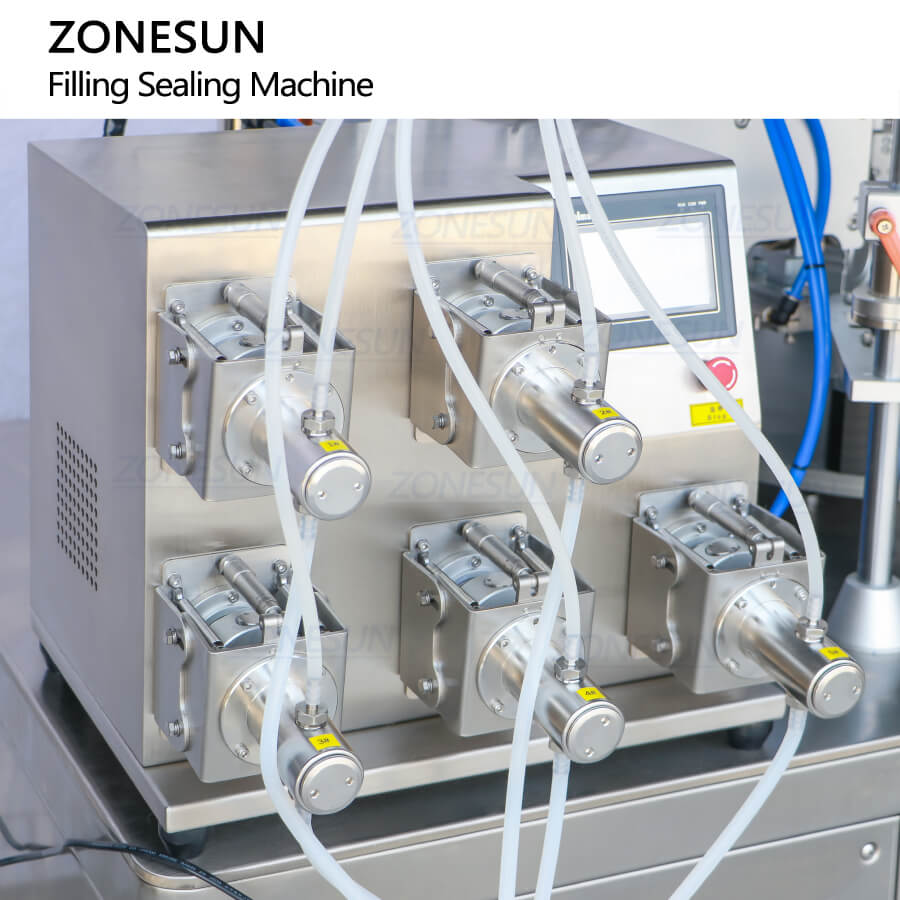

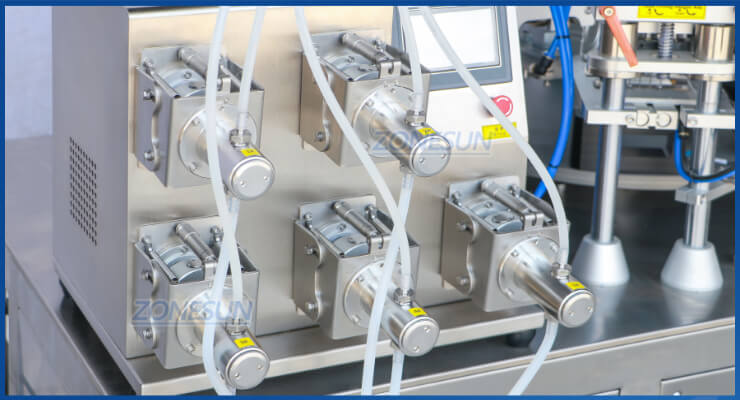

Precision Ceramic Pump
Filling accuracy up to ±0.05g for consistent results.

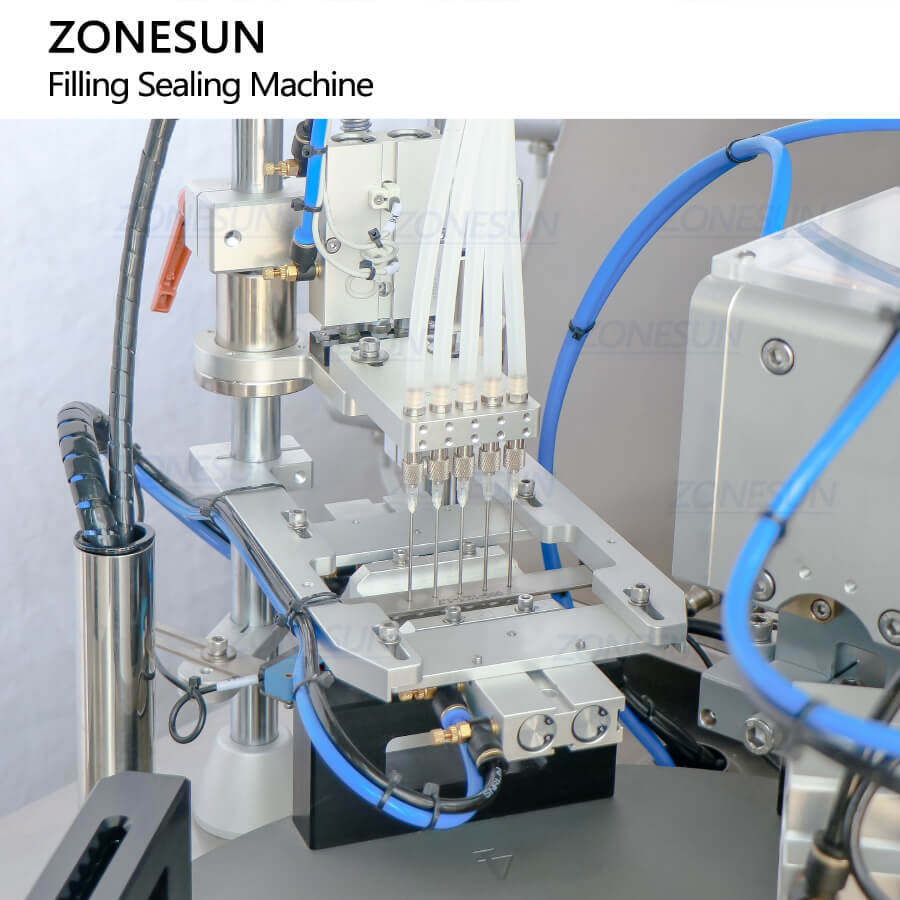

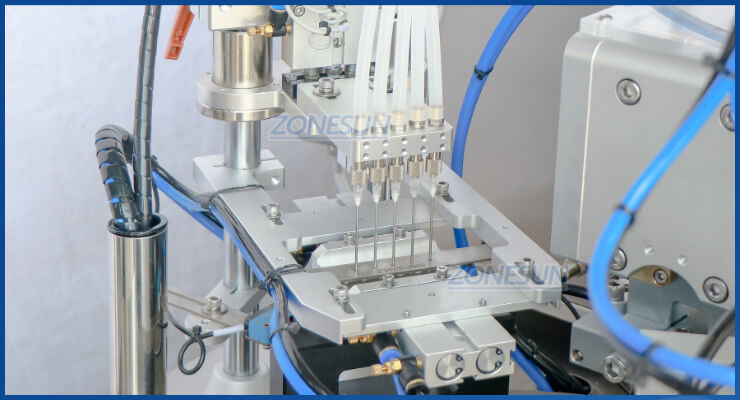

Customizable Filling Nozzles
Number of filling heads can be tailored to your production needs.

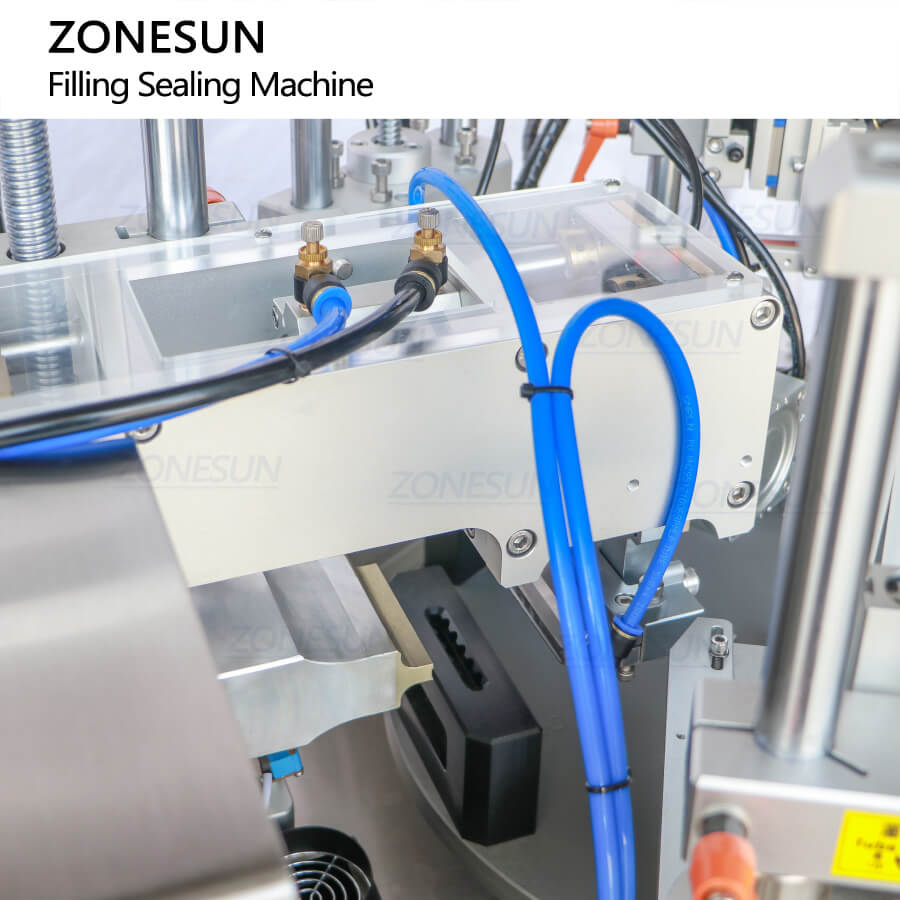

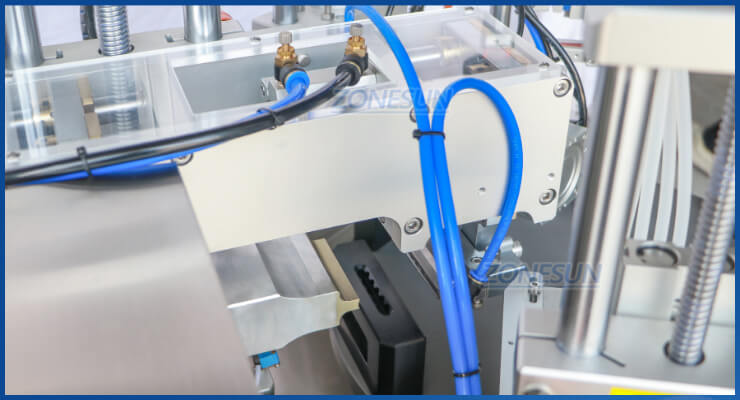

Ultrasonic Sealing
Ensures strong, reliable tail sealing for strip ampoules.

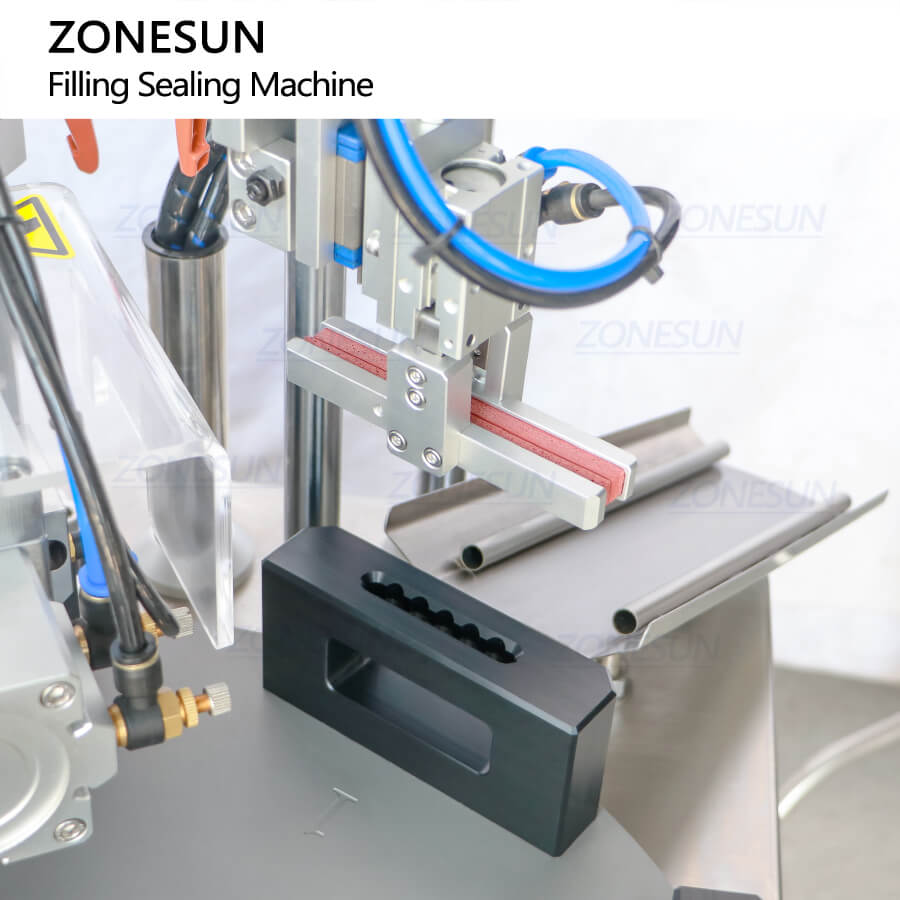

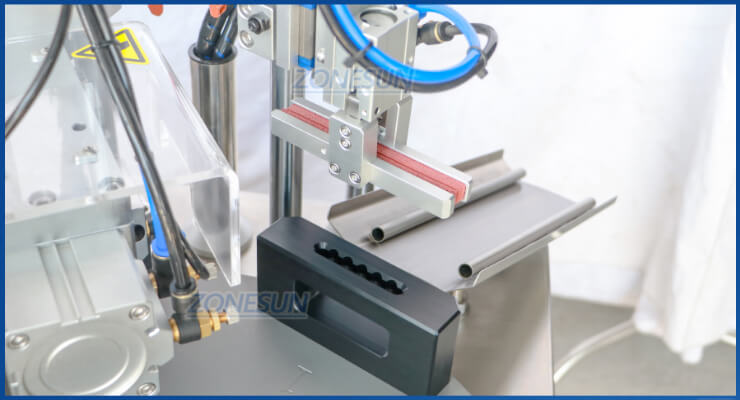

Automatic Robot Pick-up
Finished products are removed automatically for higher efficiency.

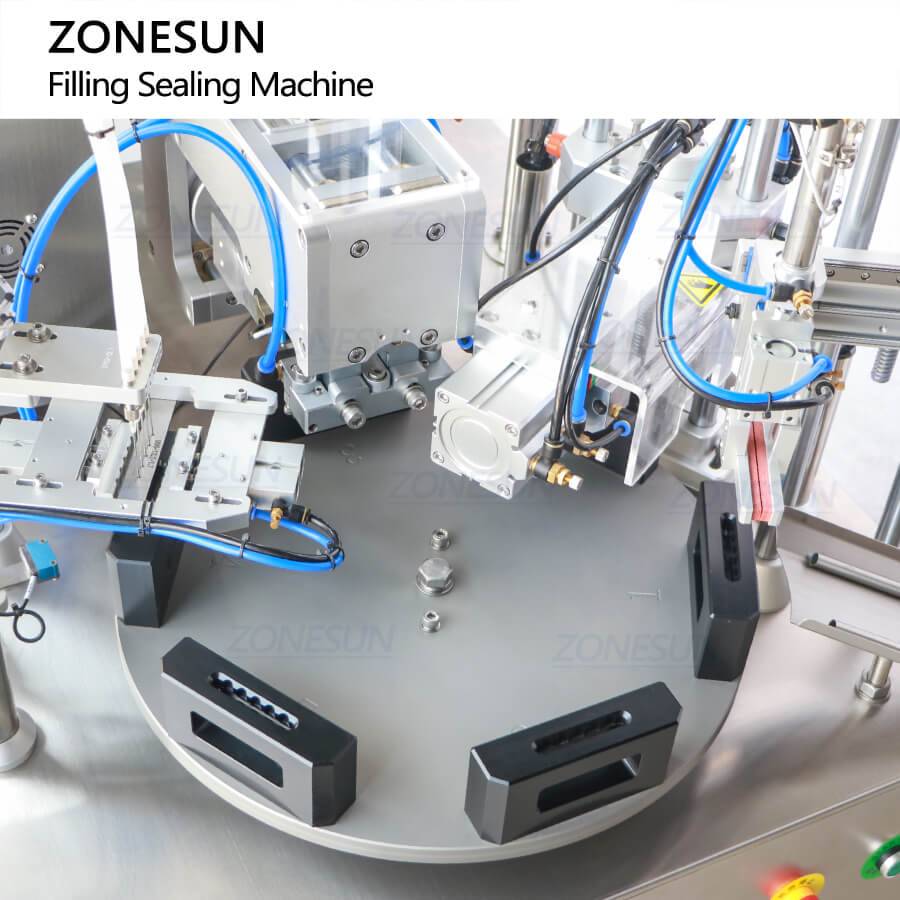

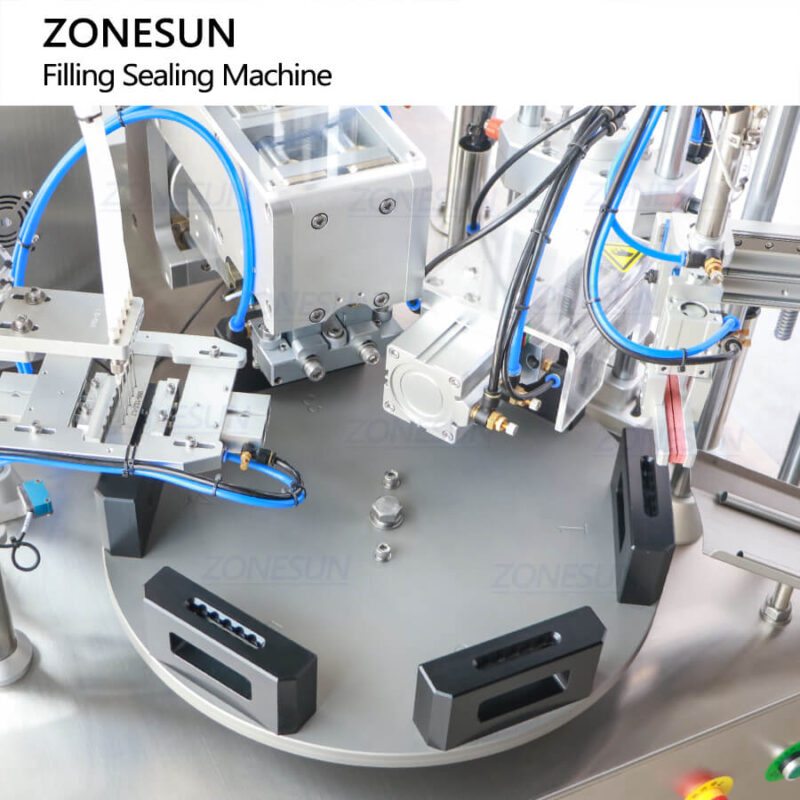

Six-Station Indexer
Accurate positioning with compact machine footprint.

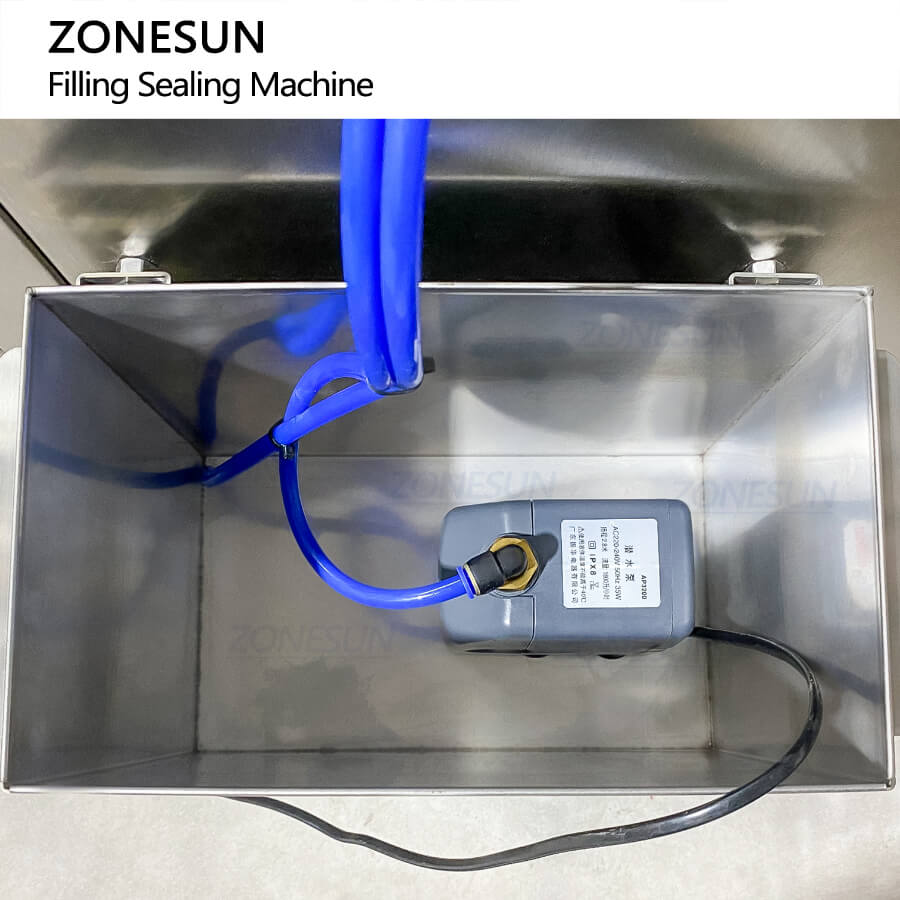

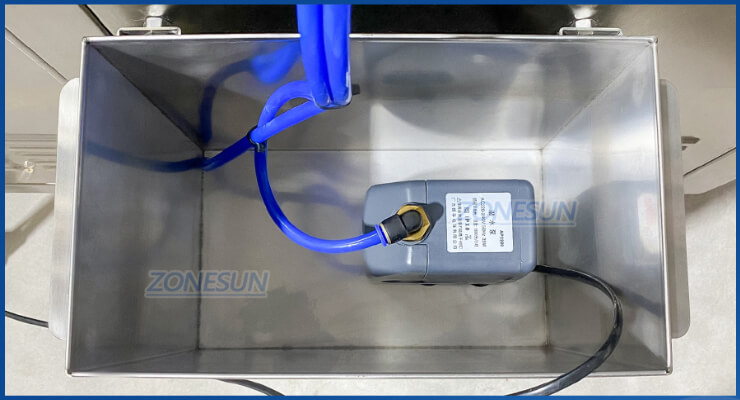

Water Circulation Cooling Box
Effectively reduces sealing device temperature and extends machine lifespan.
