Description:

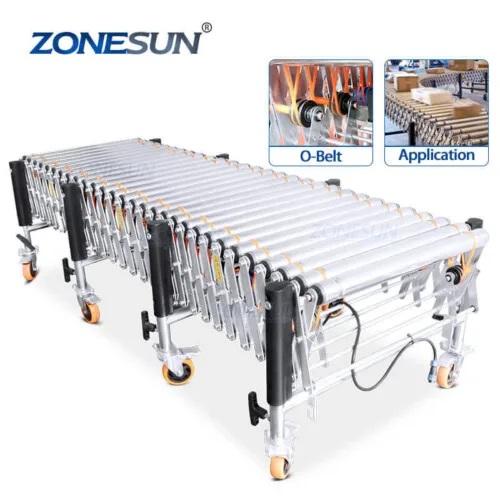

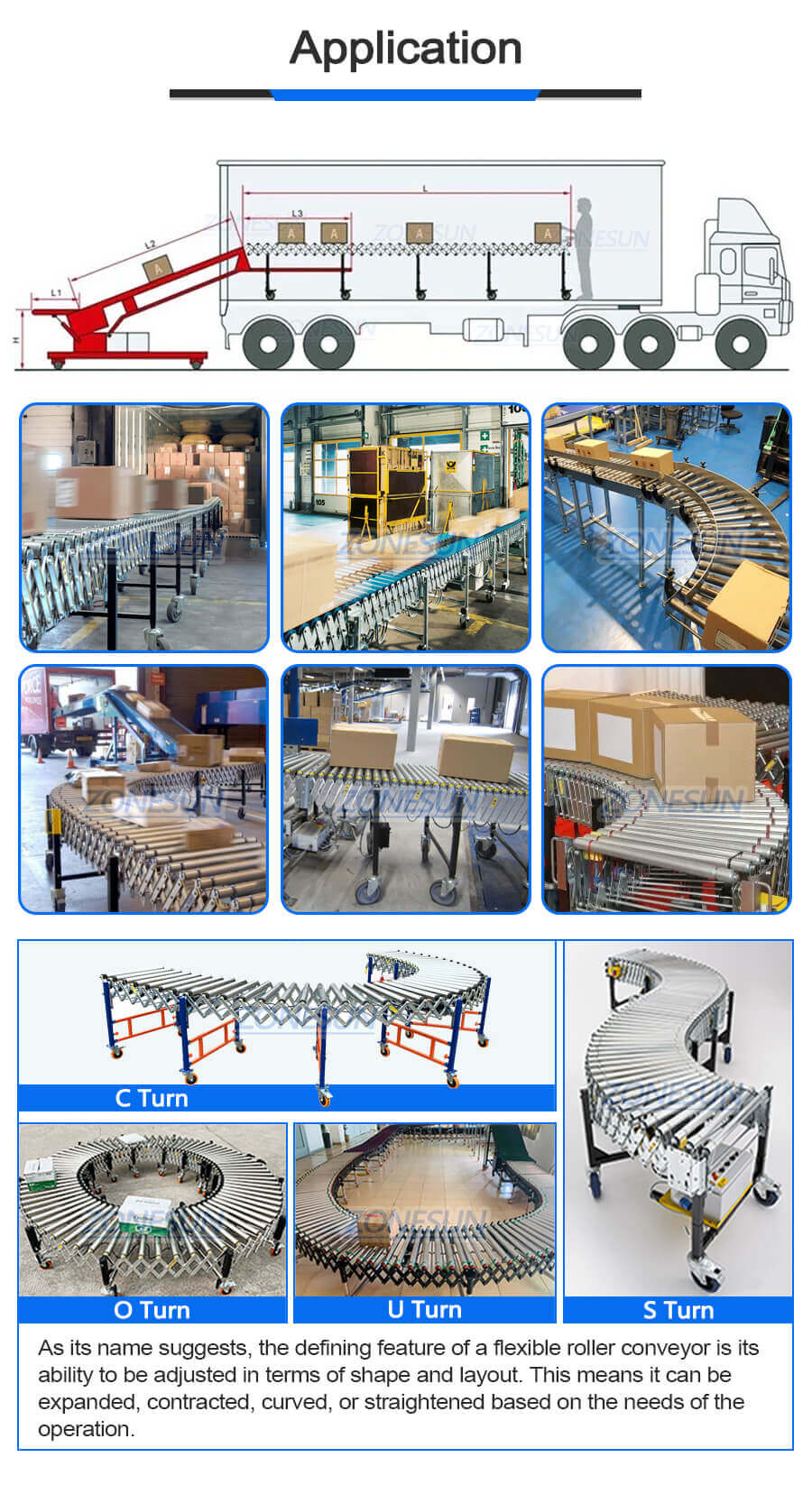

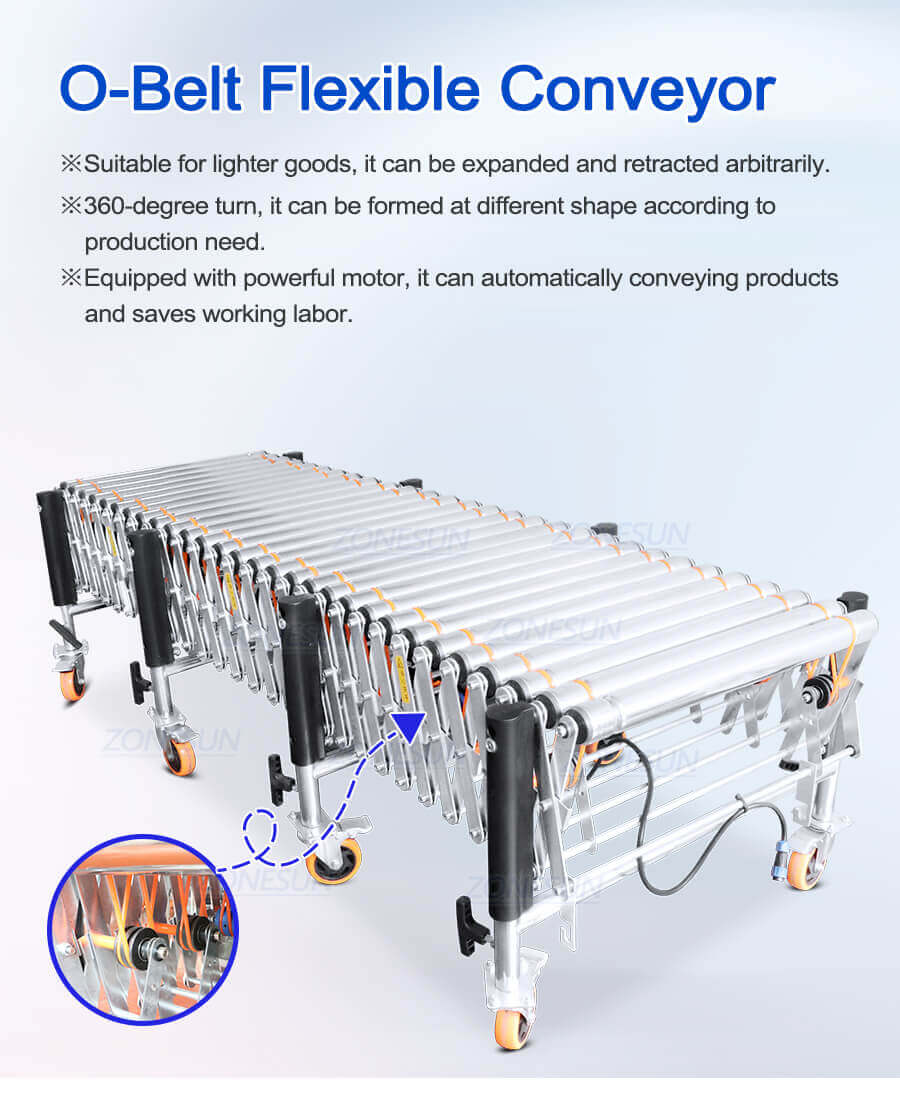

A flexible roller conveyor is a type of material handling system designed to transport items over a specified path using a series of rotating rollers. Unlike fixed, straight-line roller conveyors, a flexible roller conveyor has the ability to be curved, twisted, or adjusted in different directions, which allows for more versatile routing and repositioning based on changing requirements.
| Model | ZS-FCO500 | ZS-FCO600 | ZS-FCO800 |
| Roller Width | 500mm | 600mm | 800mm |
| Voltage | 110V/220V/380V | ||
| Length/Unit | Compacted: 530mm, Extended: 1.1m | ||

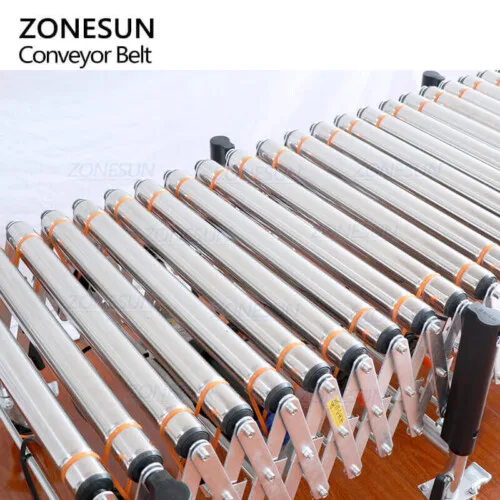

| Roller/Unit | φ=54mm, Thickness ≥1.5mm Zinced steel | ||
| Payload/Unit | 150kg | ||

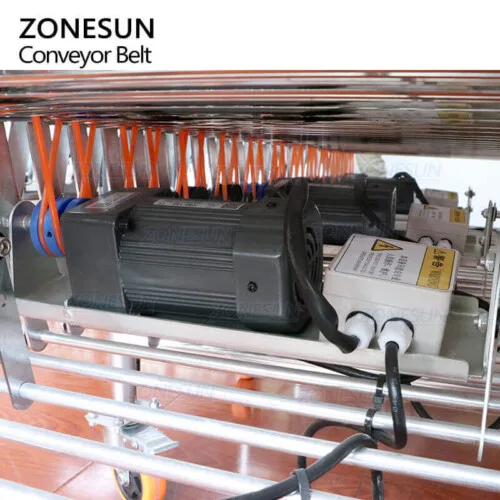

| Motor/Unit | 120W*1 | ||
| Conveying Speed | 40m/min | ||
| Height | 550mm-820mm/750mm-1200mm/900mm-1500mm
(Other size can be customized as needed) |
||

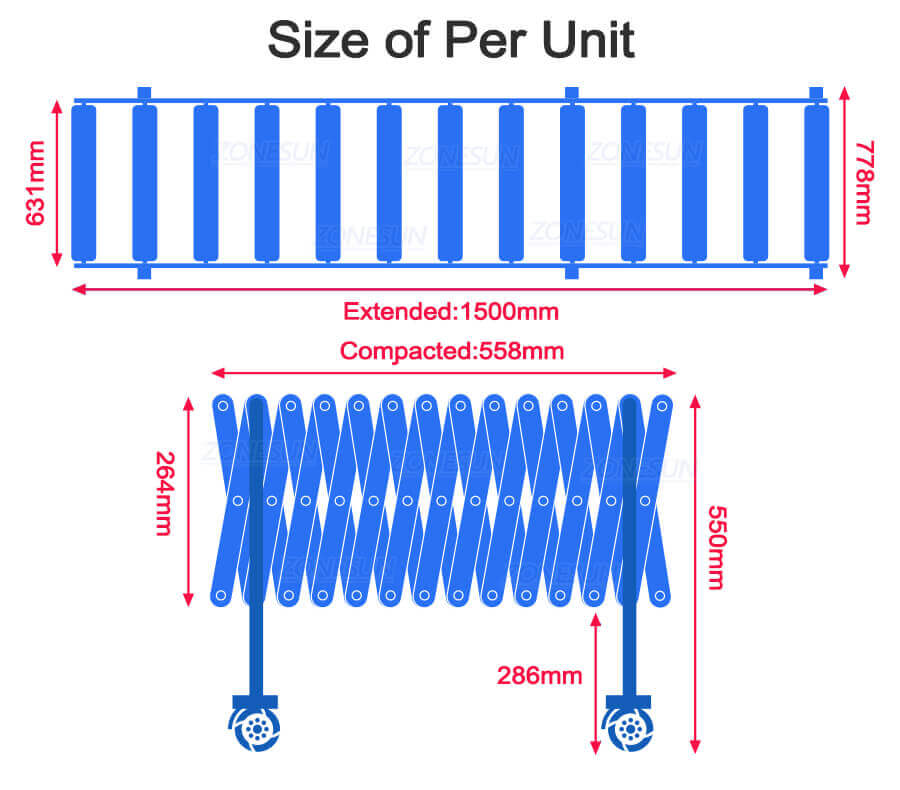

| Size/Unit | About 1500*778*550mm | ||
| Weight/Unit | 36kg | ||
| Other Parameter | |||
| 1.There are 11 rollers for per unit.
2.Distance between roller and roller is about 97mm. 3.If the conveyor belt needs to be formed at 90 degrees, we recommend purchasing 2unitsof conveyor belts. 4.If the conveyor belt needs to be formed at 180 degrees, we recommend purchasing 3unitsof conveyor belts. |
|||
