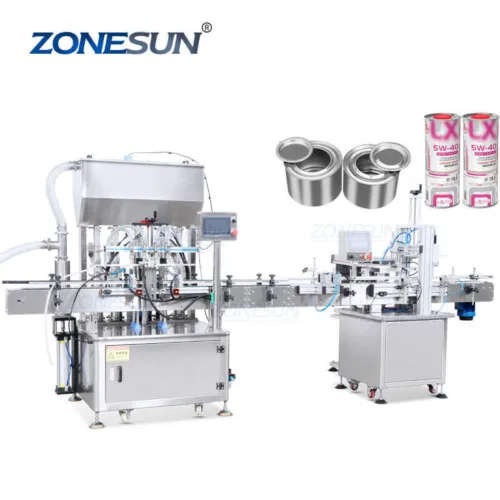

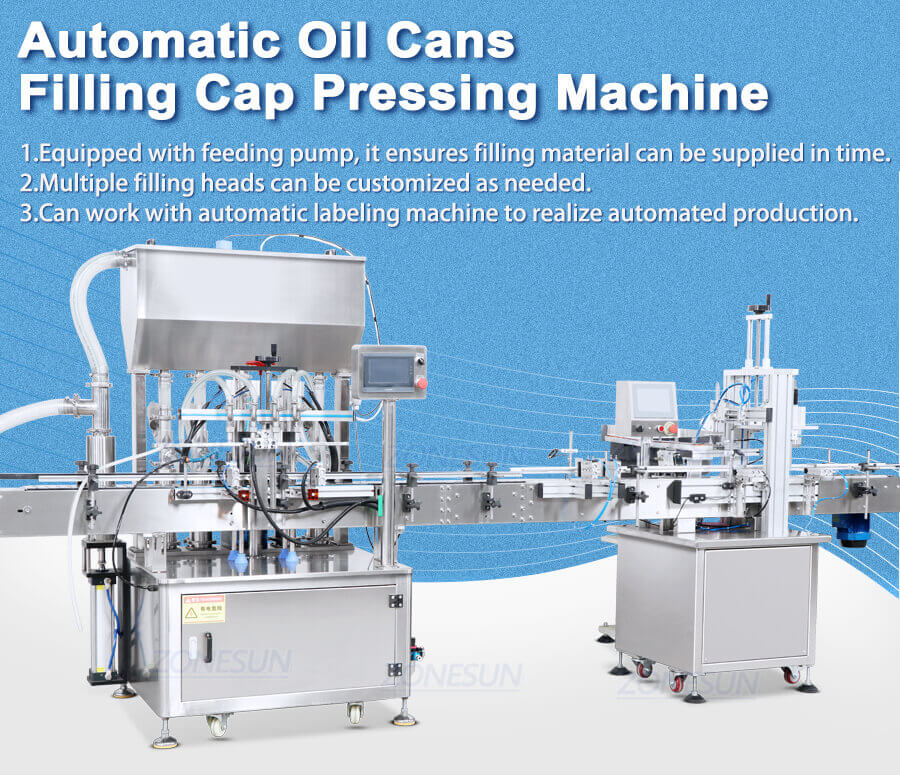

Oil Cans Filling Cap Pressing Machine

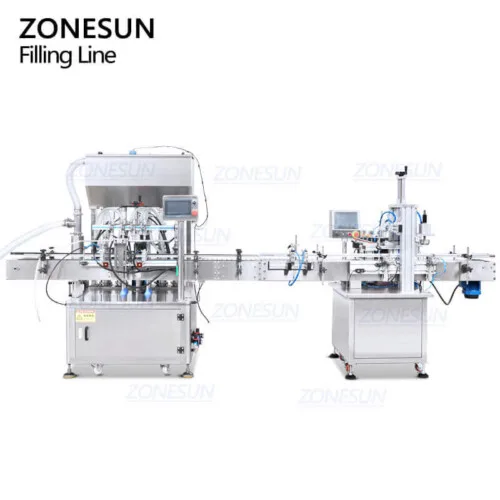

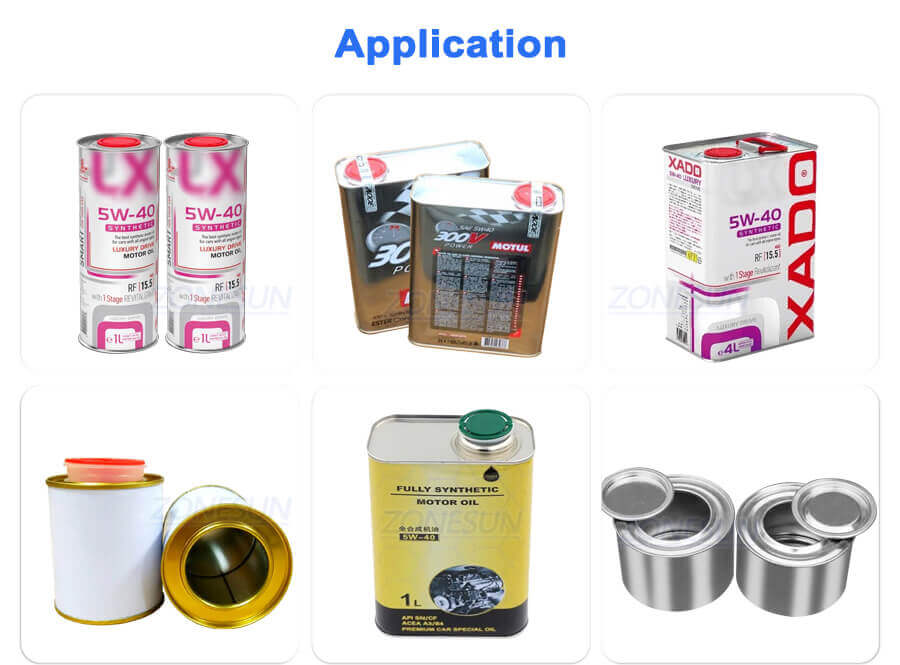

This paste bottling line is used for packaging thicker liquid or paste into containers and press caps automatically. It is suitable for packaging organic oil, jams, soy sauce.Filling machine has cleaning function, which saves working labor.
Share to
Description:
This paste bottling line is used for packaging thicker liquid or paste into containers and press caps automatically. It is suitable for packaging organic oil, jams, soy sauce.Filling machine has cleaning function, which saves working labor.
|

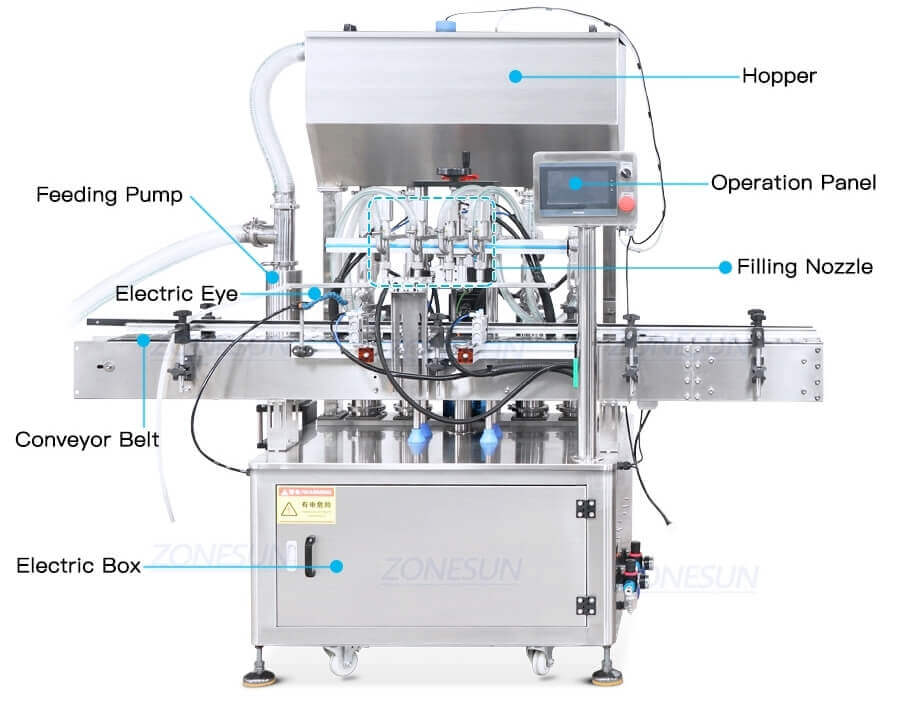

Machine model
|
ZS-YT4T-4PX
|
|
Voltage
|
110/220V 50-60HZ 1KW
|
|
Filling range
|
10-180ml/30-500ml/100-1000ml
|
|
Working speed
|
About 30-100 bottles/min
|
|
Air pressure
|
0.6-0.8MPa
|
|
Filling accuracy
|
±1%
|
|

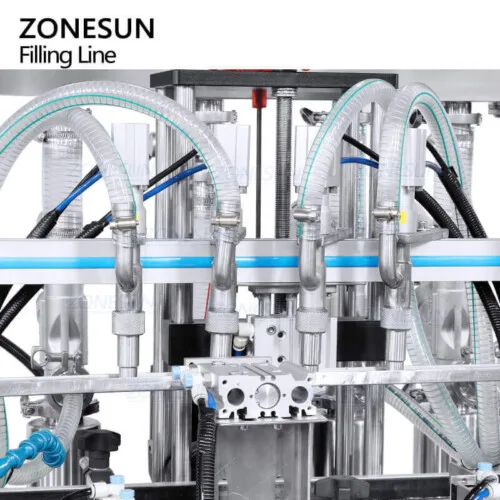

Filling Nozzle
|
4(can be customized)
|
|
Machine size
|
About 2000*800*1800mm
|
|
Machine weight
|
About 200kg
|
|
Packaging size
|
About 2070*960*2010mm(100-1000ml)
|
|
Packaging weight
|
About 392kg(100-1000ml)
|
|

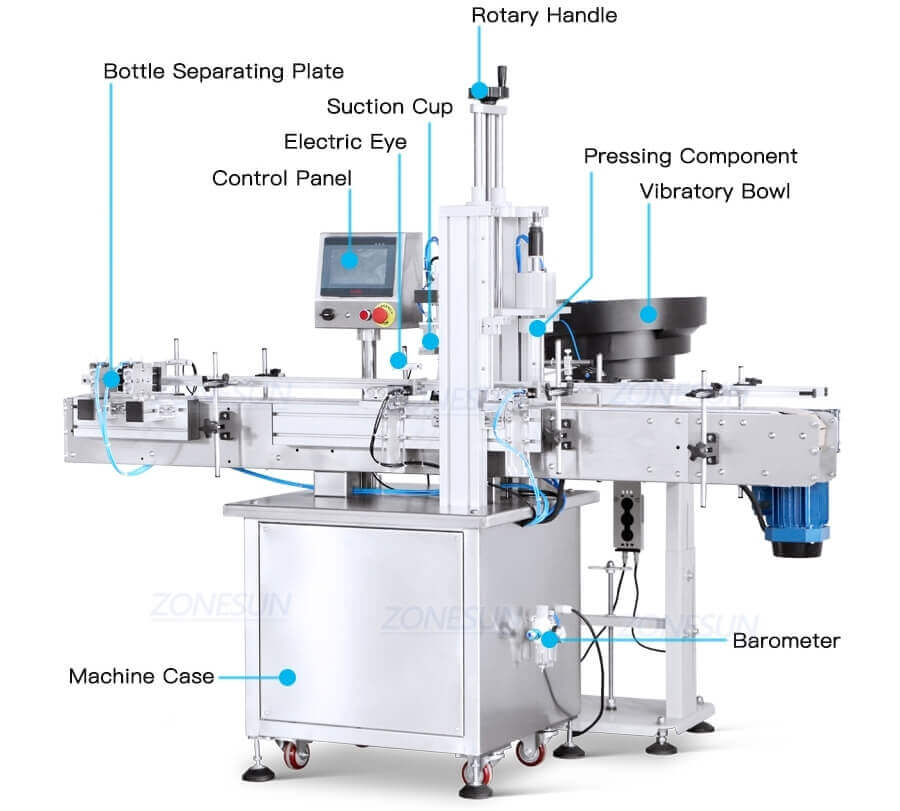

Machine Model
|
ZS-XG440G
|
|
Working Voltage
|
AC220V/110V 50-60HZ
|
|
Power
|
About 1100W
|
|
Working Speed
|
20-40 bottles/minute
(depending on bottle and caps)
|
|
Bottle Height
|
60-270mm
|
|
Bottle Cap Diameter
|
Can be customized
|
|
Working Pressure
|
0.4-0.6 MPa
|
|
Machine Size
|
About 3000*1700*1280mm
|
|
Package Size
|
About 2020*820*1730mm
|
|
Gross Weight
|
About 307kg
|
