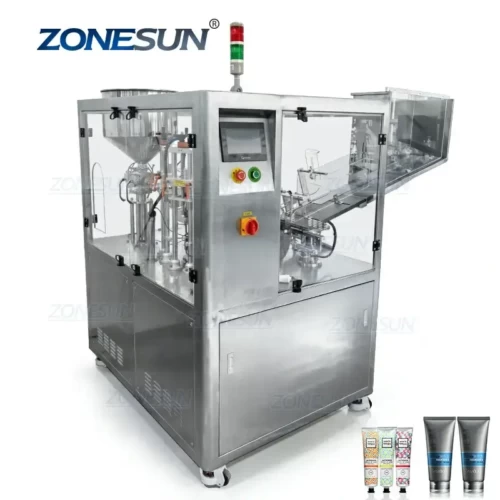

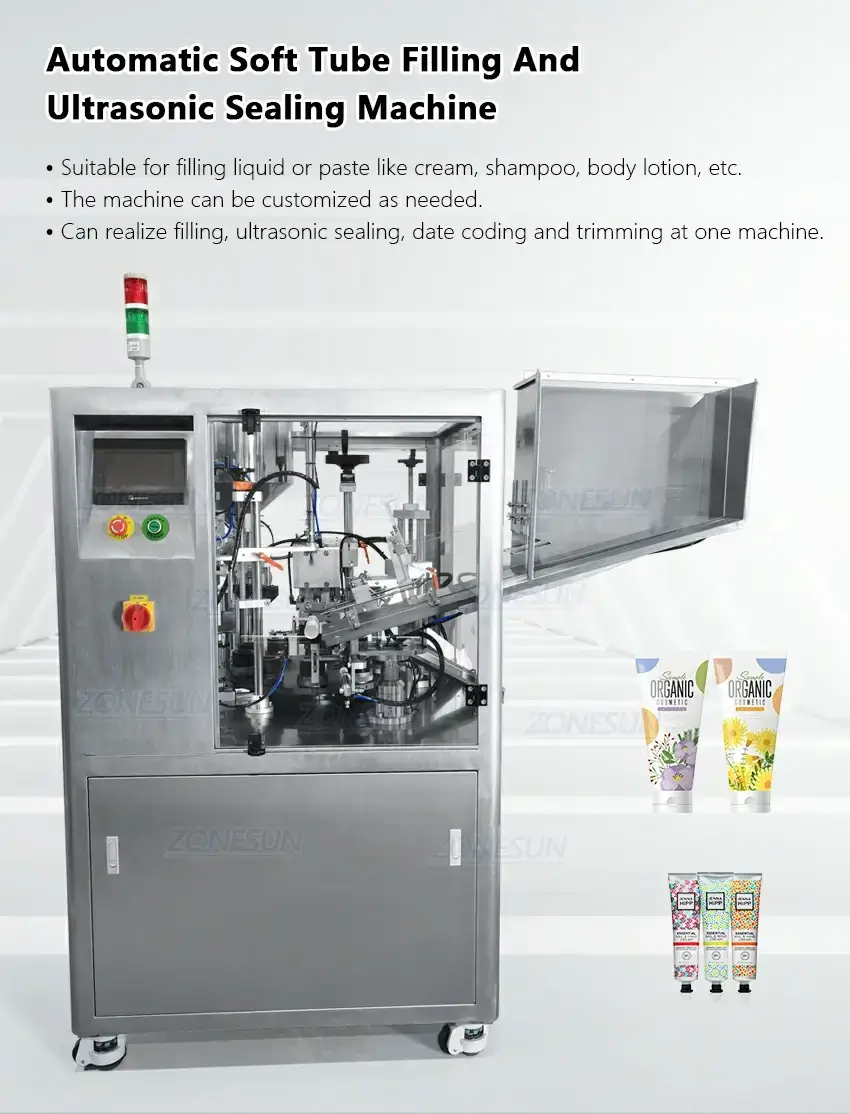

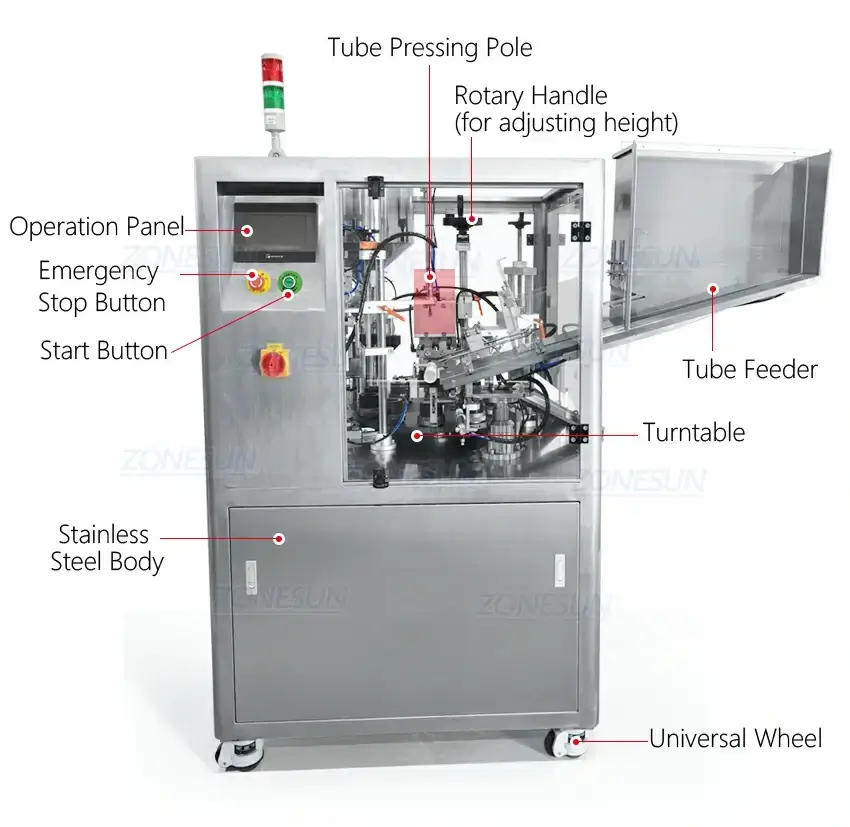

Ointment Tube Filling And Sealing Machine
Automatic Filling and Sealing MachiThe machine has the virtue of the high-speed filling and sealing machine,with a highly automatic operation and runs smoothly.It can be automatic tube filling,sealing cutting and print date.the unique one-headed design is easier to clean.More convenient to the size changing and more simply to control.it is suitable to be for medicine cream,toothpaste,cosmetics glue,adhesive,ketchup and art palette industry especially.
Share to
Description:
Automatic Filling and Sealing MachiThe machine has the virtue of the high-speed filling and sealing machine,with a highly automatic operation and runs smoothly.It can be automatic tube filling,sealing cutting and print date.the unique one-headed design is easier to clean.More convenient to the size changing and more simply to control.it is suitable to be for medicine cream,toothpaste,cosmetics glue,adhesive,ketchup and art palette industry especially.
Parameter:
| Machine Model | ZS-FS009U |
| Voltage | 220V/110V 50-60Hz |
| Power | 2.6KW |
| Hopper Capacity | 30L |
| Flling Range | 6-60ml/10-120ml/25-250ml |
| Flling Accuracy | ±1% |
| Sealing Speed | 22-28pcs/min |
| Sealing Diameter | 16-50mm |
| Sealing Height | 50-200mm |
| Sealing Method | Ultrasonic Sealing |
| Ultrasonic Frequency | 20KHz |
| Air Pressure | 0.6Mpa |
| Application | Aluminum-plastic soft tube/Plastic soft tube |
| Machine Material | Stainless Steel |
| Machine Weight | About 450kg |
| Machine Size | About 1630*1380*1600mm |
| Customization | Available |
