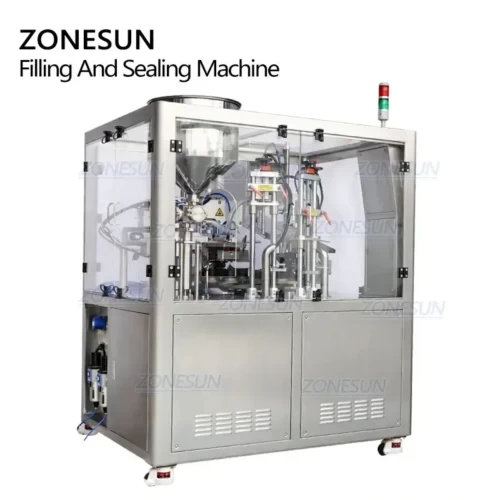

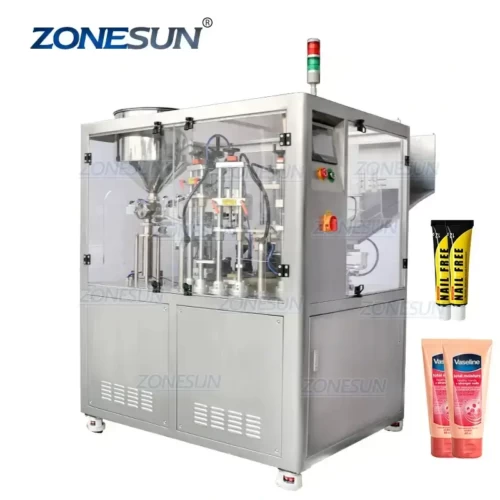

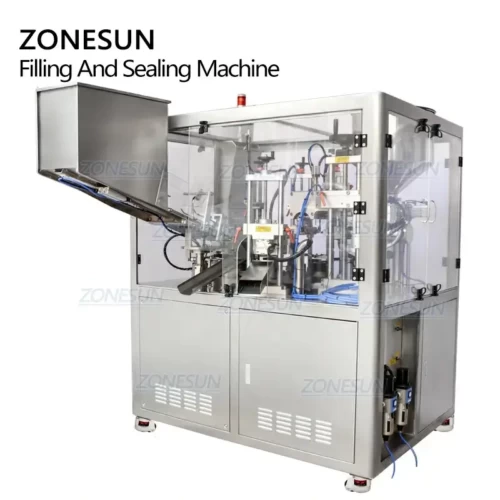

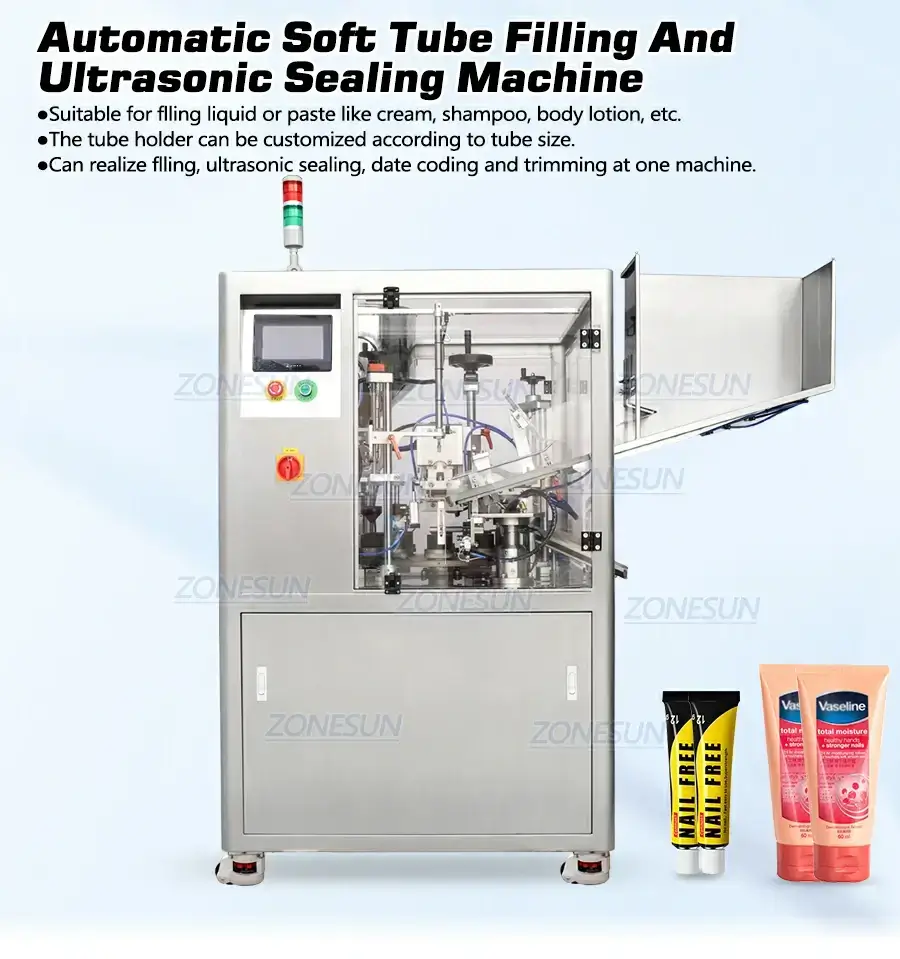

Ointment Tube Filling Sealing Machine
Automatic Filling and Sealing Machine is specially designed for the products.Which has a small quantity and a special tube diameter? The machine has the virtue of the high-speed filling and sealing machine,with a highly automatic operation and runs smoothly.It can be automatic tube filling, sealing, cutting and print date.the unique one-headed design is easier to clean.More convenient to the size changing and more simply to control.it is suitable to be for medicine cream,toothpaste,cosmetics,glue,adhesive,ketchup and art palette industry especially.
Share to

Description:
Automatic Filling and Sealing Machine is specially designed for the products.Which has a small quantity and a special tube diameter? The machine has the virtue of the high-speed filling and sealing machine,with a highly automatic operation and runs smoothly.It can be automatic tube filling, sealing, cutting and print date.the unique one-headed design is easier to clean.More convenient to the size changing and more simply to control.it is suitable to be for medicine cream,toothpaste,cosmetics,glue,adhesive,ketchup and art palette industry especially.

Parameter:
| Machine Model | ZS-FS009U |
| Voltage | 220V/110V 50-60Hz |
| Power | 2.6KW |
| Hopper Capacity | 30L |
| Flling Range | 6-60ml/10-120ml/25-250ml |
| Flling Accuracy | ±1% |
| Sealing Speed | 18-28pcs/min |
| Sealing Diameter | 16-50mm |
| Sealing Height | 70-210mm |
| Sealing Method | Ultrasonic Sealing |
| Ultrasonic Frequency | 20KHz |
| Air Pressure | 0.6Mpa |
| Application | Aluminum-plastic soft tube/Plastic soft tube |
| Machine Material | Stainless Steel |
| Net Weight/Gross Weight | About 450kg/555kg |
| Machine Size | About 1615*1400*1590mm |
| Package Size | About 1610*1760*1860mm |
