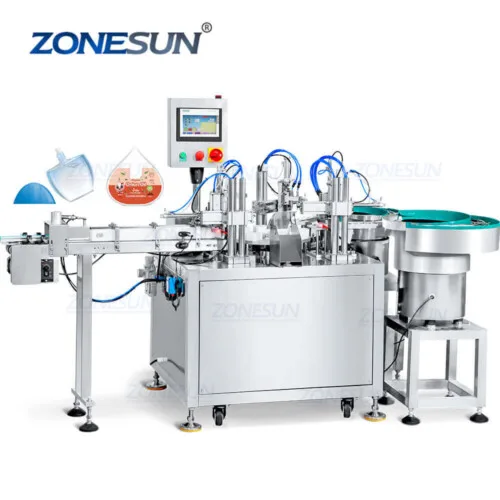

Onion Oil Bottles Rotary Filling Capping Machine

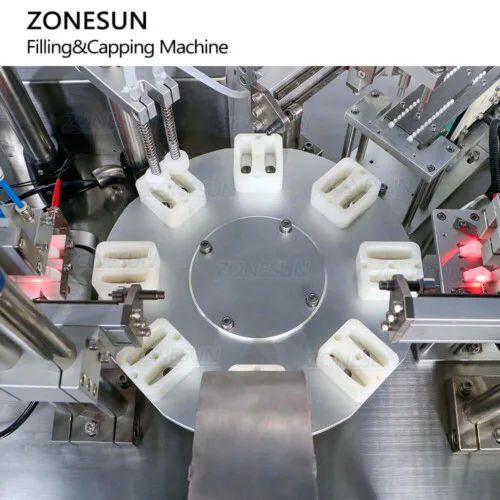

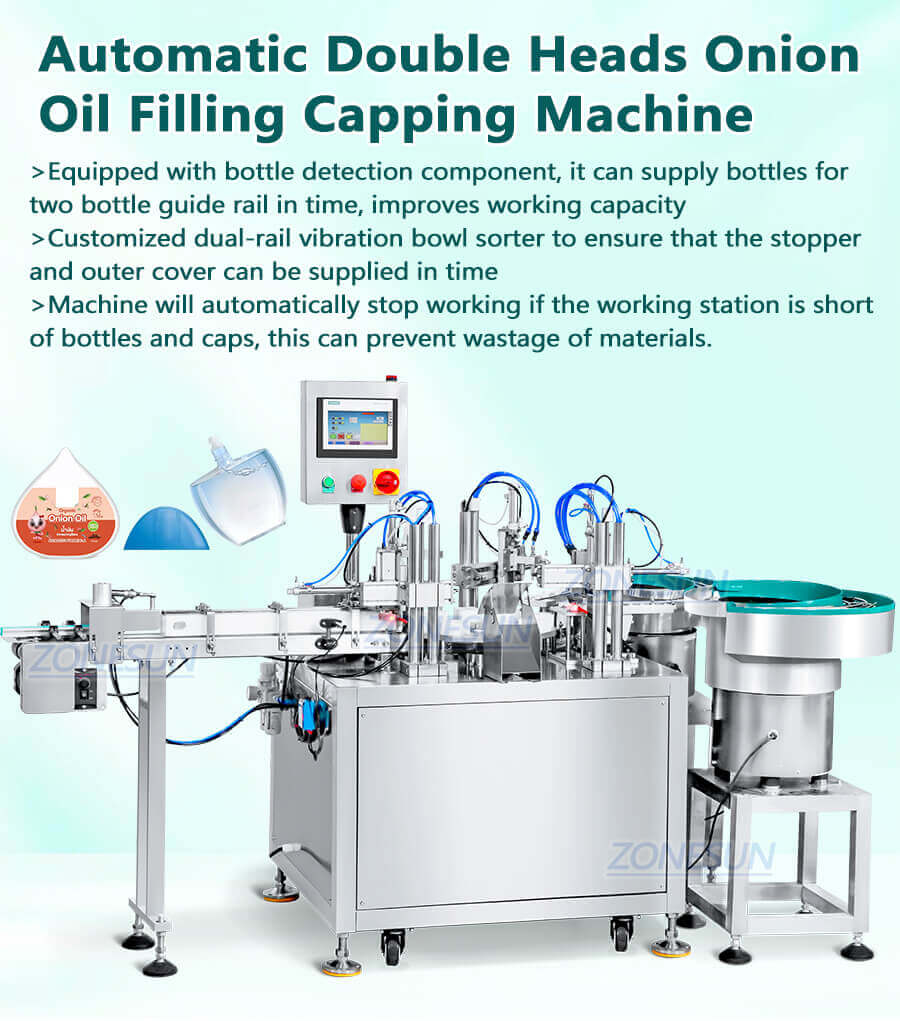

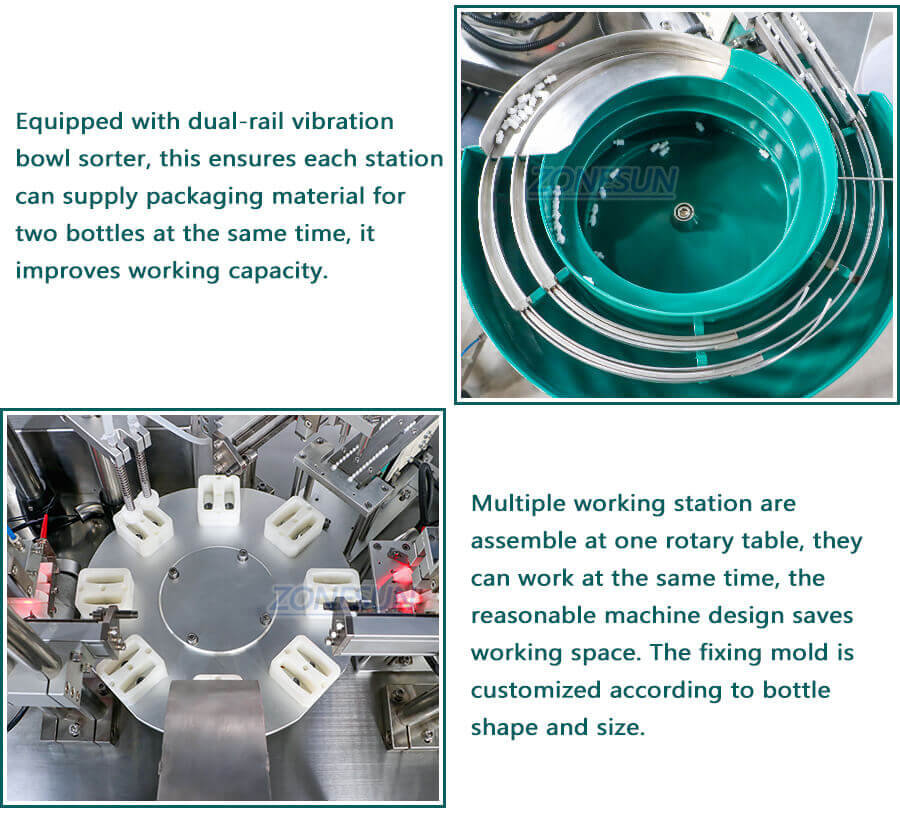

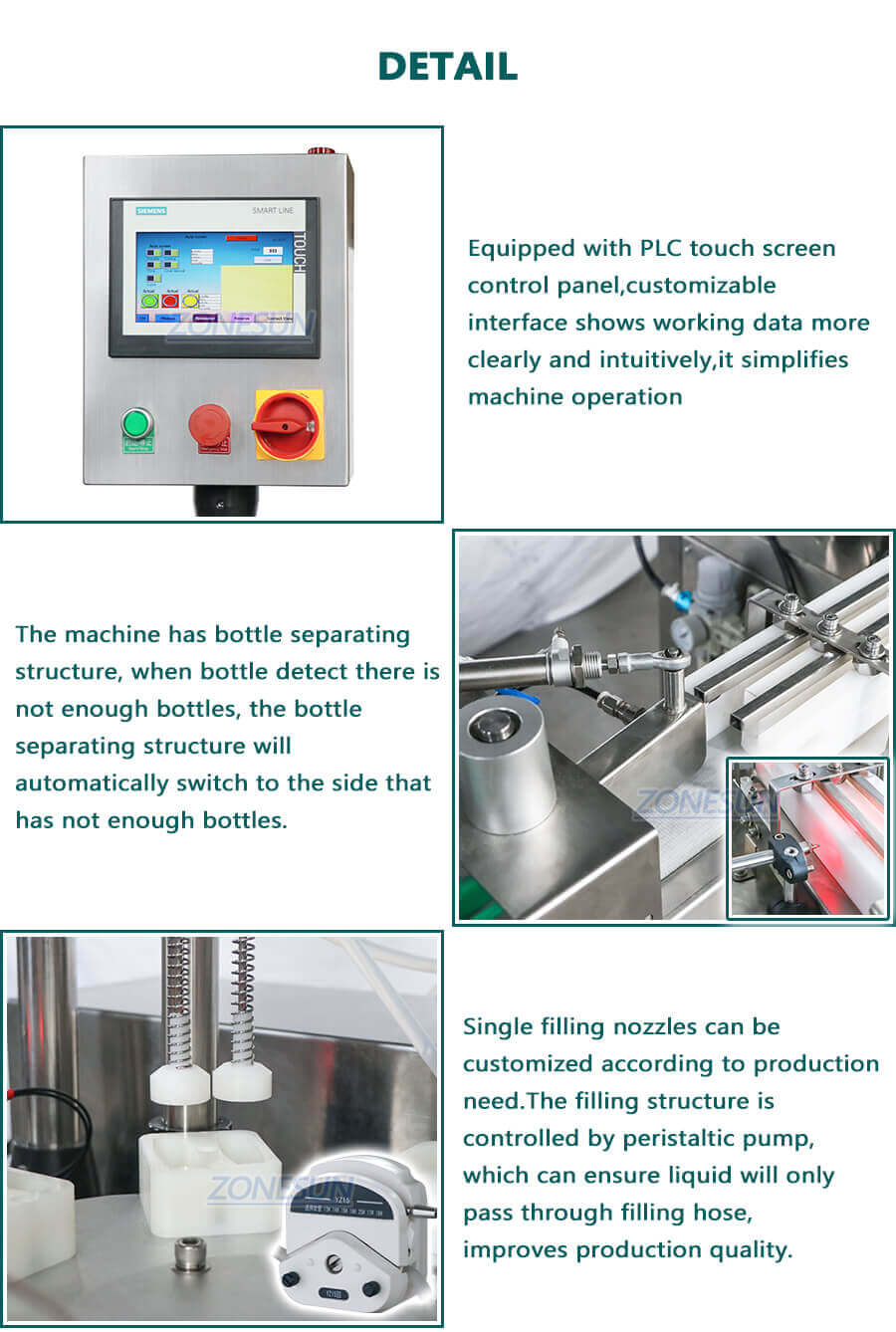

This machine can realize automated bottle feeding, liquid filling, stopper and outer cover pressing at one rotary table at the same time, it also adopts double guide rails to feed bottles, each working station can work for two bottles at the same time, this improves production capacity greatly. It is customized for the onion oil bottles, suitable for small and medium scale production.
Share to
Description:

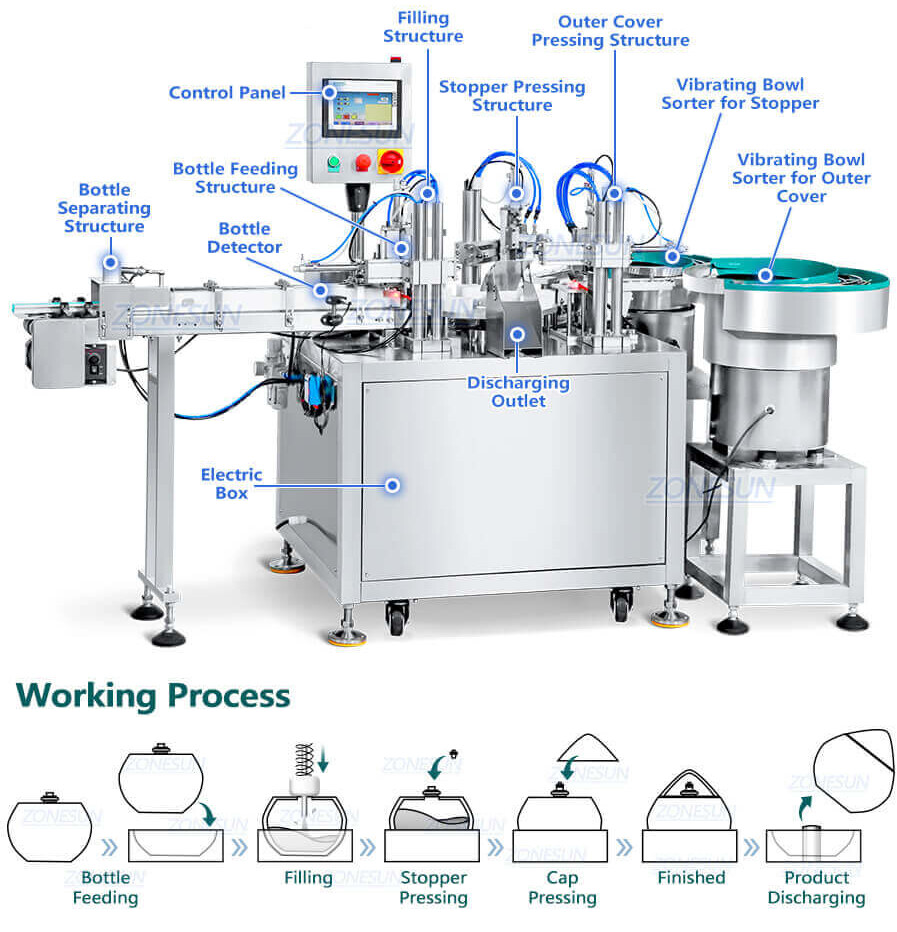

This machine can realize automated bottle feeding, liquid filling, stopper and outer cover pressing at one rotary table at the same time, it also adopts double guide rails to feed bottles, each working station can work for two bottles at the same time, this improves production capacity greatly. It is customized for the onion oil bottles, suitable for small and medium scale production.
| Machine model | ZS-AFC6F |
| Machine voltage | 110/220V 50-60HZ About 2KW |
| Filling pump | Peristaltic Pump |
| Filling range | Customized |
| Filling accuracy | 10ml±2% |
| Air pressure | About 0.6-0.8MPa |
| Working speed | About 2200-2500BPH |
| Machine size | About 2300*1100*1550mm |
| Package Size |
1340*950*1710mm (Filling Machine)
Abouut 1120*460*680mm (Brackets+Vibratory Bowl 1)
670*620*670mm (Vibratory Bowl 2)
|
| Package Weight |
286kg (Filling Machine)
About 65kg (Brackets+Vibratory Bowl 1) 68kg (Vibratory Bowl 2)
|
| Machine Component | Brand | Origin | |
| PLC | Siemens | Germany | |

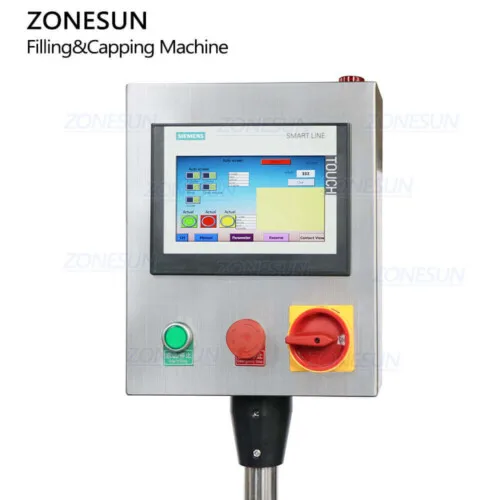

| Control Panel | Siemens | Germany | |
| Inverter | ZIRI | China | |
| Intermediate Relay | Siemens | Germany | |
| Air Switch | Siemens | Germany | |
| Pneumatic Component | AirTAC | Taiwan,China | |
| Photoelectric Sensor | Panasonic | Japan | |
