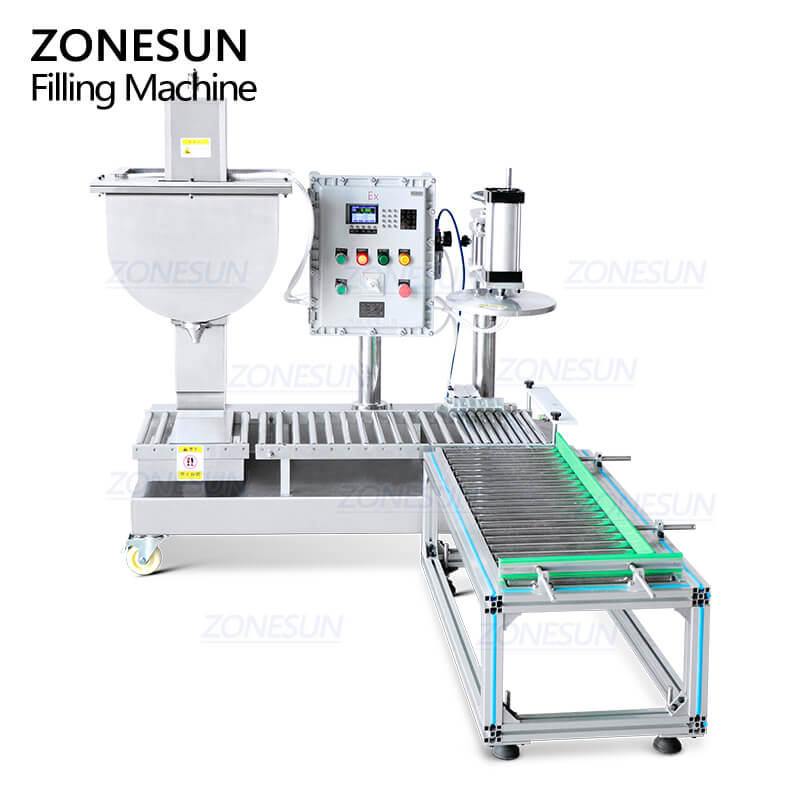

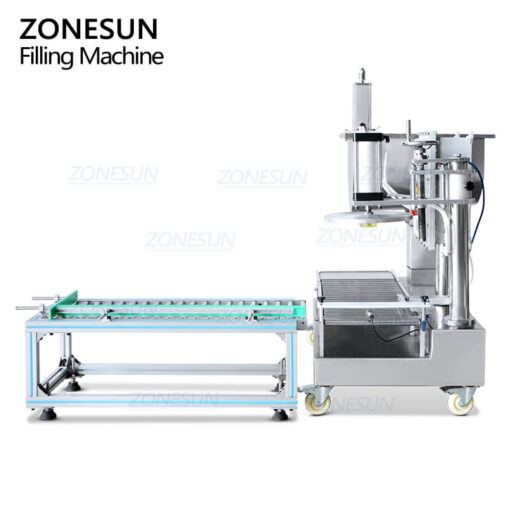

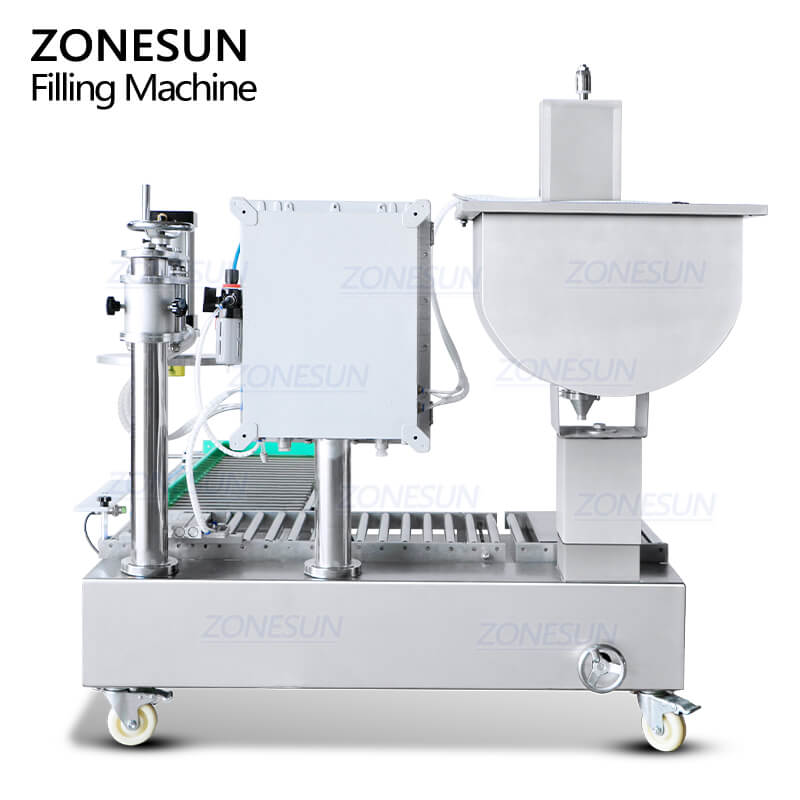

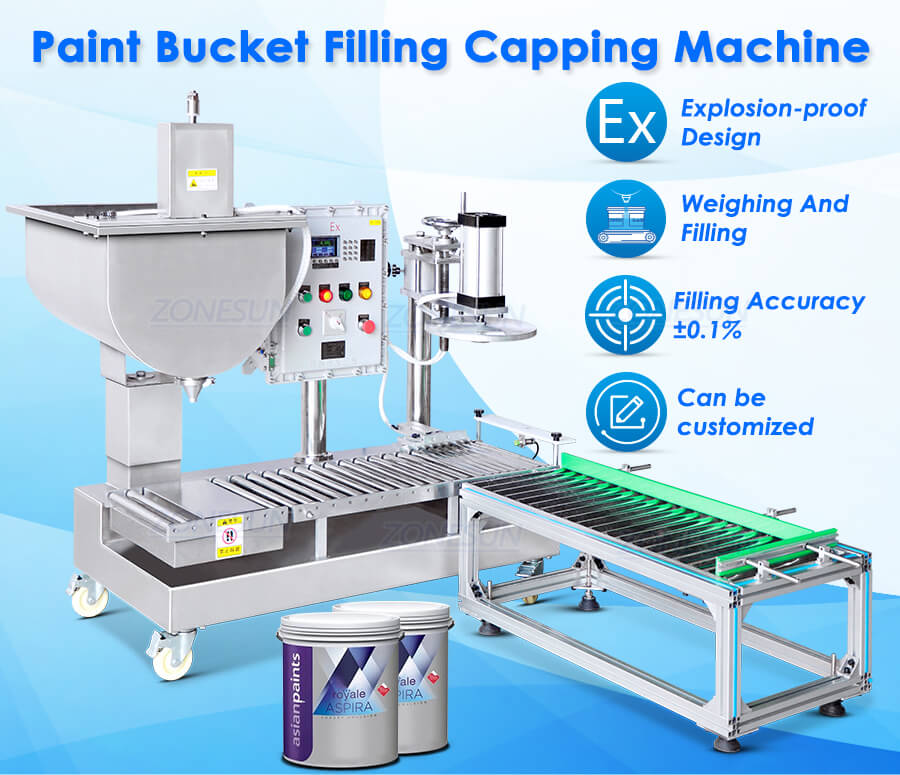

Paint Bucket Filling Capping Machine

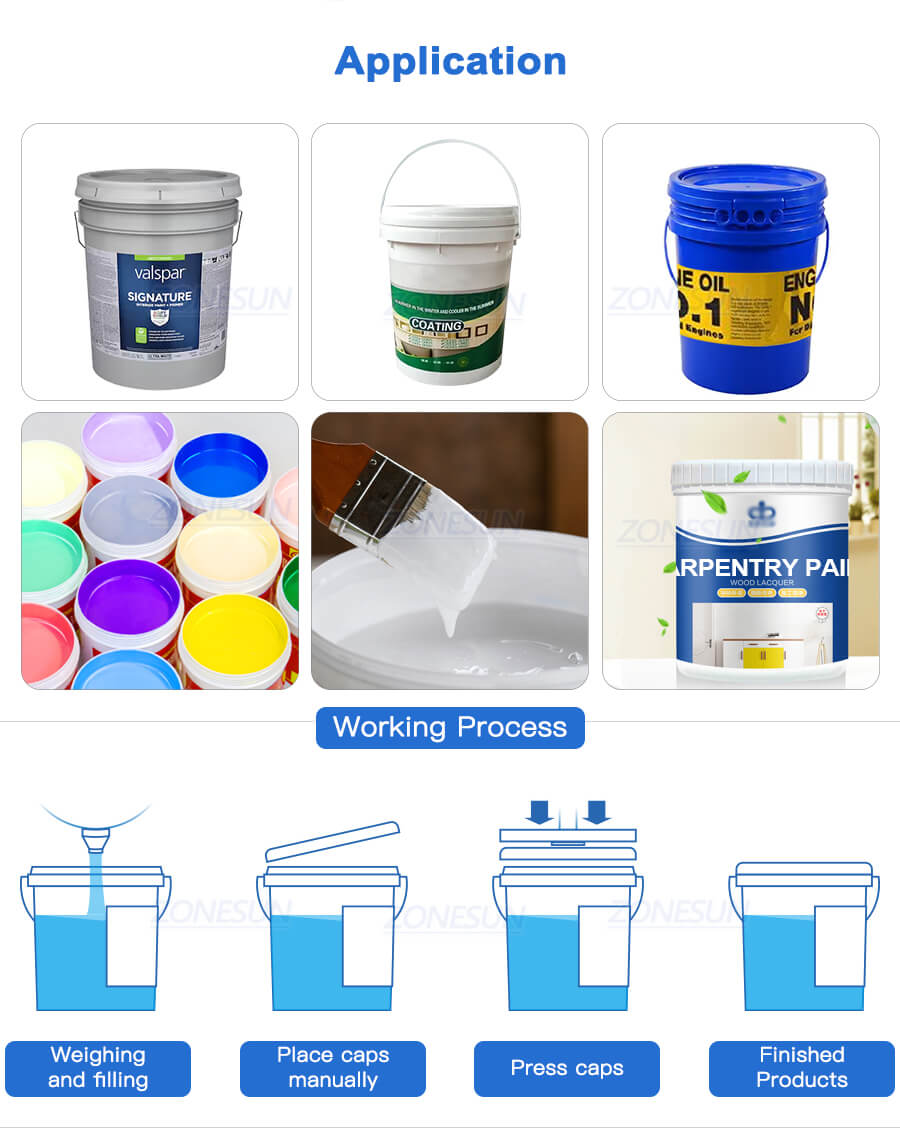

This weighing filling machine is specifically designed for weighing and filling large capacity liquid or paste products into buckets, such as oil paints, latex paint, and thinner. It also features an explosion-proof function, making it suitable for use with flammable products.
Share to
Product Description:
This weighing filling machine is specifically designed for weighing and filling large capacity liquid or paste products into buckets, such as oil paints, latex paint, and thinner. It also features an explosion-proof function, making it suitable for use with flammable products.
Product Parameters:
|
Machine Model
|
ZS-AFC22
|
|
Voltage
|
220V/50-60Hz
|
|
Power
|
100W
|
|
Working Speed
|
About 4-6 buckets/min
(depending on bucket size and filling materials)
|
|
Filling Method
|
By weighing
|
|
Filling Range
|
1-10L
|
|
Filling Accuracy
|
±0.1%
|
|
Weighing Range
|
≤10kg
|
|
Hopper Capacity
|
60L
|
|
Air Pressure
|
0.4-0.6Mpa
|
|
Air Consumption
|
5m³/h
|
|
Ambient Temperature
|
-10℃-45℃
|
|

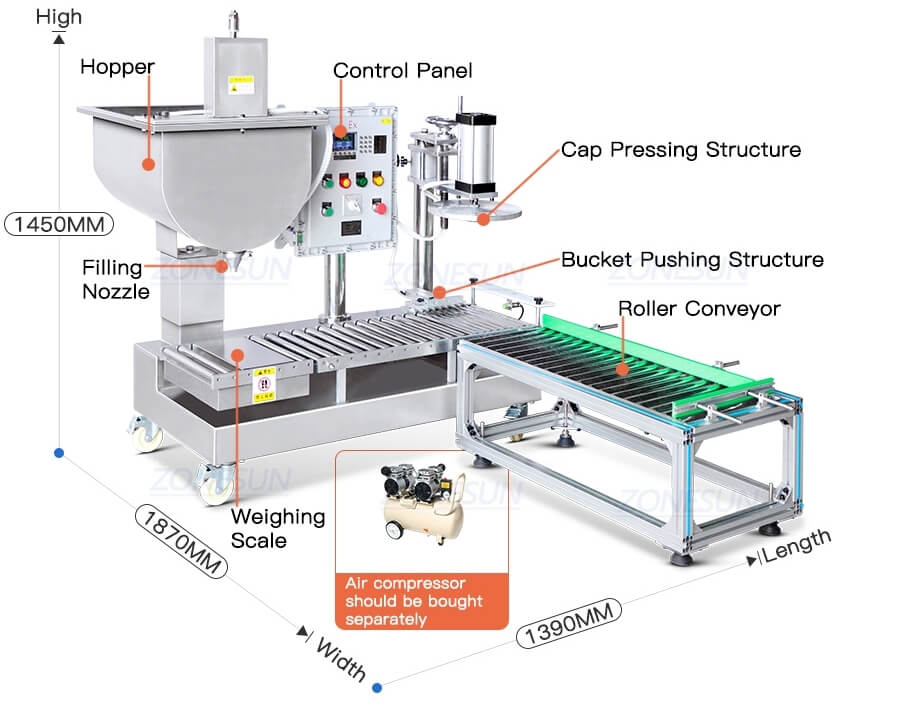

Machine Size
|
About 1390*1870*1450mm
|
Product Details:

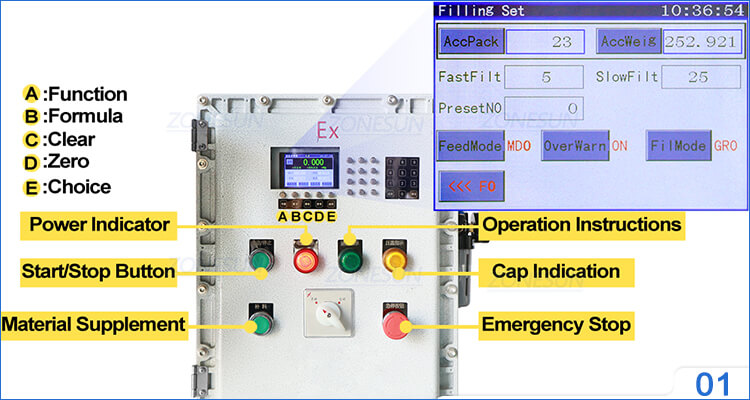

Digital Control Panel
Intuitive panel for parameter adjustment. The language of panel can be customized.

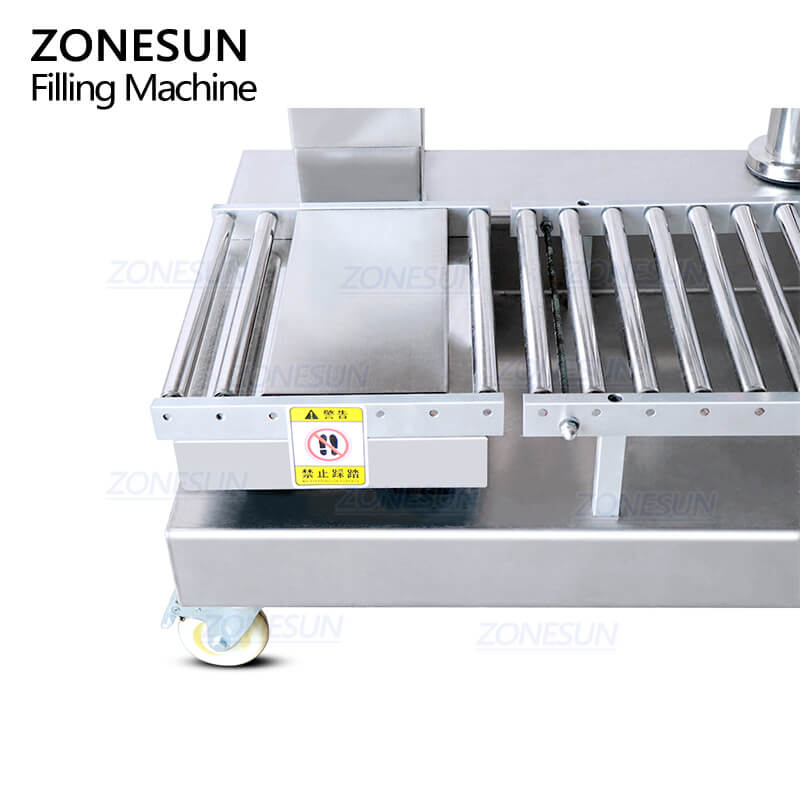

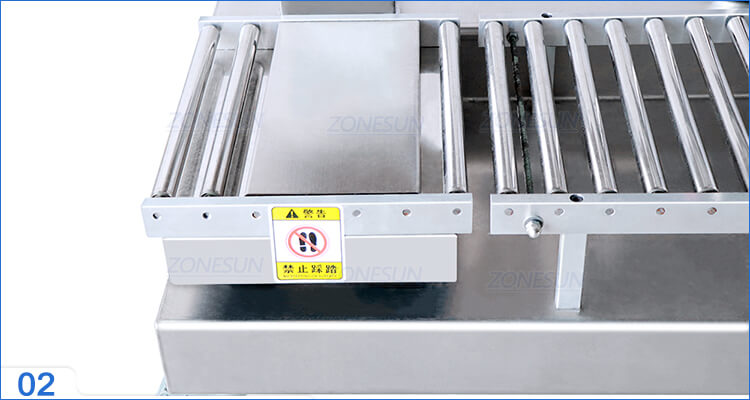

Weighing Scale
It will stop filling when the bucket weight achieves the set weight, ensuring filling accuracy.

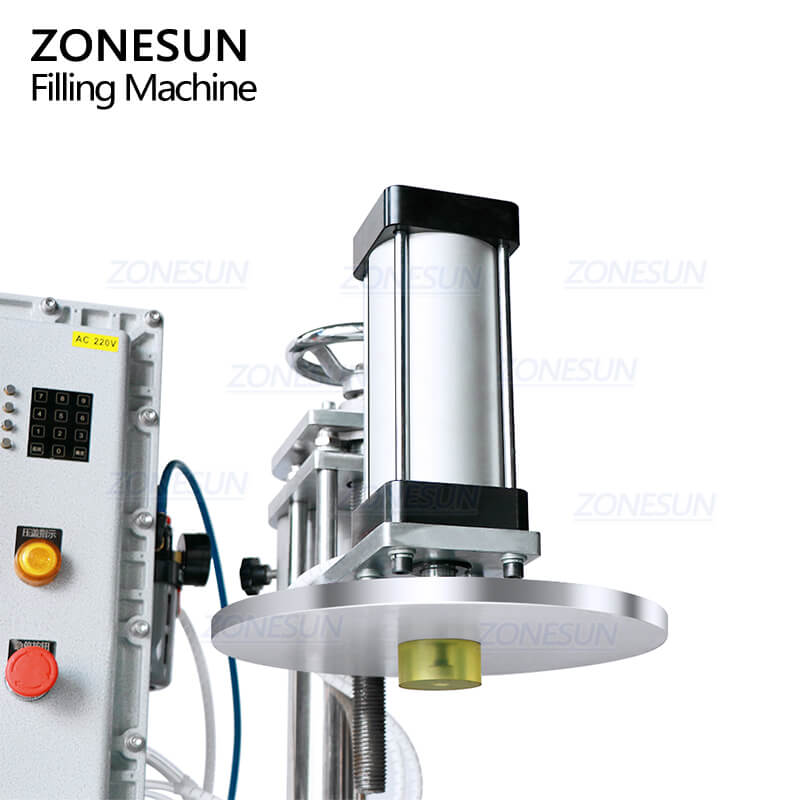

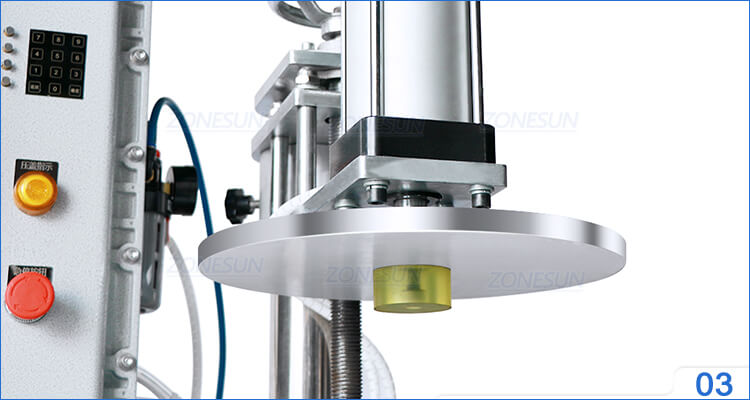

Cap Pressing Structure
The working height can be adjusted according to bucket size. It can be customized as needed.

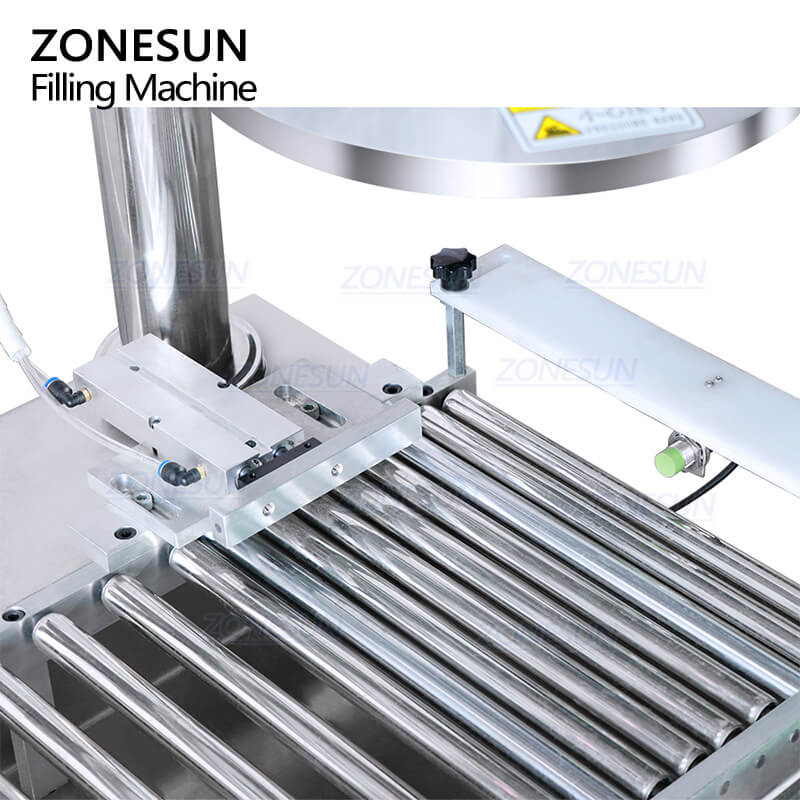

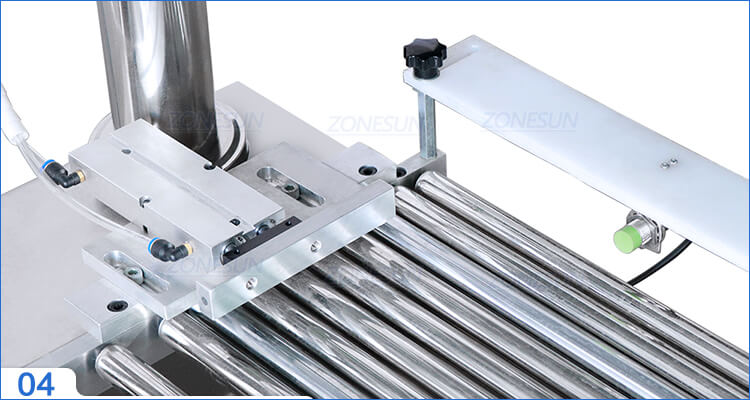

Pushing Structure
Can push buckets out after finishing cap pressing, saving labor.
