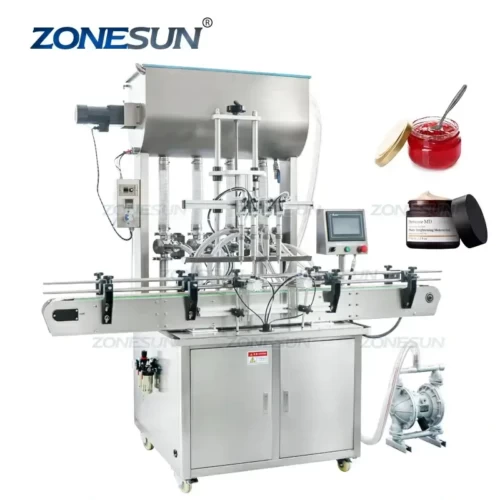

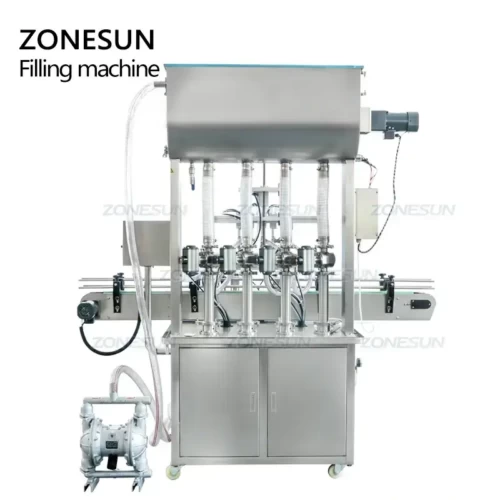

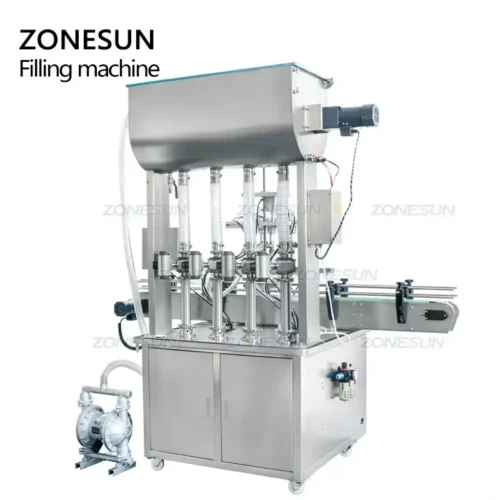

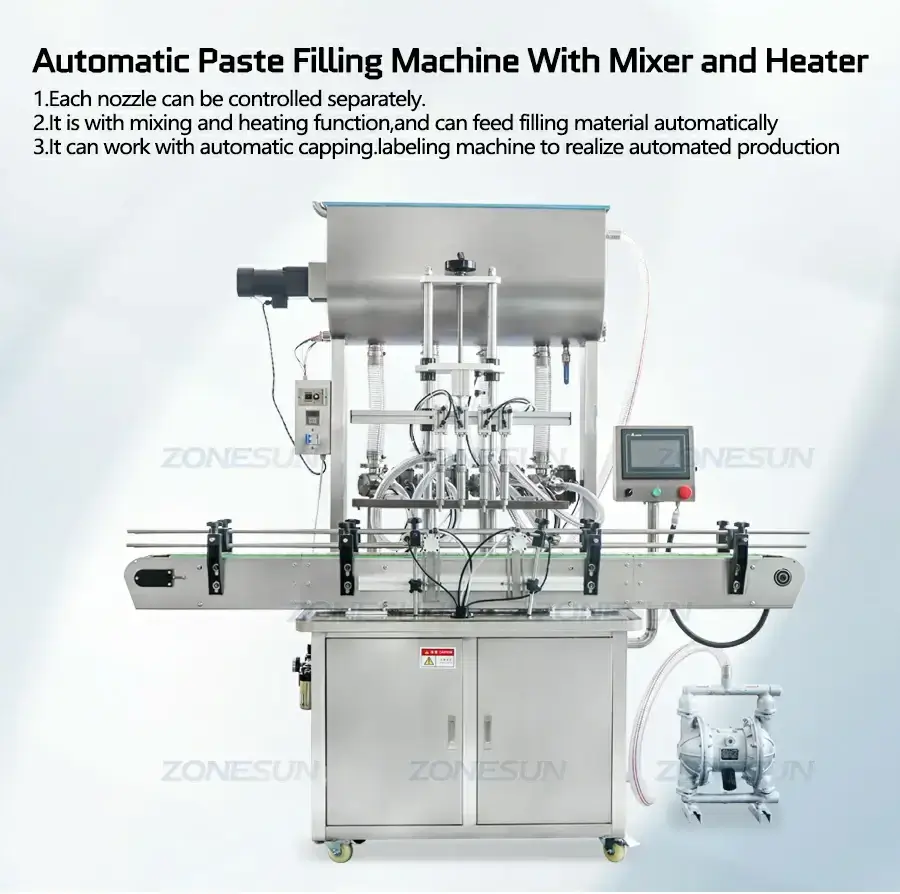

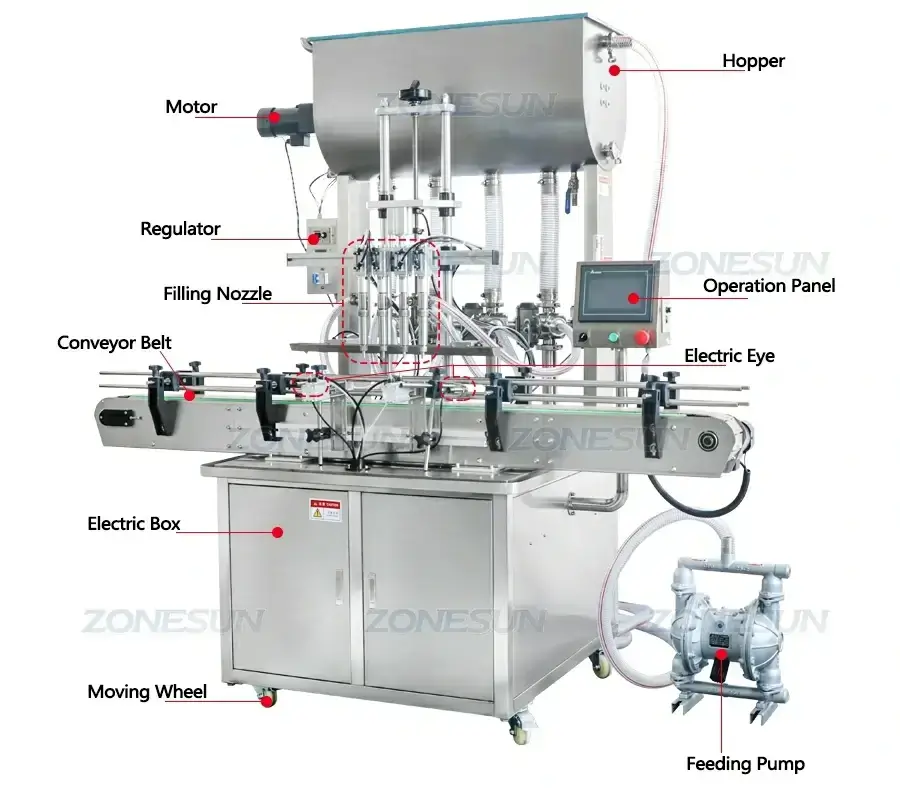

Heating Mixing Filling Machine

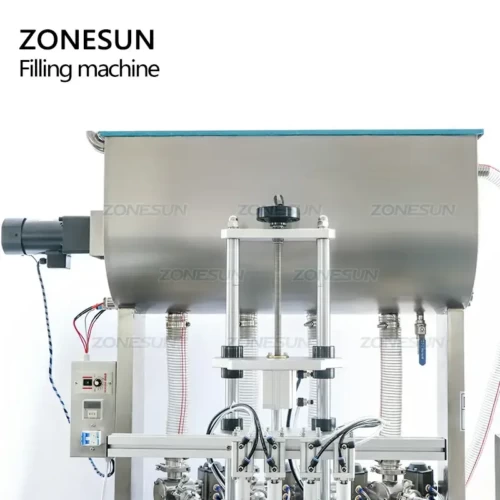

This machine is designed with mixing and heating function,and it can feed filling material automatically.This machine is good for filling pepper sauce,chocolate etc.Each nozzle can be controlled separately.It is widely used in food,beverage,daily chemical industries.
Share to
Description:

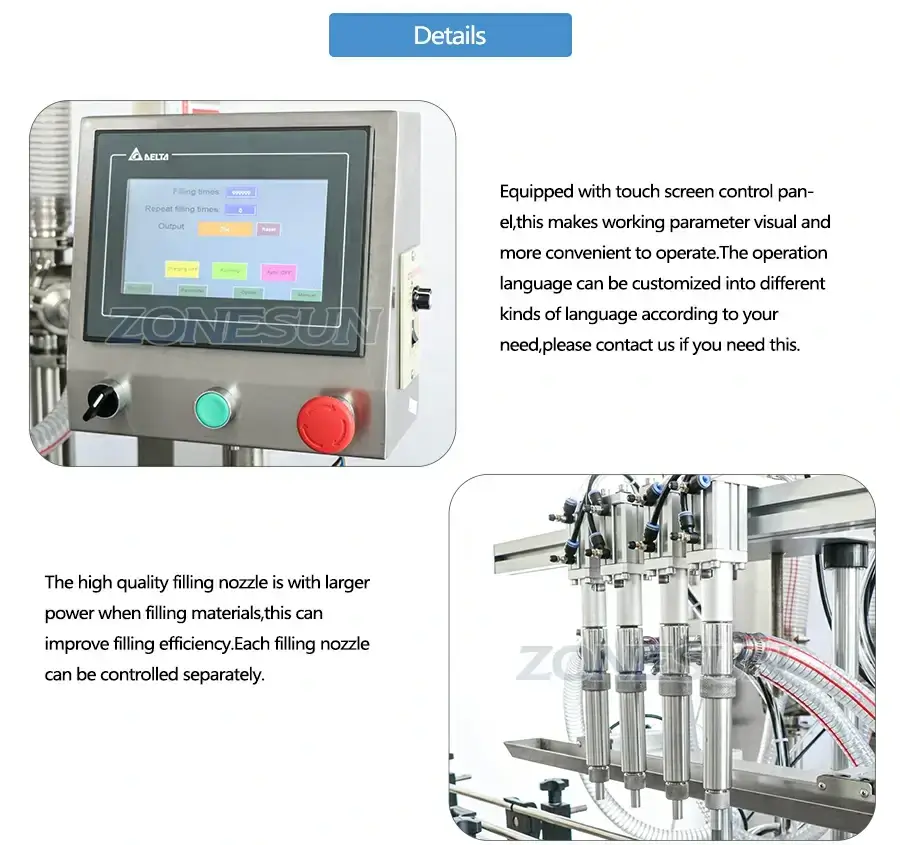

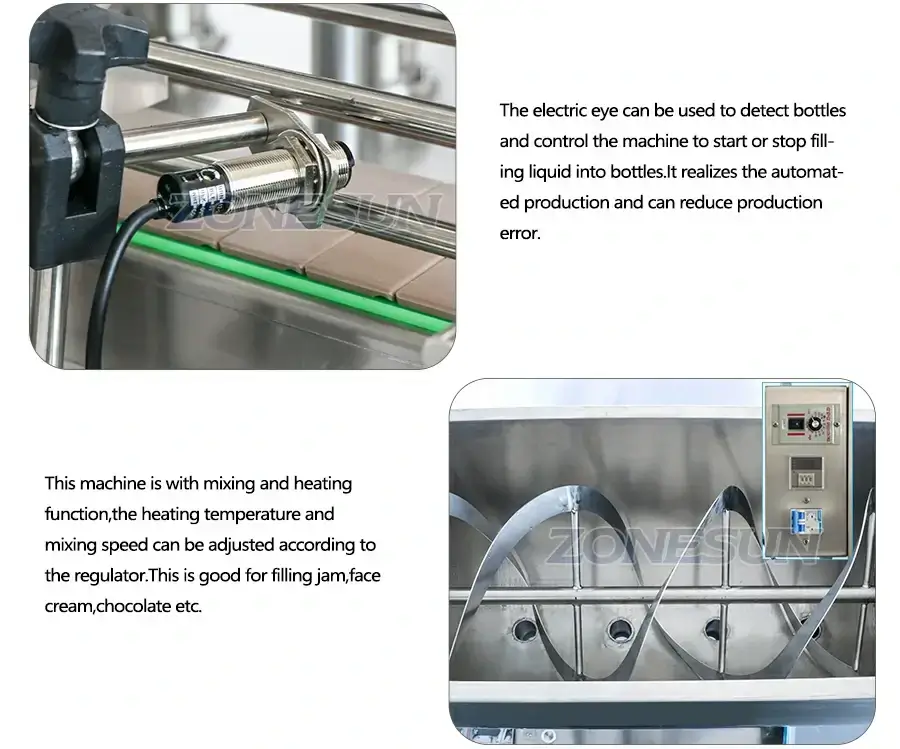

This machine is designed with mixing and heating function,and it can feed filling material automatically.This machine is good for filling pepper sauce,chocolate etc.Each nozzle can be controlled separately.It is widely used in food,beverage,daily chemical industries.
Parameter:
| Model | ZS-YT4T-4PM |
| Voltage | 110/220v 50-60HZ 600W |
| Filling Range | 5-100m/10-300ml/50-500ml/100-1000ml/500-3000m/1000-5000ml |
|
Working Speed(Based On Water)
|
20- 50bottles/Min |
| Heating Temperature | About 0-300℃ |
| Mixing Speed | About 1200r/min |
| Filling Accuracy | ≤±1% |
| Air Pressure | 0.5-0.7mpa |

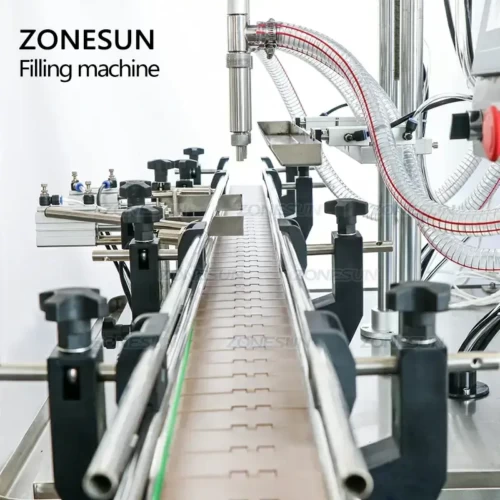

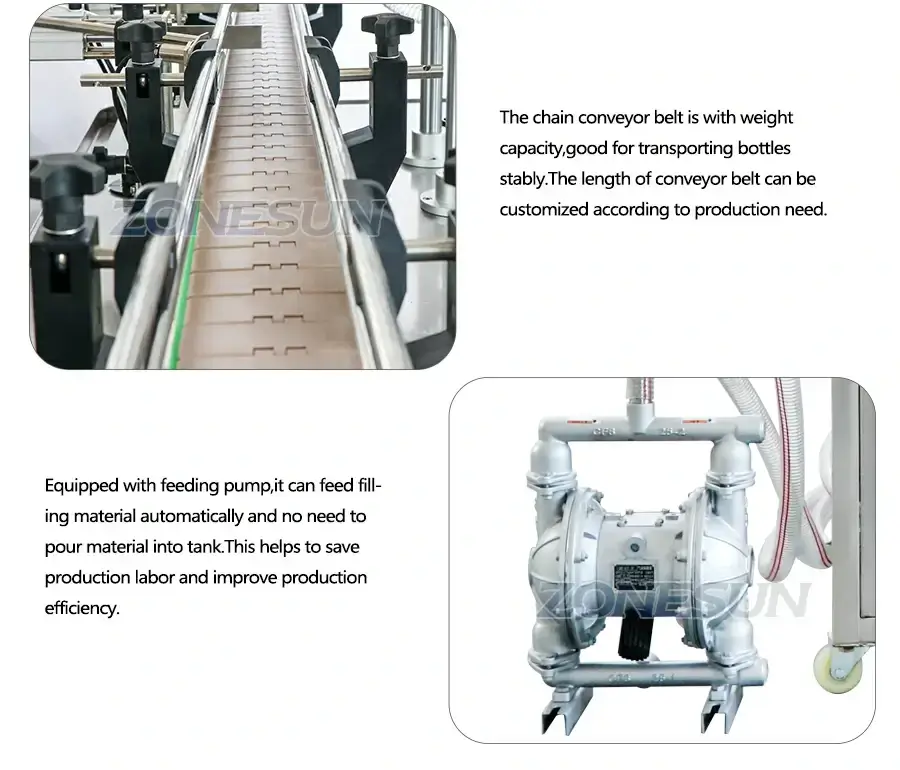

| Conveyor Size | About 2000*100mm(l*w) |

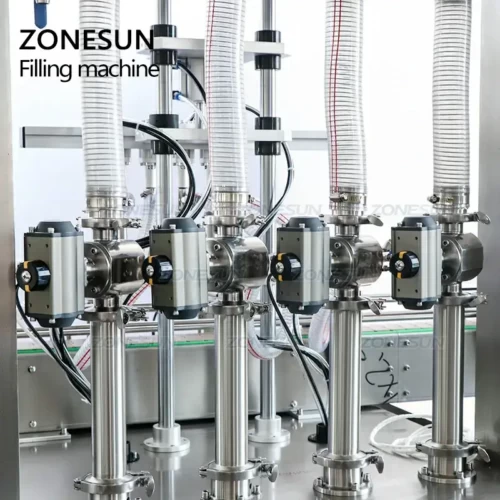

| Size Of Filling Nozzle | φ10mm |
| Size Of Air Compressor Connector | φ10mm |
| Machine Weight | About 329kg |
| Machine Size | About 975*1020*2010mm |
| Package Weight | About 392kg |
| Package Size | About 1660*1130*2130mm |
