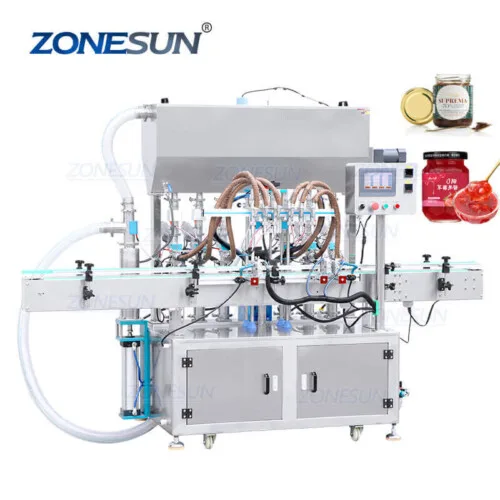

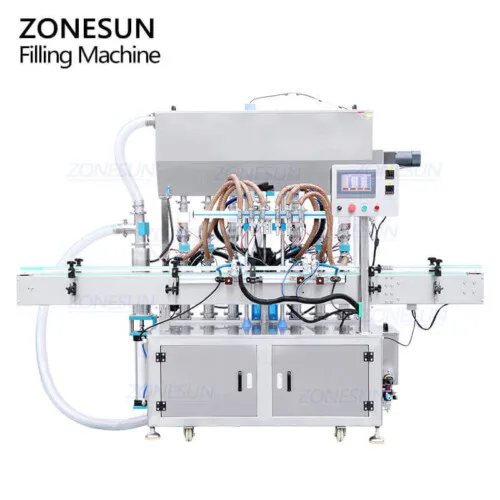

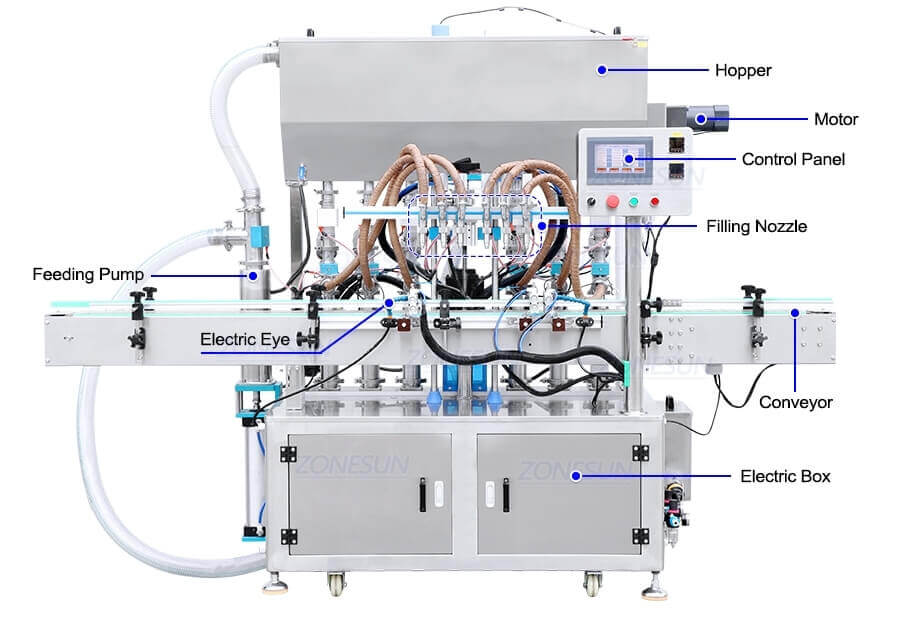

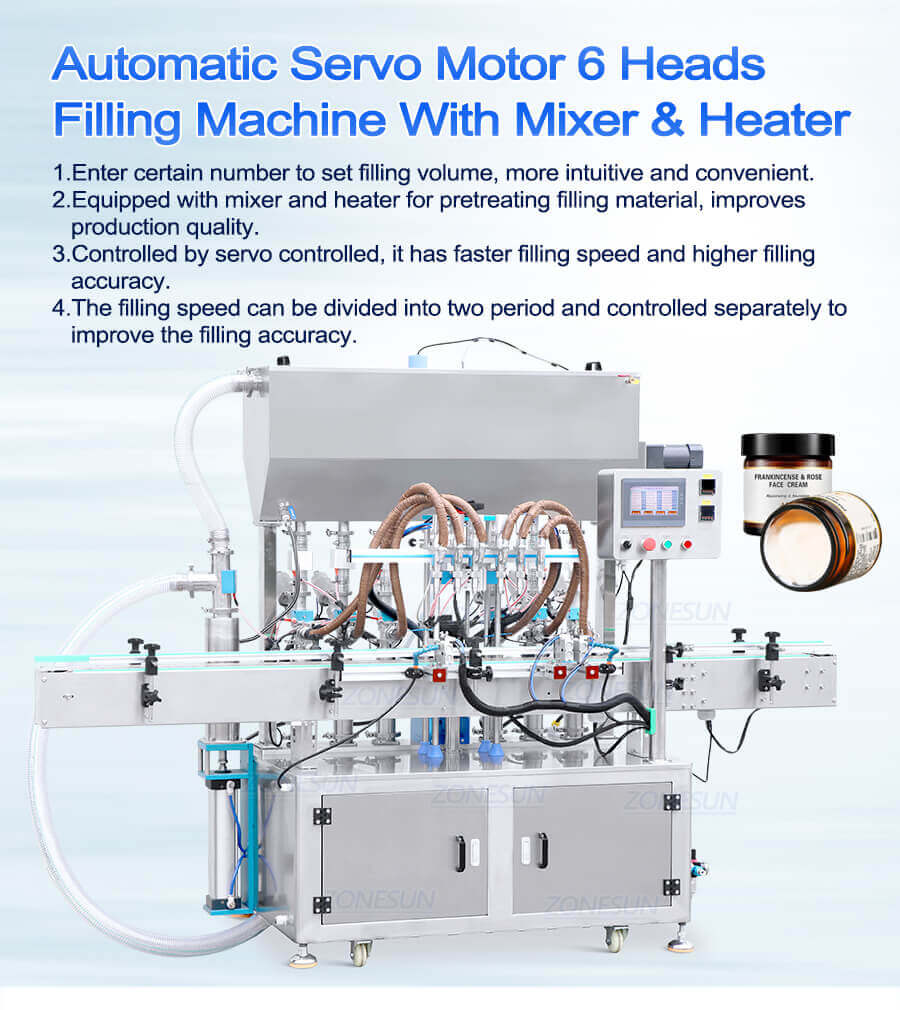

Paste Filling Machine With Mixer And Heater

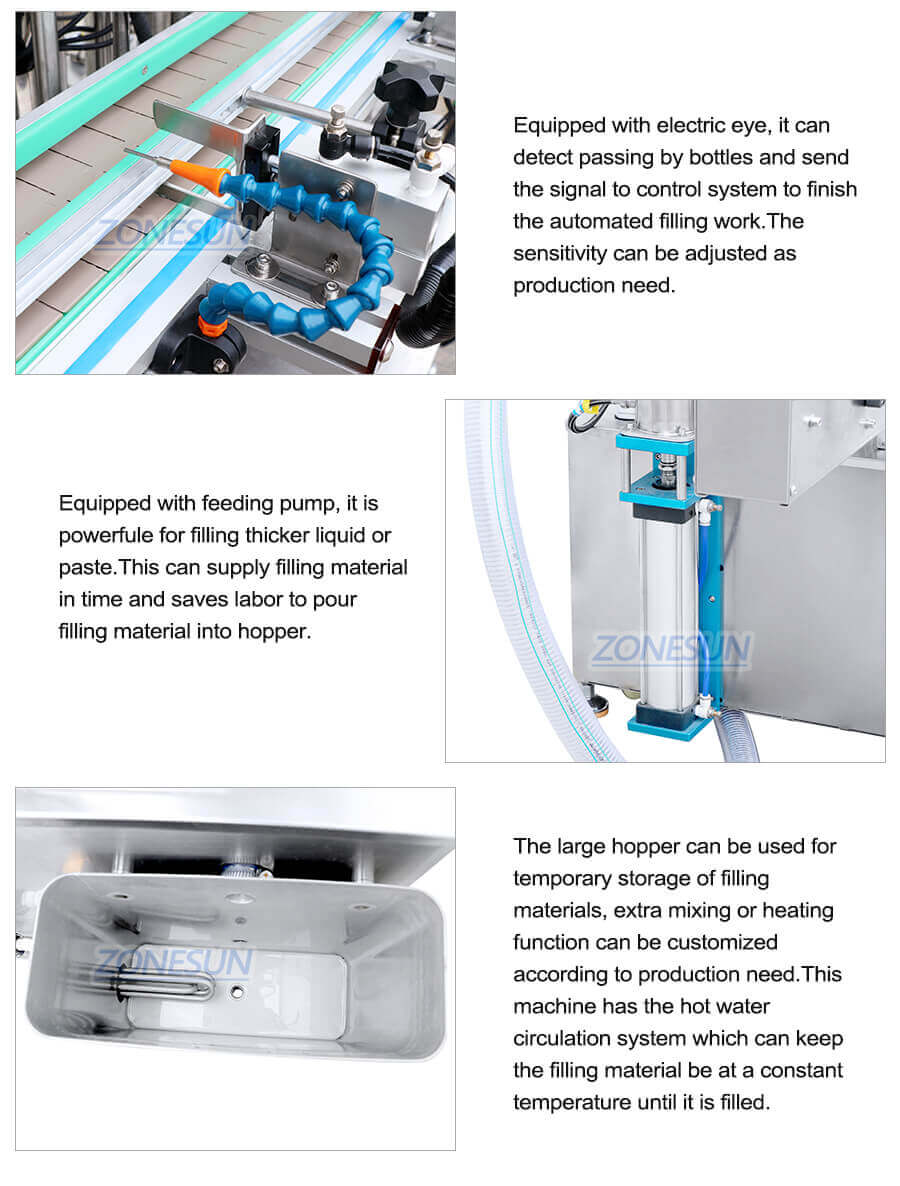

Controlled by servo motor,this 6 heads piston pump filler has high filling accuracy and can set filling volume by intuitive value.Equipped with hot water circulation system,ensure filling material can be filled in constant temperature,it is suitable for filling chocolate jam,hot sauce,jam etc.
Share to
Description:
Controlled by servo motor,this 6 heads piston pump filler has high filling accuracy and can set filling volume by intuitive value.Equipped with hot water circulation system,ensure filling material can be filled in constant temperature,it is suitable for filling chocolate jam,hot sauce,jam etc.
Parameter:
| Machine Model | ZS-YT6T-6PXH |
| Voltage | 480V |
| Power | 6KW |
| Filling Heads | 6 Heads(Can be customized) |
| Filling Range | 10-300ml(Can be customized) |
| Filling Speed | About 20-70bottles/min(depending on materials and bottle size) |
| Suitable temperature range | ≤80℃ |
| Mixing speed | About 50r/min |
| Filling Accuracy | ±1% |
| Air Pressure | 0.5-0.8MPa |
| Memory Function | Available |
| Machine size | About 2500*950*1900mm(L*W*H) |
| Package Size | About 2580*980*2020mm(L*W*H) |
| Package Weight | About 643KG |
