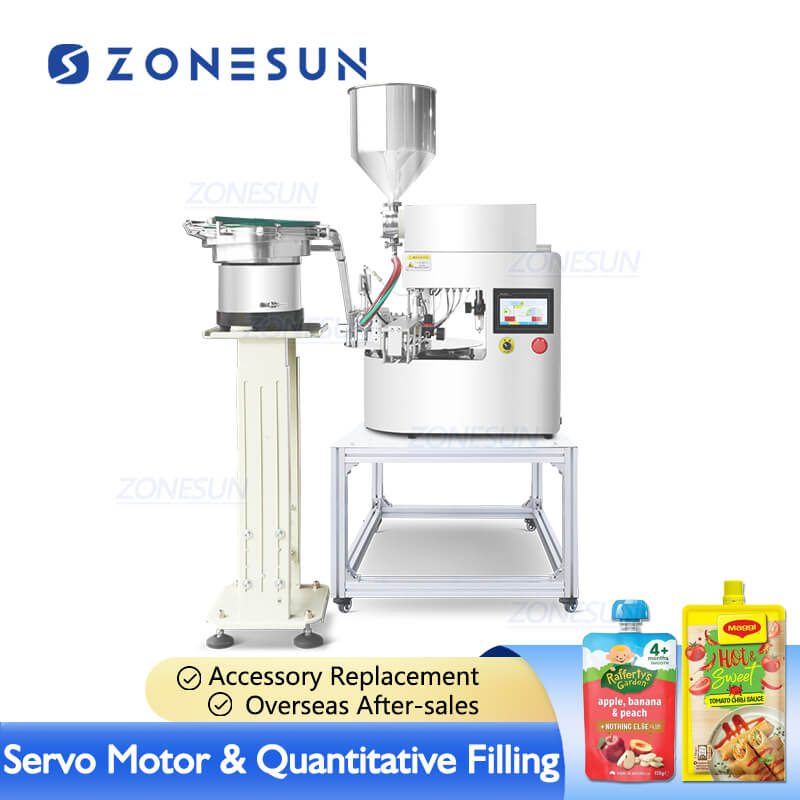

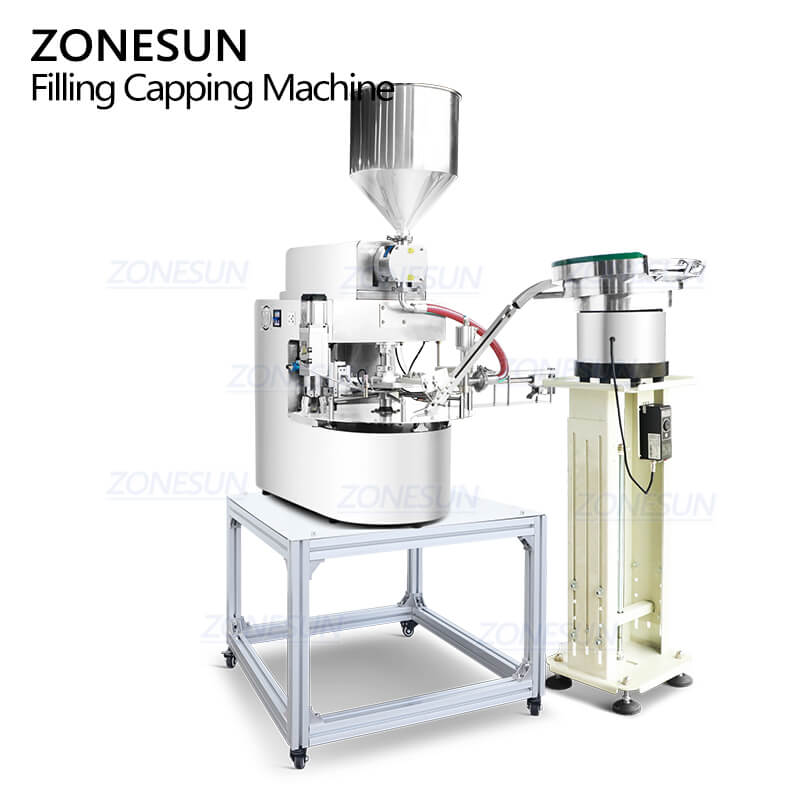

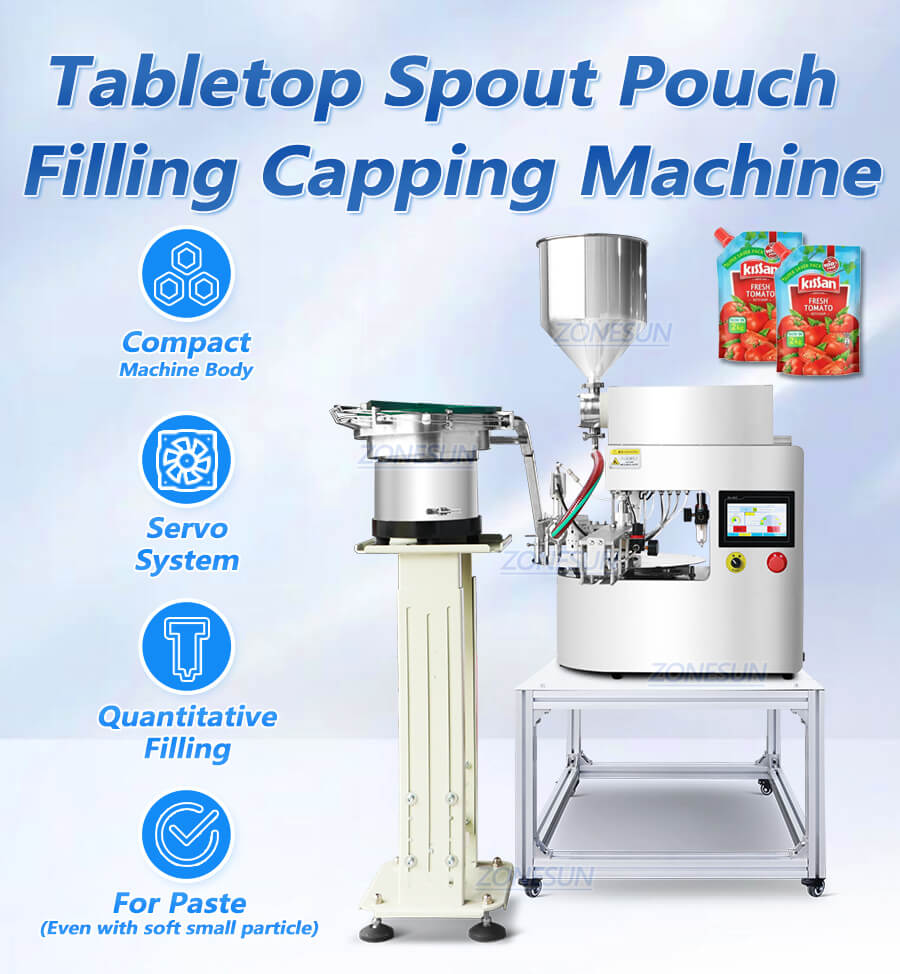

Paste Spout Pouch Filling Capping Machine
This tabletop filling capping machine can fill thick paste into spout pouch like sauce, puree, it is equipped with rotor lobe pump, quantitative filling simplifies machine operation. Compact machine body saves working space.
Share to
Product Description:
This tabletop filling capping machine can fill thick paste into spout pouch like sauce, puree, it is equipped with rotor lobe pump, quantitative filling simplifies machine operation. Compact machine body saves working space.
Product Parameters:
|
Machine Model
|
ZS-SVFC1P
|
|
Voltage
|
110/220V 50-60HZ 2KW
|
|
Filling range
|
100-2000 g(customizable, ＜5000g)
|
|
Working capacity
|
15-20 bags/min(based on filling range)
|
|
Filling pump
|
Rotor Pump
|
|
Filling accuracy
|
±2g
|
|
Air pressure
|
0.5-0.8 Mpa
|
|
Air consumption
|
0.5 m³/min
|
|
Hopper size
|
30L
|
|

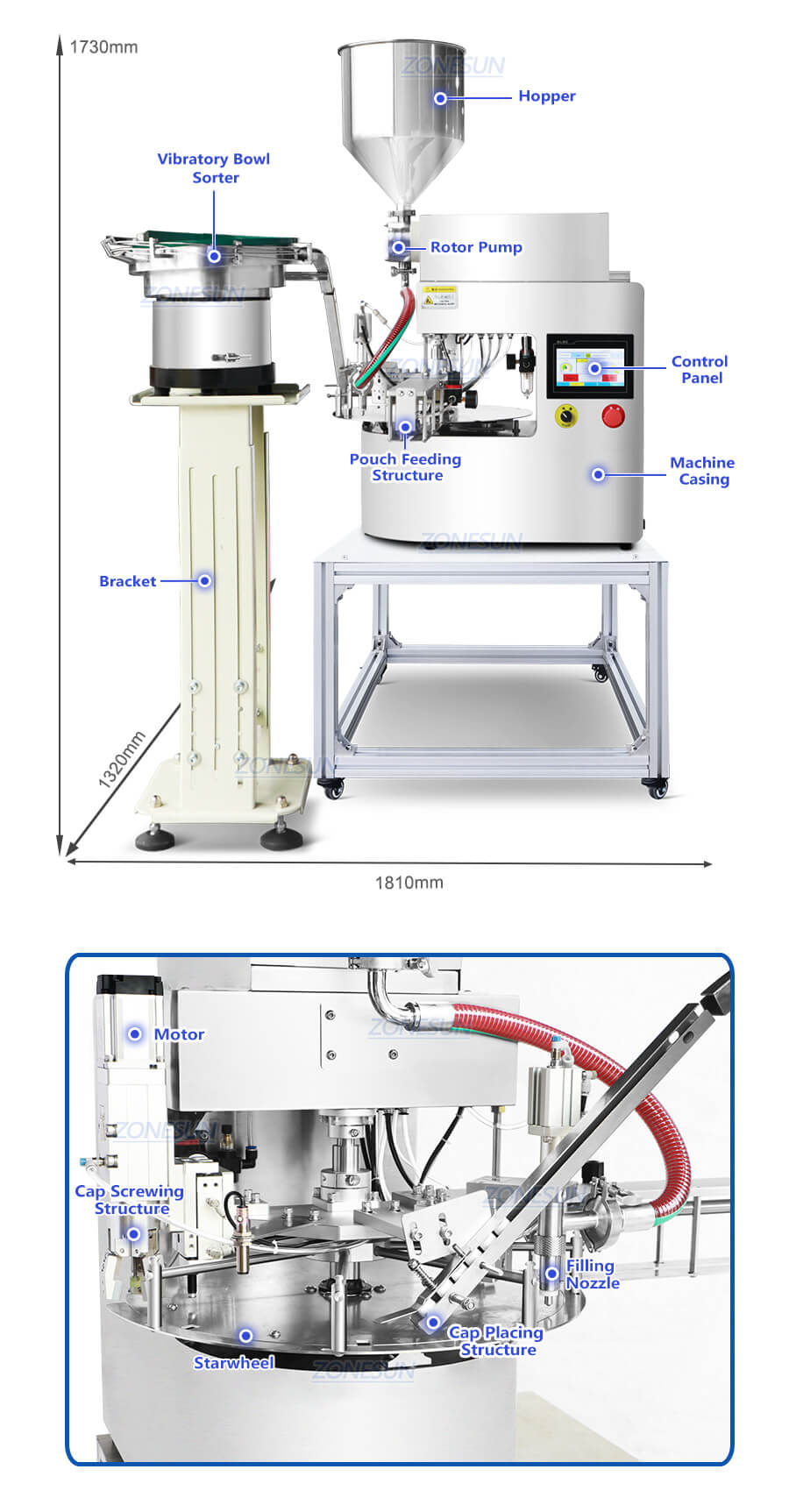

Machine size
|
About 1810*1320*1730 mm
|
|
Machine weight
|
About 80 kg
|
Product Details:

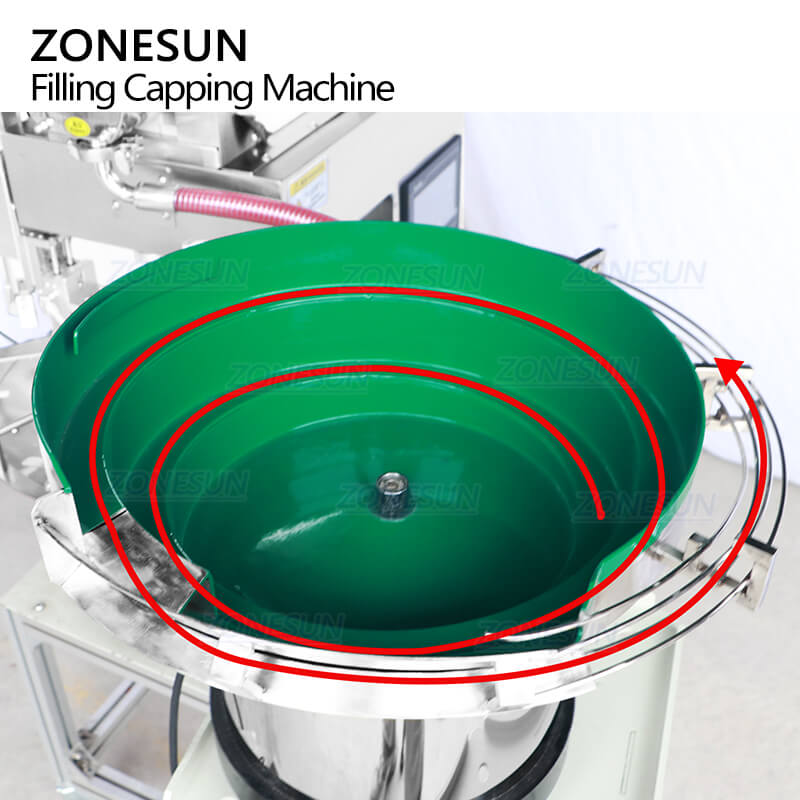

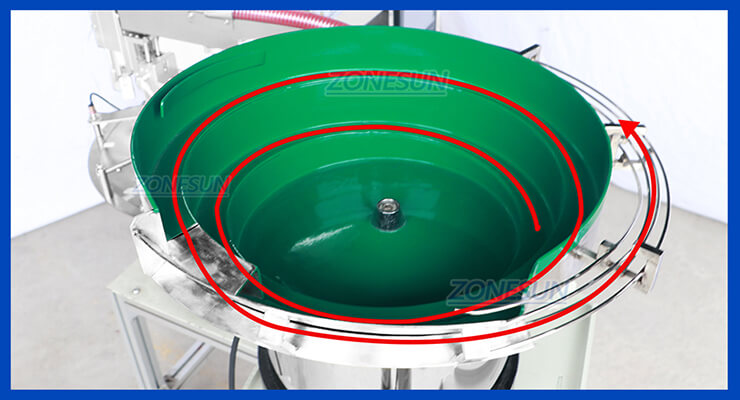

Vibratory Bowl Sorter
Can arrange caps and supply caps to cap placing structure, ensures smooth working.

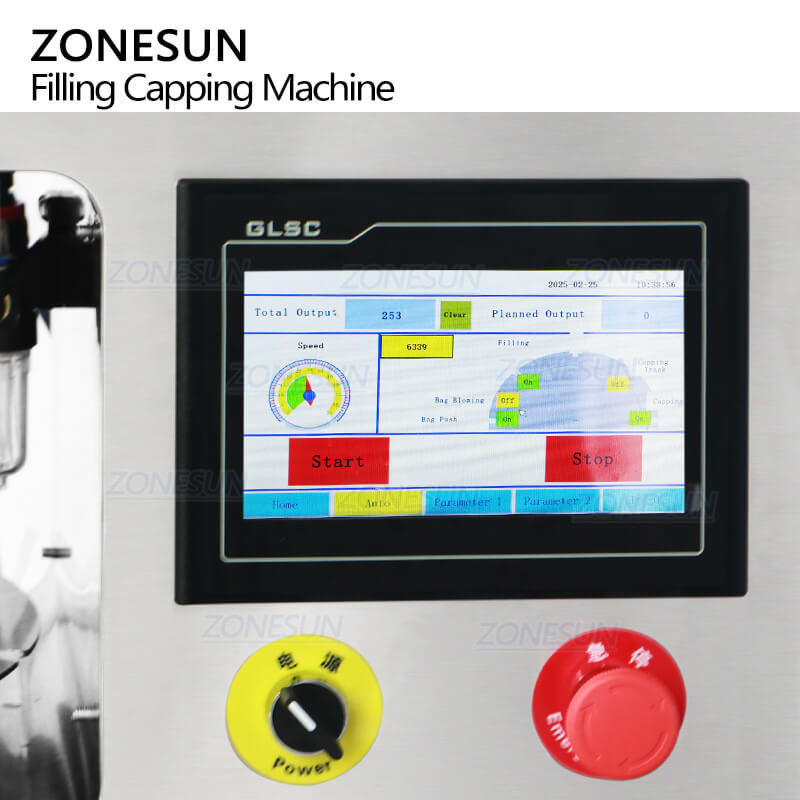

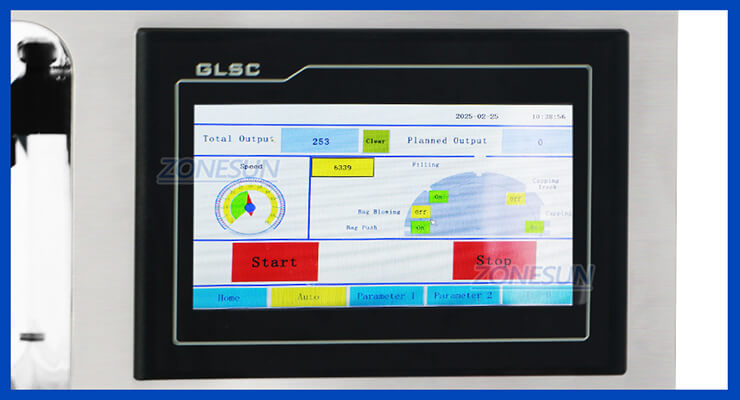

Control Panel
Parameter setting shows more intuitive, set filling volume through control panel directly.

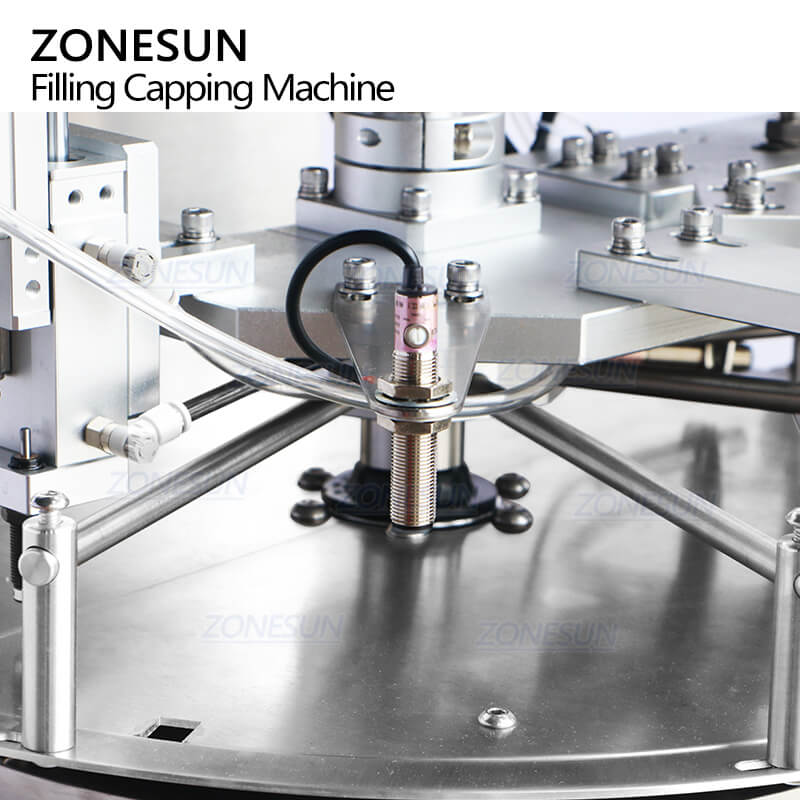

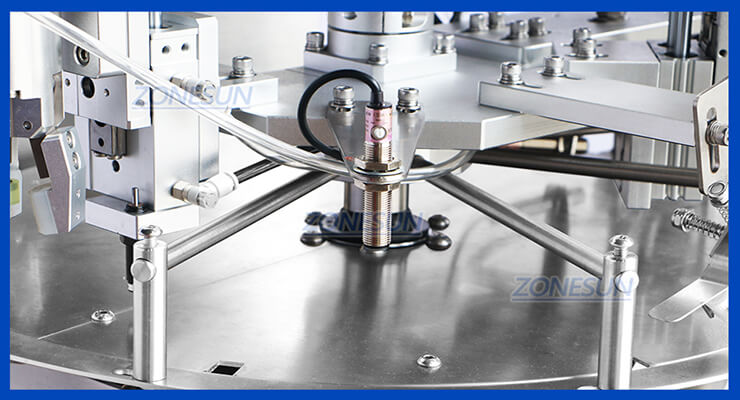

Electric Eye
Can detect passing by pouches and control the automated work.

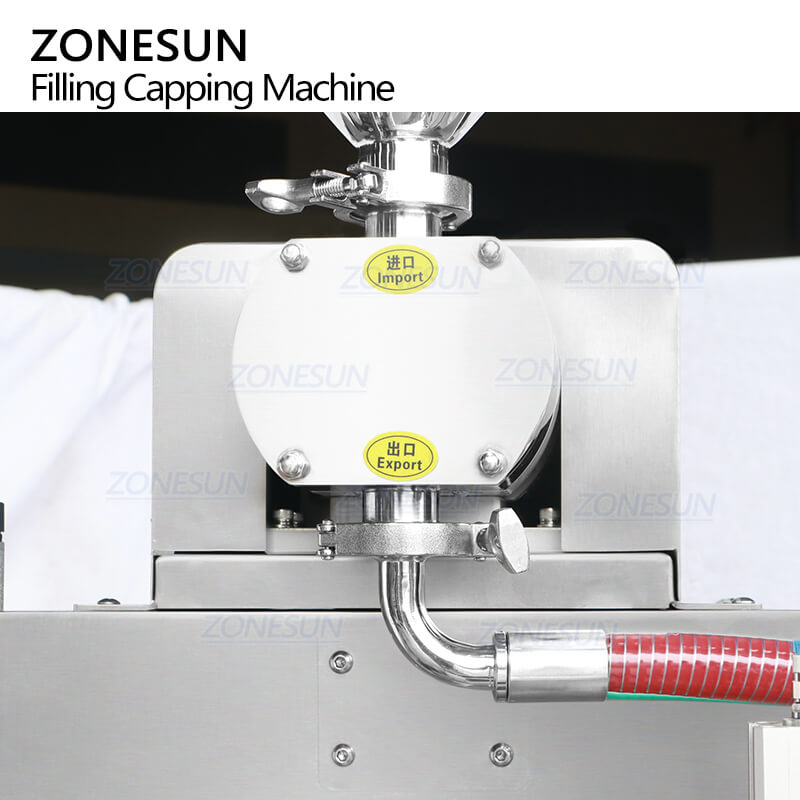

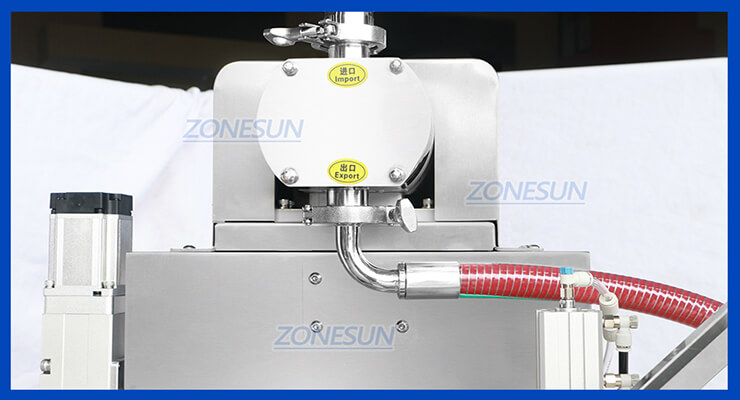

Filling Pump
Using rotor lobe pump to fill paste into pouch, it has wider filling range (100-2000g), also suitable for paste with small soft particles.

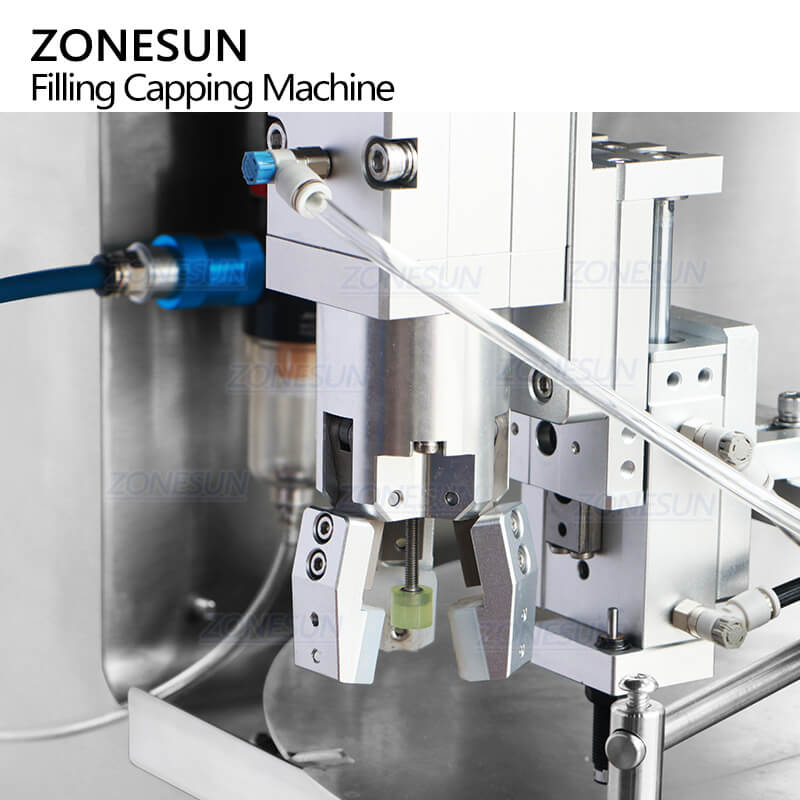

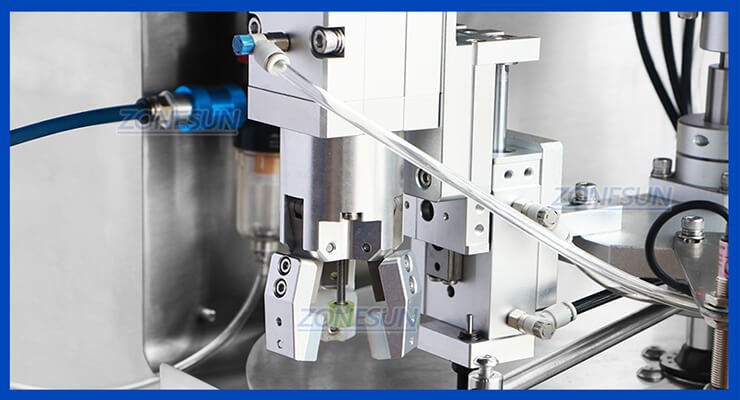

Servo Capping Structure
Suitable for screw-on caps, the servo motor controls capping work, this ensures capping accuracy.
