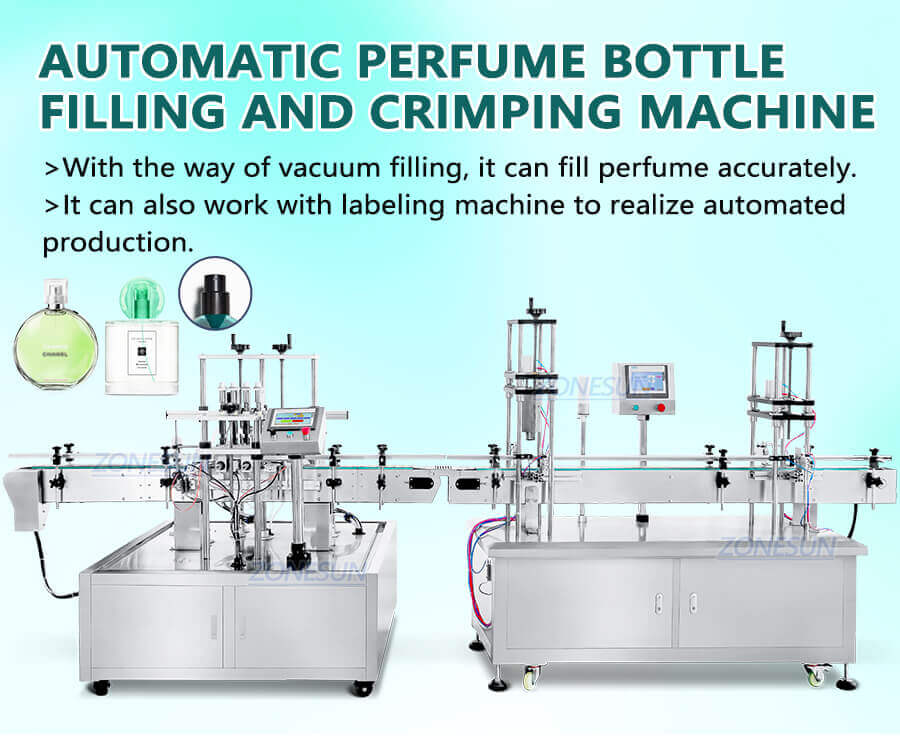

Perfume Production Line
The full automatic production line for producing perfume.Consisting of vacuum filling machine and bottle crimping machine,it can help you improve working efficiency and save production labor.
Share to
Description:
The full automatic production line for producing perfume.Consisting of vacuum filling machine and bottle crimping machine,it can help you improve working efficiency and save production labor.
Parameter:

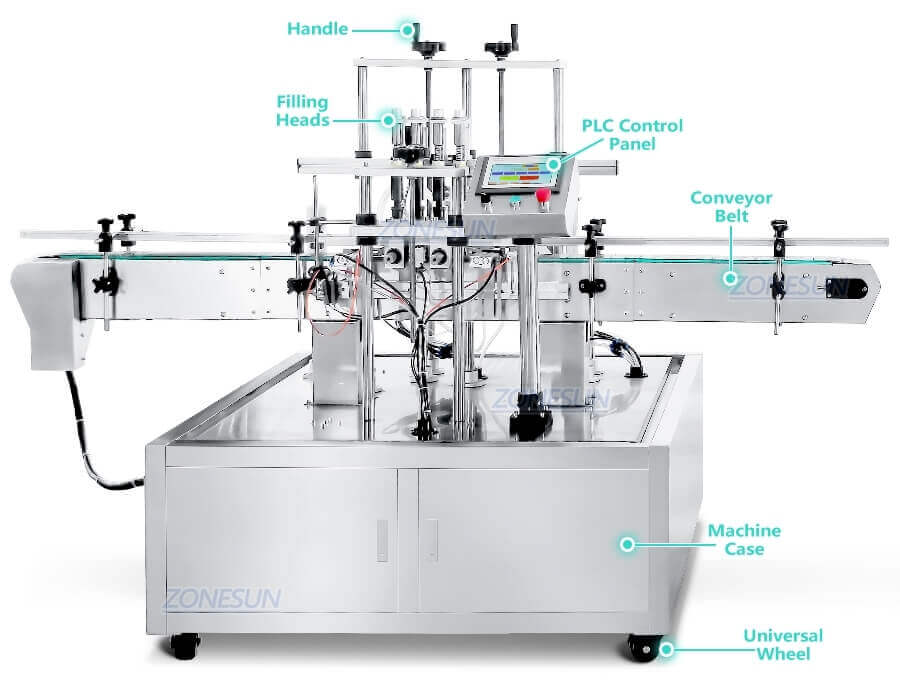

| Model | ZS-YTZL4A |
| Filling head | 4 Head |
| Air pressure | 0.5-0.8MPa |

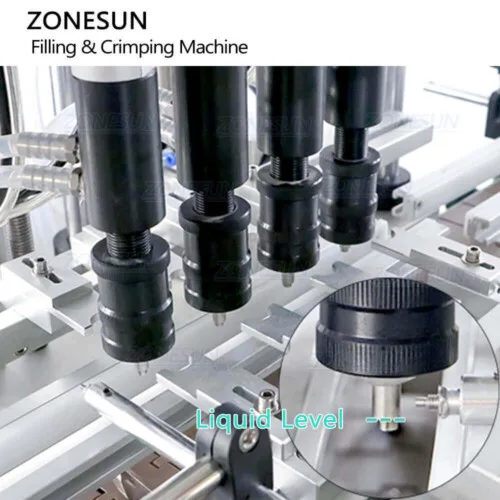

| Liquid level accuracy | ±1mm |
| Viscosity range | The maximum applicable viscosity is 20Cps (static viscosity) |
| Working Speed | 20-40 Bottles/Minute |
| Bottle height | ≤250mm |
| Bottle Opening Size | ≤φ4.5mm-φ28mm |
| Adjustable liquid level (from the bottle mouth) | 15-50mm |
| Air pumping rate | 5.5L/S |
| Machine size | About 1500*1150*1530mm |
| Machine weight | About 278kg |
| Package size | About 1660*1310*1670mm |
| Package weight | About 339kg |

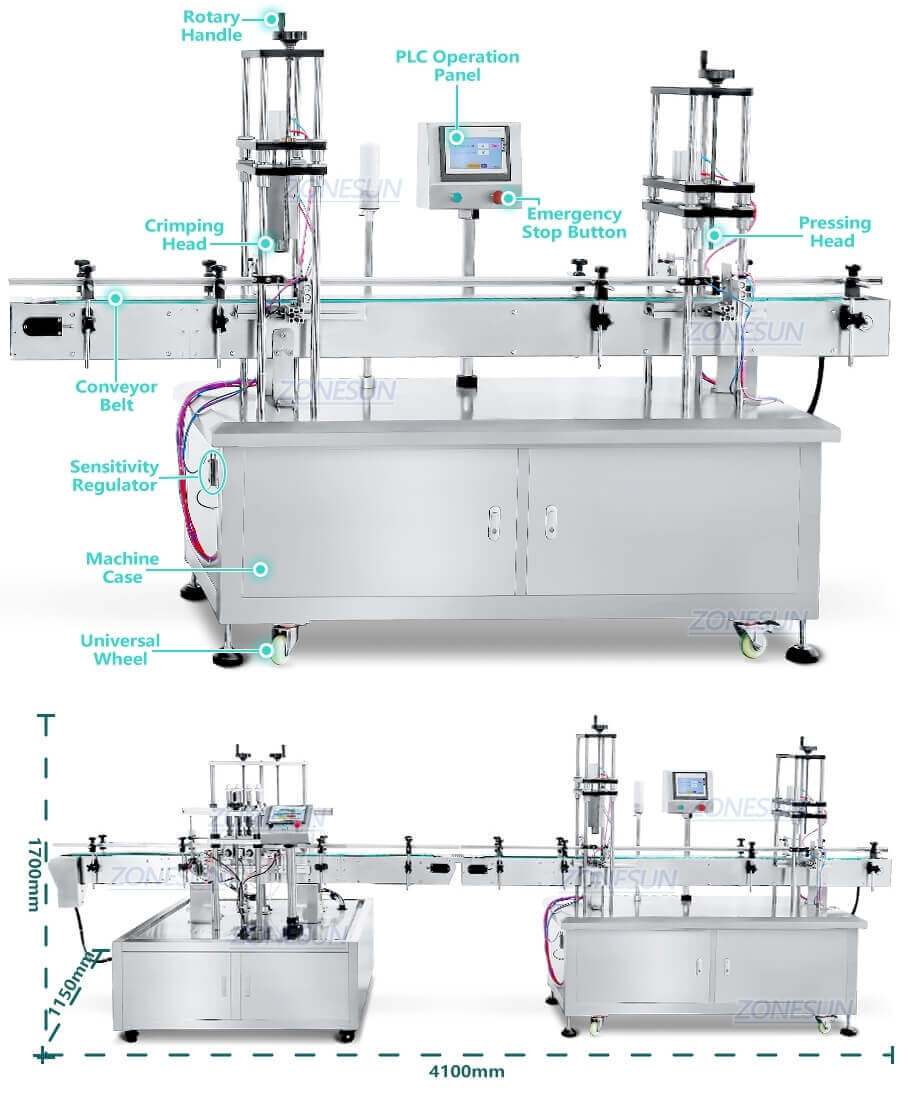

| Machine Model | ZS-YG11U |
| Voltage | 220V/110V 50-60Hz |
| Power | 1.5kW |
| Capping Speed | About 20bottles/min
(depending on bottle and cap size) |
| Suitable Bottle Height | 50-200mm |
| Bottle Cap Diameter | 15-22mm |
| Bottle Mouth Diameter | 14-20mm |
| Suitable Bottle Diameter | 40-110mm |
| Machine Size | About 2600*760*1700mm |
| Machine Weight | About 300kg |
