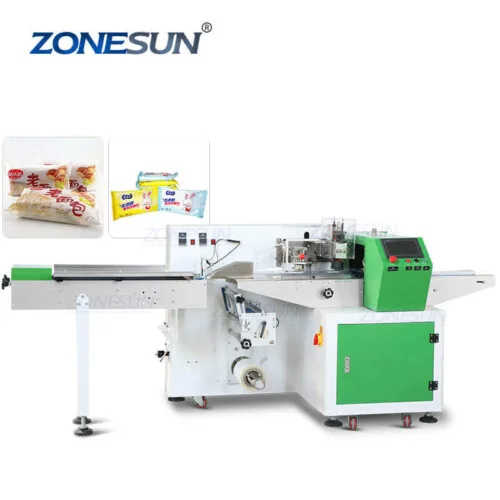

Pillow Packing Machine

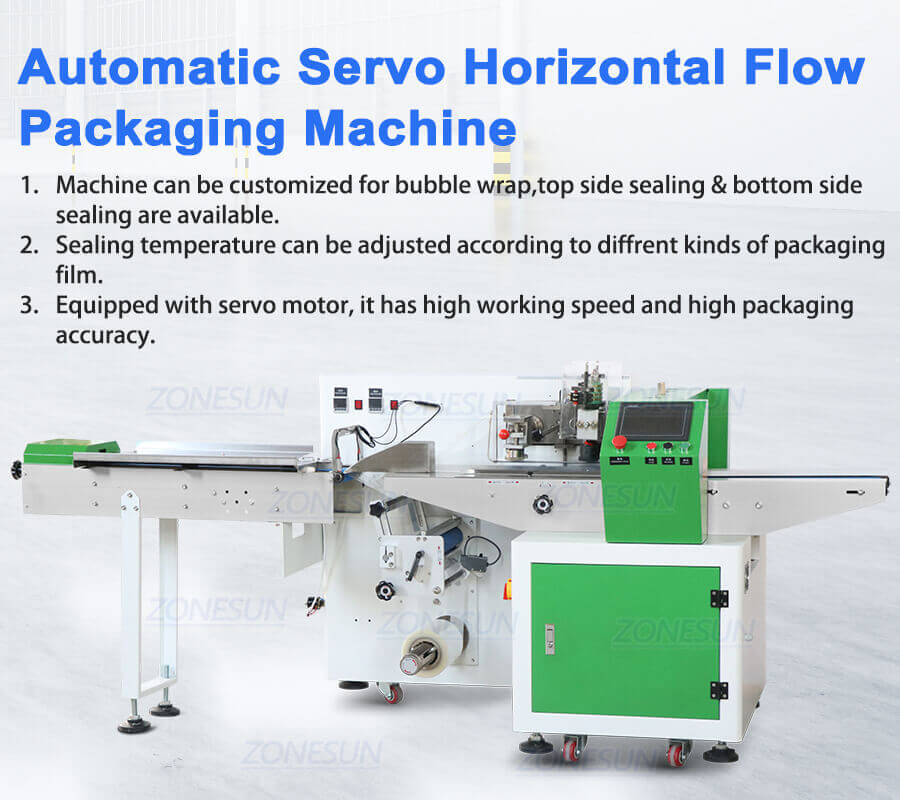

This pillow packing machine is equipped with servo motor,it can be customized for bubble wrap.The sealing method of middle side can be customized for top side sealing or bottom side sealing.It has high packaging accuracy and suitable for food,daily chemical,and hardware industries.
Share to
Description:
This pillow packing machine is equipped with servo motor,it can be customized for bubble wrap.The sealing method of middle side can be customized for top side sealing or bottom side sealing.It has high packaging accuracy and suitable for food,daily chemical,and hardware industries.
Parameter:
| Type | ZS-ZB350X | ZS-ZB250S |
| Power | 110/220/380V,50/60Hz,2.4KW | 110/220/380V,50/60Hz,2.4KW |
| Film width | Max:350mm(can be customized) | Max:250mm(can be customized) |
| Bag length | 90-6000mm(can be customized) | 65-190mm,120-280mm(can be customized) |
| Bag width | 30-160mm(can be customized) | 30-120mm(can be customized) |
| Product height | Max:55mm(can be customized) | Max:65mm(can be customized) |
| Film roll diameter | Max:320mm | Max:250mm |

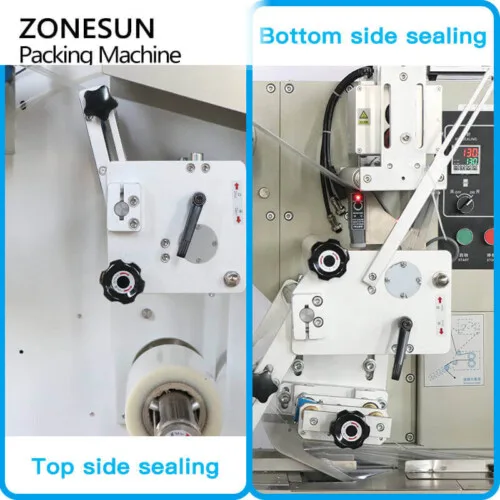

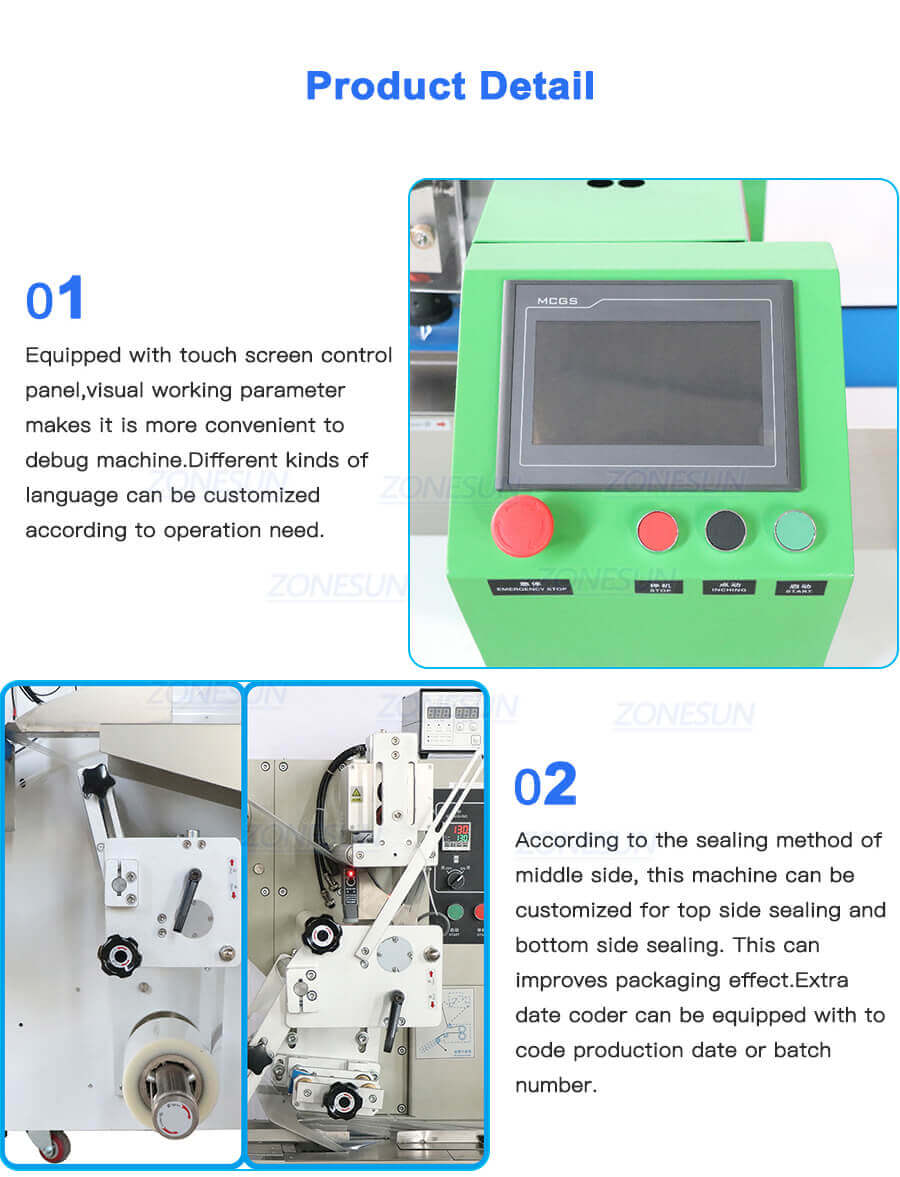

| Middle side sealing | Top side sealing | Bottom side sealing |
| Packaging rate | 30-120bag/min | 30-180bag/min |
| Packaging materials | OPP,OPP/CPP,KOP/CPP,ALU-FILM | OPP,OPP/CPP,KOP/CPP,ALU-FILM |

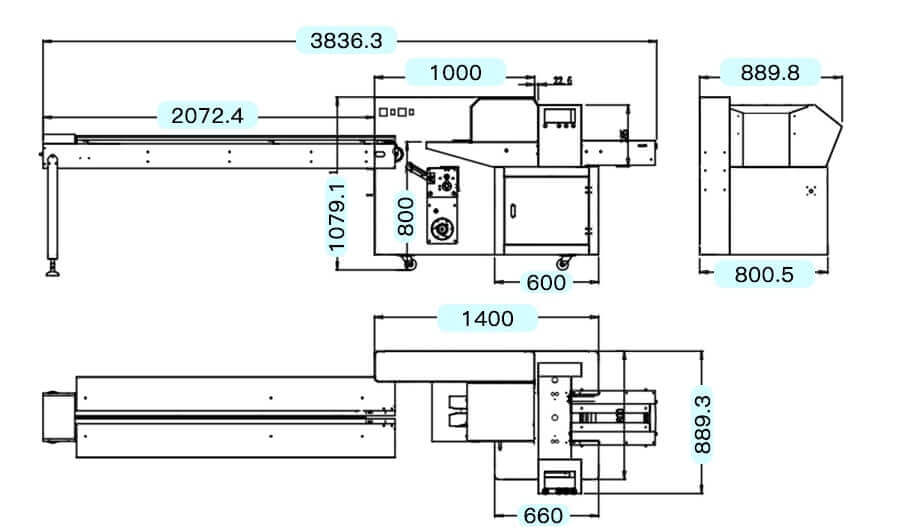

| Machine size | About 3836*890*1079mm | – |
| Machine weight | About 350Kg | – |
| Packing Size | About
1610*1030*1240mm+2560*540*340mm |
About
2570*530*400mm+1420*790*1570mm |
| Package Weight | – | About 68+327kg |
