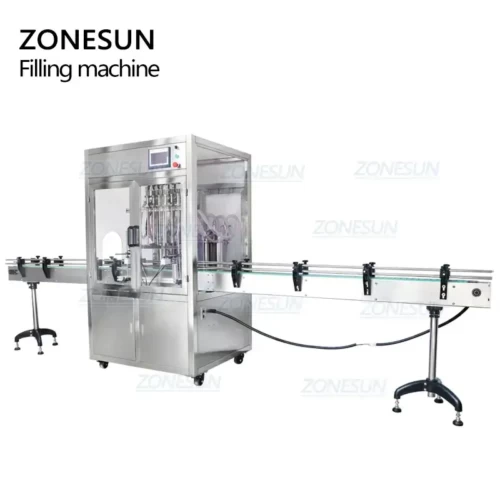

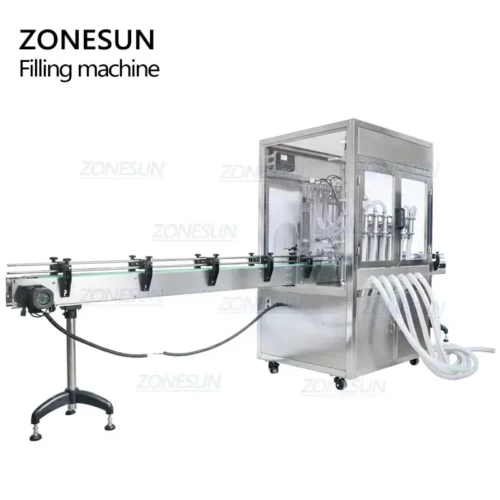

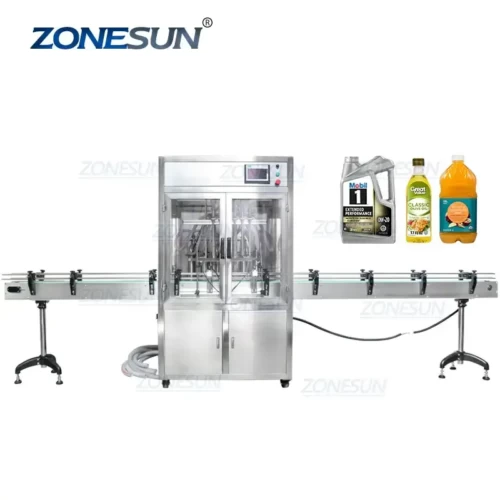

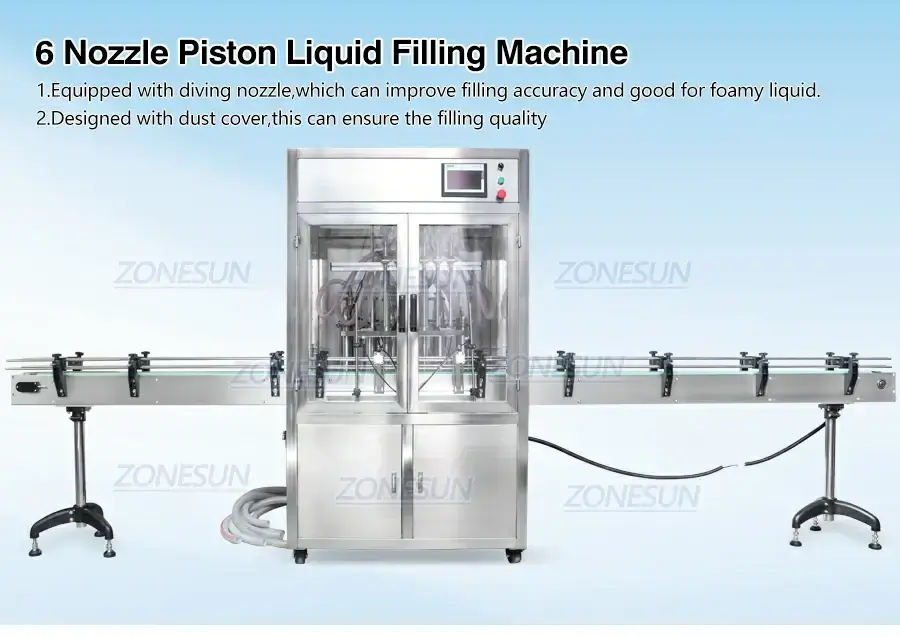

Piston Liquid Filling Machine
This automatic piston liquid filling machine is driven by air cylinder, it is suitable for low viscosity liquid like water,juice,grease,olive oil etc.Different filling range can be chosen according to production need.Multiple filling nozzles can be customized as well.It is widely used in food,daily chemical,and beverage industries.
Share to
Description:
This automatic piston liquid filling machine is driven by air cylinder, it is suitable for low viscosity liquid like water,juice,grease,olive oil etc.Different filling range can be chosen according to production need.Multiple filling nozzles can be customized as well.It is widely used in food,daily chemical,and beverage industries.
Parameter:
| Model | ZS-YTDC6 |
| Voltage | 110/220V 50-60HZ 800W |
| Filling Range | 5-100ml/10-300m/50-500ml/100-1000ml/500-3000ml/1000-5000ml |
| Working Speed(Based On Water) | 30-40bottles/min |
| Filling Accuracy | ≤±1% |
| Filling Nozzle Size | Customized |
| Air Pressure | 0.5-0.7MPa |
| Conveyor Length | 2000mm(standard)/4530mm(custom version) |
| Conveyor Material | Plastic (standard)/stainless steel (custom version) |
| Size Of Air Compressor Connector | OD 10mm |
| Machine Size | About 1120*990*940mm |
| Package Weight | About 486kg |
| Package Size | About 1600*1210*2160mm |
