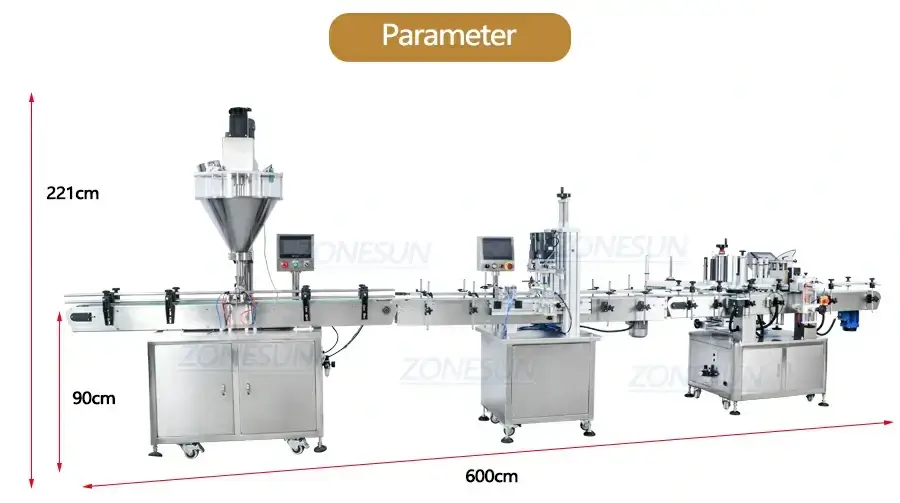

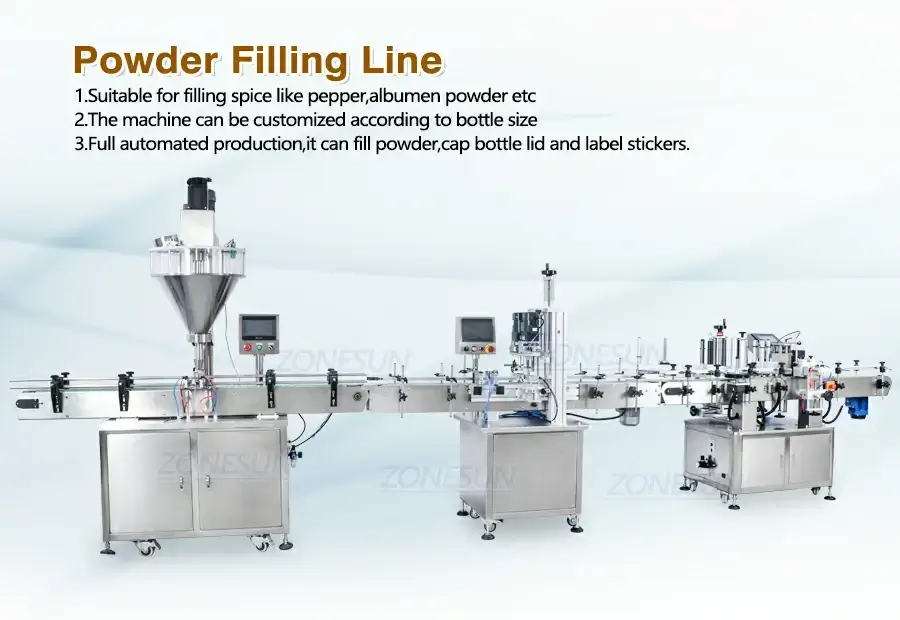

Powder Filling Line

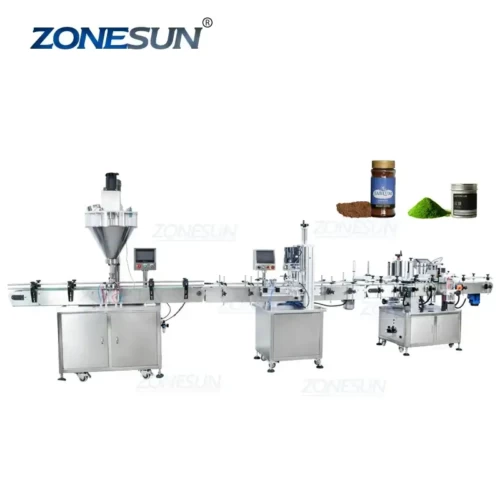

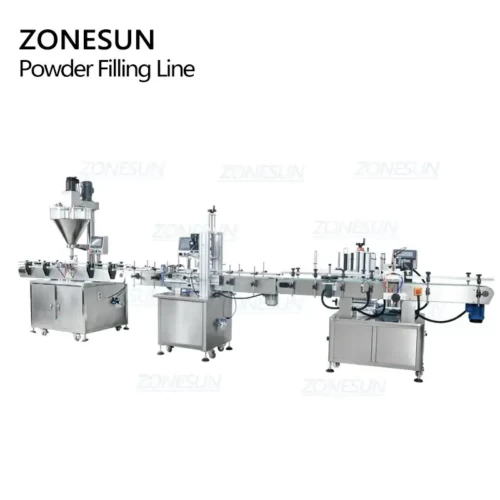

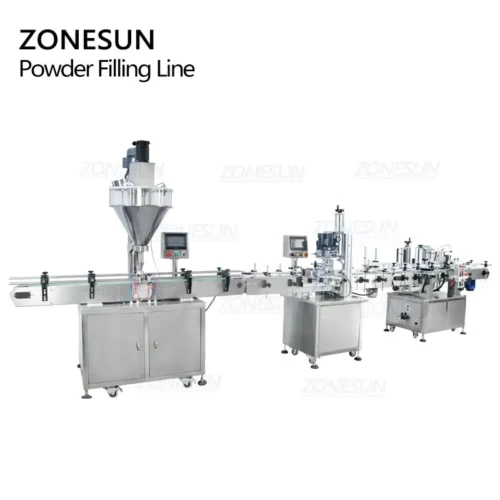

Our automatic filling production line consists of automatic powder filling machine,capping machine,labeling machine which is suitable for automatic bottle packaging of various powder (we also have the filling machine for paste/liquid).Professionally customized machines for your production.
Share to
Description:
Our automatic filling production line consists of automatic powder filling machine,capping machine,labeling machine which is suitable for automatic bottle packaging of various powder (we also have the filling machine for paste/liquid).Professionally customized machines for your production.

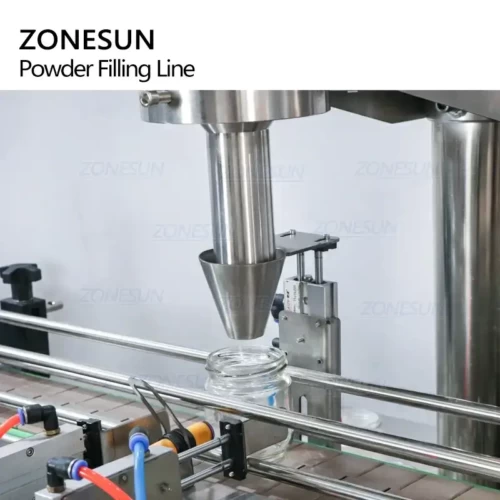

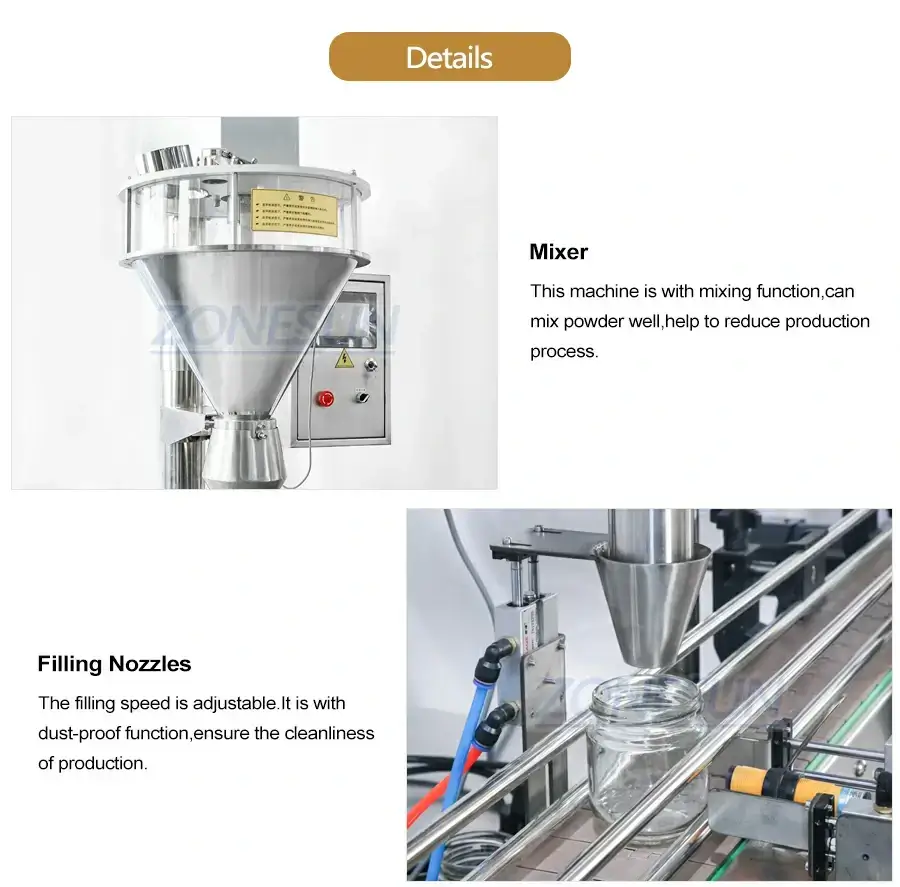

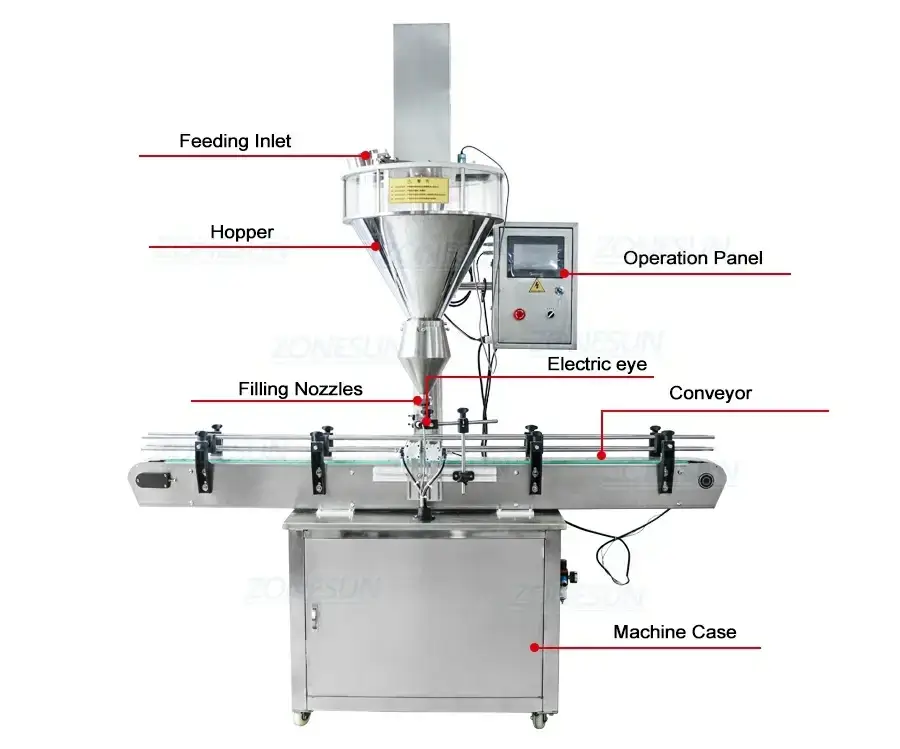

Filling Machine
| Voltage | 220V/110V |
| Power | 500W |
| Filling speed | 10-15pcs/min(based on material) |
| Suitable bottle diameter | Less than 100mm |
| Applicable bottle height | Customized |
| Package size | About 135*90*226cm |
| Net weight /Gross weight | About 229kg/304kg |
| Filling heads | Only one |
| Filling material | Powder produce like flour |
| Application | Food,chemical,catering,daily chemical,tobacco and alcohol,medicine |

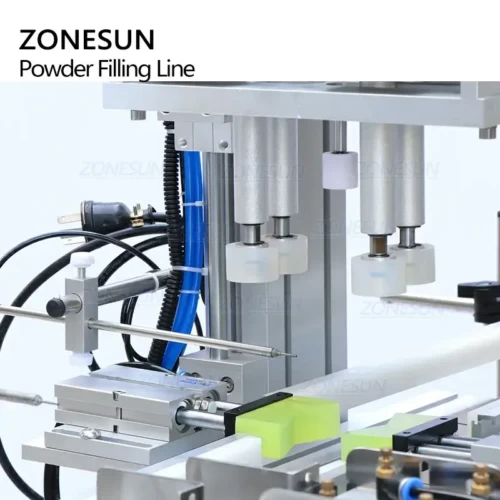

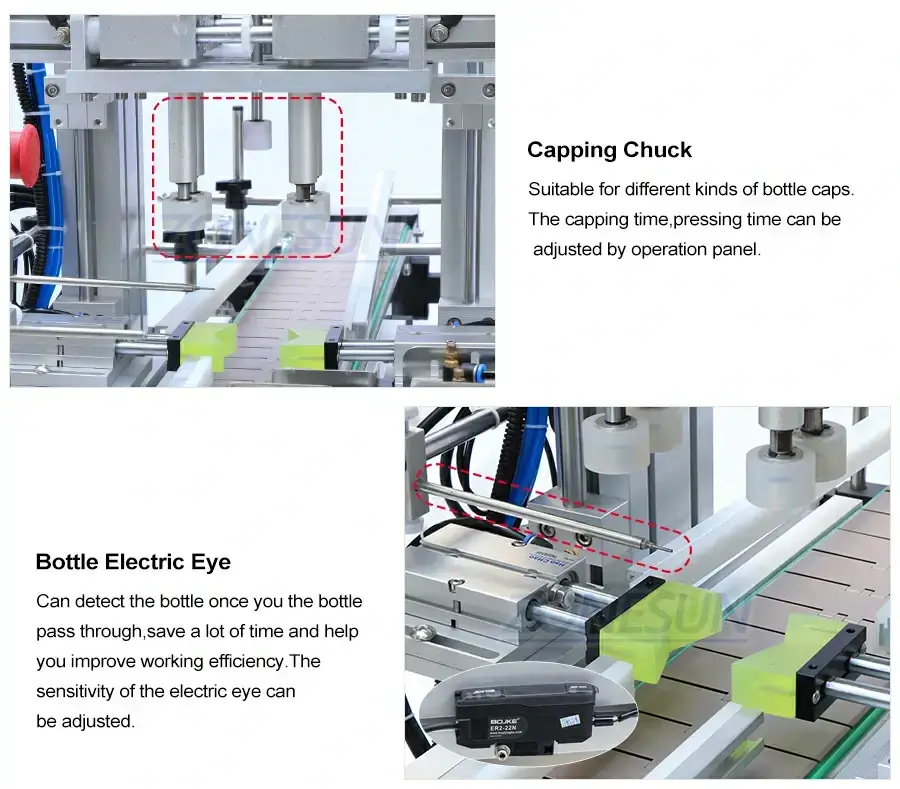

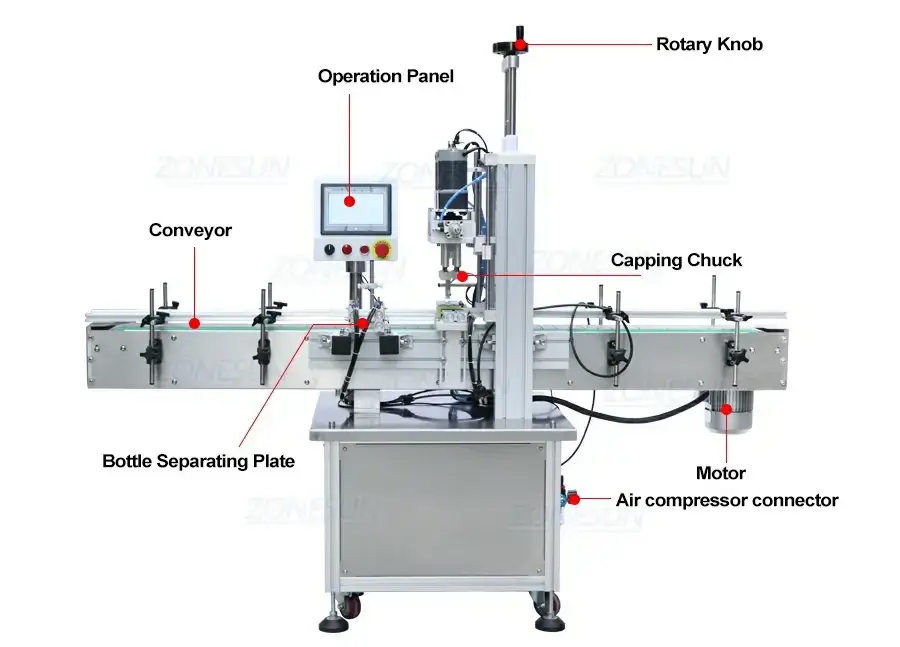

Capping Machine
| Bottle height | 30-300mm |
| Cap Diameter | 18-70mm |
| Botle Diameter | 20-160mm |
| Working speed | 20-60 bottles / minute (depending on bottle and cap size and shape) |
| Working voltage | AC220V/110V 50-60HZ |
| Wokingn pressure | 0.4-0.6MPa |
| Machine Size | About 1930*740*1600mm |
| Package Size | About 2000*820*1760mm |
| Net weight/Gross weight | About 113kg/192.5kg |

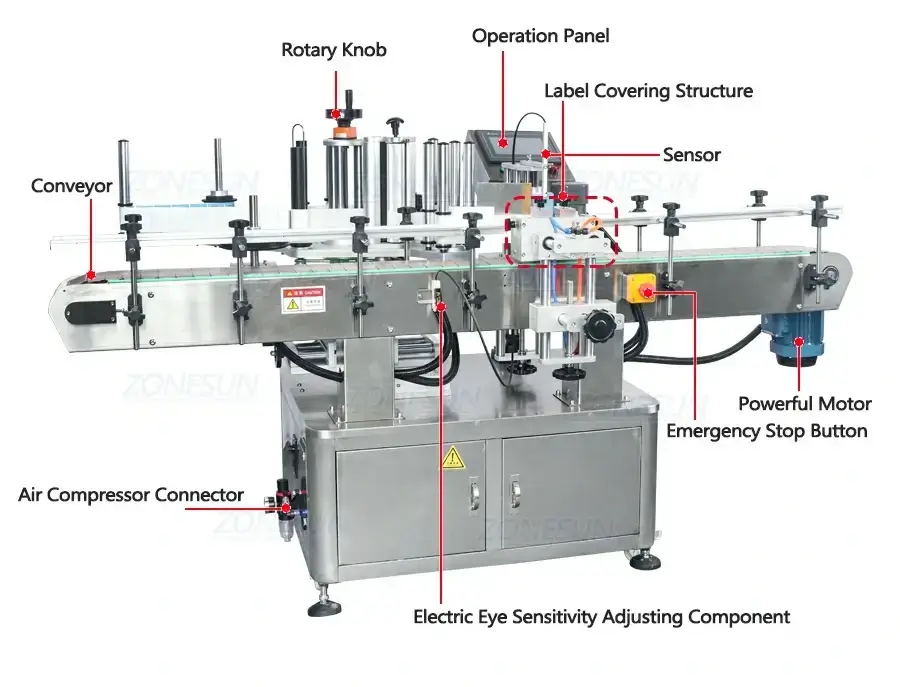

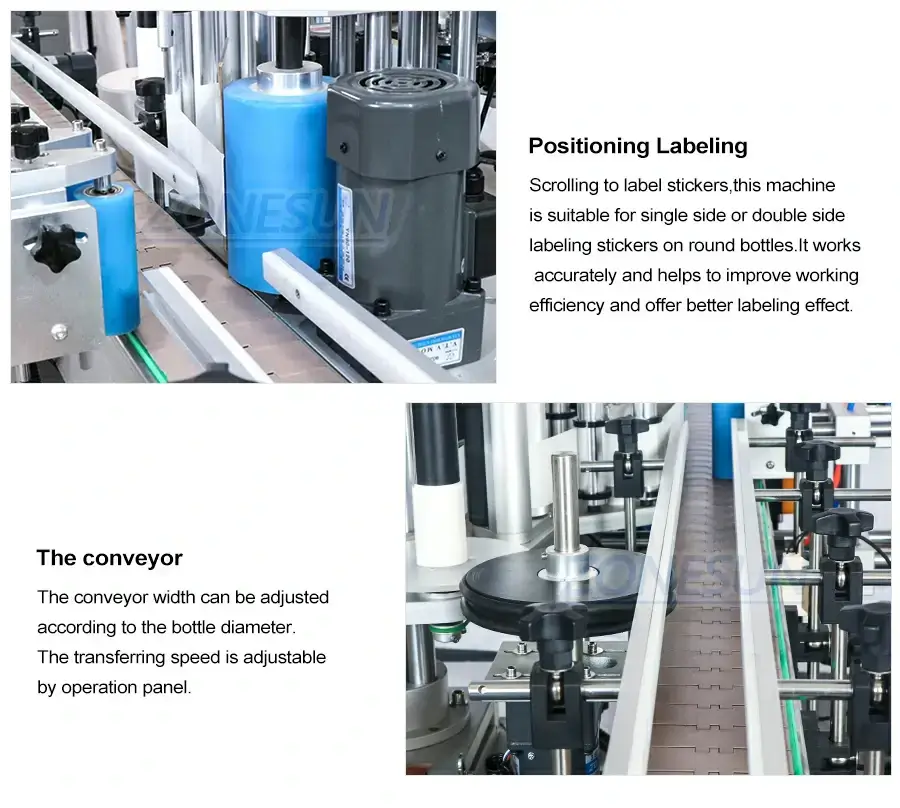

Labeling Machine
| Model | ZS-TB260 Labeling Machine |
| Power supply | AC220V 50Hz/60Hz 1500W |
| Labeling capacity | 25- 50PCS /min(depends on bottle size) |
| Labeling accuracy | ±1.0mm |
| Suitable Botle Diameter | φ30-100mm |
| Label size | (L)15-200mm (H)15-150mm |
| Roll inside diameter | φ76mm |
| Roll outside diameter | φ350mm |
| Conveyor Size | 1950(L)*100mm(W) |
| Machine size | About (L)2000*(W)1400*(H)1300(mm) |
| Packing Size | About 2120*940*1500mm |
