Prefume Production Line

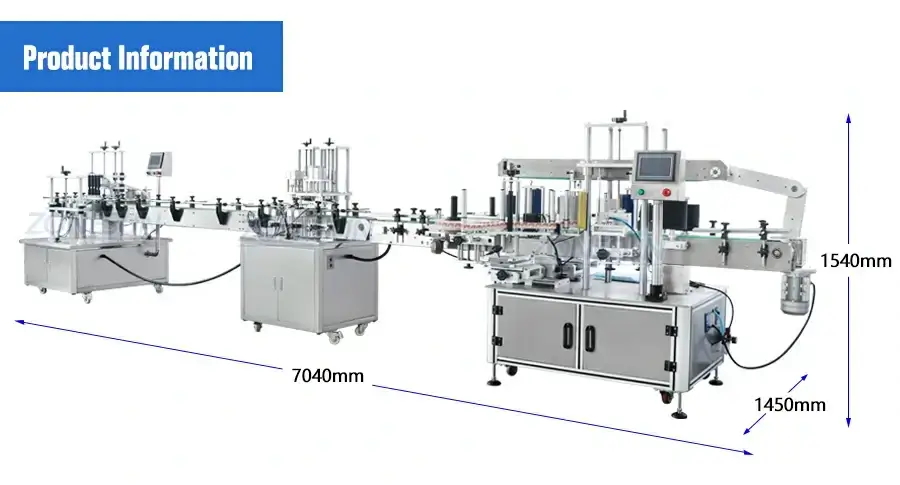

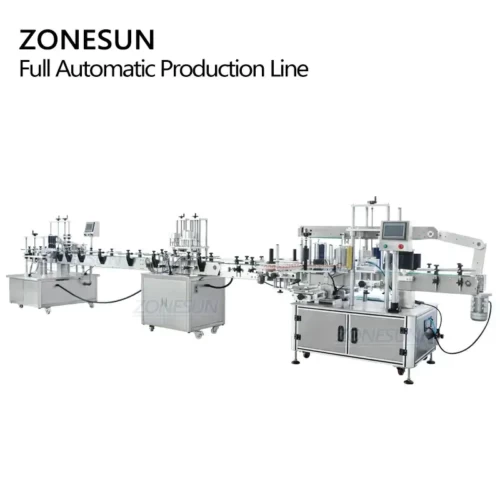

The full automatic production line for producing perfume.Consisting of vacuum filling machine,bottle crimping machine and labeling machine,it can help you improve working efficiency and save production labor.
Share to
Description:

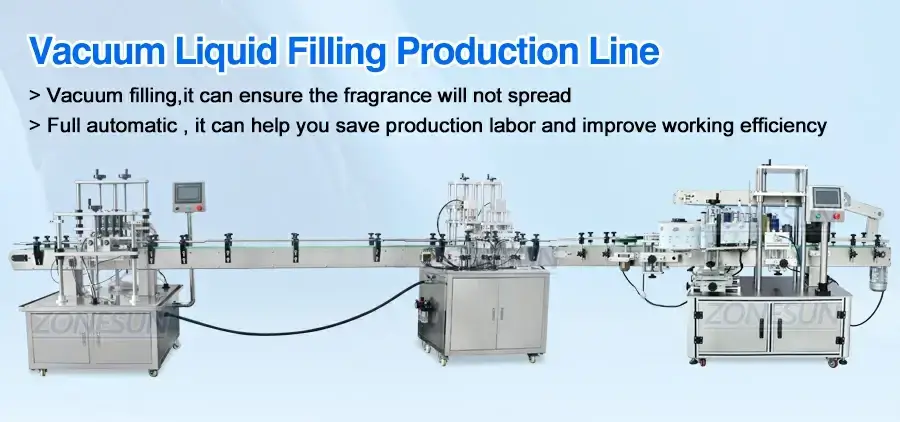

The full automatic production line for producing perfume.Consisting of vacuum filling machine,bottle crimping machine and labeling machine,it can help you improve working efficiency and save production labor.

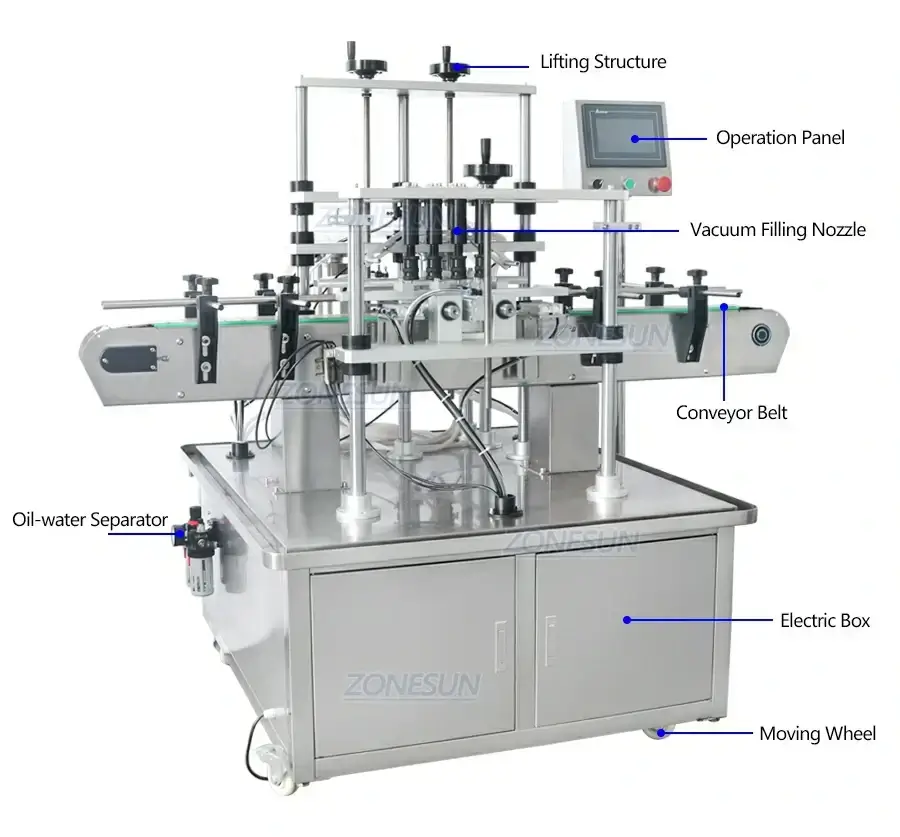

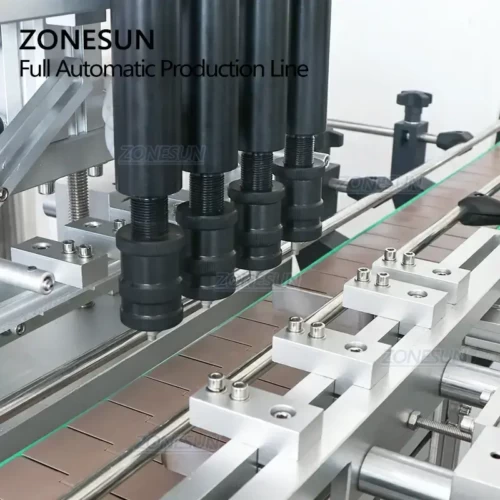

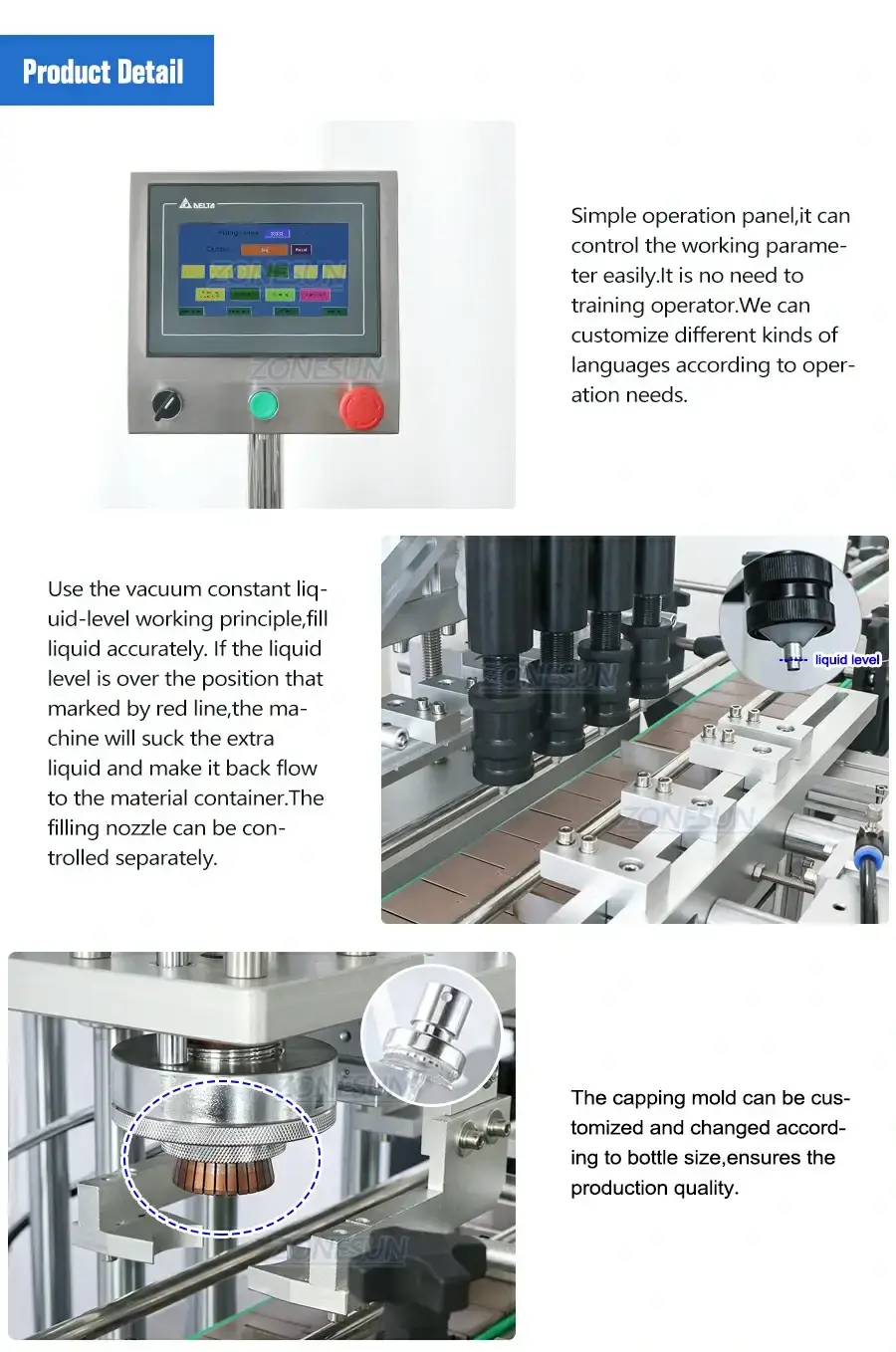

| Model | ZS-YTZL4A |
| Filling head | 4 Head |
| Air pressure | 0.5-0.8MPa |
| Liquid level accuracy | ±1mm |
| Viscosity range | The maximum applicable viscosity is 20Cps (static viscosity) |
| Working Speed | 20-40 Bottles/Minute |
| Bottle height | ≤250mm |
| Bottle Opening Size | ≤φ4.5mm-φ28mm |
| Adjustable liquid level (from the bottle mouth) | 15-50mm |
| Pumping rate | 5.5L/S |
| Machine size | About 1500*1150*1530mm |
| Package size | About 1660*1310*1670mm |
| Net weight/Gross weight | About 278kg/339kg |

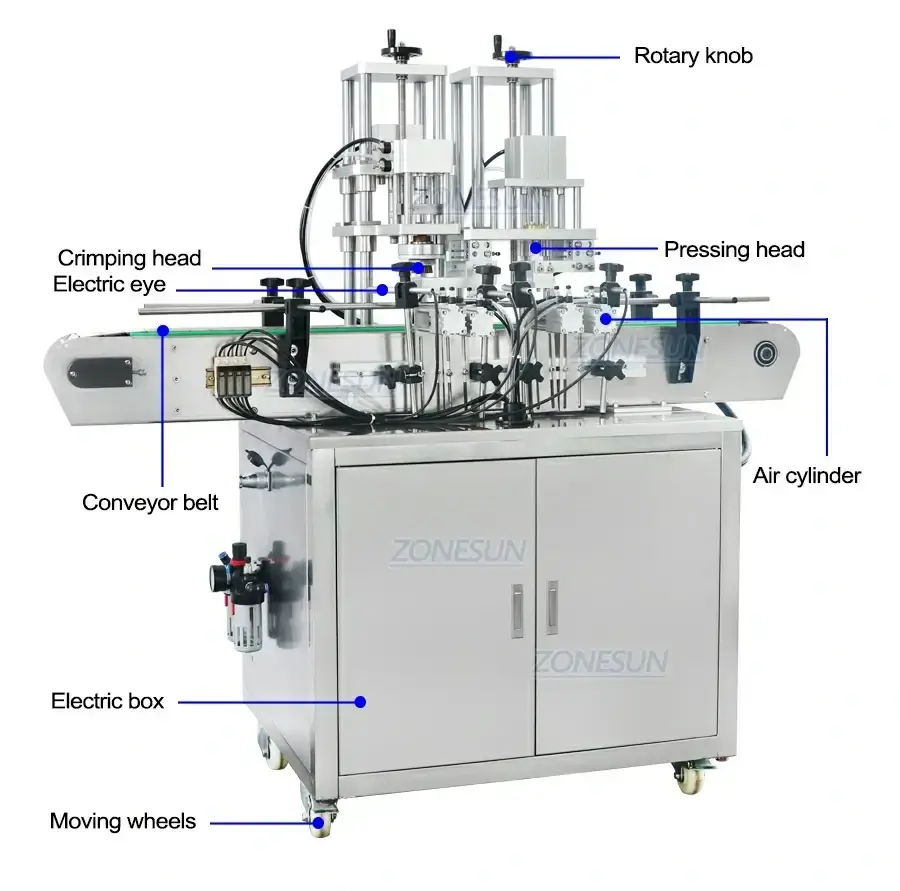

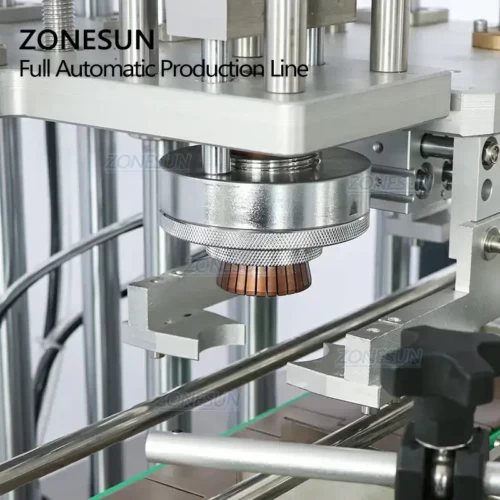

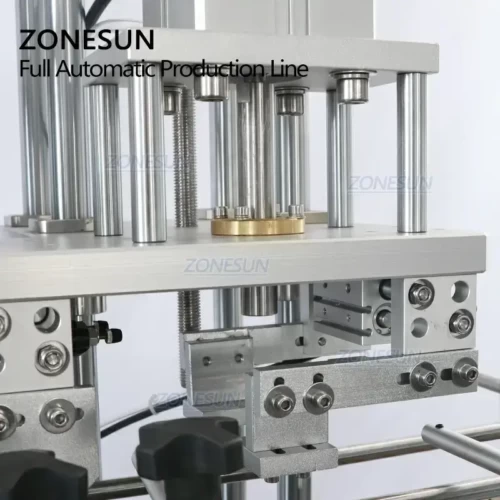

| Machine model | ZS-YG09 |
| Bottle height | 60-200mm |
| Bottle opening size | 13/15/18/20mm(customized) |
| Bottle diameter | ≤100mm |
| Caps diameter | Customized |
| Machine size | About 1345*655*1460mm |
| Machine weight | About 151.5kg |
| Package size | About 1460*810*1630mm |
| Package weight | About 193kg |

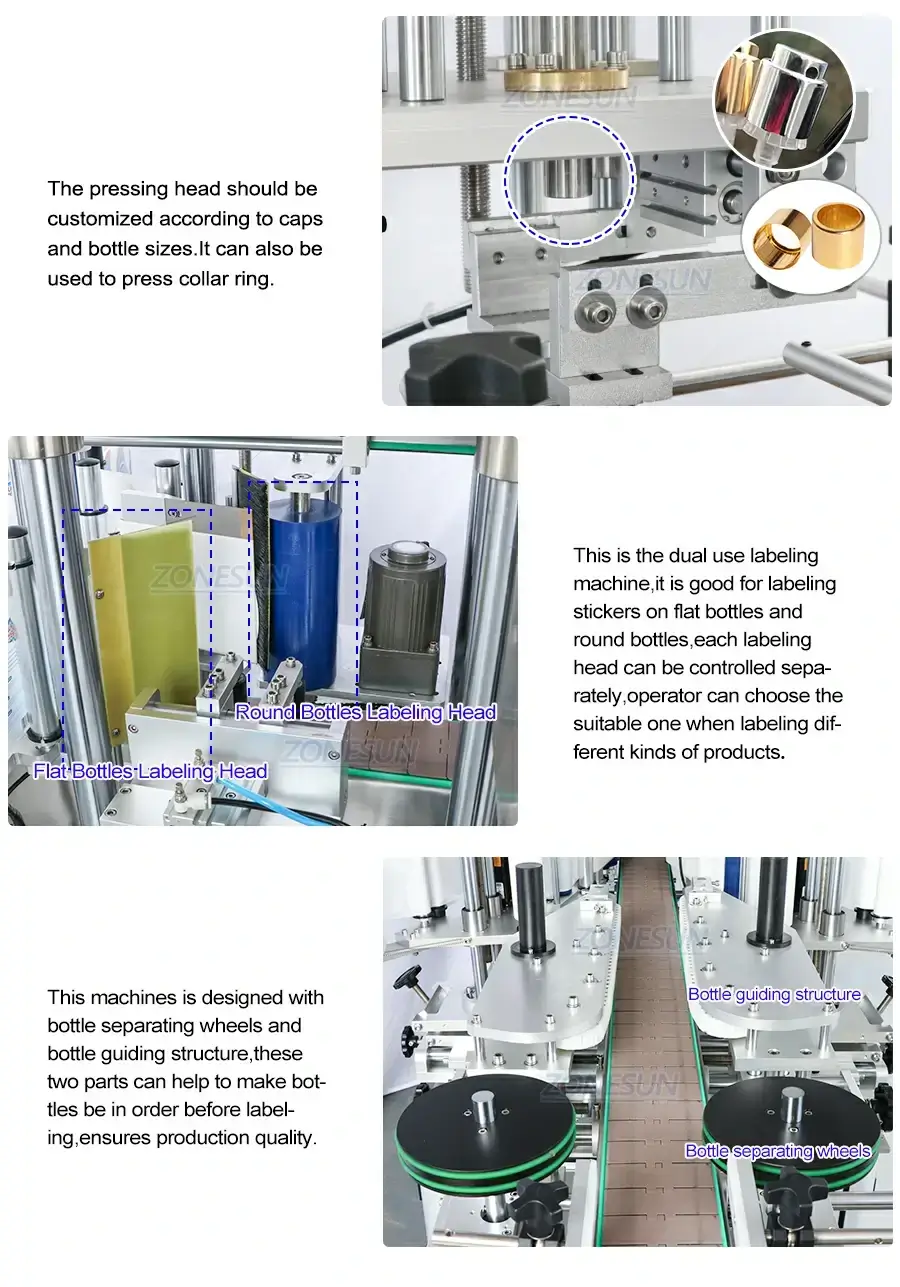

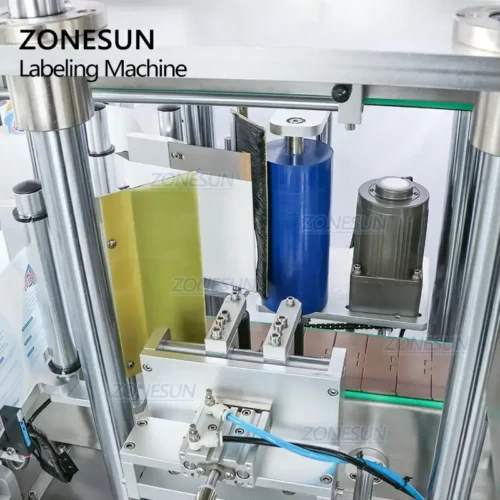

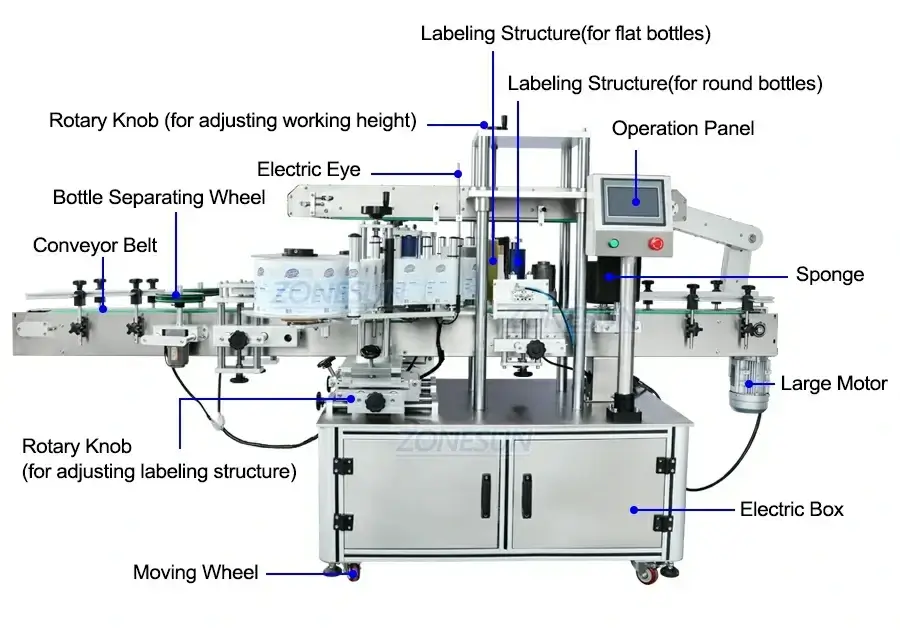

| Machine Model | ZS-TB300Z |
| Machine Power | 110/220V 2500W |
| Working Speed | 30-150 bottles/min(based on bottle size) |
| Labeling Accuracy | ±1mm |
| Suitable Labeling Object | 30-300mm(L)*30-100mm(W)*50-350mm(H) |
| Suitable Label Size | 15-300mm(L)*15-150mm(W) |
| Label Roll OD | φ280mm |
| Label Roll ID | φ76mm |
| Machine Size | About 2710*1450*1540mm |
| Package Size | About 1900*970*1690mm |
| Net Weight/Gross Weight | About 361kg/410kg |
