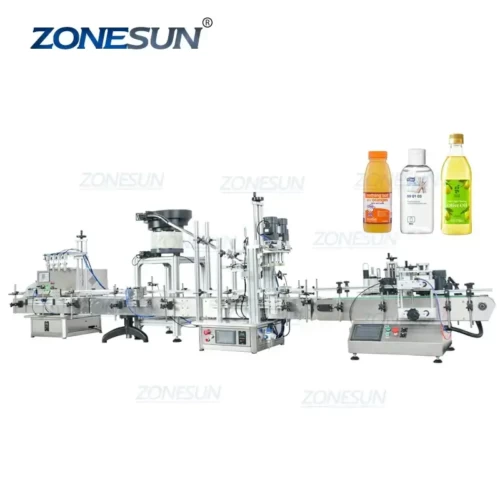

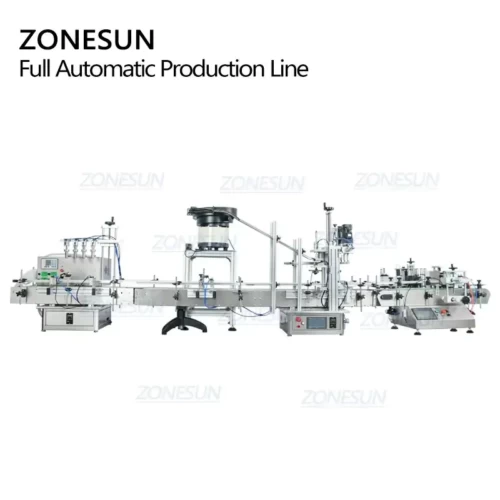

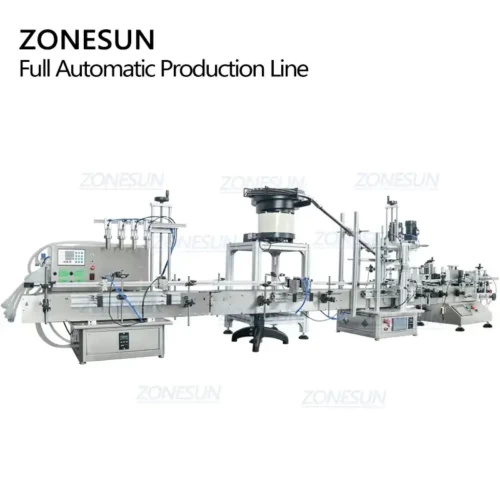

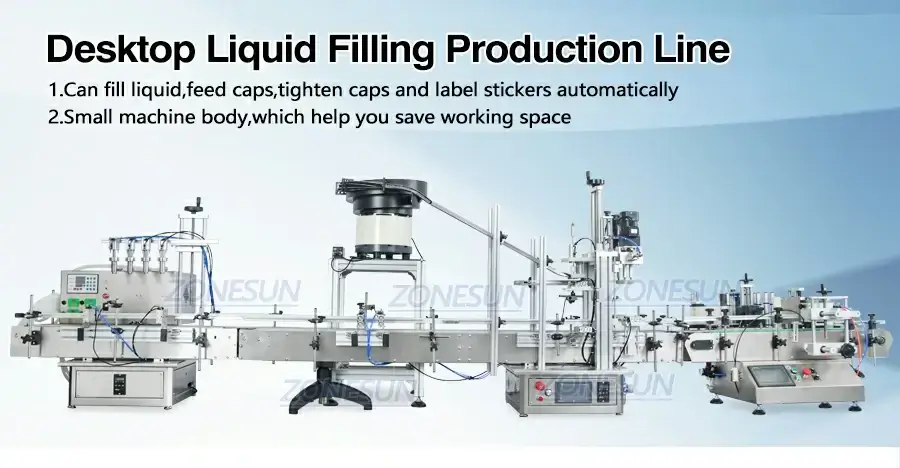

Desktop Liquid Production Line
This production line is suitable for small scale production,can fill liquid,cap bottles and label stickers automatically.These desktop type machines can save working space and help you improve working efficiency greatly.It is widely used in food,beverage,cosmetics,daily chemical and pharmaceutical industries.
Share to
Description:
This production line is suitable for small scale production,can fill liquid,cap bottles and label stickers automatically.These desktop type machines can save working space and help you improve working efficiency greatly.It is widely used in food,beverage,cosmetics,daily chemical and pharmaceutical industries.

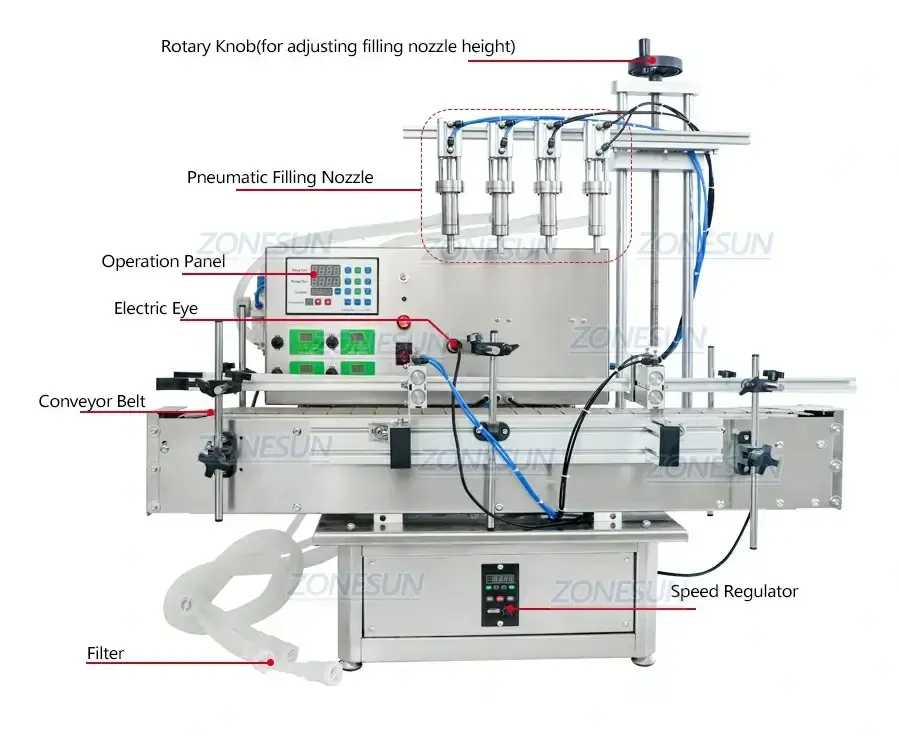

| Machine model | ZS-DTDP4E |
| Voltage | 110/220V 50-60HZ |
| Power | 60W(Each Pump) |
| Recommended filling volume | 10-1000ml(Gel is better≤100ml) |
| Maximum flow velocity | 4000ml/min(Each nozzle and base on water) |

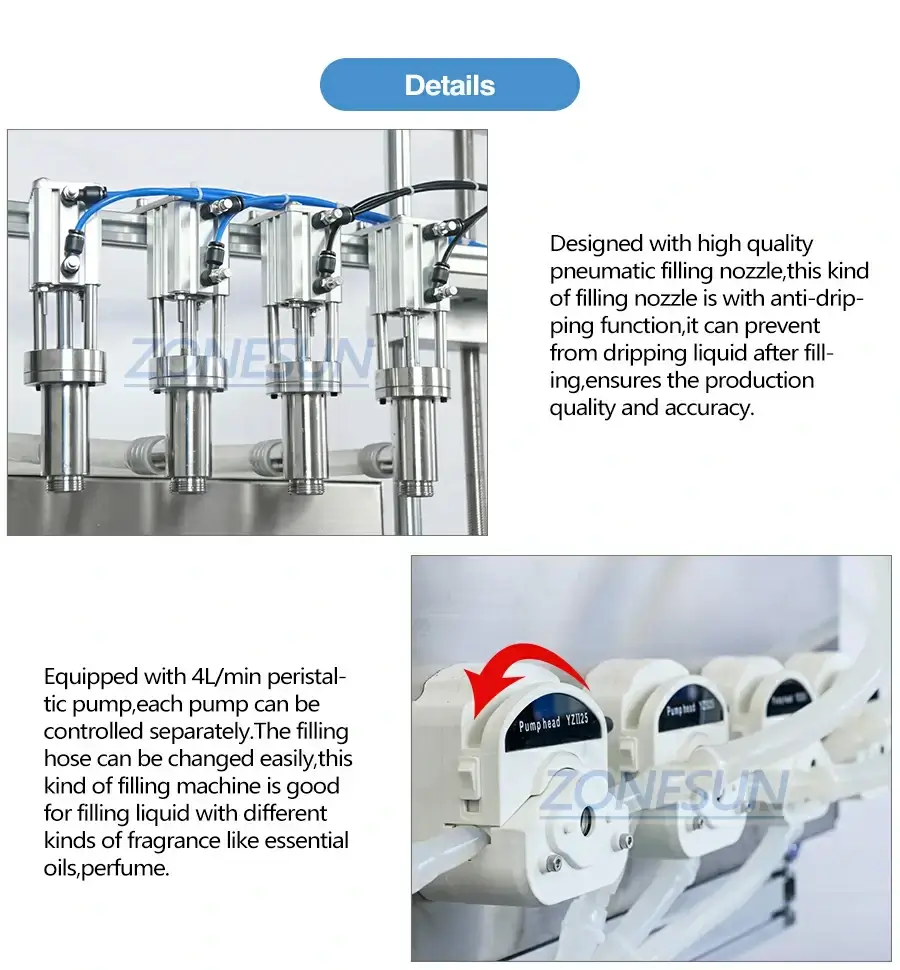

| Filling nozzles | 4(we can customize the nozzles based on your demands) |
| Working speed | 30-50 bottles/min(depends on bottle size and liquid) |
| Air pressure | 0.3-0.4MPa |
| Filling accuracy | ≤±1% (For water) |
| Delay range | 0.01s-999.9s |
| Bottle height | <220mm(Can be customized,max height 300mm) |
| Size of air compressor connector | OD8mm |
| Conveyor size | About 1100*115mm |

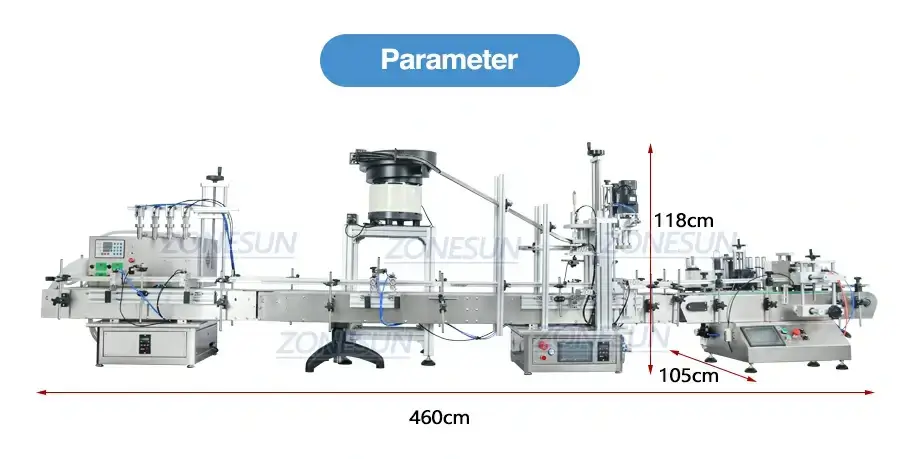

| Machine size | About 1100*580*1070mm |

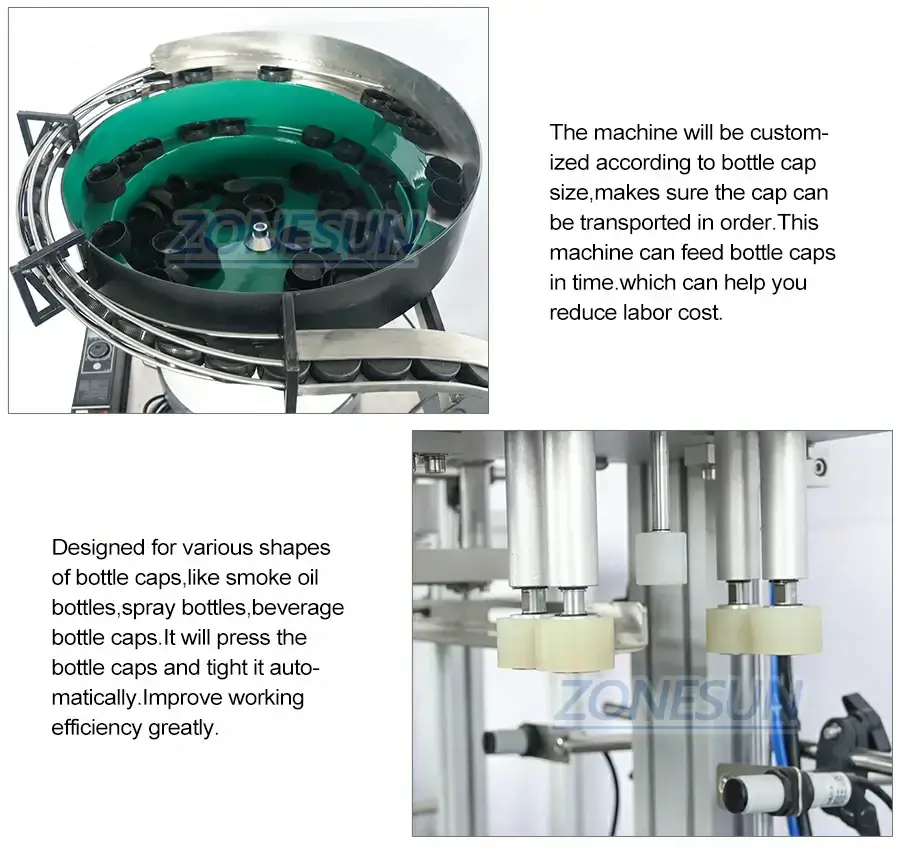

Vibratory Bowl
| Machine Power | 110/220V 50-60HZ |
| Material | Stainless Steel |
| Suitable Caps Diameter | Customized |
| Working Speed | |
| Machine Size |

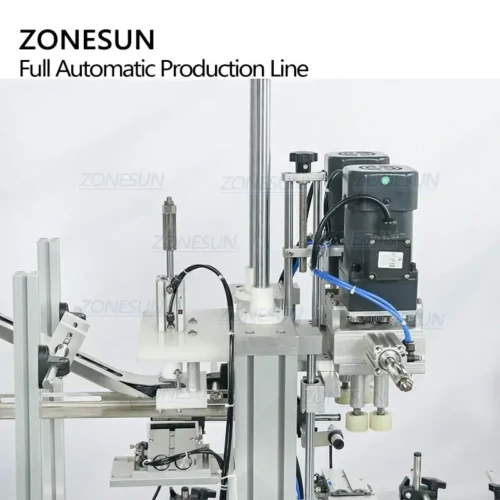

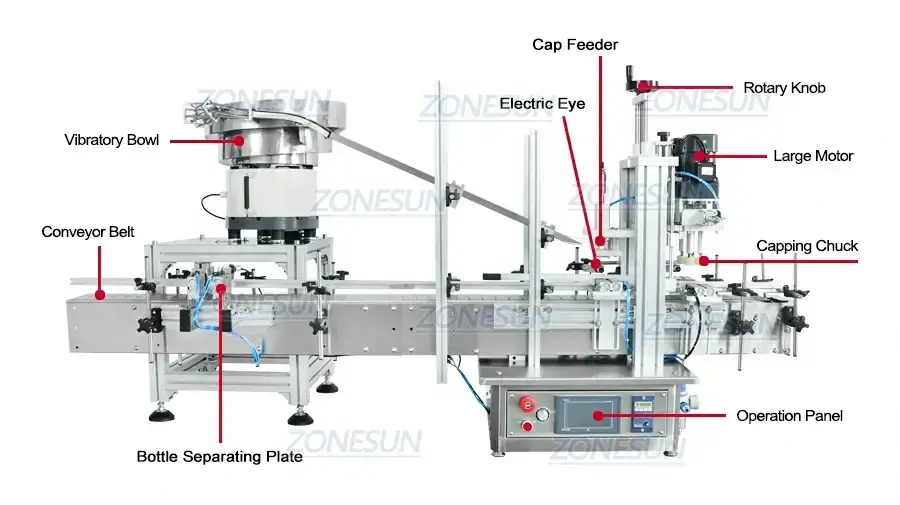

Capping Machine
| Bottle height | 60-270mm |
| Bottle Caps Diameter | 18-70mm |
| Working speed | 20-40 bottles/minute(depending on bottle and caps) |
| Working voltage | AC220V/110V 50-60HZ |
| Working pressure | 0.4-0.6 MPa |
| Machine size | About 2130*1090*1040mm |
| Package size | About 1160*610*1140mm |
| Package weight | About 97.5kg |
| Conveyor length | 1117mm |
| Size of air compressor connector | OD 8mm |

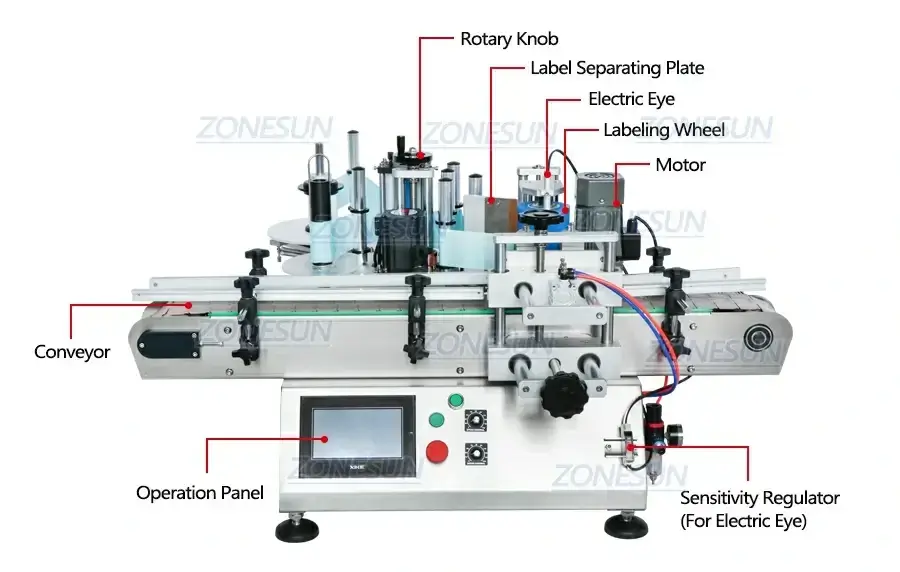

| Voltage | 110V-60HZ / 220V-50HZ |
| Working Speed | About 20-50bottles/min |
| Suitable Labeling Size | 15-140mm (W) X 25-300mm (L) |
| Roll inside diameter (mm) | φ76mm |
| Roll outside diameter (mm) | φ350mm |
| Suitable Bottle Diameter | ≤100mm |
| Package Size | About 1290*860*900mm |
| Package Weight | About 130kg |
