Perfume Filling Capping Machine

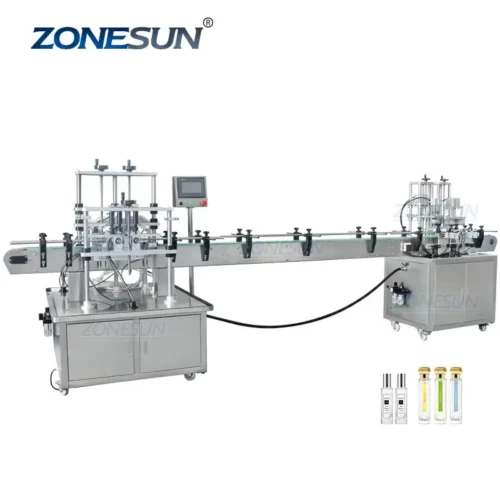

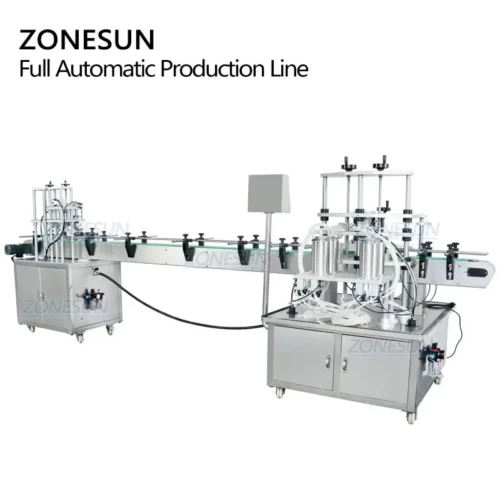

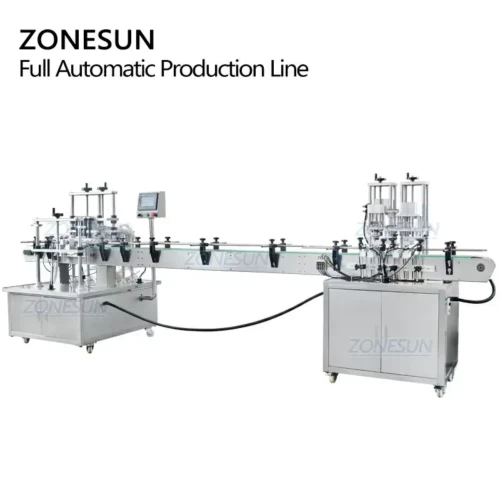

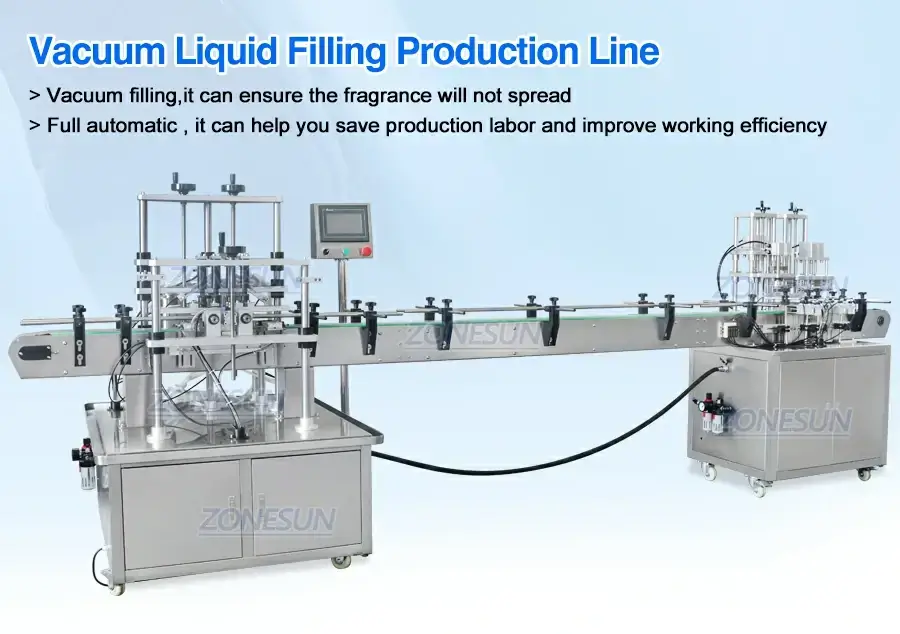

The full automatic production line for producing perfume.Consisting of vacuum filling machine and bottle crimping machine,it can help you improve working efficiency and save production labor.
Share to
Description:
The full automatic production line for producing perfume.Consisting of vacuum filling machine and bottle crimping machine,it can help you improve working efficiency and save production labor.

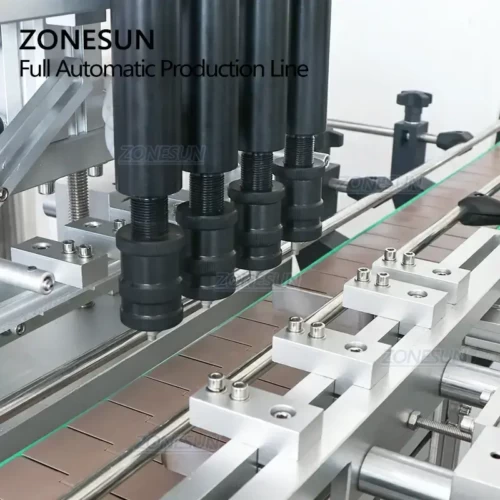

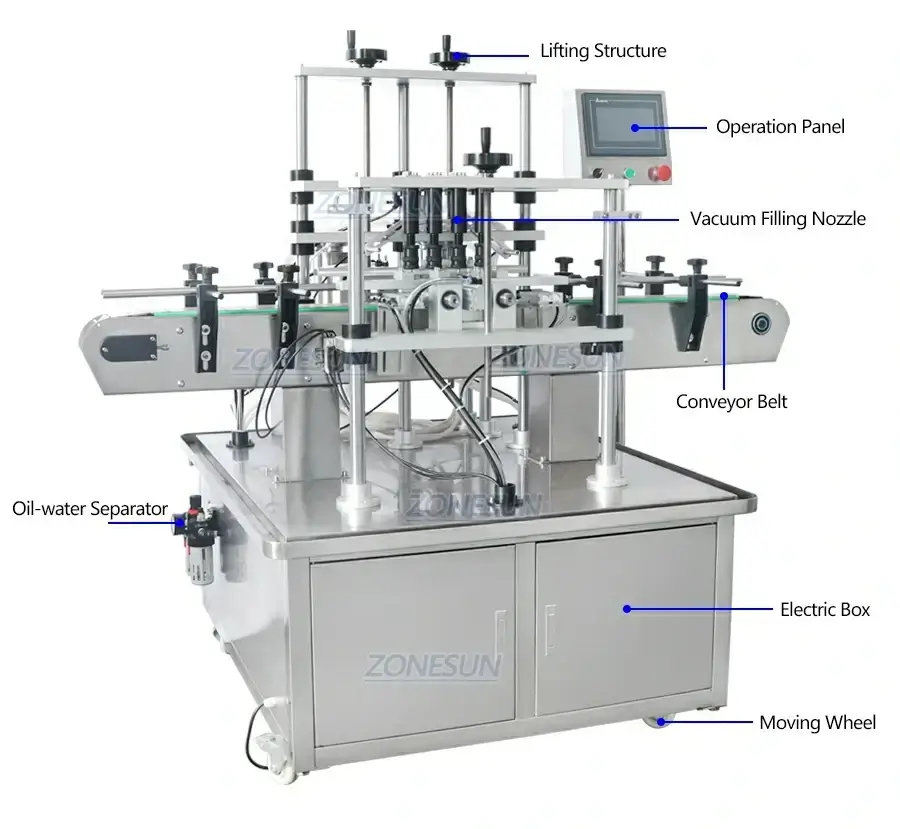

| Model | ZS-YTZL4A |
| Filling head | 4 Head |
| Air pressure | 0.5-0.8MPa |
| Liquid level accuracy | ±1mm |
| Viscosity range | The maximum applicable viscosity is 20Cps (static viscosity) |
| Working Speed | 20-40 Bottles/Minute |
| Bottle height | ≤250mm |
| Bottle Opening Size | ≤φ4.5mm-φ28mm |
|
Adjustable liquid level (from the bottle mouth)
|
15-50mm
|
| Pumping rate | 5.5L/S |

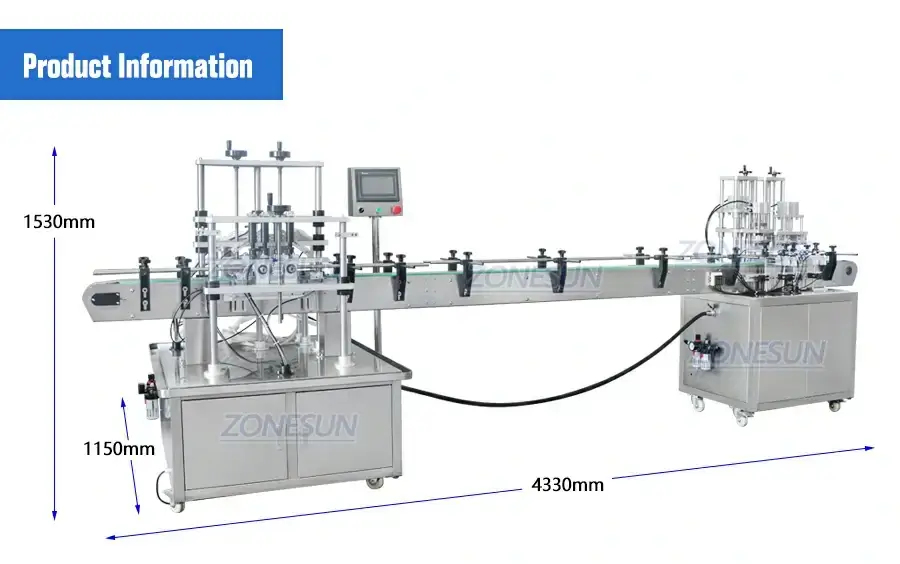

| Machine size | About 1500*1150*1530mm |
| Package size | About 1660*1310*1670mm |
| Net weight/Gross weight | About 278kg/339kg |

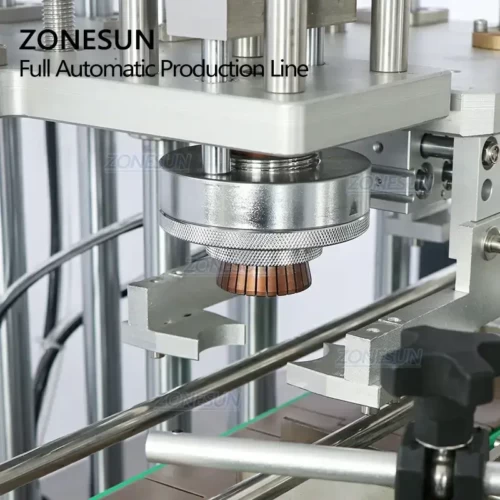

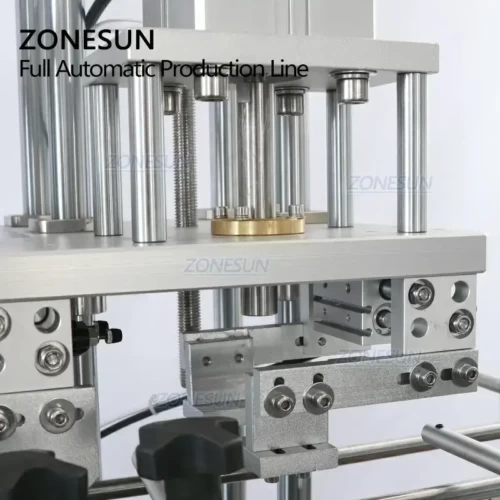

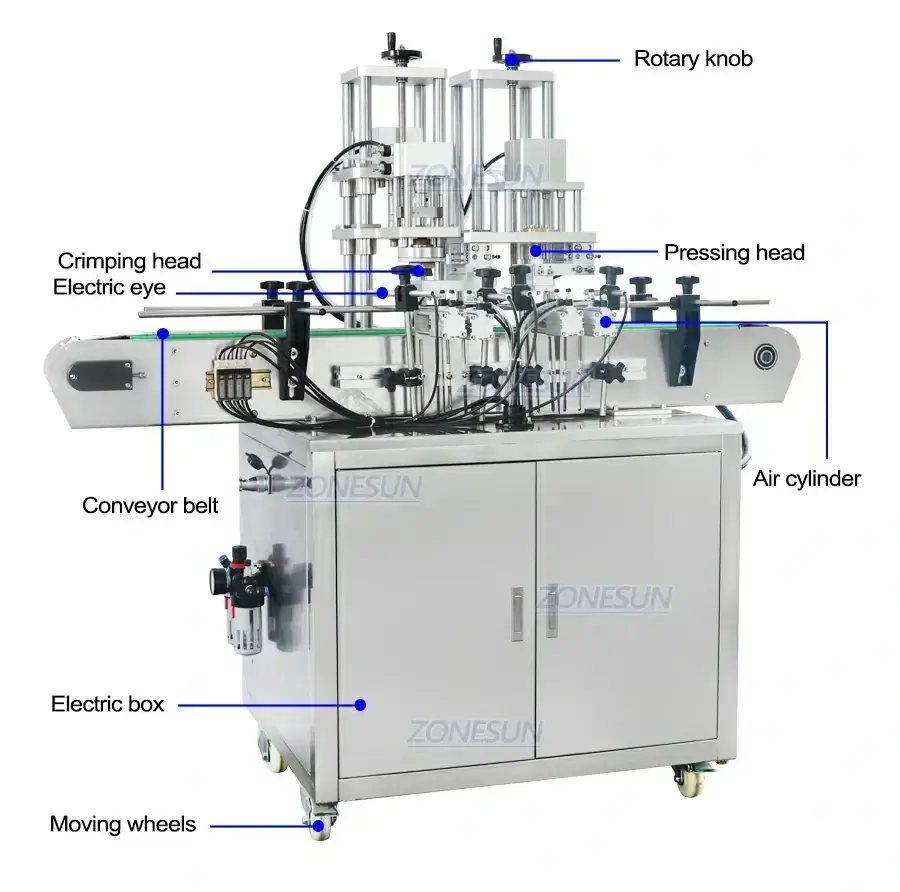

| Machine model | ZS-YG09 |
| Bottle height | 60-200mm |
| Bottle opening size | 13/15/18/20mm(customized) |
| Bottle diameter | ≤100mm |
| Caps diameter | Customized |
| Machine size | About 1345*655*1460mm |
| Machine weight | About 151.5kg |
| Package size | About 1460*810*1630mm |
| Package size | About 193kg |
