Production Line

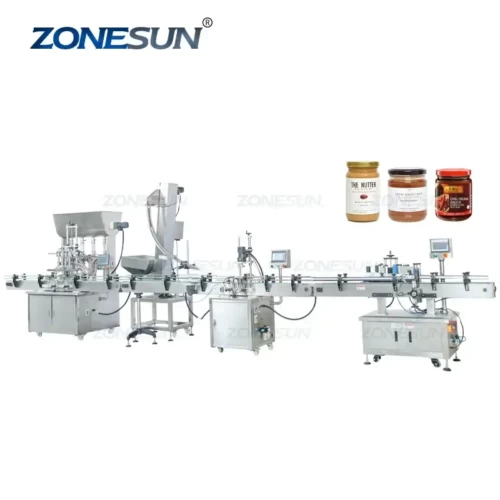

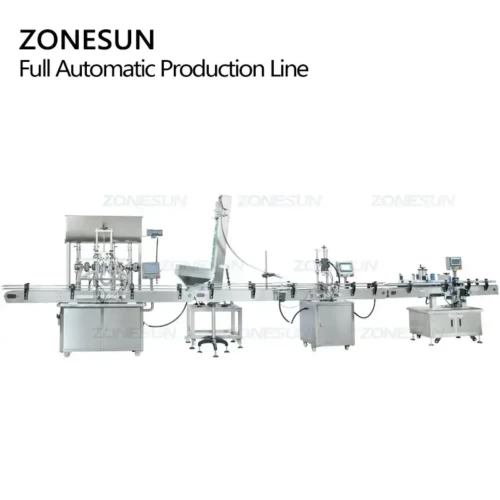

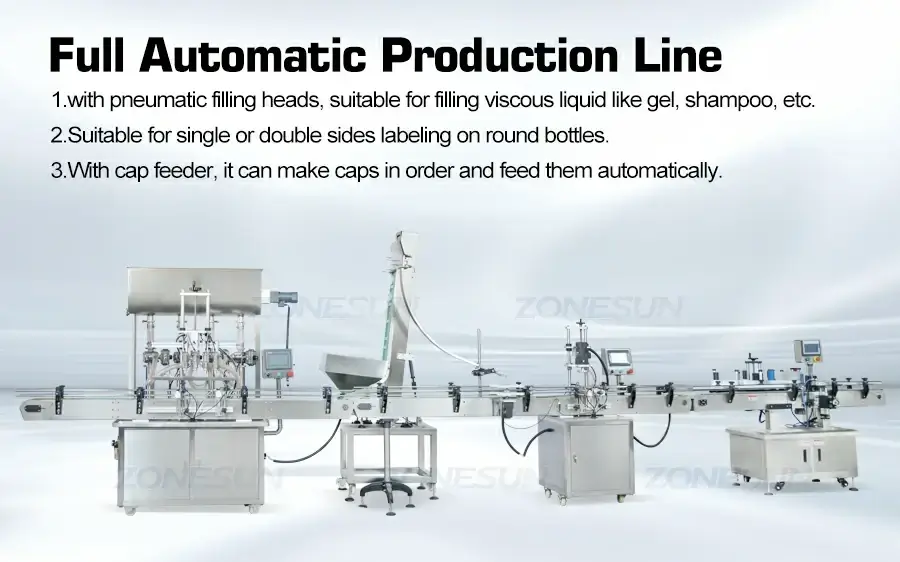

This full automatic production line is consist of bottle turntable,filling machine,cap feeding machine capping machine,labeling machine and bottle sorting machine.It has a high degree of automation,good stability,and convenient adjustment.It is equipped with a cap feeding machine,can automatically feed bottle caps which can save labor greatly.This machine is suitable for food,daily chemical,agriculture and cosmetics industries.
Share to
Description:
This full automatic production line is consist of bottle turntable,filling machine,cap feeding machine capping machine,labeling machine and bottle sorting machine.It has a high degree of automation,good stability,and convenient adjustment.It is equipped with a cap feeding machine,can automatically feed bottle caps which can save labor greatly.This machine is suitable for food,daily chemical,agriculture and cosmetics industries.

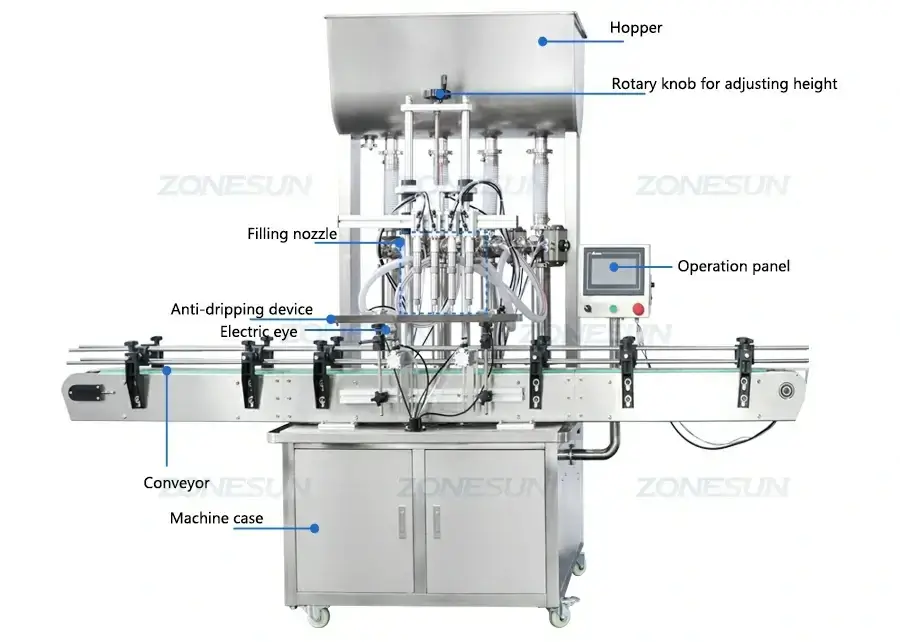

| Model | ZS-YT2T-2P | ZS-YT4T-4P |
ZS-YT6T-6P
|
ZS-YT8T-8P
|
|
Voltage
|
110/220V 50-60HZ 800W
|
|||
| Filling Range | 5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml | |||
|
Working Speed(base on water)
|
10-40bottles/min | 20-50bottles/min | 30-70bottles/min | 40-80bottles/min |
|
Filling Accuracy
|
≤±1%
|
|||
| Air Pressure | 0.5-0.7Mpa | |||
|
Machine Weight
|
220kg
|
260kg | 300kg | 600kg |
|
Package Weight
|
About 380kg (100-1000ml 4Heads)
|
|||
| Machine Size |
2000*1200*2300mm
|
2000*1200*2300mm
|
2500*1300*2300mm | 2800*1300*2500mm |
|
Package Size
|
About 1410*1220*2130mm (100-1000ml 4Heads)
|
|||

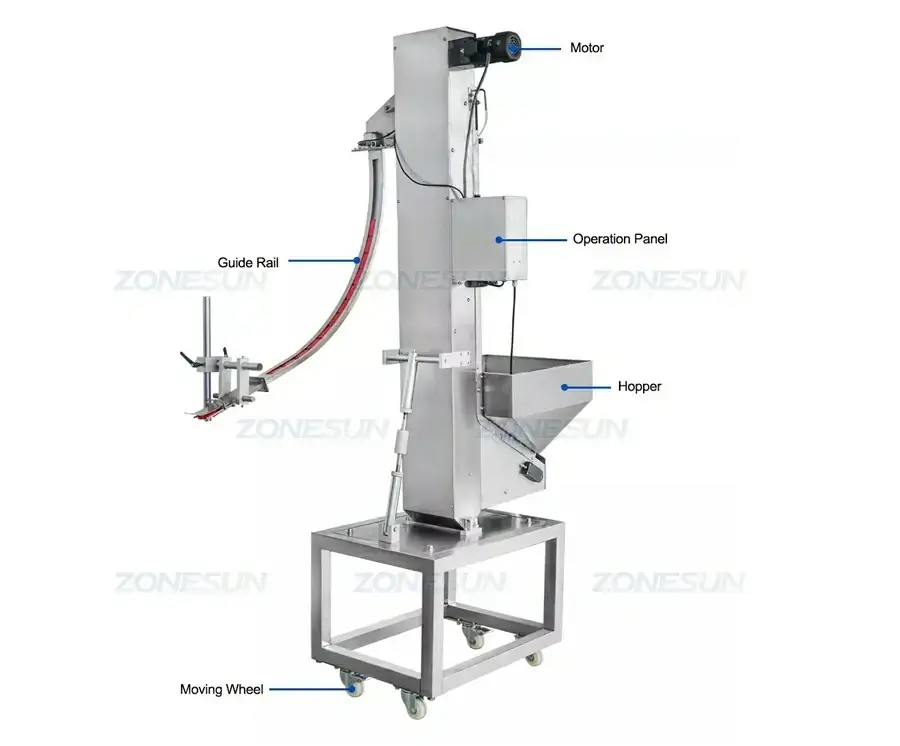

| Model | ZS-SLJ1 |
| Capacity | 60-120pcs/min |
| Suitable Cap Size | Customized |
| Voltage | AC220V 50HZ |
| Power | 0.37KW |
| Machine Size | About 1300*600*2000mm |
| Package Size | About 2350*850*1070mm |
| Net Weight/Gross Weight | About 80kg/205kg |

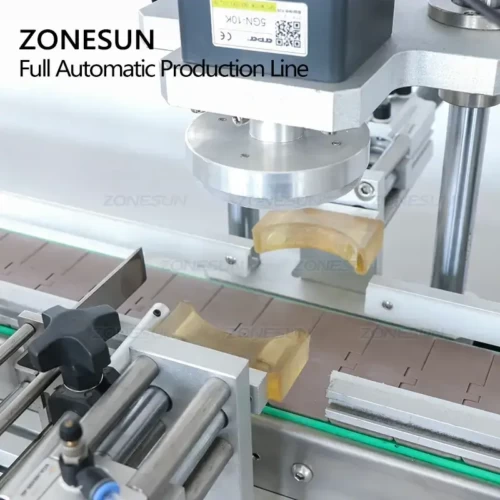

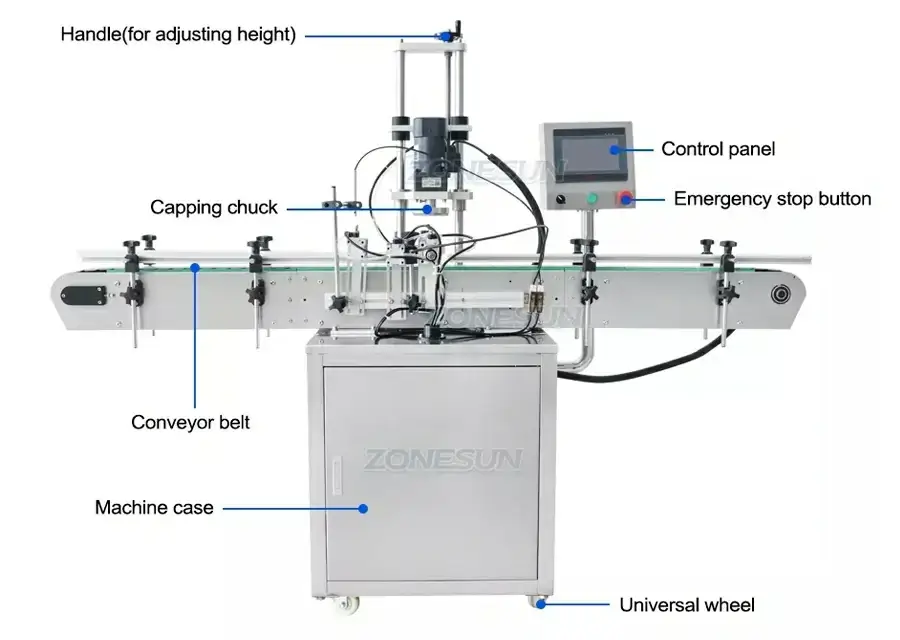

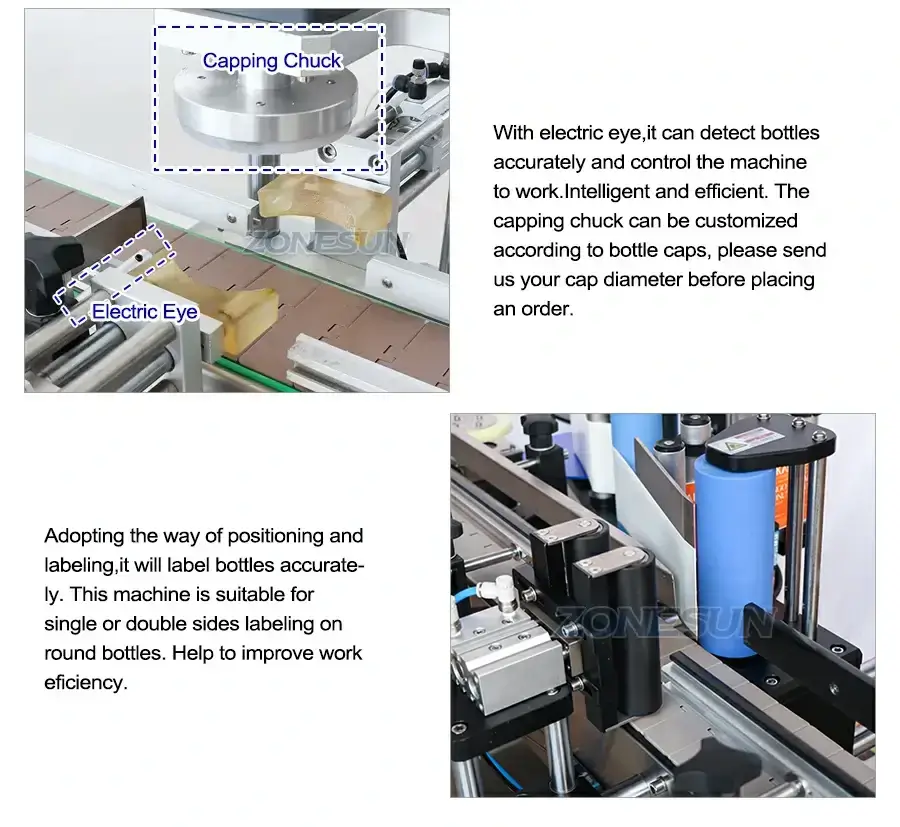

| Machine Model | ZS-XG440D |
| Working voltage | AC220V/110V 50-60HZ |
| Bottle height | ≤200mm |
| Bottle caps diameter | customize |
| Working speed | 20-30 bottles/minute(depending on bottle and caps) |
| Working pressure | 0.4-0.6 MPa |
| Conveyor size | 100mm(W)*1950mm(L) |
| Package size | About 2000*820*1800mm |
| Net weight/Gross weight | About 211kg/272kg |

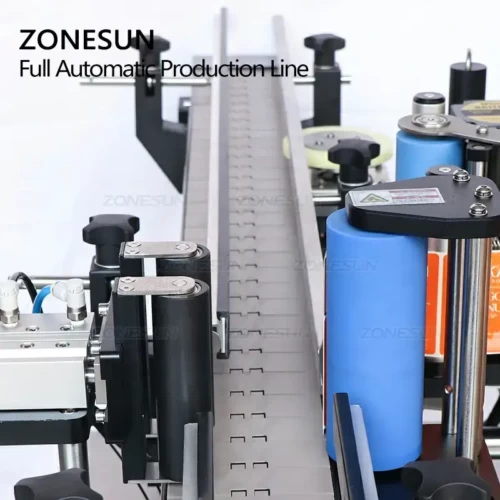

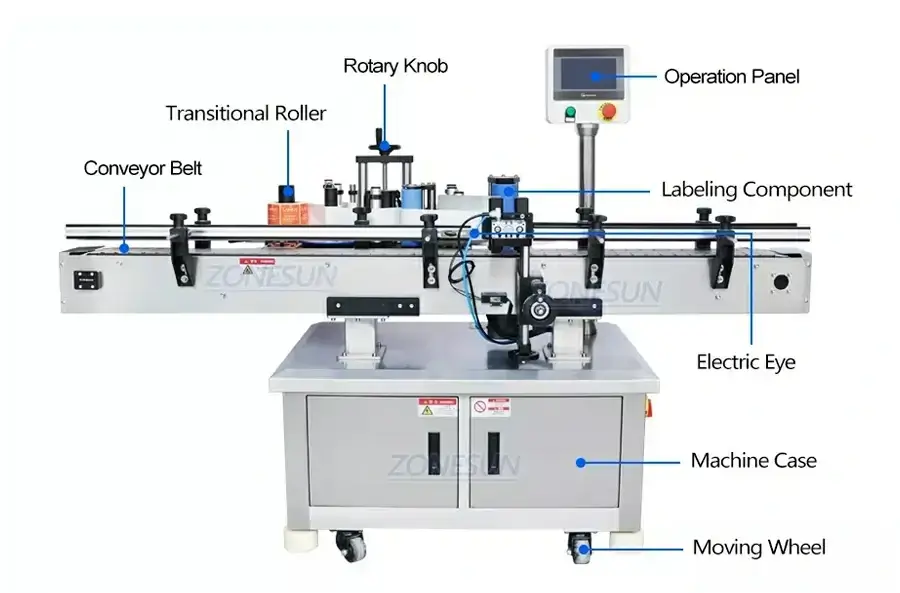

| Model | ZS-TB260R Labeling Machine |
| Power supply | AC220V 50Hz/60Hz 1000W |
| Labeling capacity(bottles/min) | 25-50 bottles/min(depends on bottle size) |
| Labeling accuracy(mm) | ±1.0mm |
| Suitable Bottle Diameter | φ12-100mm |
| Label size(mm) | (L)20-300mm (H)15-150mm |
| Roll inside diameter(mm) | φ76mm |
| Roll outside diameter(mm) | φ350mm |
| Conveyor Size | 112*2000mm(W) |
| Machine size | About (L)2000*(W)820*(H)1380(mm) |
| Machine weight | About 180kg |
| Packing Size | About (L)2100*(W)890*(H)1520(mm) |
| Package weight | About 250kg |
