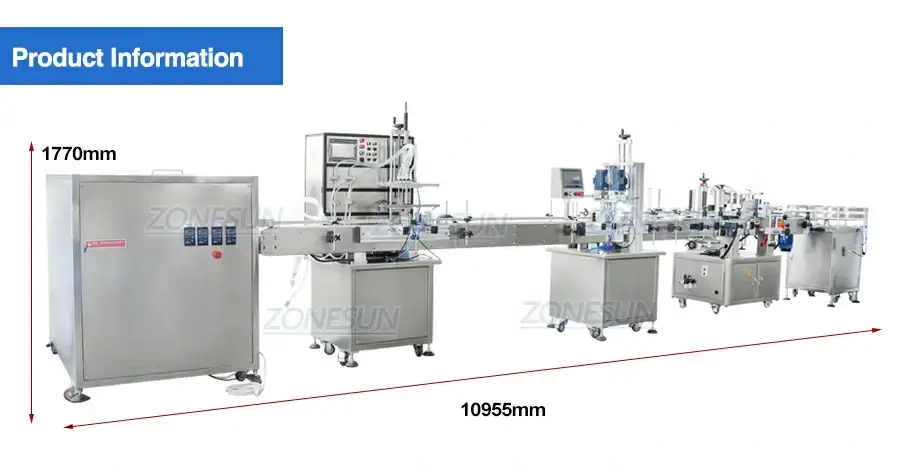

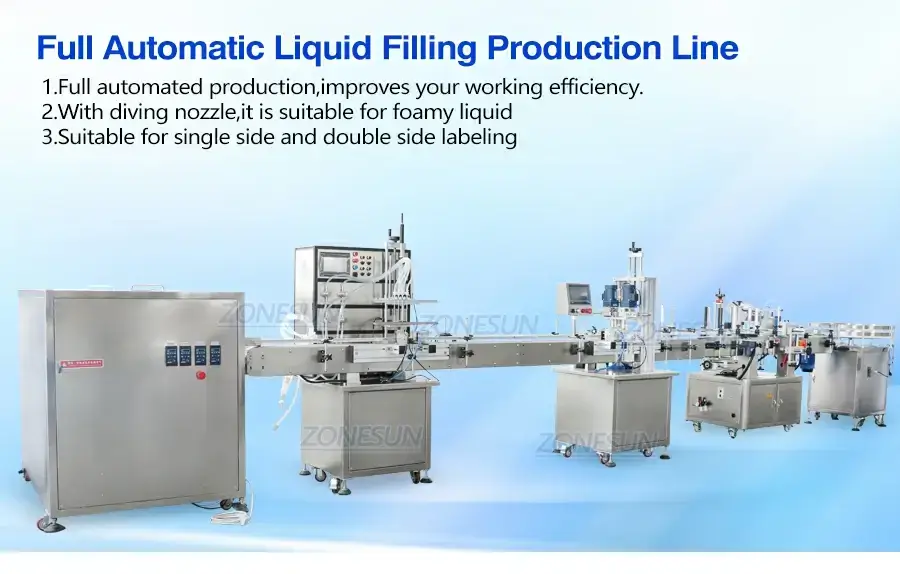

ZS-FAL180R8 Production Line

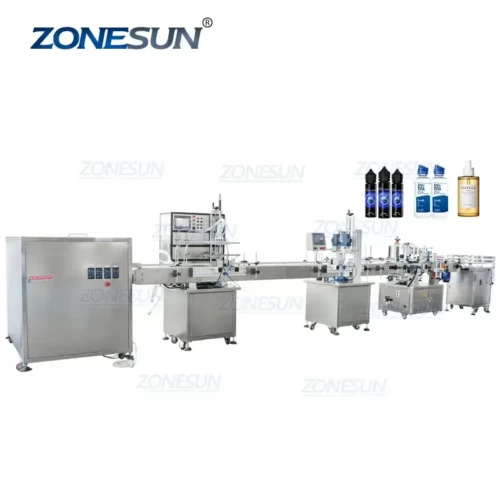

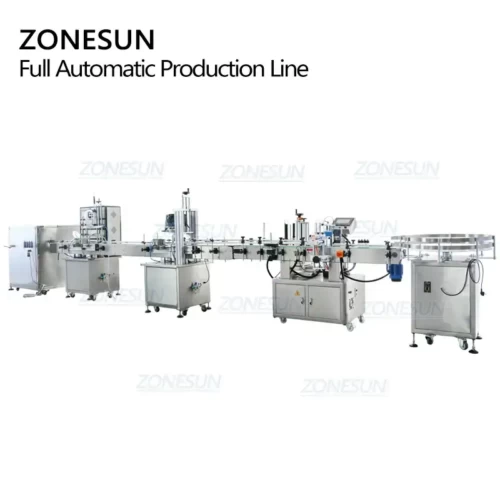

This production line consist of bottle turntable machine,filling machine,capping machine and labeling machine.It is suitable for producing essential oil,juice,cosmetics etc.The filling range can be customized according to production needs.This production line is widely used in food,daily chemical,cosmetics industries.
Share to
Description:
This production line consist of bottle turntable machine,filling machine,capping machine and labeling machine.It is suitable for producing essential oil,juice,cosmetics etc.The filling range can be customized according to production needs.This production line is widely used in food,daily chemical,cosmetics industries.
| Machine model | ZS-LP150 |
| Machine voltage | 220V 50Hz |
| Machine power | 750W |
| Working speed | 30-60bottles/min |
| Machine size | About 1550*980*1190mm |
| Machine weight | About 235kg |
| Package size | About 1660*1260*1410mm |
| Package weight | About 323kg |
| Container size | φ20-160mm H30-300mm | ||

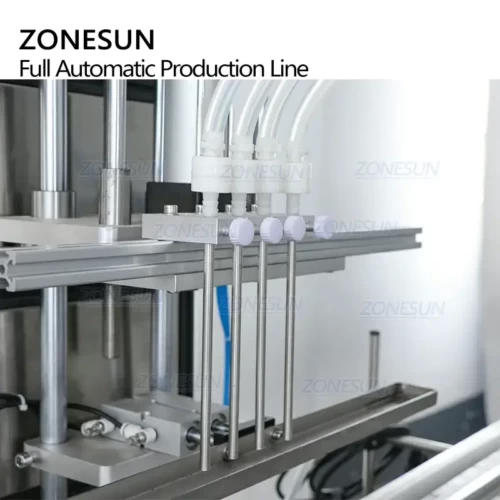

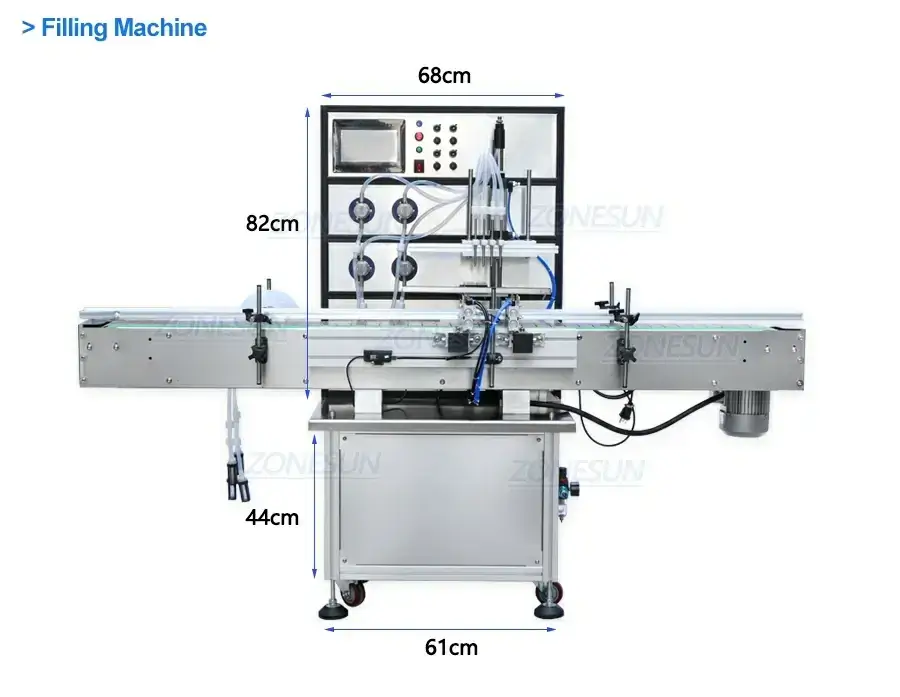

| Max flow rate | 6000ml/min |
7500ml/min
|
1200ml/min
|
| Material of pump | 316stainless steel | ||
| Filling accuracy |
≤100ml deviation≤±1ml
> 100ml deviation≤±1%
( based on water)
|
||
|
Filling speed
|
20-50pcs/min
|
25-60pcs/min |
40-65pcs/min
|
| (depending on bottles and filling liquid) | |||
| Power supply | 220V-50HZ/110V-60HZ | ||
|
The whole machine power
|
2000W
|
||
| Size of air compressor connector | OD8mm | ||
| Packing weight | About 150kg | ||
| Packing size | About 2000*820*1580mm | ||

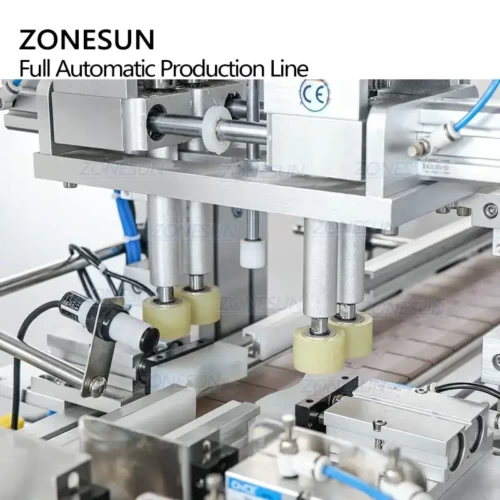

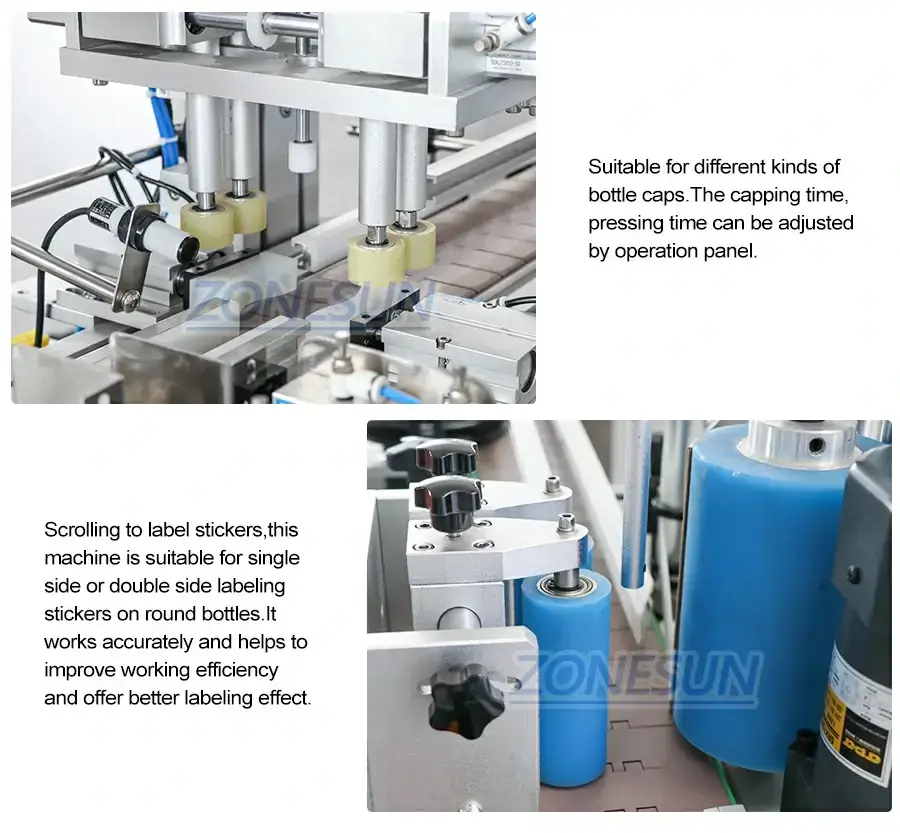

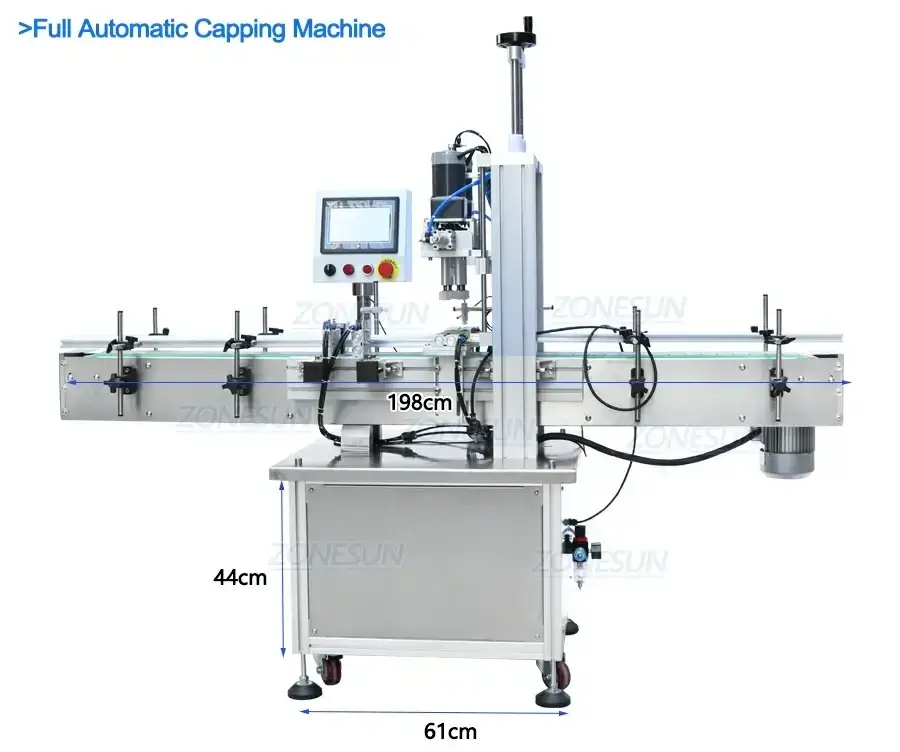

| Model | ZS-XG16 |
| Bottle height | 30-300mm |
| Bottle caps diameter | 18-70mm |
| Bottle diameter | 20-160mm |
| Working speed | 20-60 bottles/minute (depending on bottle and caps) |
| Working voltage | AC220V/110V 50-60HZ |
| Working pressure | 0.4-0.6 MPa |
| Size of air compressor connector | OD 8mm |
| Dimension | About 1930*740*1600mm |
| Packing size | About 2000*820*1760mm |
| Net weight/Gross weight | About 113kg/192.5kg |

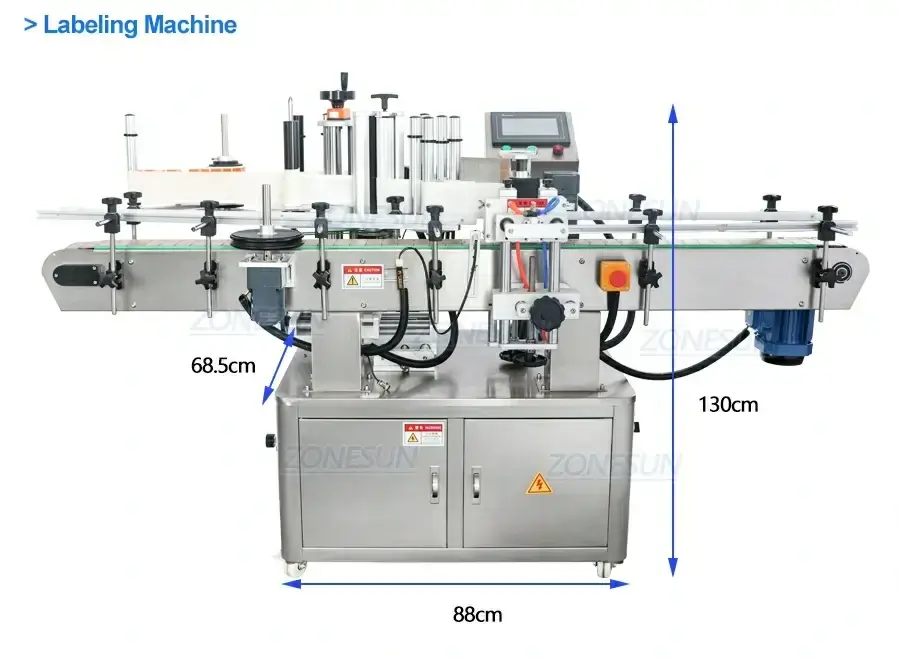

| Model | ZS-TB260 Labeling Machine |
| Power supply | AC220V 5OHz/60Hz 1500W |
| Labeling capacity | 25-50PCS /min(depends on bottle size) |
| Labeling accuracy | ±1.0mm |
| Suitable Bottle Diameter | φ30-100mm |
| Label size | (L)15-200mm (H)15-150mm |
| Roll inside diameter | φ76mm |
| Roll outside diameter | φ350mm |
| Conveyor Size | 1950(L)*100mm(W) |
| Machine size | About 2000*1400*1300mm |
| Packing Size | About 2120*940*1500mm |

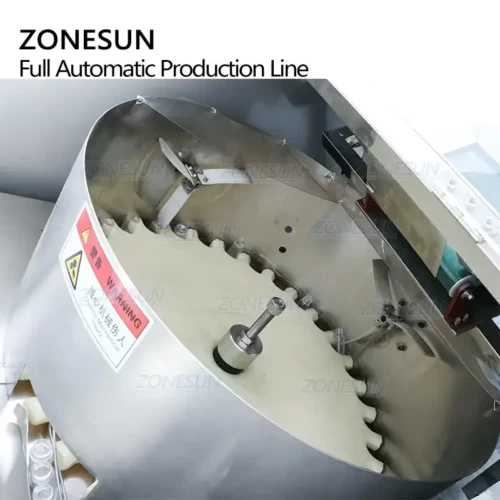

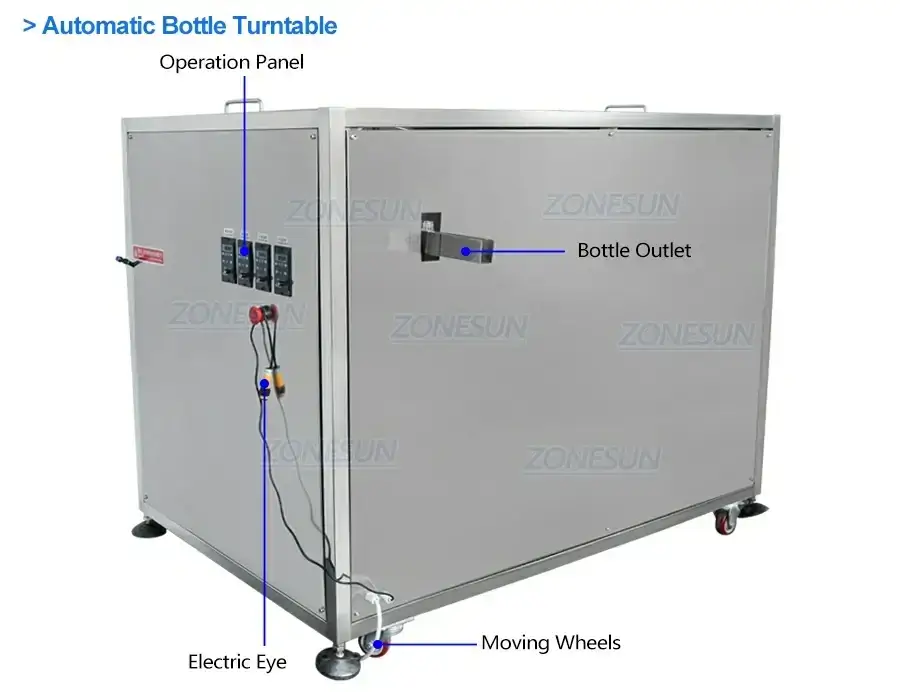

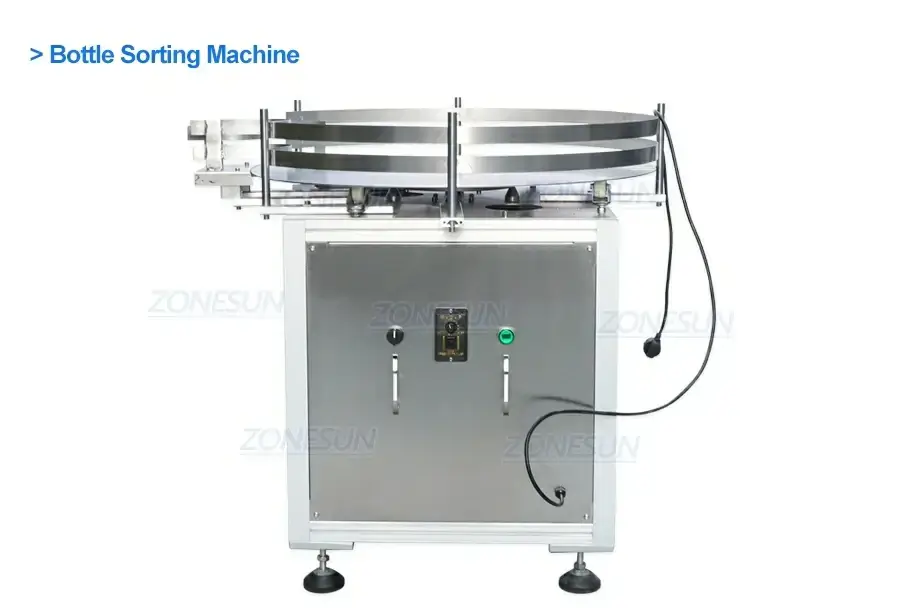

| Bottle specifications | Square bottle/round bottle |
| Conveying speed | 0-20 revolutions per minute(adjustable) |
| Voltage | 200V 50Hz(110v can be customized) |
| Power supply | 200W |
| Turntable diameter | 800 mm Available |
| Machine size | About 1000*1000*900mm |
| Package size | About 1050*1000*1130mm |
| Net weight/Gross weight | About 129kg/131.5kg |
