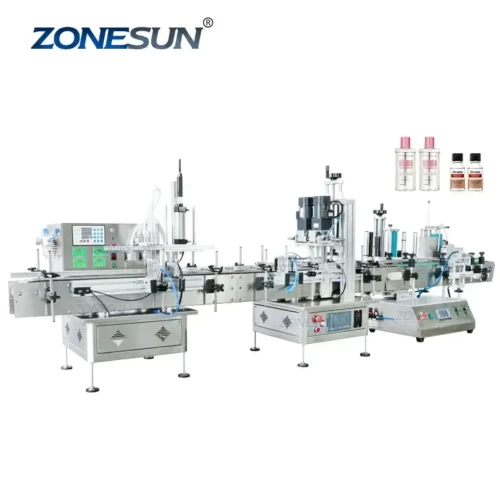

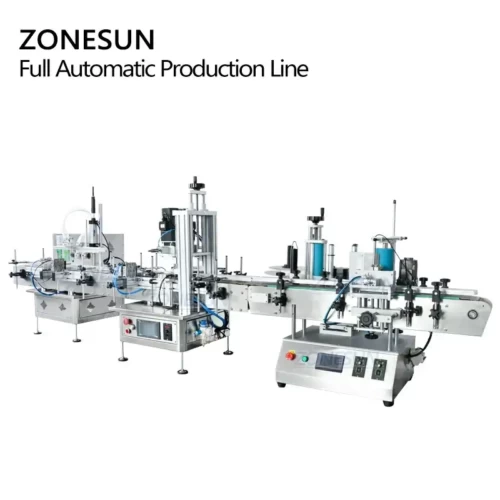

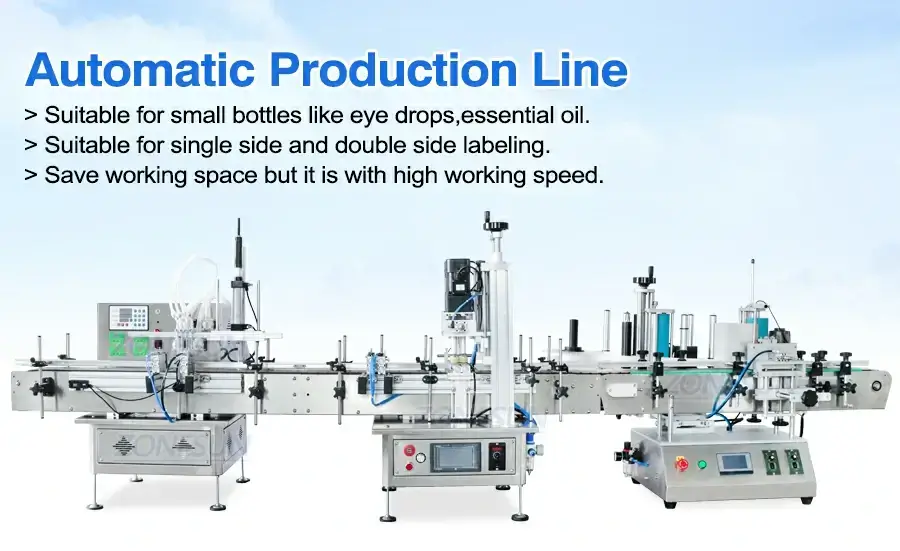

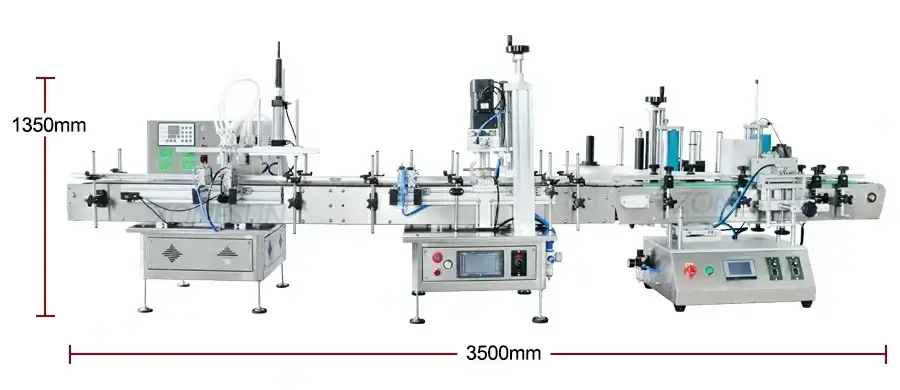

ZS-FAL180C4 Production Line
This production line is suitable for small scale production,can fill liquid,cap bottles and label stickers automatically.These desktop type machines can save working space and help you improve working efficiency greatly.It is widely used in food,beverage,cosmetics,daily chemical and pharmaceutical industries.
Share to
Description:
This production line is suitable for small scale production,can fill liquid,cap bottles and label stickers automatically.These desktop type machines can save working space and help you improve working efficiency greatly.It is widely used in food,beverage,cosmetics,daily chemical and pharmaceutical industries.
Parameter:

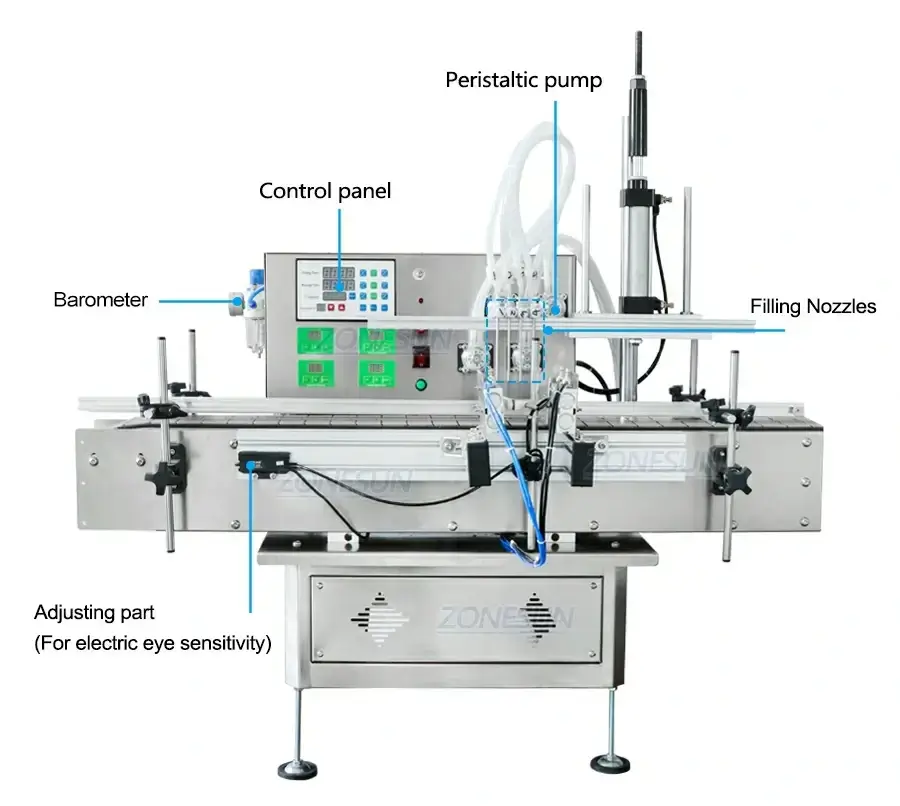

| Machine model | ZS-DTPP4M |
| Power supply | AC110V/220V 50Hz-60Hz 60W*4 |
| Filling Range | ≤50ml |
| Maximum flow | 650ml/min for each nozzle (based on water ) |

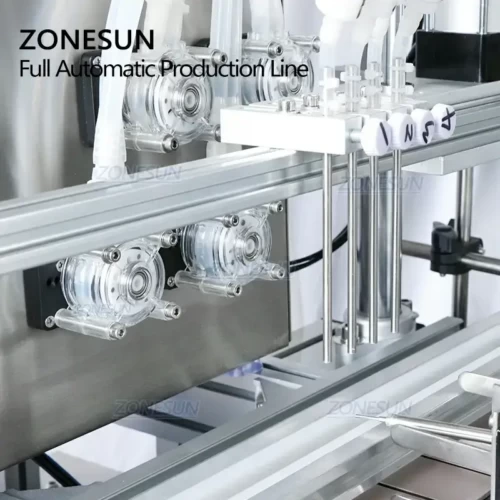

| Filling nozzles | 4(we can customize the nozzles based on your demands) |
| Working speed | 20-40 bottles/min(based on bottles and liquids) |
| Air pressure | 0.3-0.4MPa |
| Filling accuracy | ≤±1% (For water) |
| Diameter of filling nozzle | 4mm |
| Delay range | 0.01-999.9s |
| Conveyor belt length | 1m |
| Size of air compressor connector | OD8mm |
| Package size | About 1185*710*795mm |
| Net weight/Gross weight | About 50kg/79kg |

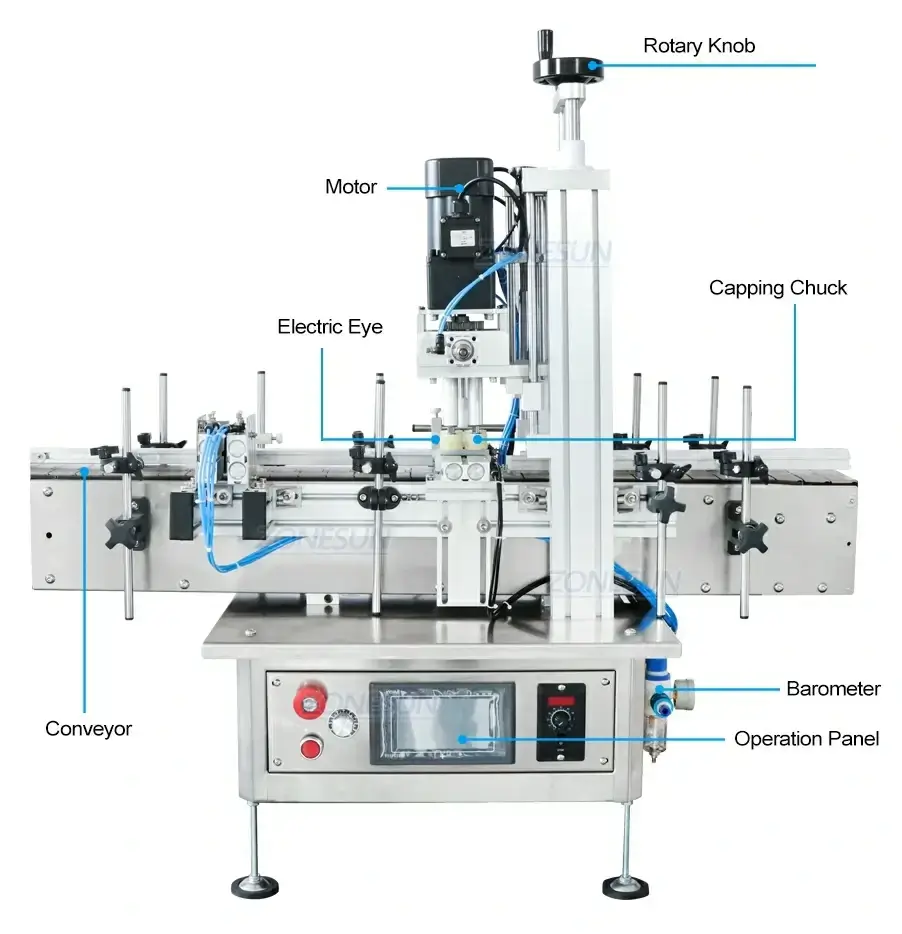

| Bottle Height | 60- 270mm |

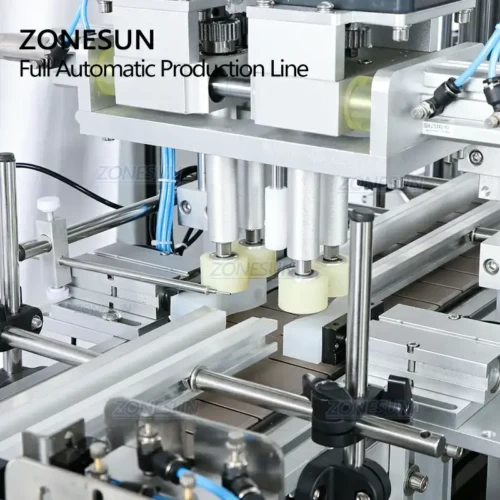

| Bottle Caps Diameter | 18-70mm |
| Working Speed | 20-40 bottles/minute (depending on bottle and caps) |
| Working Voltage | AC220V/110V 50-60HZ |
| Working Pressure | 0.4-0.6 MPa |
| Conveyor Length | 1117mm |
| Net weight/Gross weight | About 65.5kg/97.5kg |
| Package Size | About 1160*610*1140mm |
| Machine Size | About 1120* 580* 1110mm |
| Size of air compressor connector | OD 8mm |

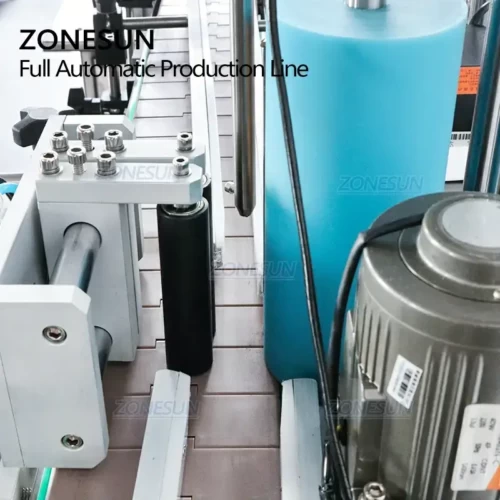

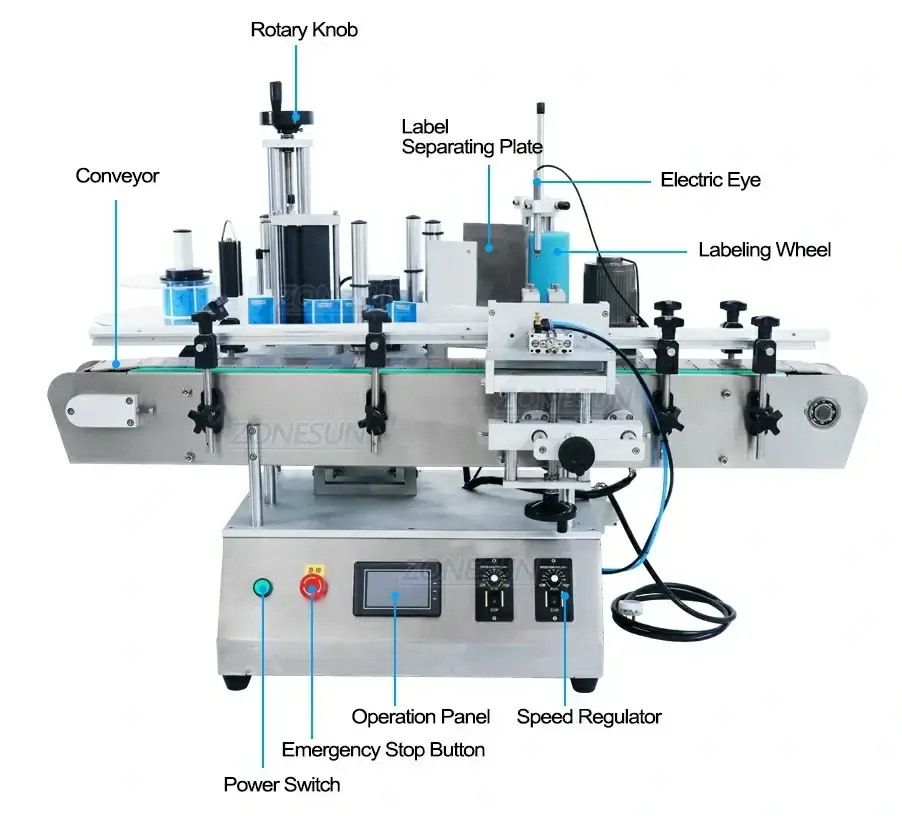

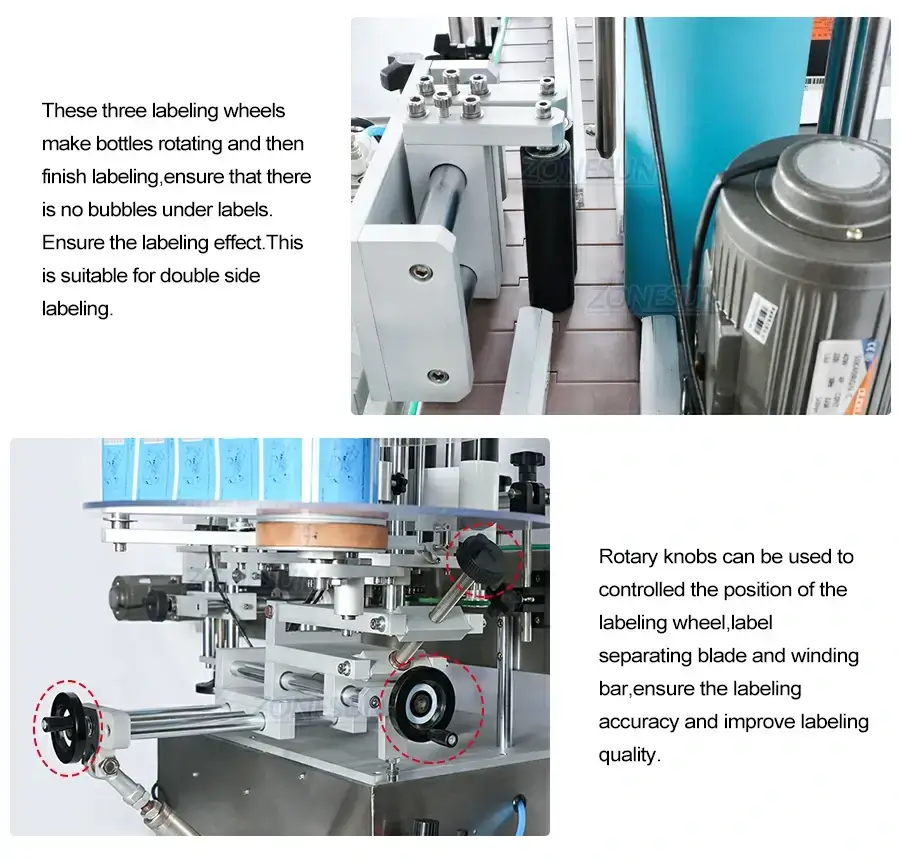

| Machine Model | ZS-TB500A |
| Voltage | 110V-60HZ/220V-50HZ |
| Working Speed | About 20-60 bottles/min |
| Suitable Labeling Size | 15-140mm(W)*25-300mm(L) |
| Roll Inside Diameter(mm) | φ75mm |
| Roll Outside Diameter(mm) | φ250mm |
| Suitable Bottle Diameter | About 30-100mm |
| Conveyor Size | About 1310*100mm |
| Package Size | About 1460*700*960mm |
| Package Weight | About 125.5kg |
