ZS-FAL180P10 Production Line

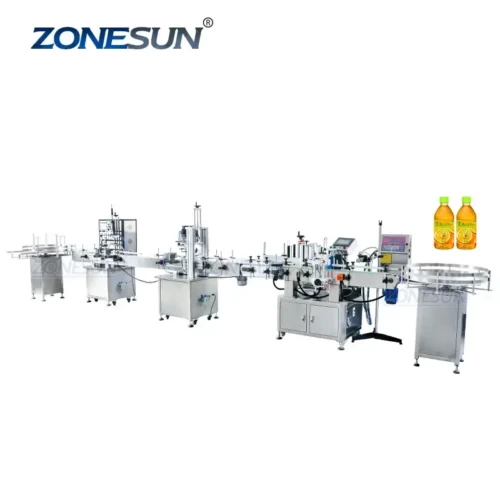

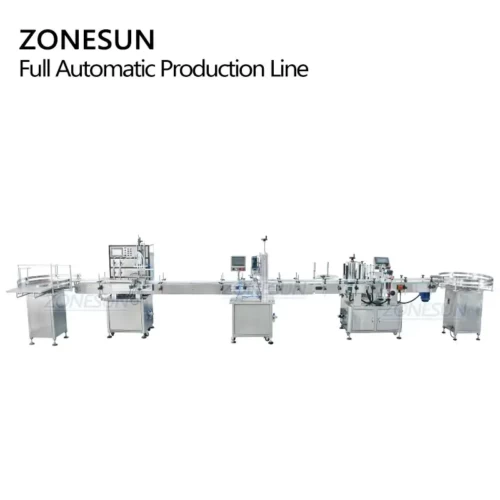

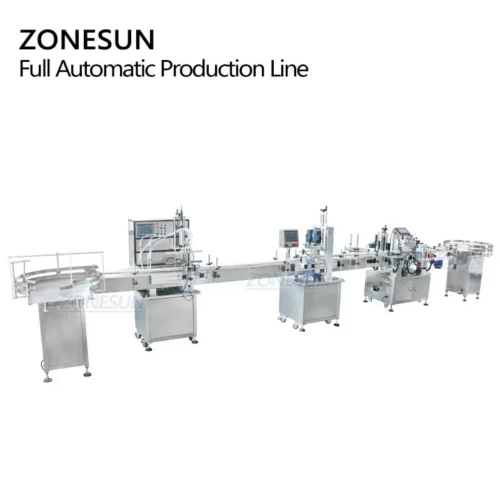

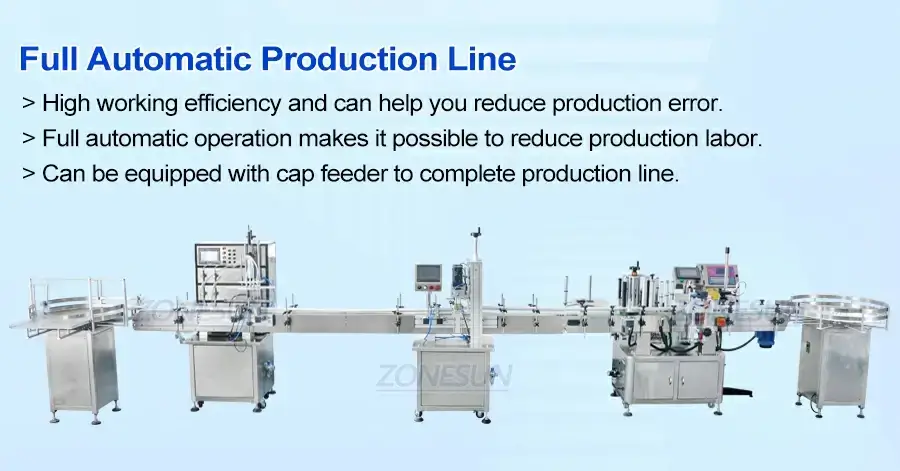

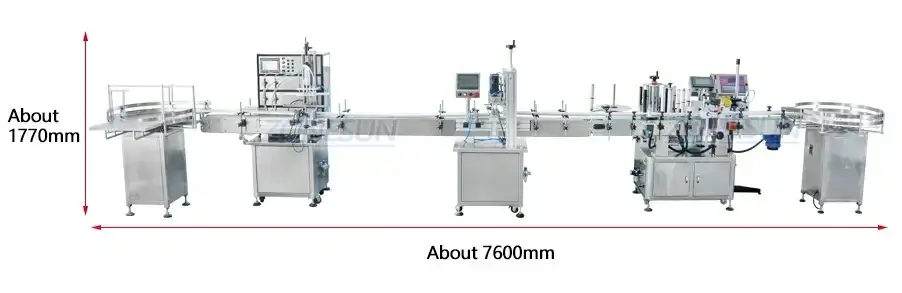

This production line can automatically arrange bottles,fill liquid,cap bottles,label stickers,print production date and collect bottles.The full automated operation helps to improve working efficiency.We also offer custom service for producing different products,make sure these machines can match your material better.It is widely used in food,beverage,cosmetics and daily chemical industries.
Share to
Description:
This production line can automatically arrange bottles,fill liquid,cap bottles,label stickers,print production date and collect bottles.The full automated operation helps to improve working efficiency.We also offer custom service for producing different products,make sure these machines can match your material better.It is widely used in food,beverage,cosmetics and daily chemical industries.
Parameter:

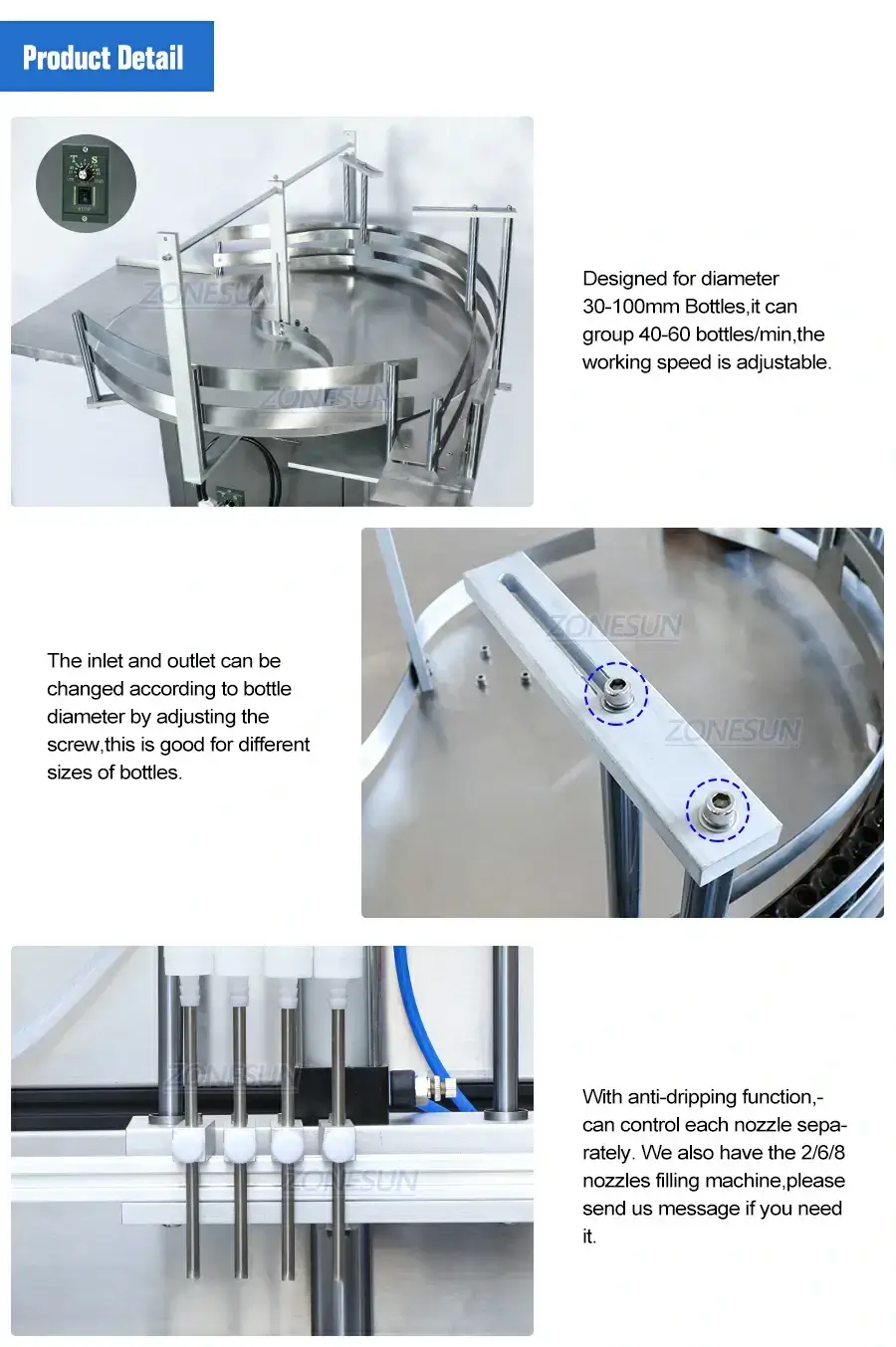

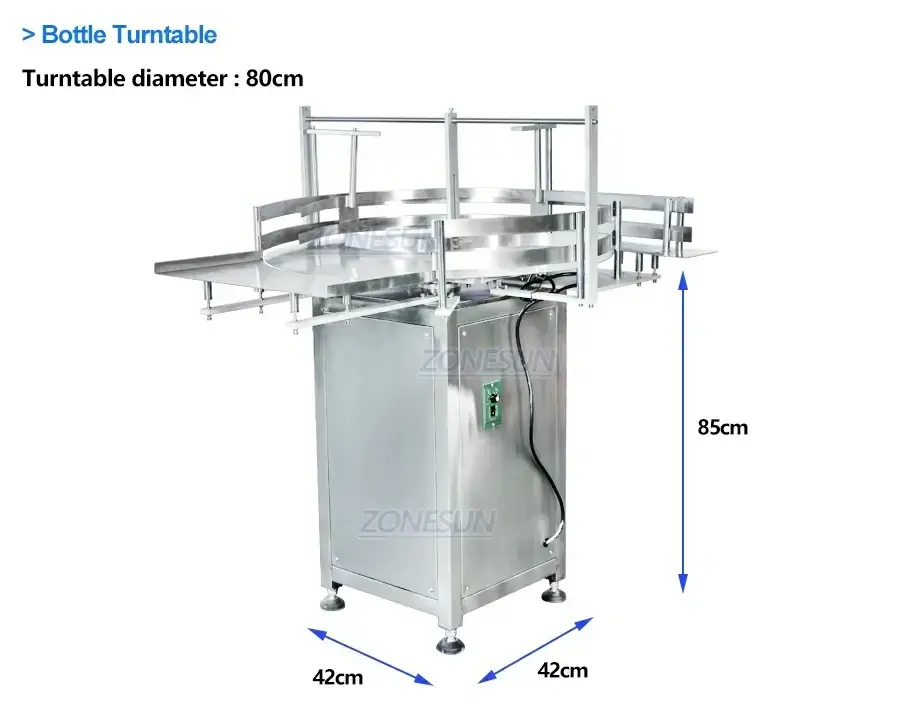

| Model | ZS-LP800Z | ZS-LP1000Z |
| Turntable Diameter | 800mm | 1000mm |
| Suitable Bottle Diameter | 20-100mm | |
| Suitable Bottle Height | 30-320mm | |
| Working Speed | 40-60 bottles/min(depends on bottle size) | |
| Motor Power | 50W | |
| Power Supply | 220/110v 50-60HZ | |
| Net weight | About 50kg | About 135kg |
| Package size | About 115*110*132cm | About 135*131.5*123.5cm |
| Gross weight | About 65kg | About 180kg |

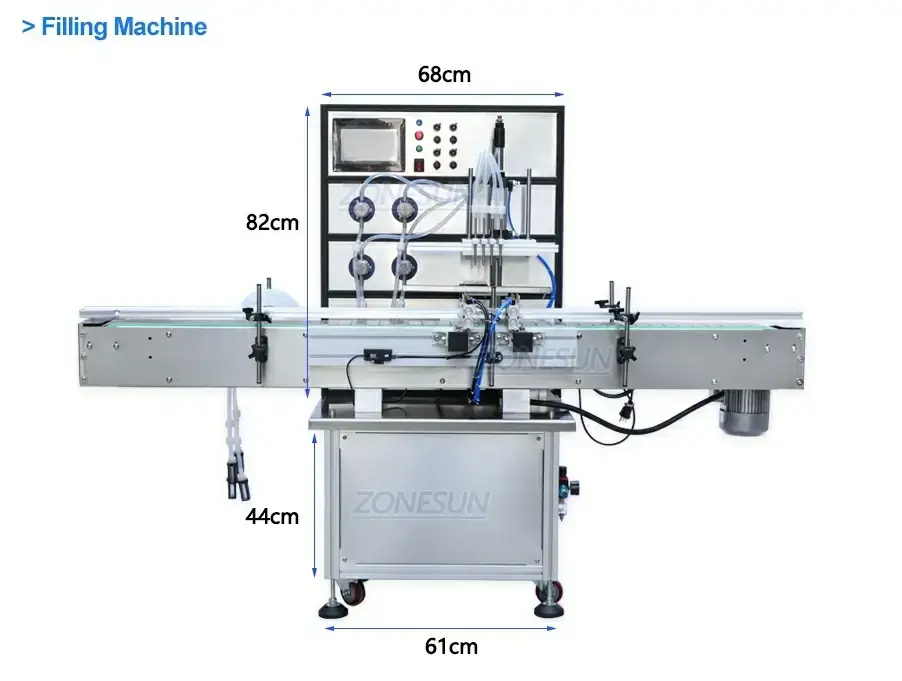

| Container size | φ20-160mm H30-300mm | ||
| Max flow rate | 6000ml/min | 7500ml/min | 12000ml/min |
| Material of pump | 316stainless steel | ||
| Filling accuracy |
≤100ml deviation≤±1ml
> 100ml deviation≤±1%
( based on water)
|
||
| Filling speed | 20-50pcs/min | 25-60pcs/min | 40-65pcs/min |
| (depending on bottles and flling liquid) | |||
| Power supply | 220V-50HZ/110V-60HZ | ||
| The whole machine power | 2000W | ||
| Packing weight | About 150kg | ||
| Packing size | About 2000*820*1580mm | ||
| Size of air compressor connector | OD8mm | ||

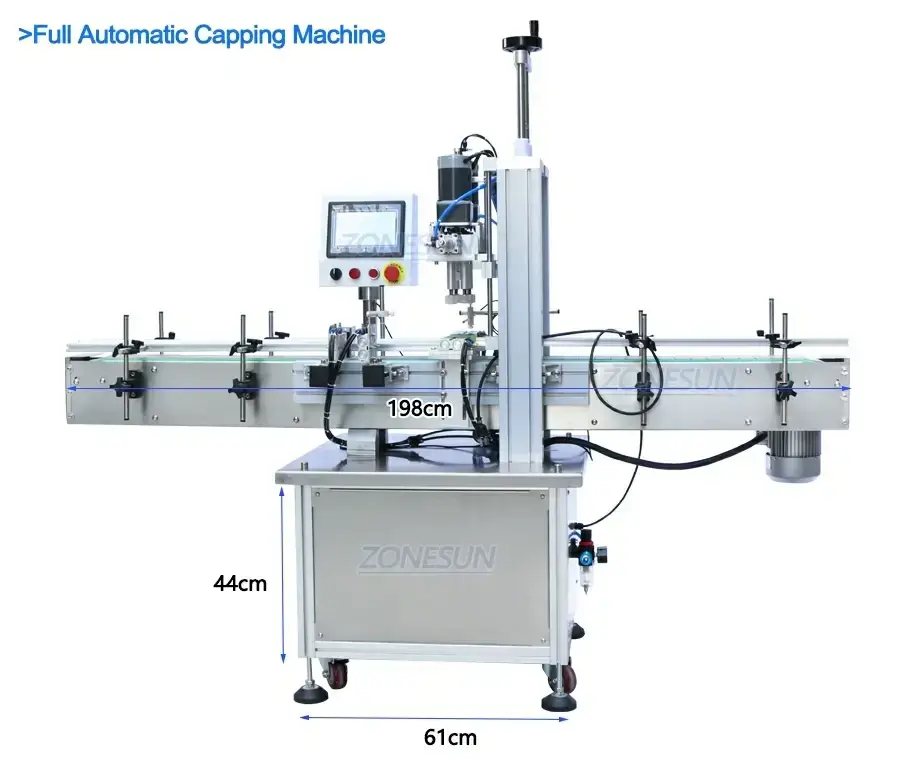

| Machine model | ZS-XG16 |
| Bottle height | 30-300mm |
| Cap diameter | 18-70mm |
| Bottle diameter | 20-160mm |
| Working speed |
20-60 bottles / minute
(depending on bottle and cap size and shape)
|
| Working voltage | AC220V/110v 50-60HZ |
| Working pressure | 0.4-0.6MPa |
| Size of air compressor connector | OD 8mm |
| Dimension | About 1930x740x1600mm |
| Packing size | About 2000x820x1760mm |
| Net Weight/Gross Weight | About 113kg/192.5kg |

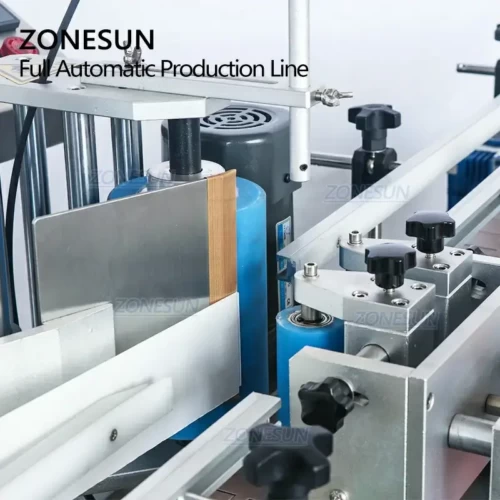

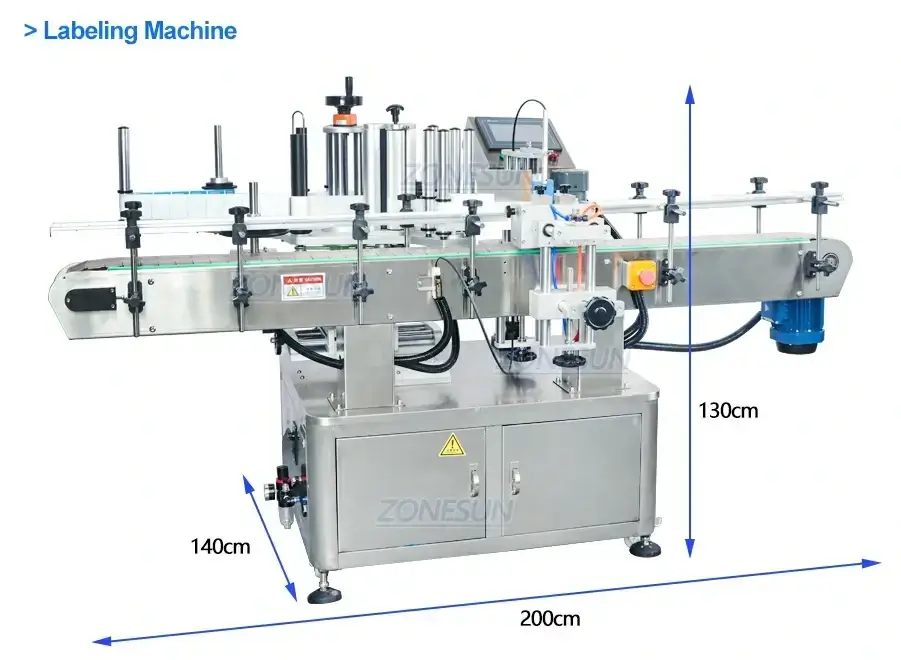

| Model | ZS-TB260 Labeling Machine |
| Power supply | AC220V 5OHz/60Hz 1500W |
| Labeling capacity | 25-50PCS /min(depends on bottle size) |
| Labeling accuracy | ±1.0mm |
| Suitable Bottle Diameter | φ30-100mm |
| Label size | (L)15-200mm (H)15-150mm |
| Roll inside diameter | φ76mm |
| Roll outside diameter | φ350mm |
| Conveyor Size | 1950(L)*100mm(W) |
| Machine size | About 2000*1400*1300mm |
| Packing Size | About 2120*940*1500mm |

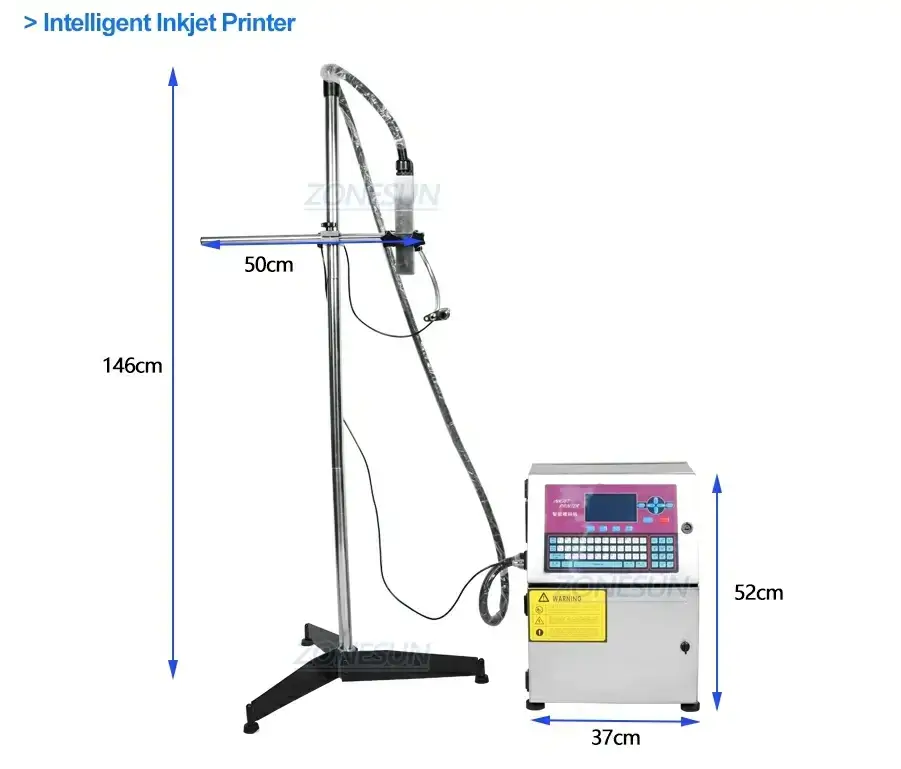

| Power supply | 220V/50HZ, 150VA |
| Number of lines printed | 1-4 lines |
| Character height | 1.5-18mm |
| Printing speed | 1024 seconds (5*7) |
| Printing direction | Positive sequence/reverse order/reverse |
| Printing distance | The nozzle and the object to be sprayed are kept within 3cm |
| Printing materials | paper,plastic products,pipes,food bags,metal,glass,paper cups,etc |
| Store information | The system can store 1000 print information |
| Font dot | Alphanumeric 5×7 16×16 |
| Interface | RS232 serial interface |
| Ink consumption | 70 million words per print (5*7) |

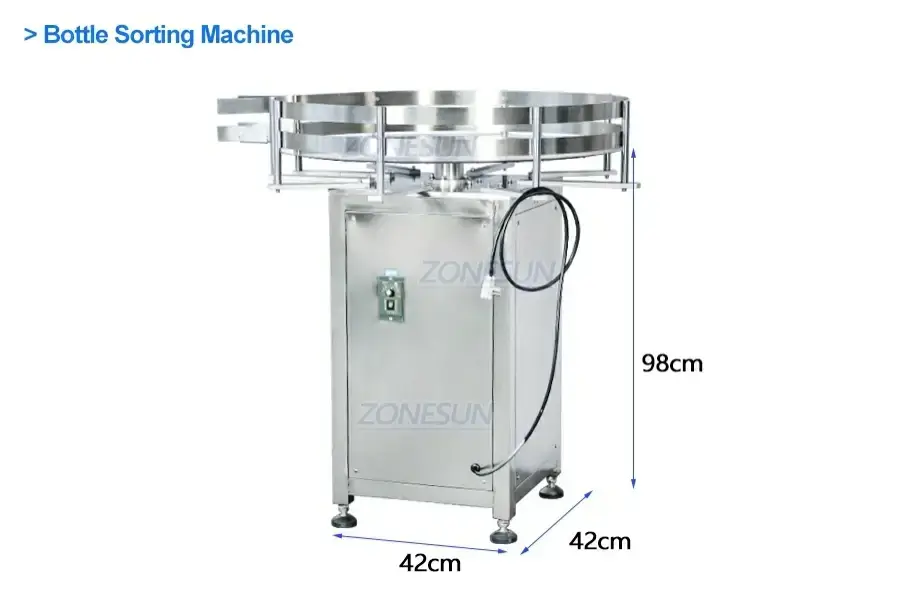

| Bottle specifications | Square bottle/round bottle |
| Conveying speed | 0-20 revolutions per minute(adjustable) |
| Voltage | 200V 50Hz(110v can be customized) |
| Power supply | 50W |
| Turntable diameter | 800 mm Available |
| Package size | About 1050*1000*1130mm |
| Net weight | About 63kg |
| Gross weight | About 73kg |
