ZS-FAL180R4 Production Line

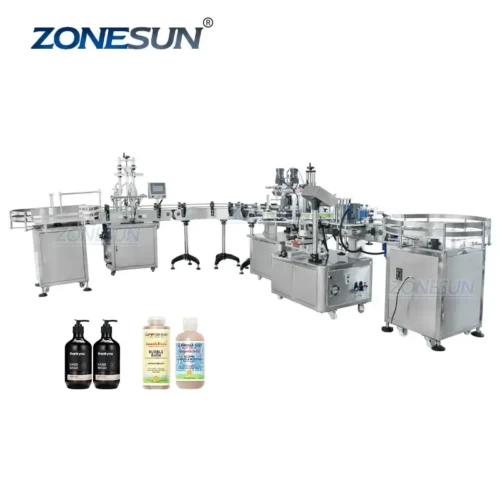

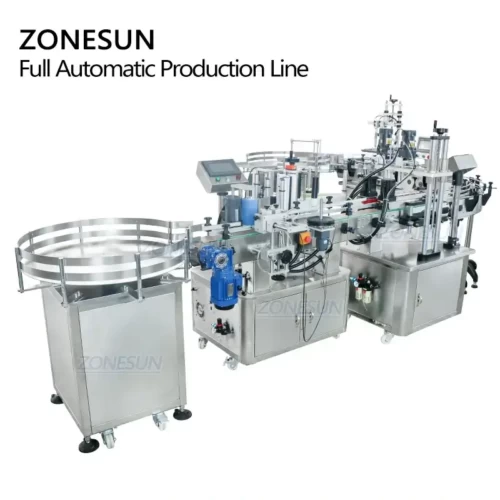

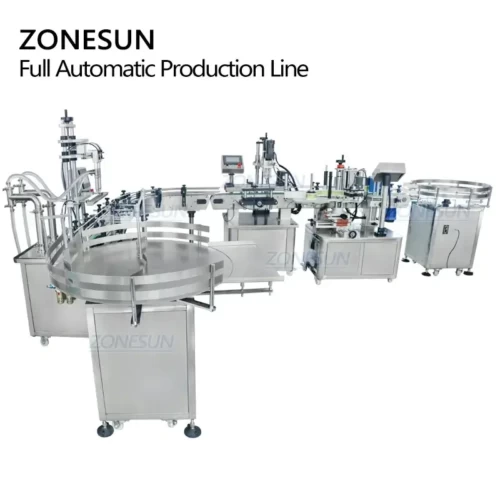

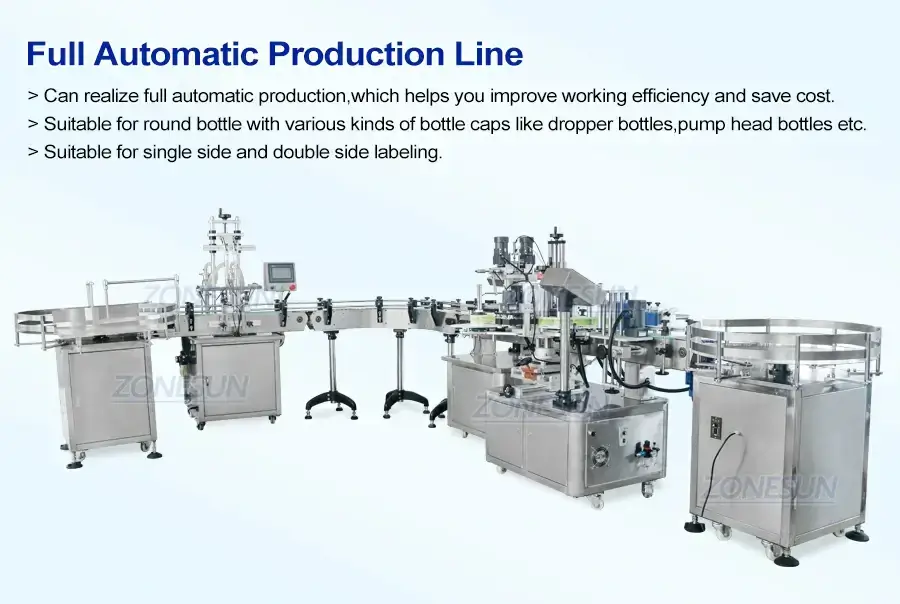

Our automatic filling production line consists of bottle turntable,automatic filling machine,capping machine,labeling machine and bottle sorting machine,which is suitable for automatic bottle packaging of various liquids(we also have the filling machine for paste).Our filling line is widely used in cosmetics,pharmaceuticals,&chemicals fields.Professionally customized machines for your production.
Share to
Description:
Our automatic filling production line consists of bottle turntable,automatic filling machine,capping machine,labeling machine and bottle sorting machine,which is suitable for automatic bottle packaging of various liquids(we also have the filling machine for paste).Our filling line is widely used in cosmetics,pharmaceuticals,&chemicals fields.Professionally customized machines for your production.
Parameter:

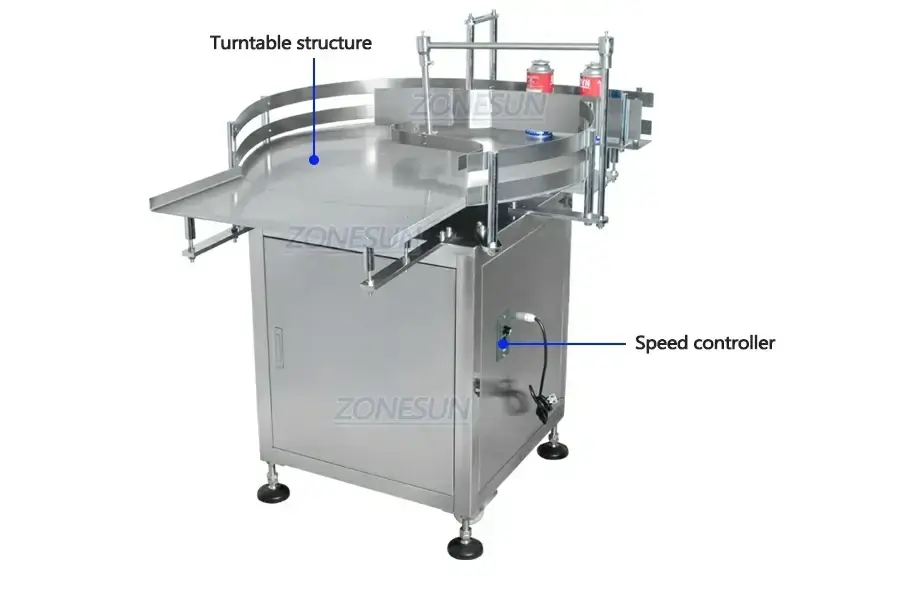

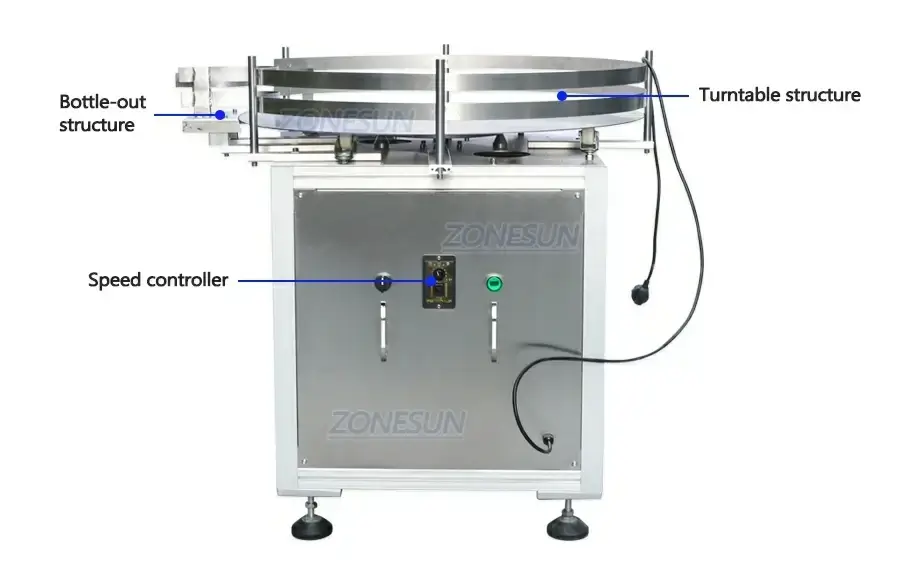

| Model | ZS-LP800 | ZS-LP1000 |
| Turntable Diameter | 800mm | 1000mm |
| Suitable Bottle Diameter | 20-100mm | |
| Suitable Bottle height | 30-320mm | |
| Working Speed | 40-60 bottles/min(depends on bottle size) | |
| Power Supply | 220V/110V 50-60Hz 200W | |
| Package Size | About 1150*1000*1320mm | About 1350*1315*1235mm |
|
Net Weight/Gross Weight
|
About 109.5kg/155kg
|
About 135kg/180kg |

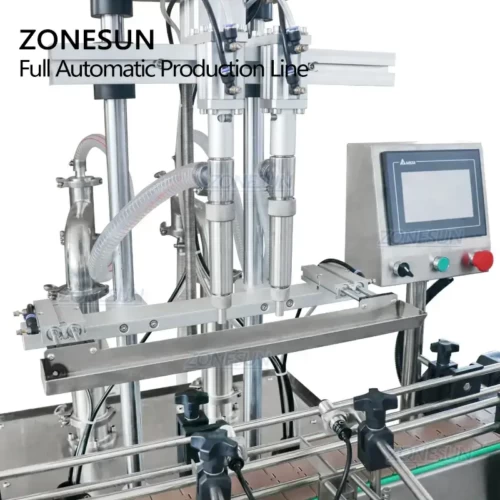

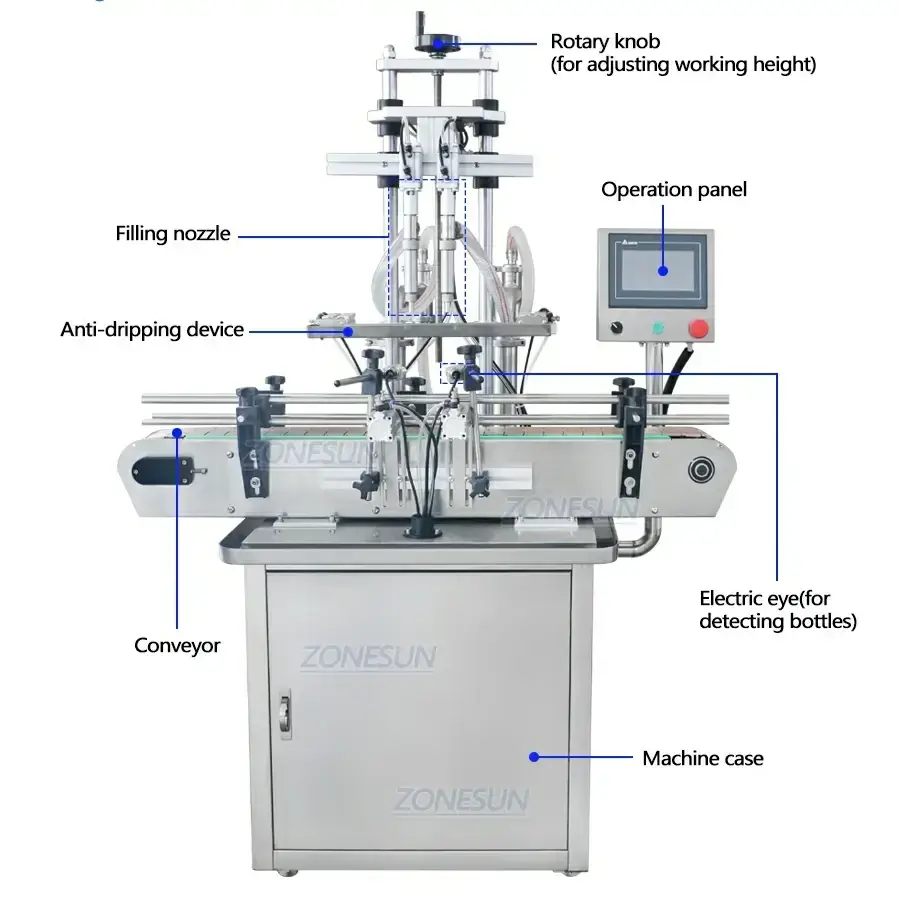

>Filling Machine
| Model | ZS-YT2T-2Y |
ZS-YT4T-4Y
|
ZS-YT6T-6Y
|
ZS-YT8T-8Y |
| Voltage | 110/220V 50-60HZ 300W | |||
|
Filling Range
|
5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
|
|||
|
Working Speed
|
10-30botles/min
|
20-35bottles/min
|
30-40bottles/min
|
35-45bottles/min
|
|
Filling Accuracy
|
≤±1%
|
|||
|
Air Pressure
|
0.5-0.7MPa
|
|||
|
Size Of Air Compressor Connector
|
OD 10mm
|
|||
|
Conveyor length
|
2050mm(standard )
|
|||
|
Conveyor material
|
Plastic(standard)/stainless steel(custom version)
|
|||
| Machine weight | 220kg | 260kg | 300kg | 500kg |
| Machine size |
2100x860x1460mm
|
2600x860x1460mm
|
3200x860x1460mm | 2500x1100x1600mm |

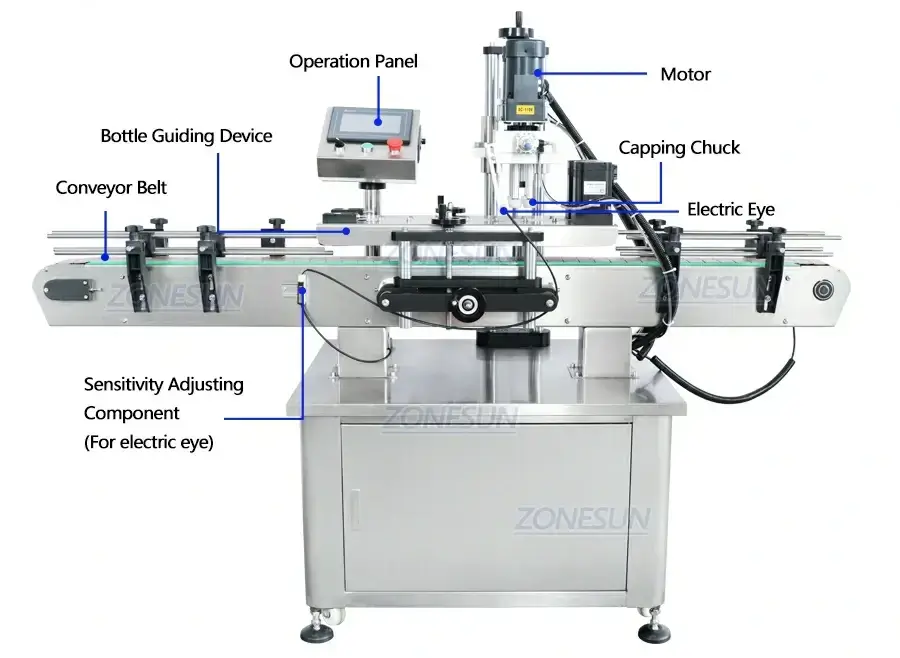

>Capping Machine
| Machine model | ZS-XG440 |
| Bottle height | 50-350mm |
| Bottle Caps Diameter | 20-50mm |
| Working speed | 0-40 bottles/minute (depending on bottle and caps) |
| Working voltage | AC220V/110V 50-60HZ 300W |
| Working pressure | 0.4-0.6 MPa |
| Capping Torsion | 4-9kgf/cm |
| Packing size | About 1900*470*1240mm |

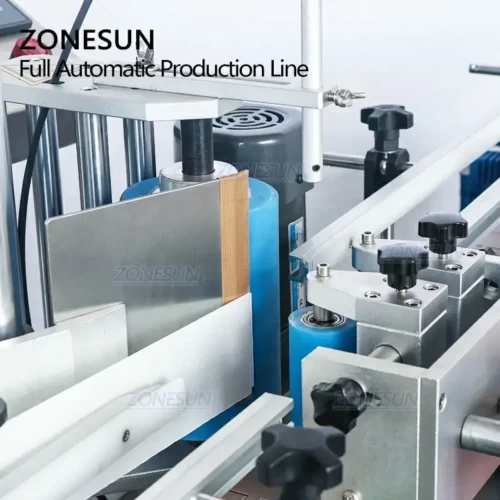

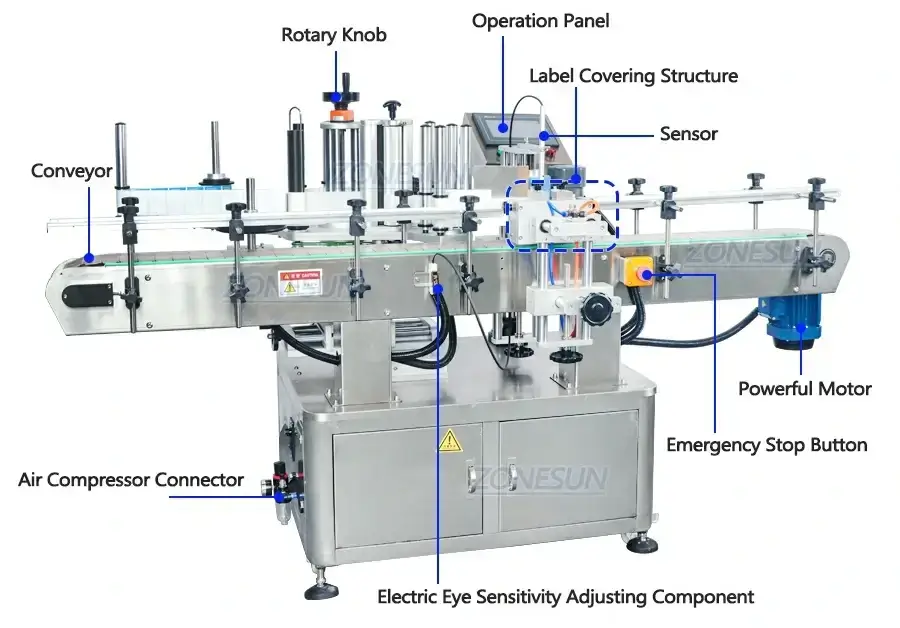

>Labeling Machine
| Model | ZS-TB260 Labeling Machine |
| Power supply | AC220V 5OHz/60Hz 1500W |
| Labeling capacity | 25-50PCS /min(depends on bottle size) |
| Labeling accuracy | ±1.0mm |
| Suitable Bottle Diameter | φ30-100mm |
| Label size | (L)15-200mm (H)15-150mm |
| Roll inside diameter | φ76mm |
| Roll outside diameter | φ350mm |
| Conveyor Size | 1950(L)*100mm(W) |
| Machine size | About (L)2000*(W)1400*(H)1300(mm) |
| Packing Size | About 2120x940x1500mm |
>Bottle Sorting Machine
| Bottle specifications | Square bottle/round bottle |
| Conveying speed | 0-20 revolutions per minute(adjustable) |
| Voltage | 200V 50Hz(110v can be customized) |
| Power supply | 200W |
| Turntable diameter | 800 mm Available |
| Machine size | About 1000*1000*900mm |
| Package size | About 1050*1000*1130mm |
| Net weight/Gross weight | About 129kg/131.5kg |
