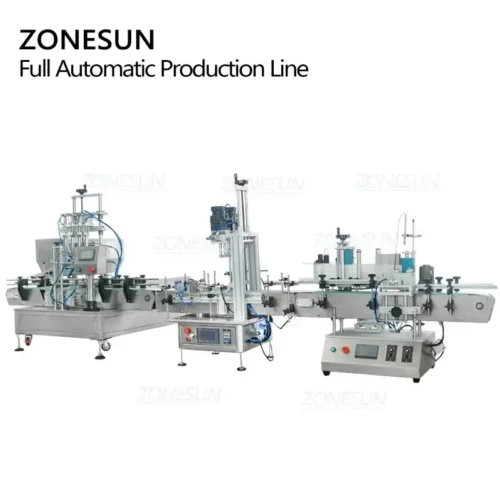

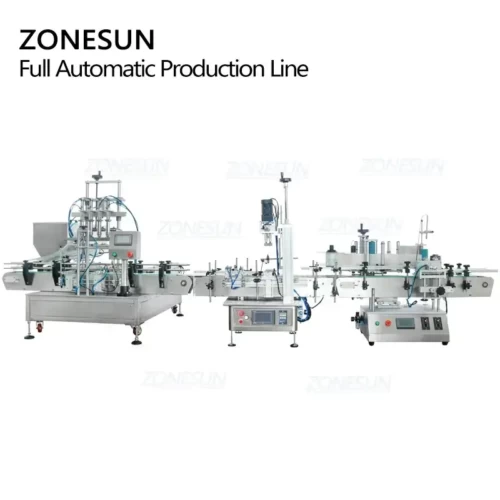

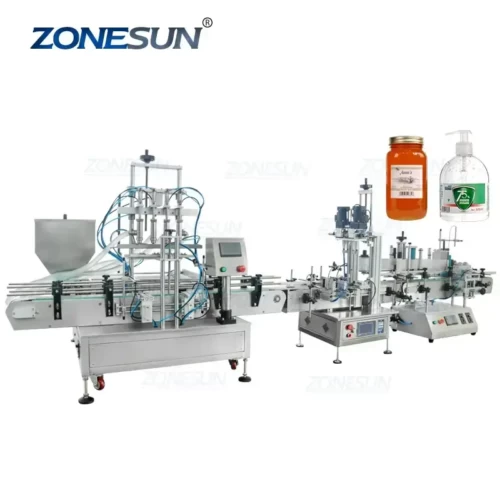

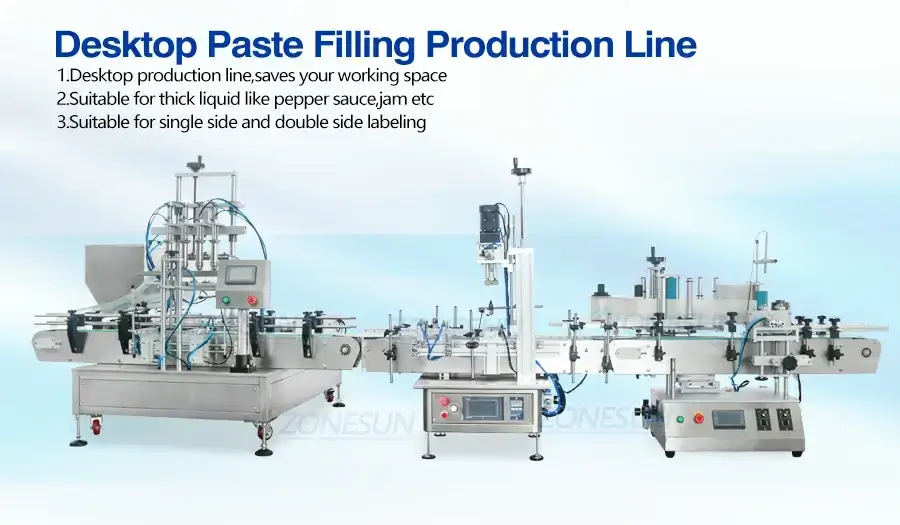

Desktop Paste Filling Production
This production line is suitable for small scale production,can fill paste,cap bottles and label stickers automatically.These desktop type machines can save working space and help you improve working efficiency greatly.It is widely used in food,beverage,cosmetics,daily chemical and pharmaceutical industries.
Share to
Description:
This production line is suitable for small scale production,can fill paste,cap bottles and label stickers automatically.These desktop type machines can save working space and help you improve working efficiency greatly.It is widely used in food,beverage,cosmetics,daily chemical and pharmaceutical industries.

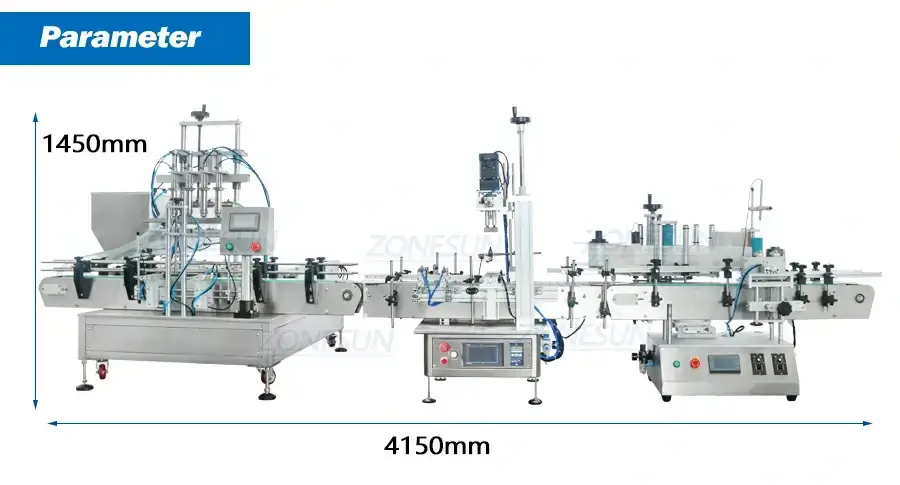

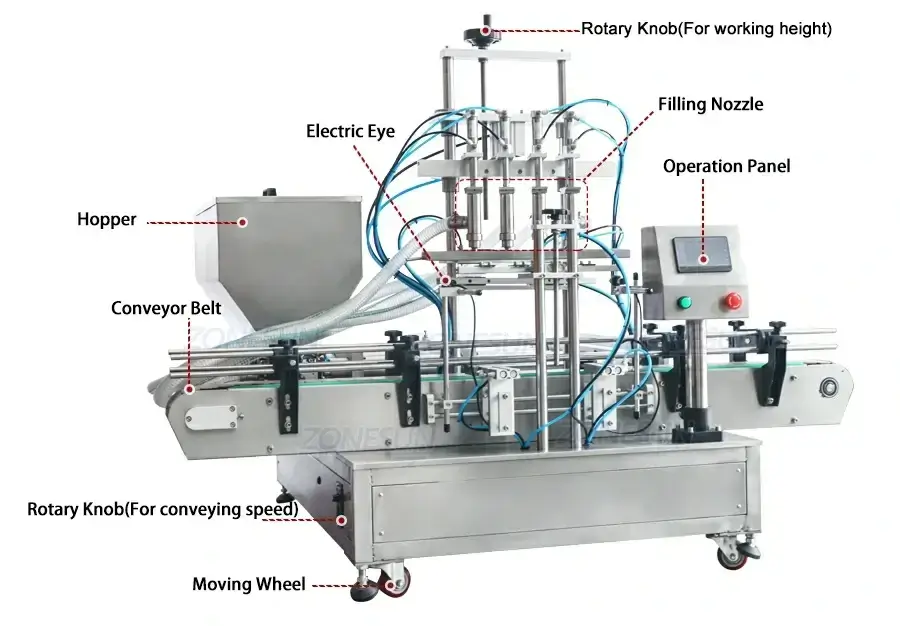

| Machine model | ZS-DTGT4A |
| Power | 110/220V 50-60HZ About 150W |
| Filling range | 5-30mI/10-100mI/30-300ml/50-500ml/100-1000mI/ 500-3000ml/1000-5000ml |
| Working speed | 1200-2200bottles/hour |
| Hopper size | 100L |
| Filling accuracy | ≤±1% |
| Machine size | About 965*1330*1350mm |
| Machine weight | About 213.5kg |
| Package size | About1780*1430*1130mm |
| Package weight | About 301.5kg |
| Bottle Height | 60- 270mm |

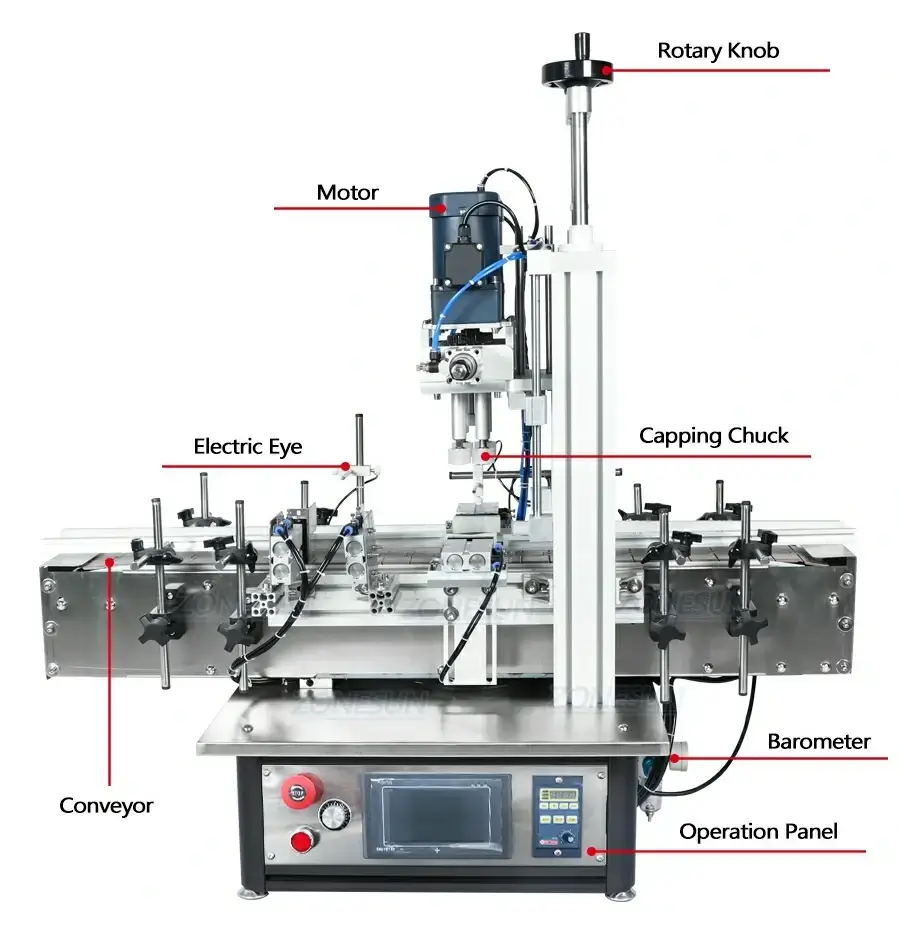

| Bottle Caps Diameter | 18-70mm |
| Working Speed | 20-40 bottles/minute (depending on bottle and caps) |
| Working Voltage | AC220V/110V 50-60HZ |
| Working Pressure | 0.4-0.6 MPa |
| Conveyor Length | 1117mm |
| Net weight/Gross weight | About 65.5kg/97.5kg |
| Machine Size | About 1120* 580* 1110mm |
| Package Size | About 1160*610*1140mm |
| Size of air compressor connector | OD 8mm |

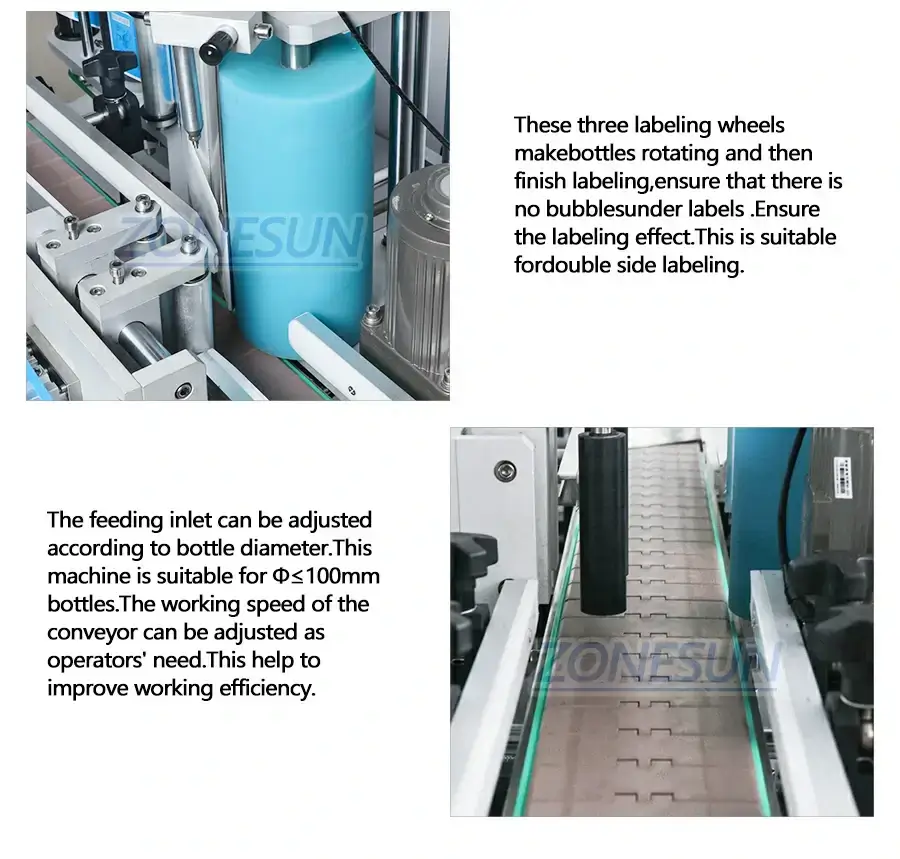

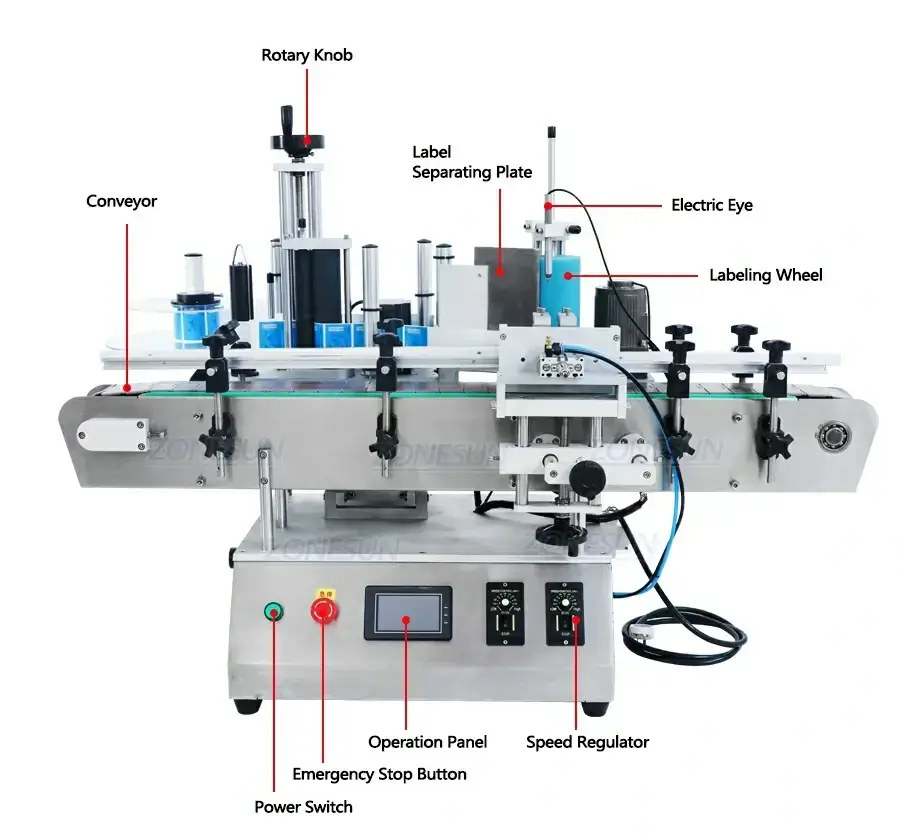

| Machine Model | ZS-TB500A |
| Voltage | 110V-60HZ/220V-50HZ |
| Working Speed | About 20-60 bottles/min |
| Suitable Labeling Size | 15-140mm(W)*25-300mm(L) |
| Roll Inside Diameter(mm) | φ75mm |
| Roll Outside Diameter(mm) | φ250mm |
| Suitable Bottle Diameter | About 30-100mm |
| Conveyor Size | About 1310*100mm |
| Package Size | About 1460*700*960mm |
| Package Weight | About 125.5kg |
