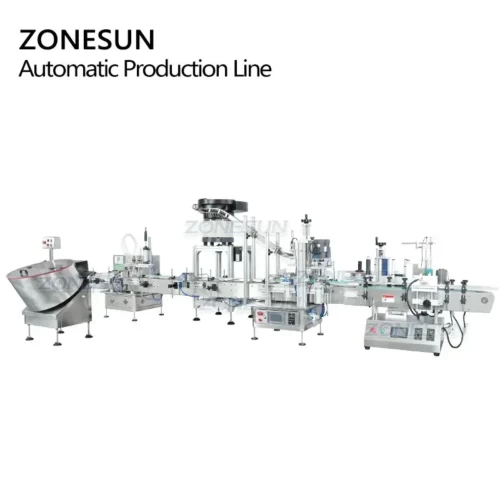

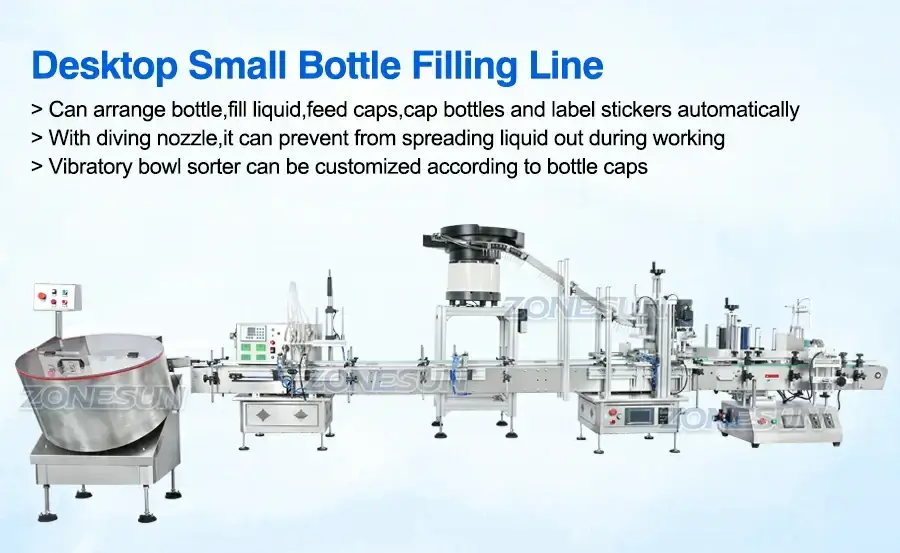

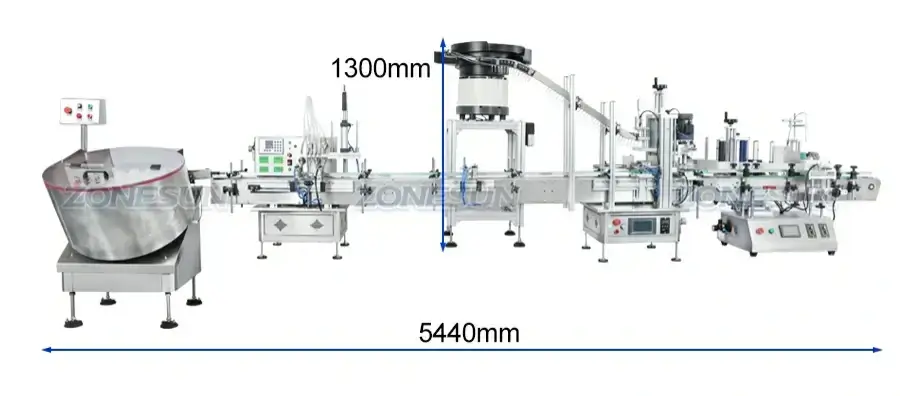

ZS-FAL180D3 Production Line
This production line is suitable for small scale production,can fill liquid,cap bottles and label stickers automatically.These desktop type machines can save working space and help you improve working efficiency greatly.It is widely used in food,beverage,cosmetics,daily chemical and pharmaceutical industries.
Share to
Description:
This production line is suitable for small scale production,can fill liquid,cap bottles and label stickers automatically.These desktop type machines can save working space and help you improve working efficiency greatly.It is widely used in food,beverage,cosmetics,daily chemical and pharmaceutical industries.
Parameter:

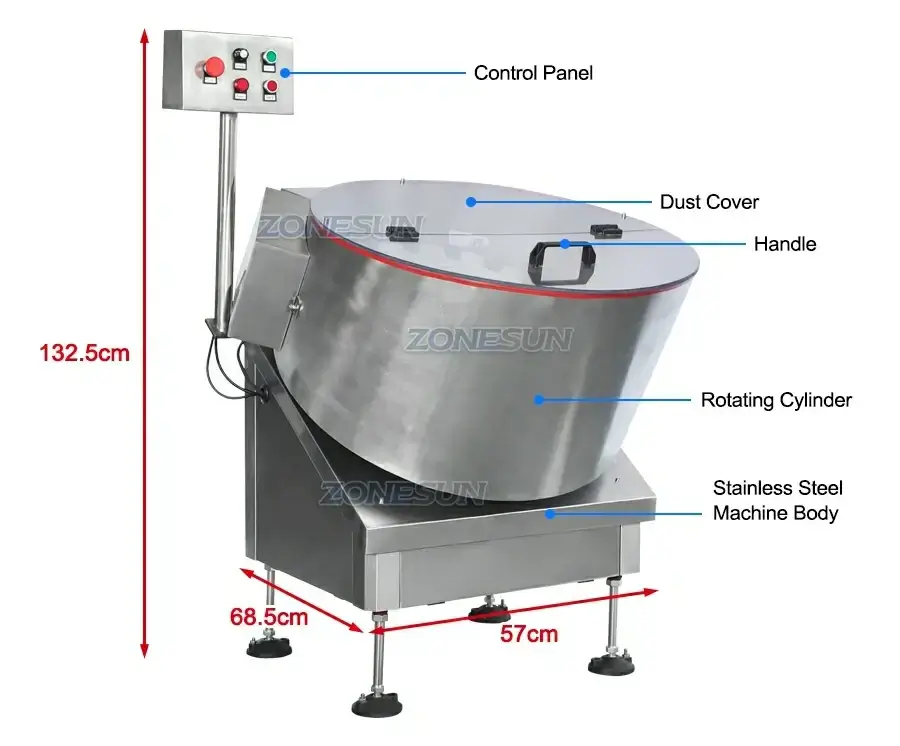

| Machine model | ZS-LP750 |
| Machine voltage | 110/220V 50-60HZ |
| Machine power | < 500W |

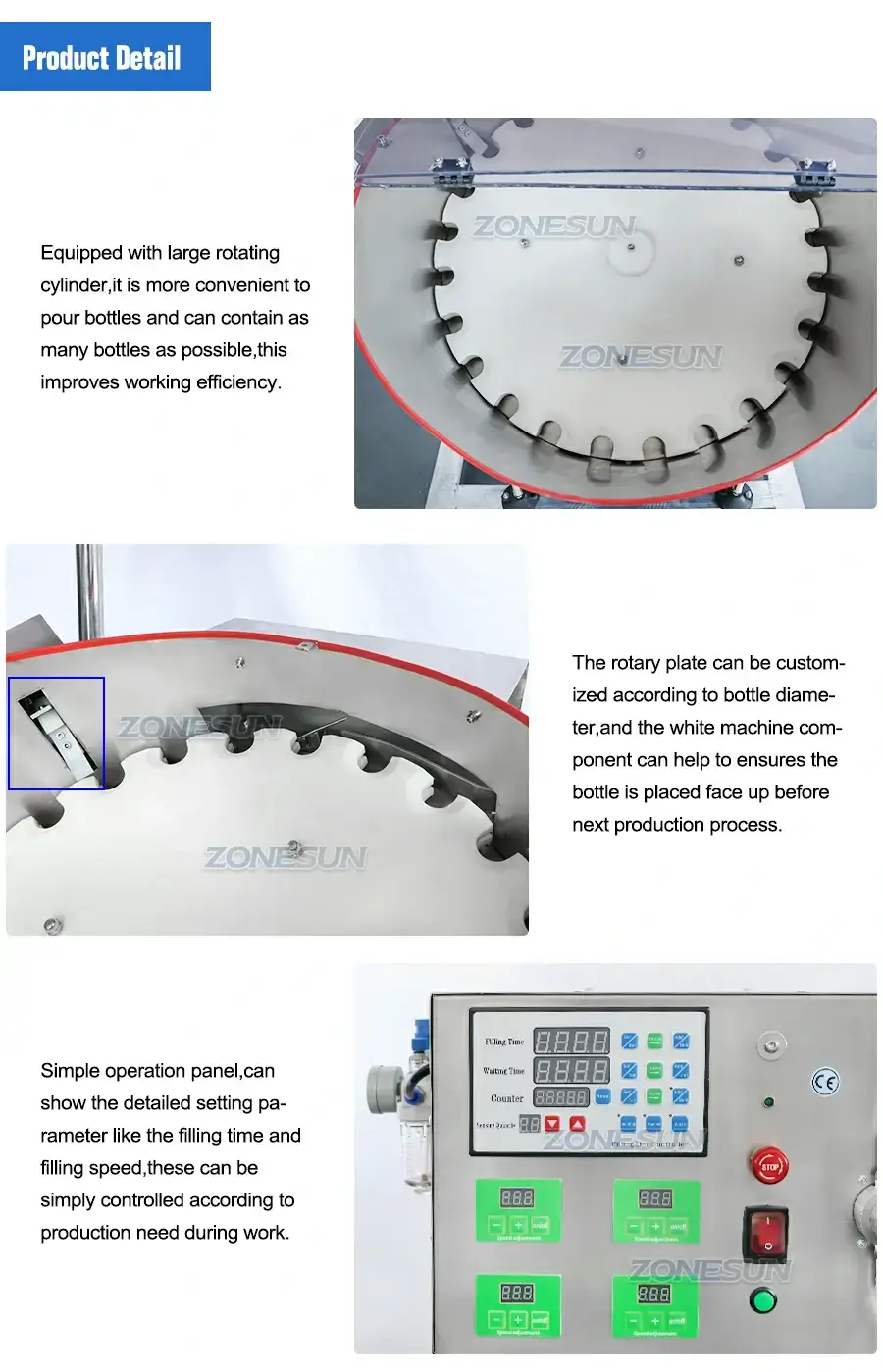

| Rotary plate diameter | 755mm |
| Suitable bottle diameter | Customized according to your bottles |
| Working speed | 20-80 bottles/min |
| Machine size | About 570*685*1325mm |
| Machine weight | About 177kg |
| Package size | About 1110*1080*1490mm |
| Package weight | About 208kg |
| Power supply | 110/220V 50-60HZ 300W |
| Maximum flow velocity | 6000m/min (Each nozzle and base on water) |
| Working speed | 20-30 bottles/min |
| Air pressure | 0.3-0.4MPa |
| Filling accuracy | ≤+1% (For water) |

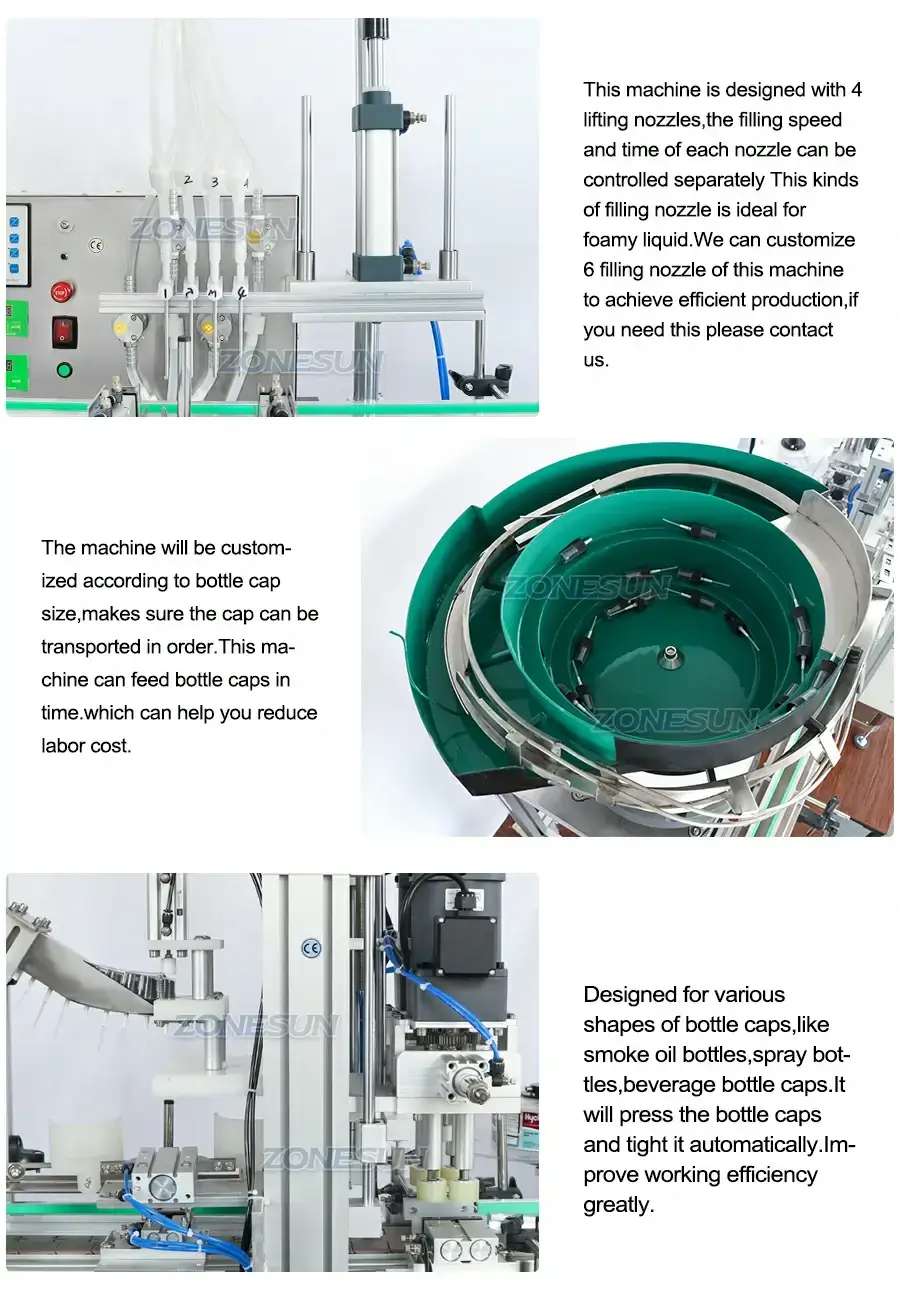

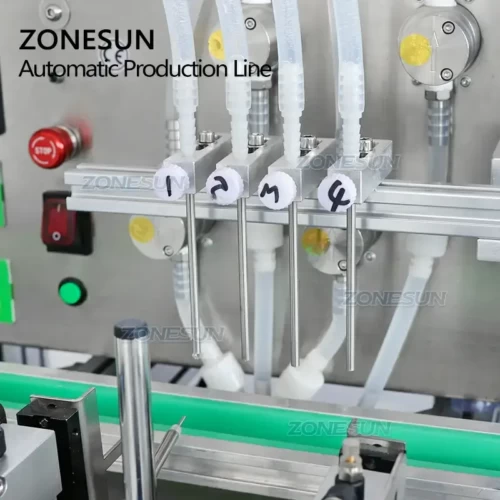

| Diameter of filing nozzle | 6/8mm |
| Delay range | 0.01-999.9s |
| Count range | 1-99999 Times |
| Flling volume | 3-1000ml |
| Size of air compressor connector | OD8mm |
| Machine size | About 1115*650*1090mm |
| Package size | About 1150*640*830mm |
| Net weight/Gross weight | About 55kg/84kg |
Vibratory Bowl
| Machine Power | 110/220V 50-60HZ |
| Material | Stainless Steel |
| Suitable Caps Diameter | Customized |
| Working Speed | |
| Machine Size |

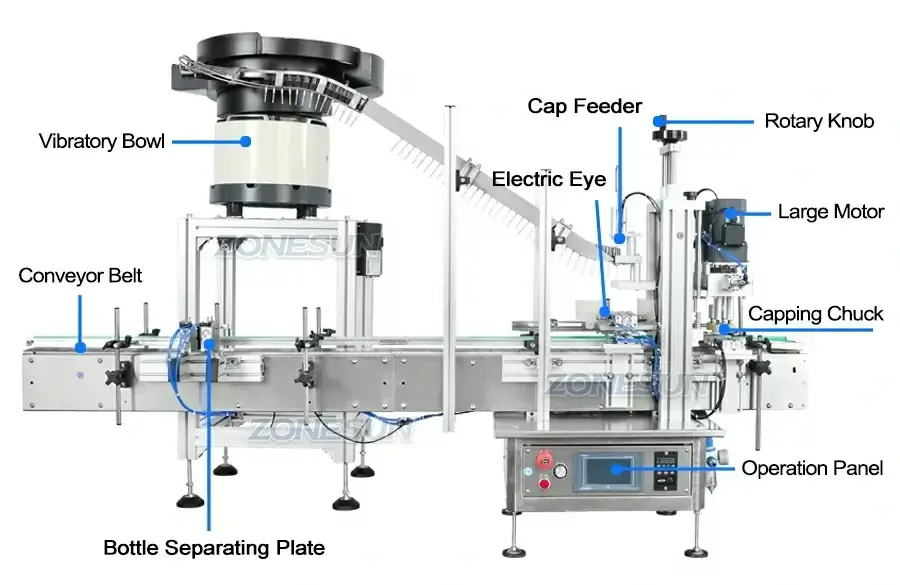

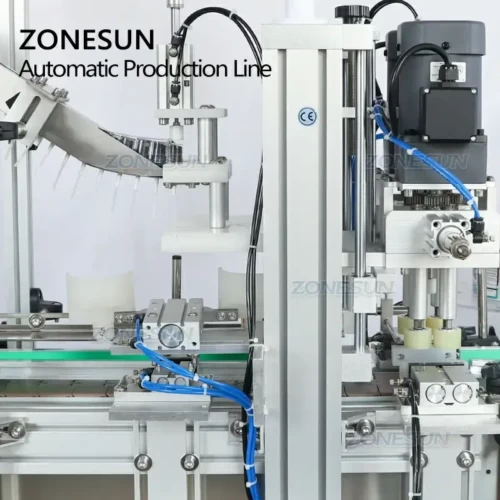

Capping Machine
| Bottle height | 60-270mm |
| Bottle Caps Diameter | 18-70mm |
| Working speed | 20-40 bottles/minute(depending on bottle and caps) |
| Working voltage | AC220V/110V 50-60HZ |
| Working pressure | 0.4-0.6 MPa |
| Size of air compressor connector | OD 8mm |
| Machine size | About 500*500*1300mm(Vibratory Bow) |
| About 2100*580*1150mm(Capping Machine) | |
| Package size | About 1140*780*660mm(Vibratory Bow) |
| About 1150*690*1250mm(Capping Machine) | |
| Net weight/Gross weight |
About 91kg/125kg(Vibratory Bow)
About 87kg/127kg(Capping Machine)
|

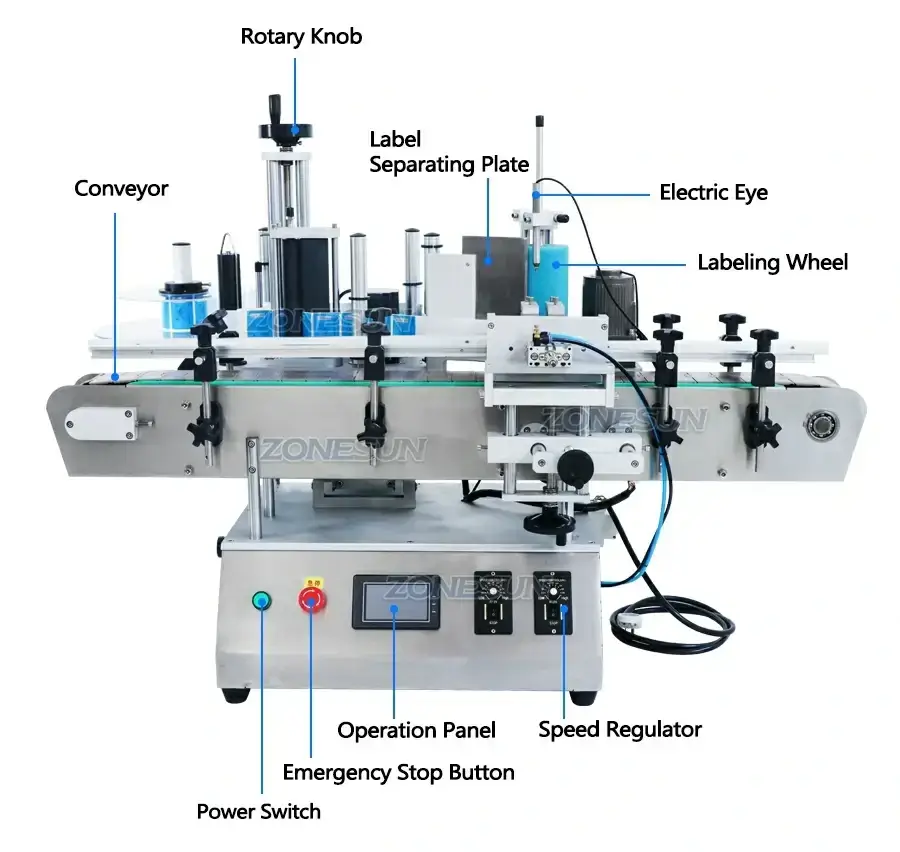

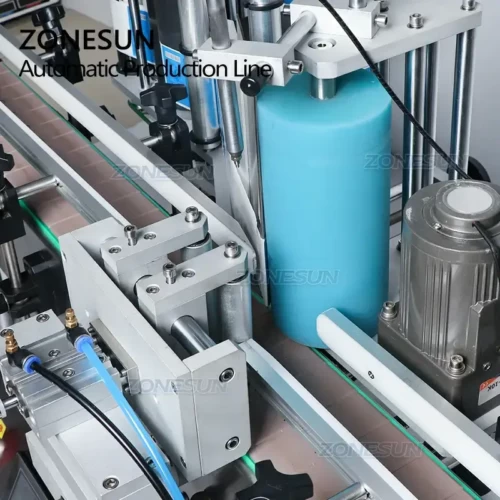

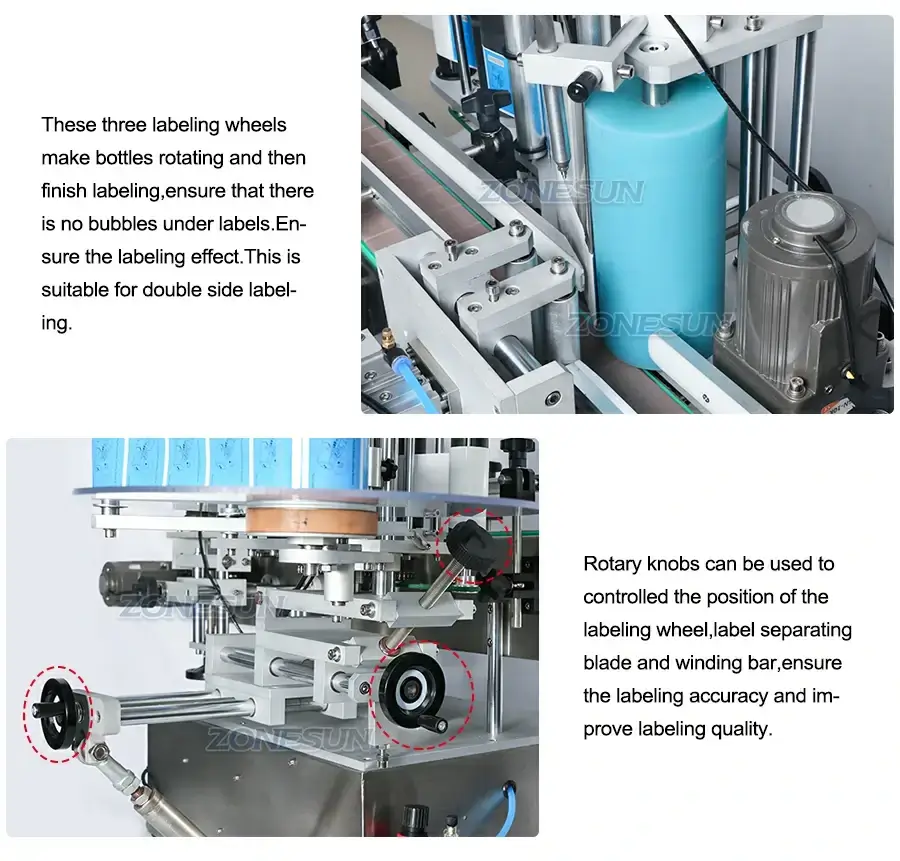

| Machine model | ZS-TB500A |
| Voltage | 110V-60HZ / 220V-50HZ |
| Working Speed | About 20-60bottles/min |
| Suitable Labeling Size | 15-140mm (W) X 25-300mm (L) |
| Roll inside diameter (mm) | φ75mm |
| Roll outside diameter (mm) | φ250mm |
| Suitable Bottle Diameter | About 30-100mm |
| Conveyor size | About 1310*100mm |
| Machine Size | About 1240*680*890mm |
| Package Size | About 1390*690*910mm |
