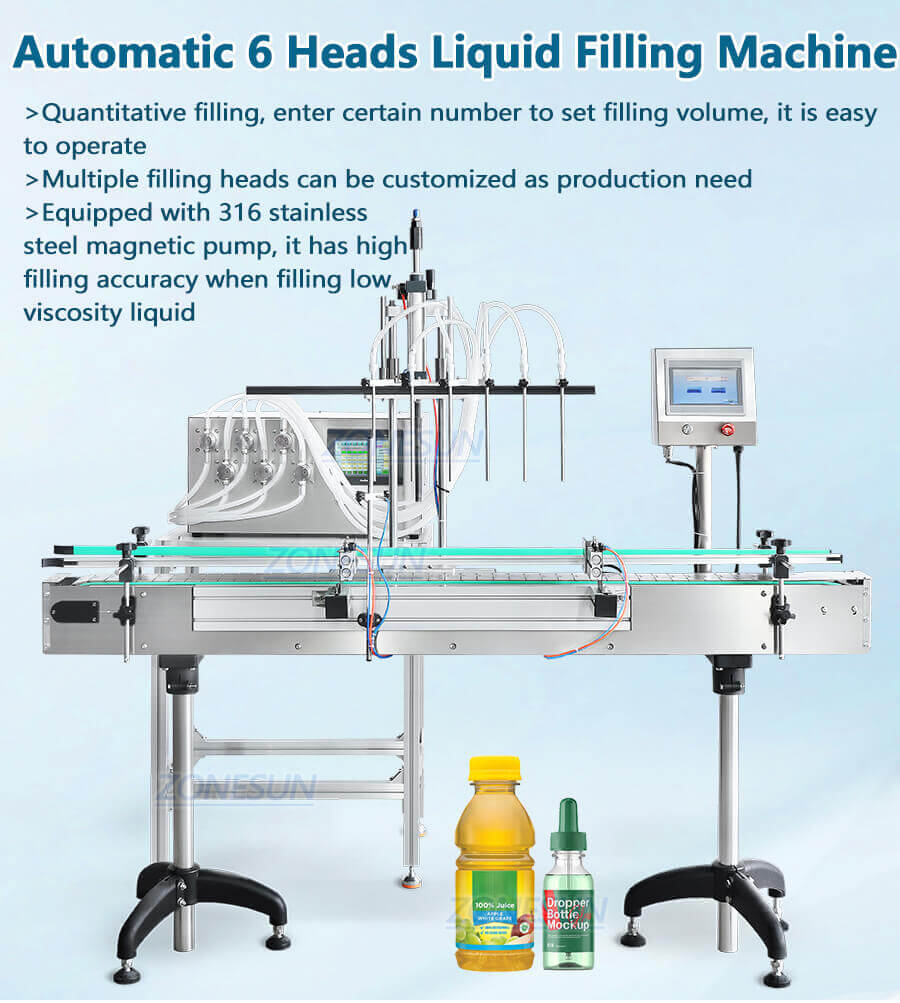

Quantitative Liquid Filling Machine
This machine is consist of a 6 heads filling machine and automatic conveyor belt,it can realize the automated filling work to improve working effiency.Set filling volume by PLC touch screen control panel,this machine is easier to operate.It is suitable for skincare products,cosmetics,and daily chemical industries.
Share to
Description:

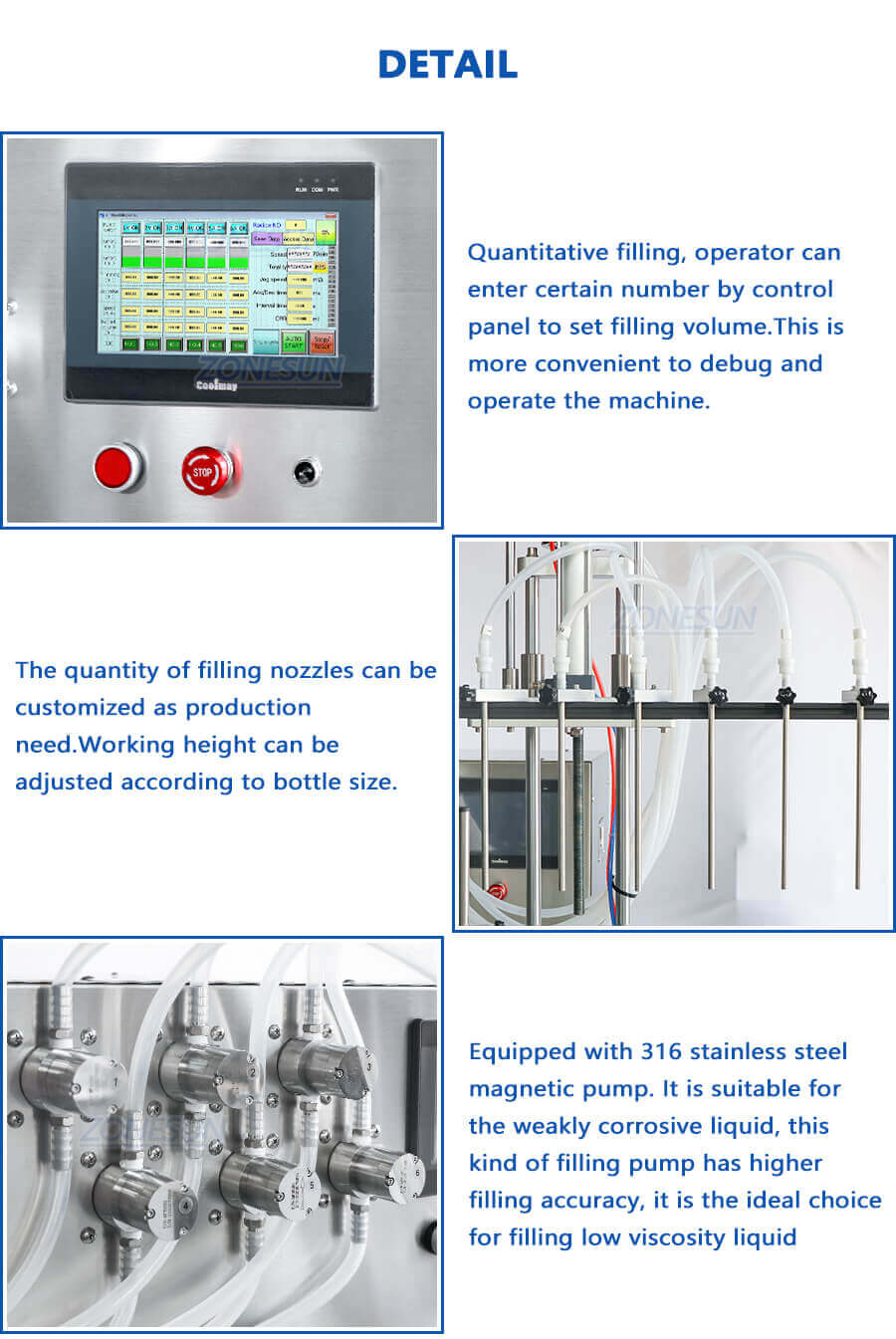

This machine is consist of a 6 heads filling machine and automatic conveyor belt,it can realize the automated filling work to improve working effiency.Set filling volume by PLC touch screen control panel,this machine is easier to operate.It is suitable for skincare products,cosmetics,and daily chemical industries.
| Machine model | ZS-VTMP6P |
| Voltage | 110/220V 50-60HZ 1350W |
| Max flow rate | 6000ml/min |
| Filling pump | Magnetic pump |
| Working speed | About 12-30 bottles/min |
| Filling range | 5-3000ml(recommend) |
| Filling nozzle size | OD6 & 8 mm |
| Suitable bottle height | About 5-40cm |
| Suitable bottle diameter | ≤100mm |
| Package size | About 1990*560*540mm+720*560*380mm |
| Package weight | About 118kg+42kg |
