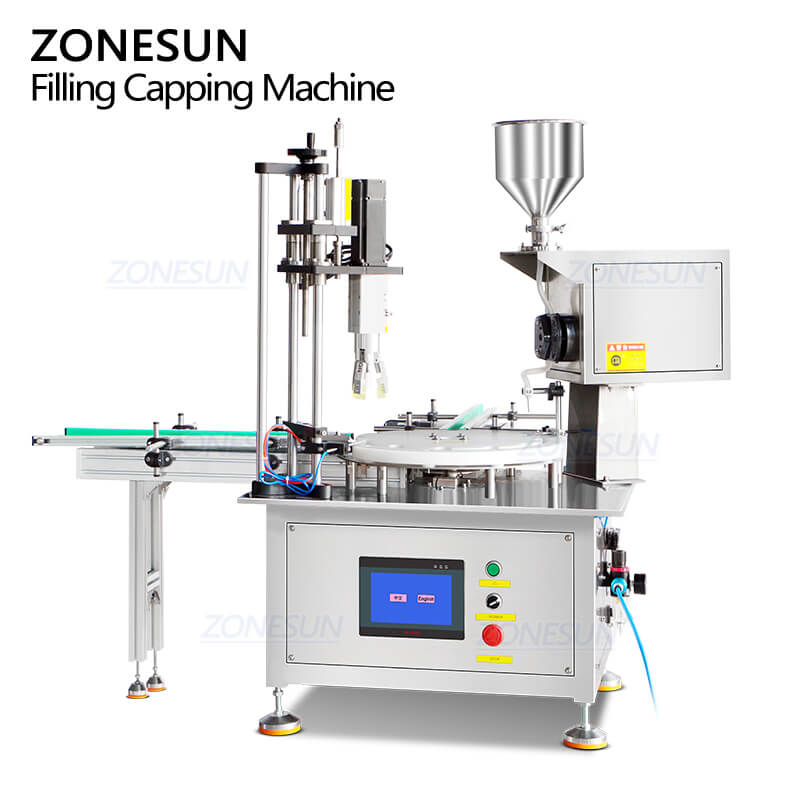

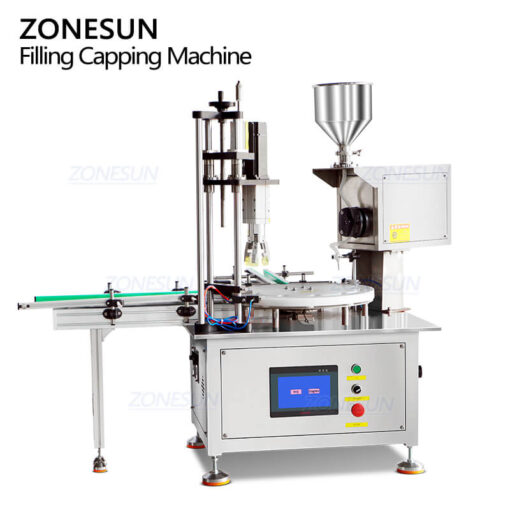

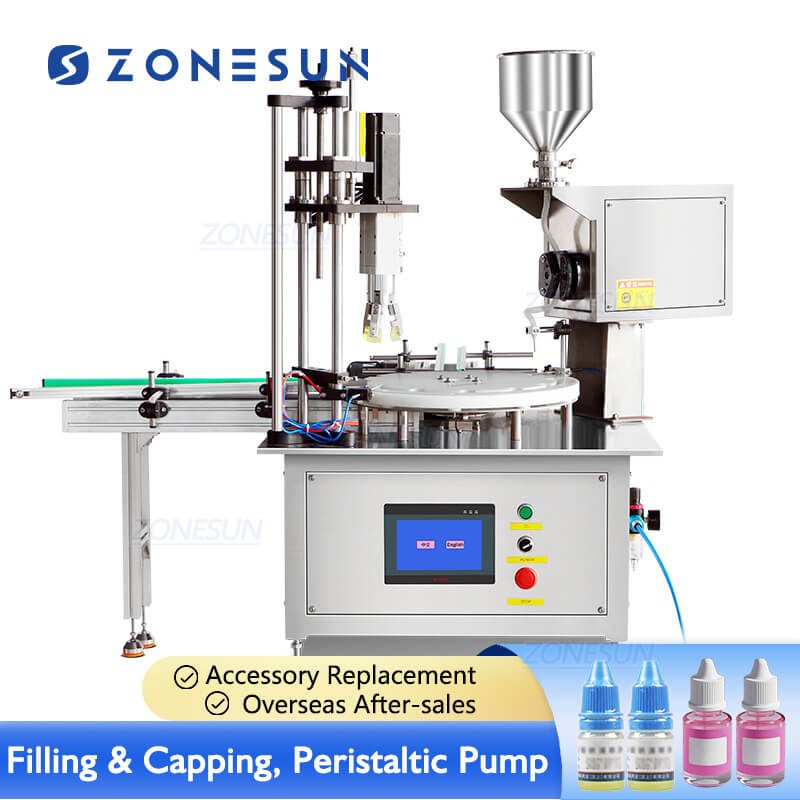

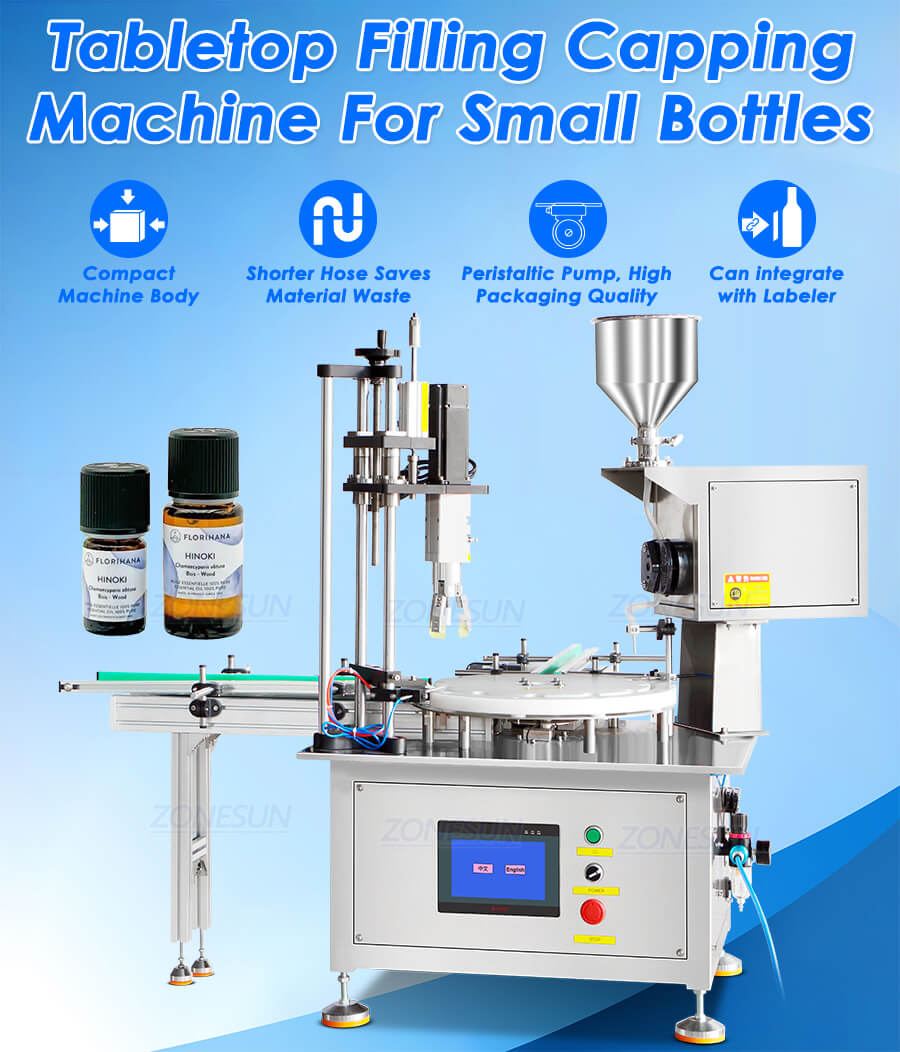

Rotary Nail Polish Filling Capping Machine
Tabletop machine design suits small scale production of nail polish, massage oil, cosmetic serum or eyedrops.It equips peristaltic pump, liquid only pass through filling hose.Starwheel is customizable as production need.
Share to
Product Description:
Tabletop machine design suits small scale production of nail polish, massage oil, cosmetic serum or eyedrops.It equips peristaltic pump, liquid only pass through filling hose.Starwheel is customizable as production need.
Product Parameters:
| Machine model | ZS-AFC47 |
| Voltage | 110/220V 50-60HZ |
| Machine pump | Peristaltic pump |
| Machine power | 1000W |
| Bottle diameter | 20-50mm |
| Filling range | 1-15ml(Customizable) |
| Filling hose | #16 |
| Bottle height | 30-60mm (Can customize for higher bottles) |
| Cap diameter | H=10-30mm φ20-50mm (Customizable) |
| Size of filling nozzle | OD 2-6mm (Customizable) |
| Working speed | 15-25bottles/min(depends on liquid and bottle size) |
| Conveyor belt size | About 670*80mm |
| Machine size | About 580*580*900mm |
| Machine weight | About 88kg |
| Package size | About 800*710*980mm |
| Package weight | About 133kg |

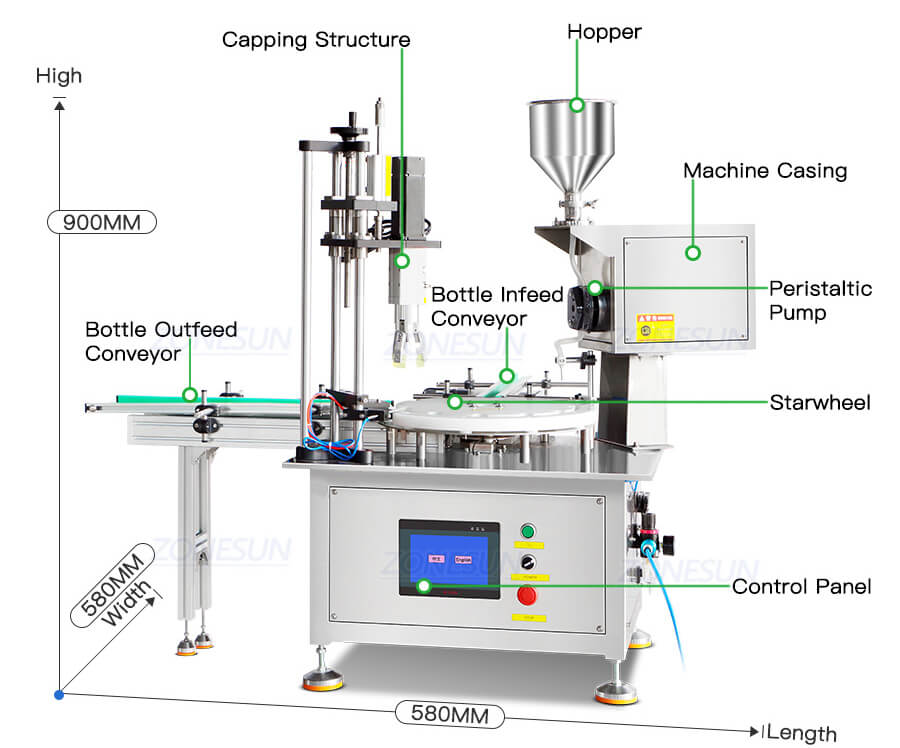

Product Details:

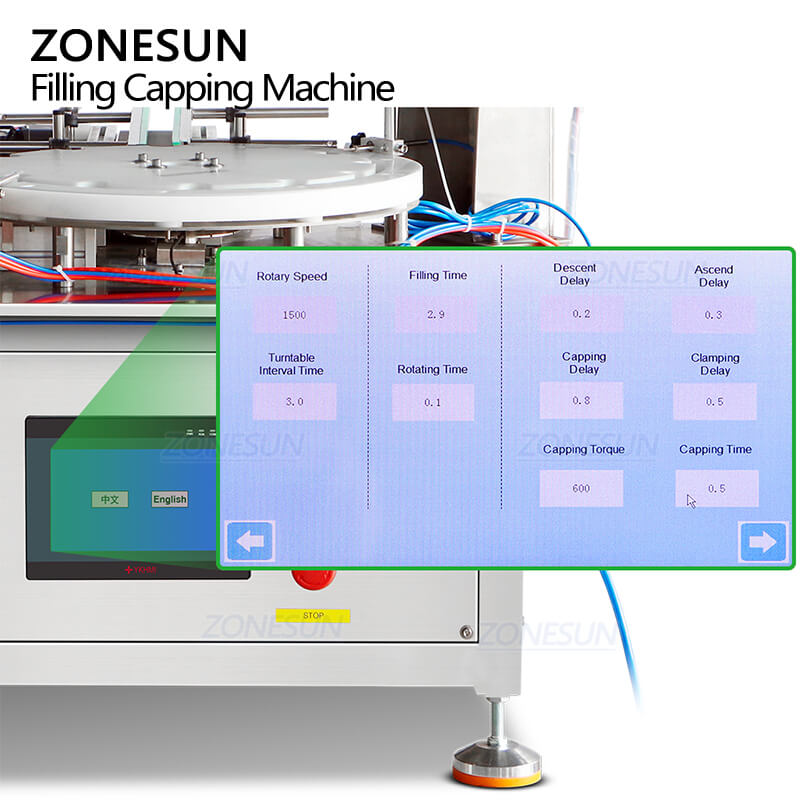

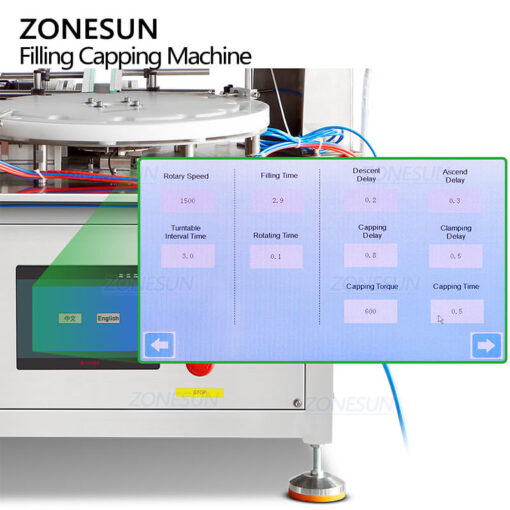

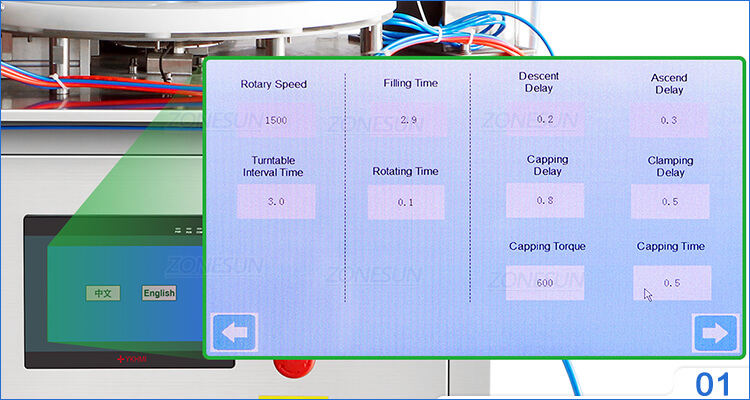

Touchscreen Control Panel
Intuitive HMI interface for easy operation and parameter adjustment.

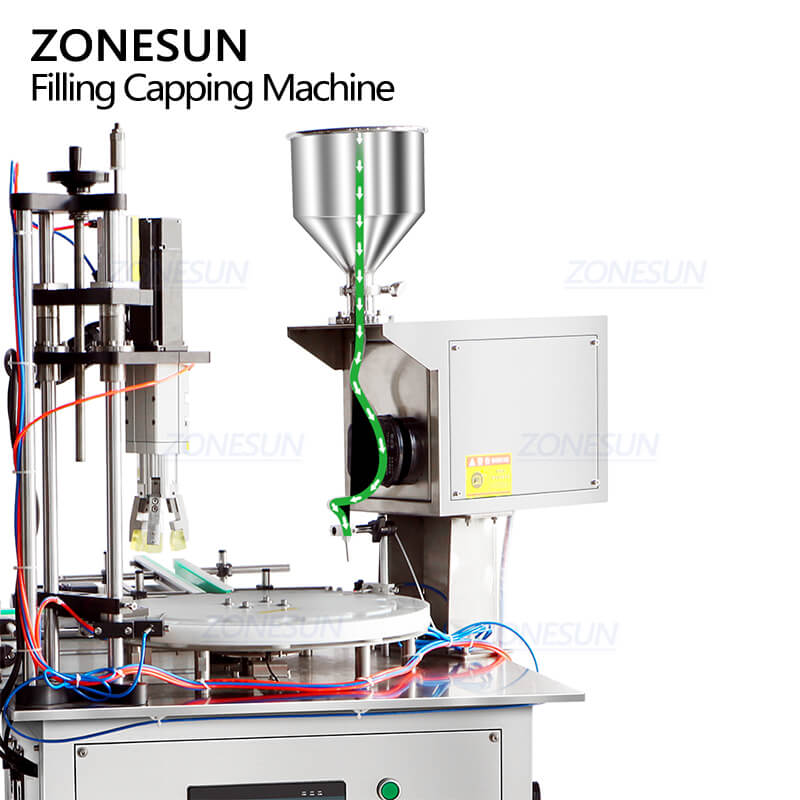

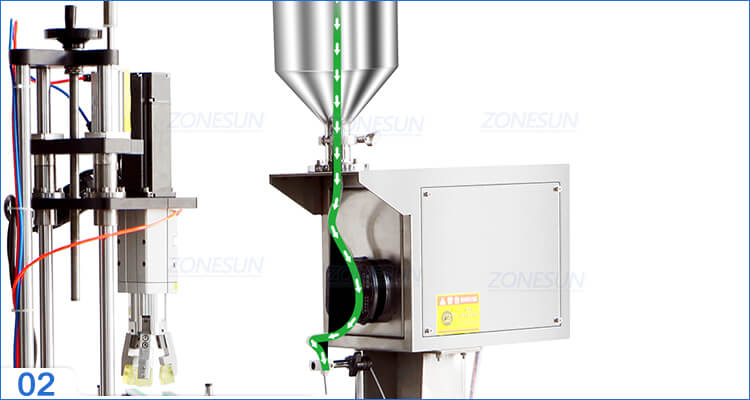

Filling Structure
Storage funnel for continuous feeding, shorter hose reduce material waste.Nozzle size is customizable.

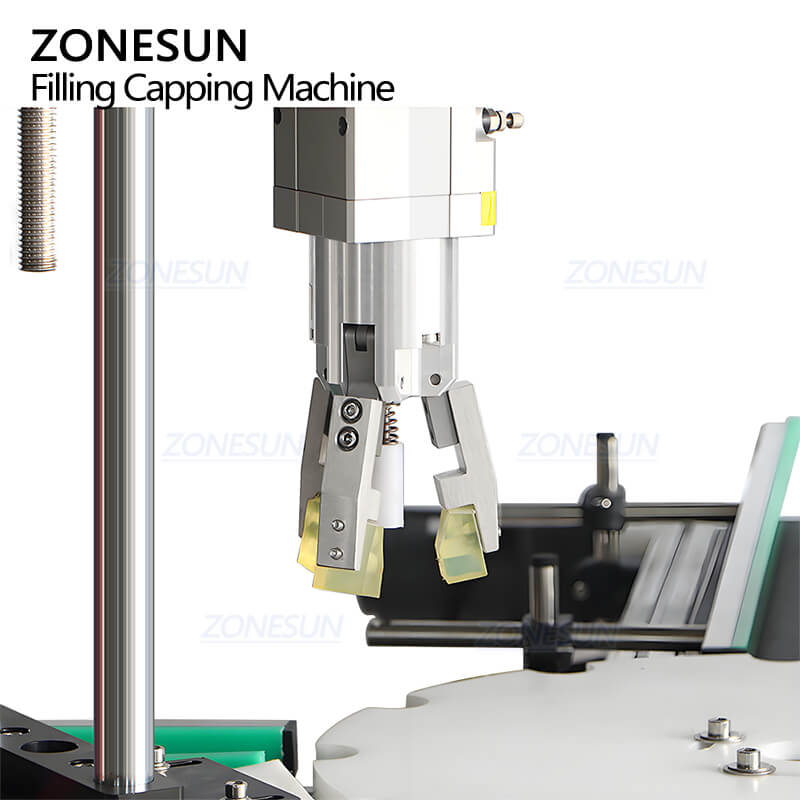

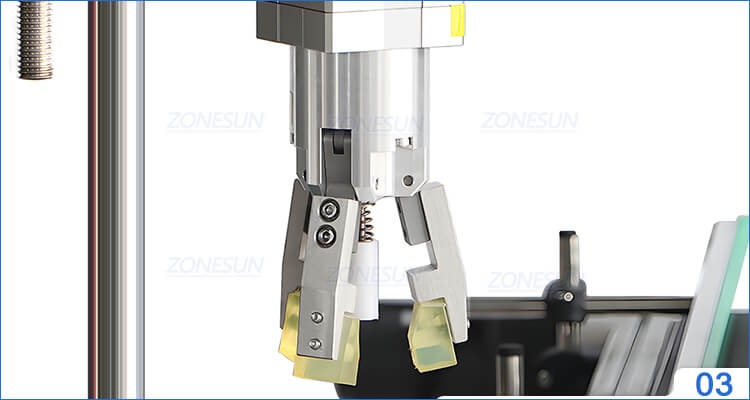

Capping Structure
Controlled by servo motor, precision servo-driven capping ensures consistent torque and tightness.

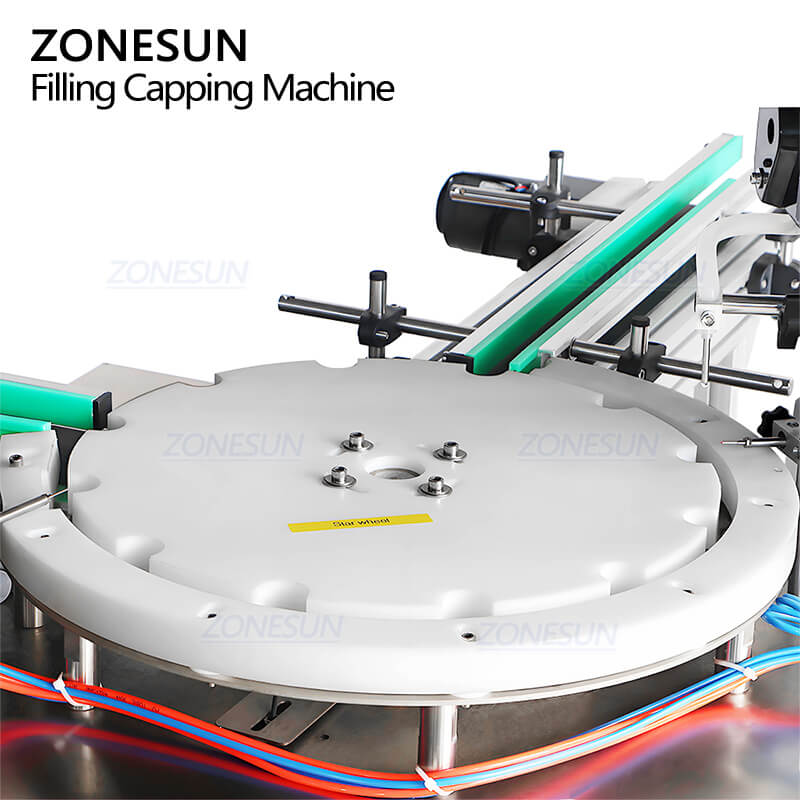

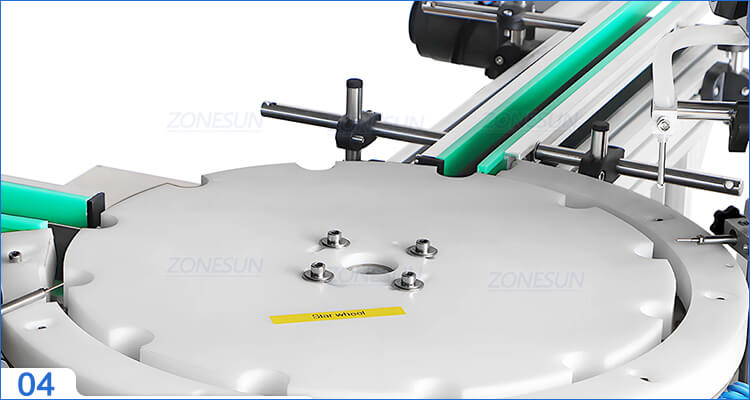

Customizable Star Wheel
Interchangeable star wheel design to fit various bottle sizes and shapes.

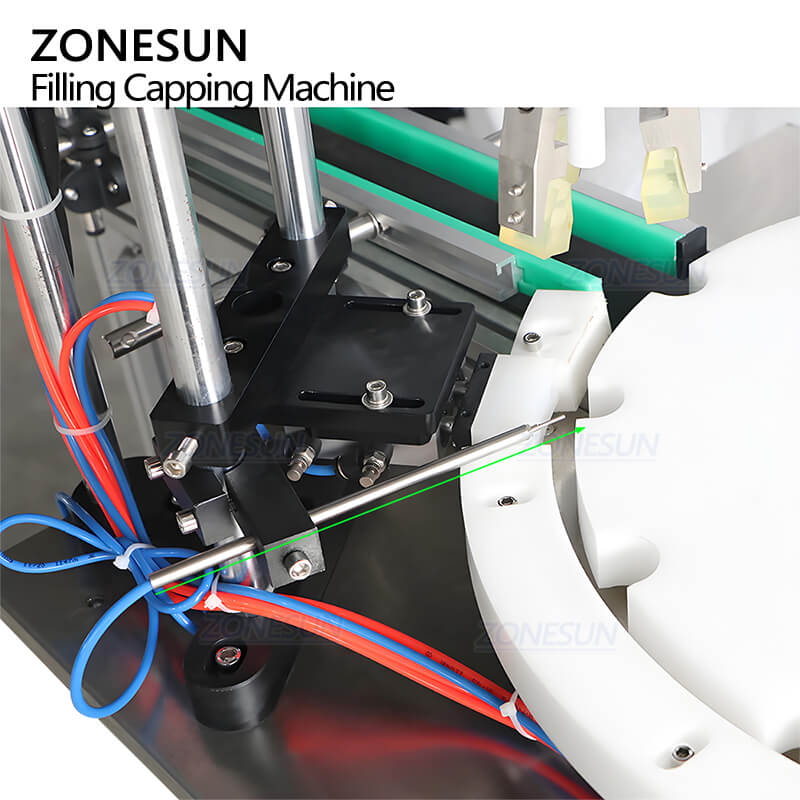

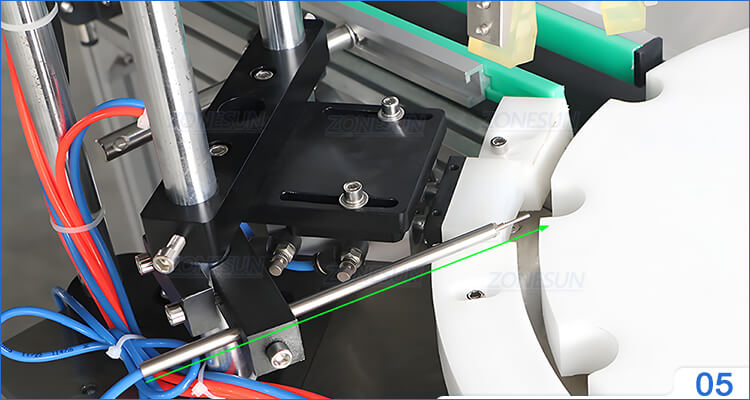

Sensing Electric Eye
Infrared photoelectric sensor detects bottle position for accurate capping.
