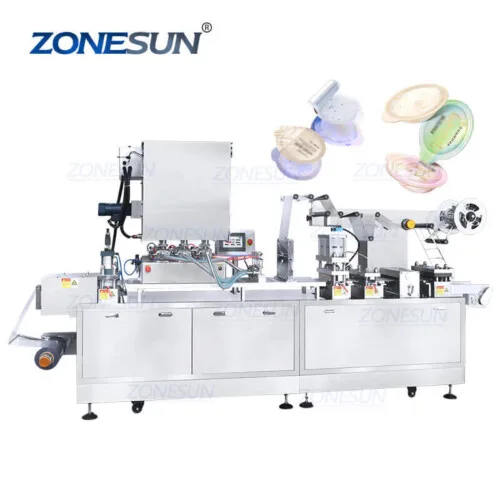

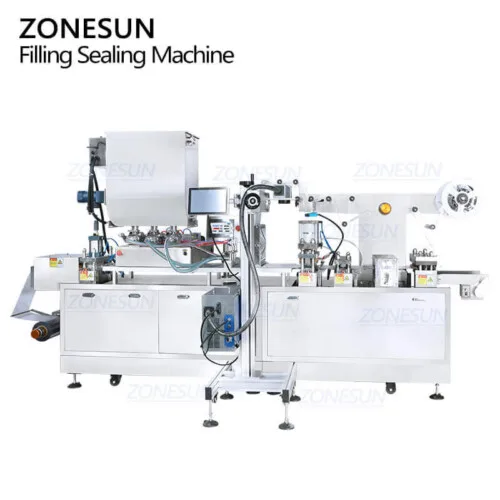

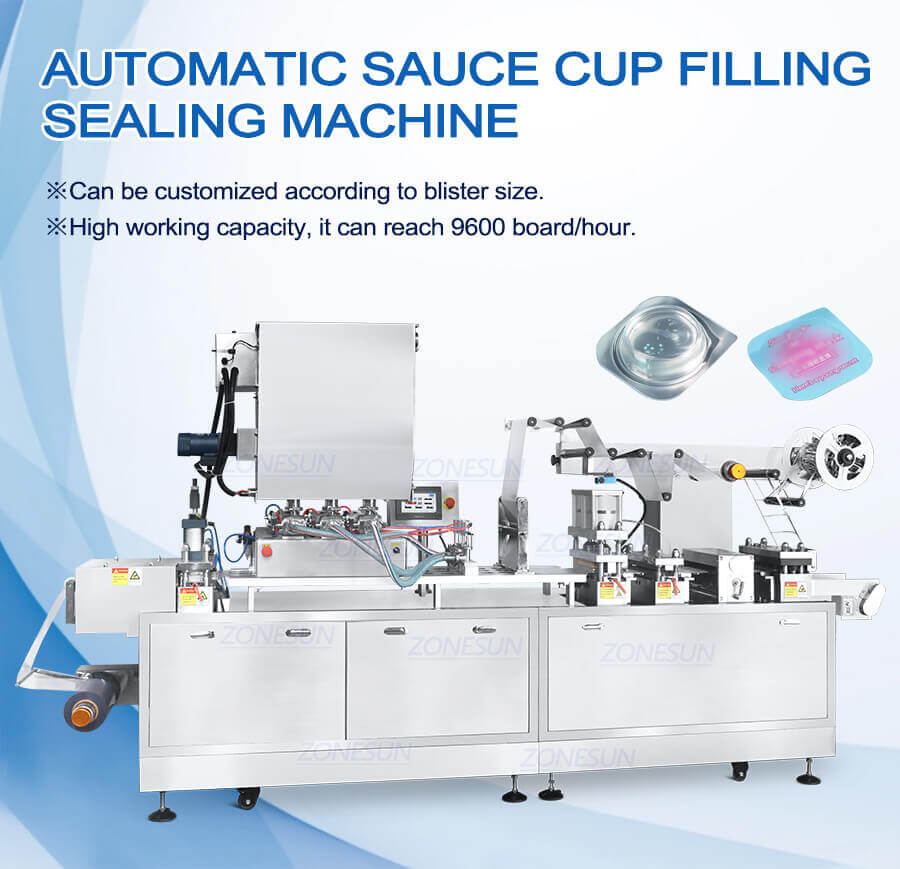

Sauce Cup Filling Sealing Machine

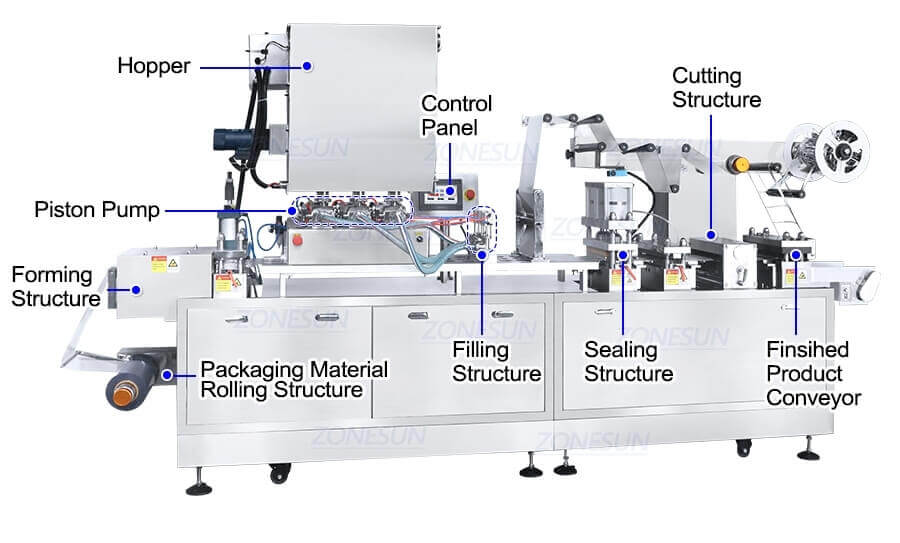

Blister packaging machine is the machine that can form the bliste into cavity or pocket,fill material into container,seal container and cut them separately.They usually used in food like hot sauce,tomato paste,honey.
Share to
Description:
Blister packaging machine is the machine that can form the bliste into cavity or pocket,fill material into container,seal container and cut them separately.They usually used in food like hot sauce,tomato paste,honey.
| Machine model | ZS-DDP270 | |
| Blanking frequency | 10-50 times/min 1-5 board/time(adjustable)
(working storke>80mm, carvity depth>10mm) |
|
| Work capacity | 9600 board/hour(4 board/time, blanking frequency 40 times/min) | |
| Strokeadjustable range | Standard:10-120mm, Max: 160mm | |
| Board size | Standard: 80 mmx57mm
Other size: 95x65mm, 103x43mm,120x43mm, Max 270x110mm(Can be customized) |
|
| Max forming size | 270mmx150mmx28mm | |
| Packaging material | Non-toxic PVC (plastic sheet): 250mm wide, 0.15-0.5mm thick
Glued PTP (aluminum foil): 250mm wide, 0.02-0.35mm thick Dialysis paper: width 250mm, specification 50-100g The reel aperture is: 70-76mm |
|
| Heating power | Forming structure | 1.5KW |
| Heat sealing structure | 1.5KW | |
| Main machine power | 1.5KW | |
| Voltage | 380V 50HZTN-S | |
| Air pump capacity | ≥0.2m3/min(buy it separately)pressure: 0.4-0.6Mpa | |
| Machine size | About 3600mmx1100mmx1900mm(LxWxH) | |
| Machine weight | About 1500Kg | |
