Sauce Paste Filling Vacuum Capping Machine

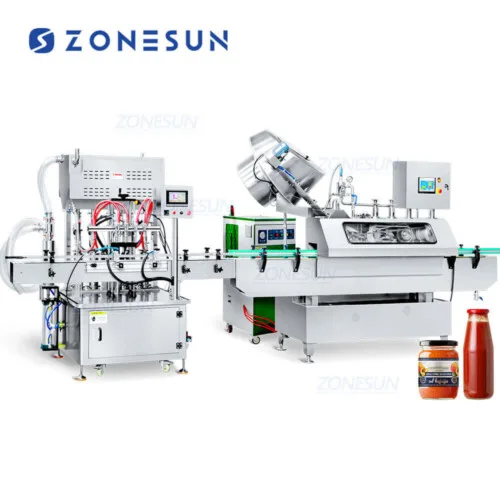

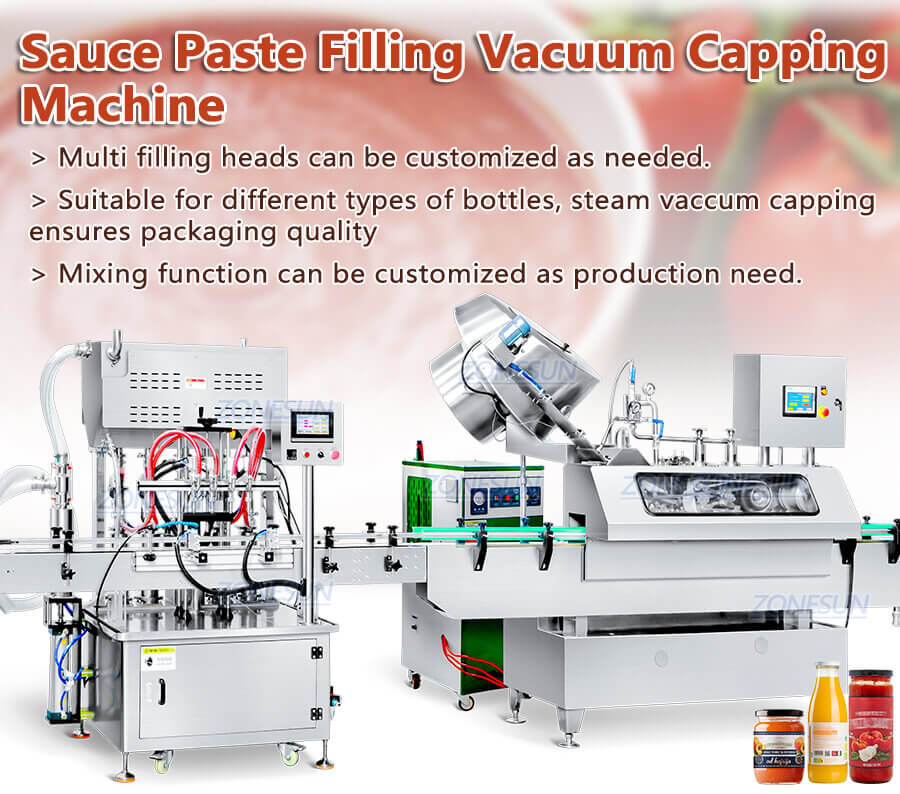

The filling production line consists of a piston pump filling machine and a steam vacuum capping machine. We can customize the heating and mixing function for your filling material pretreatment. This system is ideal for packaging hot sauce, honey, tomato sauce, and peanut butter.
Share to
Product Description:
The filling production line consists of a piston pump filling machine and a steam vacuum capping machine. We can customize the heating and mixing function for your filling material pretreatment. This system is ideal for packaging hot sauce, honey, tomato sauce, and peanut butter.
Product Parameters:
| Machine model | ZS-YT4T-4PH |
| Voltage | 110/220V 50-60HZ 1KW |
| Filling range | 10-180ml/30-500ml/100-1000ml |
| Working speed | About 30-50bottles/min |
| Filling pump | Piston pump |
| Air pressure | 0.6-0.8MPa |
| Suitable temperature range | 30≤T≤90℃ |
| Filling accuracy | ±1% |
| Filling Nozzle | 4(can be customized) |
| Machine size | About 2000*800*1800mm |
| Machine weight | About 200kg |
| Packaging size | About 2070*960*2010mm(100-1000ml) |
| Packaging weight | About 392kg(100-1000ml) |
| Machine model | ZS-XG01 |
| Power supply | 220/380V 3.12KW |
| Workingcapacity | About 4000BPH |
| Suitable cap size | Customized |
| Suitable bottle size | Customized |
| Steam consumption | 180-230kg/h |
| Steam pressure | ≤0.4MPa |
| Maximum vacuum degree | 34-67KPa |

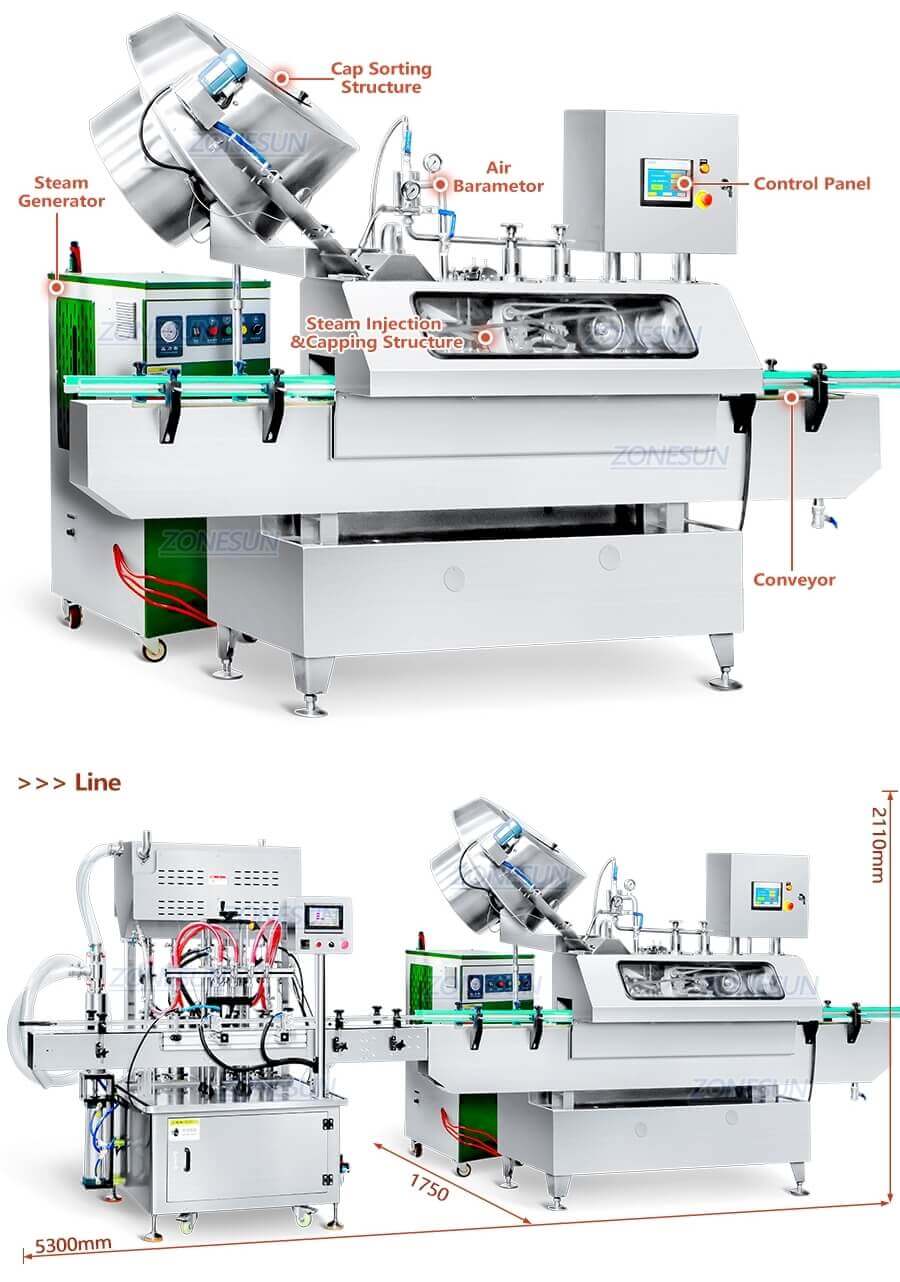

| Machine size | About 3250*1050*2010mm |
| Machine weight | About 500kg |
Product Details:

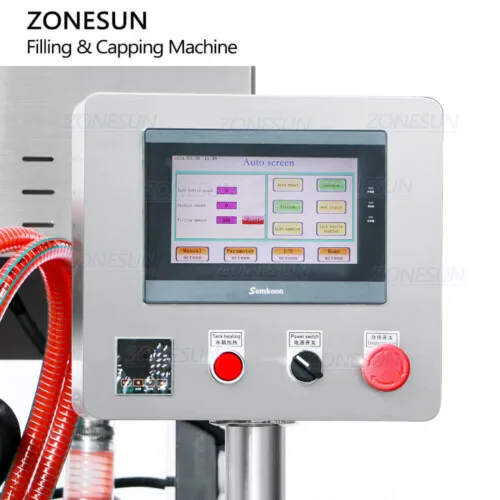

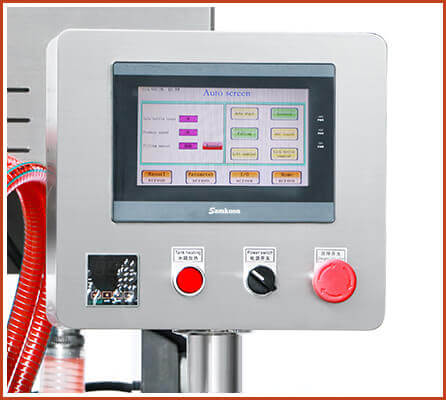

The touch screen control panel can be tailored to various languages for user-friendly operation. Real-time visual data aids in quick machine adjustments.

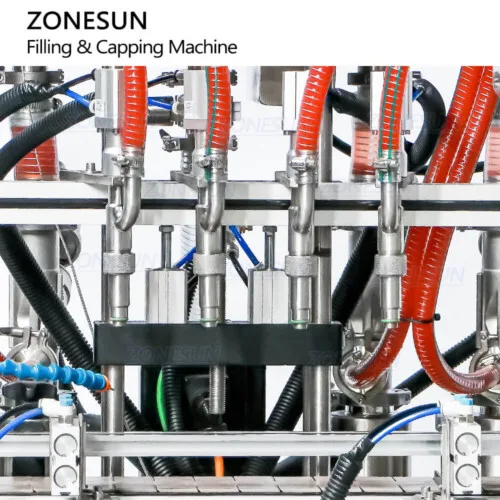

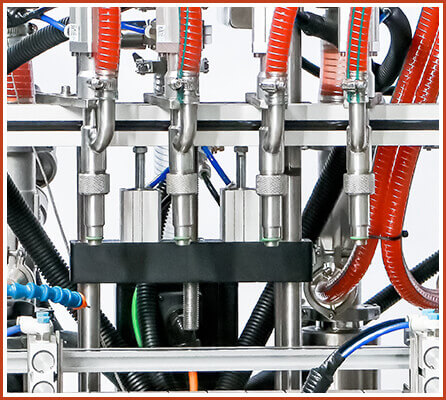

The filling nozzle can be adjusted to accommodate different bottle sizes. Additionally, the number of filling heads can be customized to optimize efficiency based on your production needs.

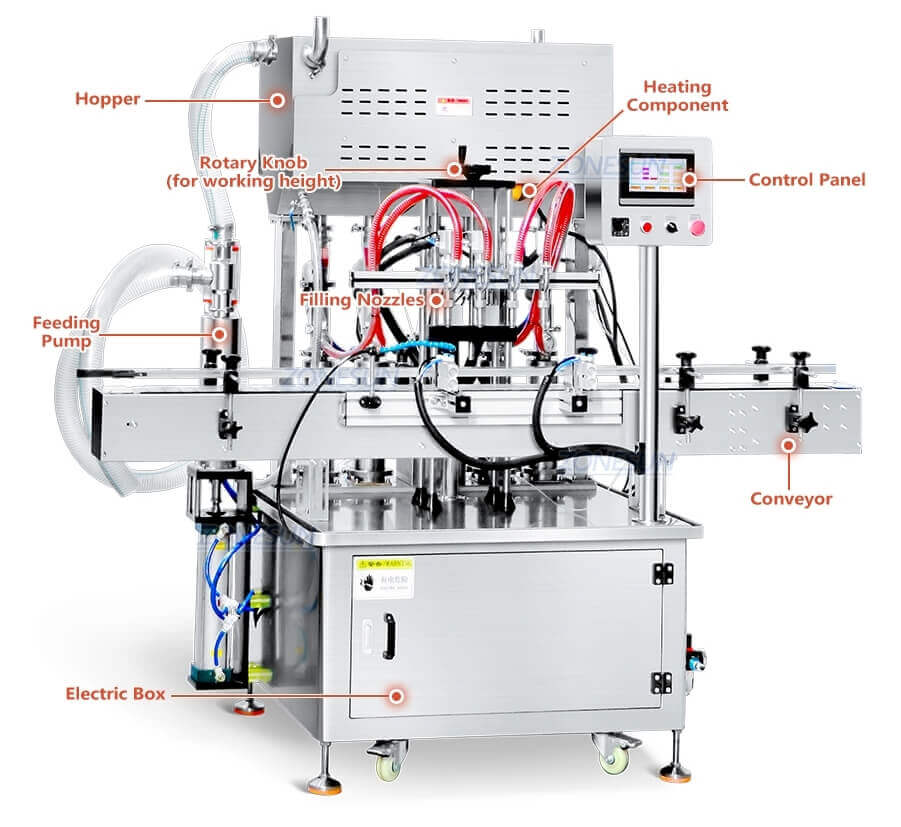

The filling machine comes with a heating function that keeps the products in a more fluid state, enhancing their flow properties. Additionally, we can customize an extra mixing function for the filling material pretreatment.

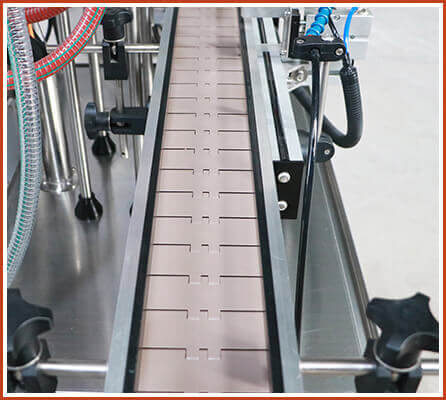

Constructed from a high-quality conveyor belt, our chain conveyor boasts a larger weight capacity, facilitating faster and smoother bottle transportation. We can customize the width and length to suit your operational needs.

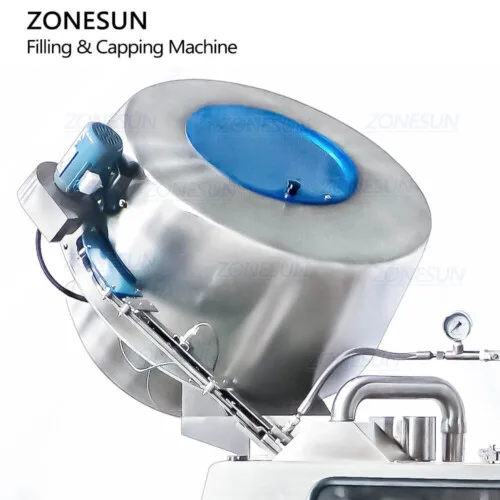

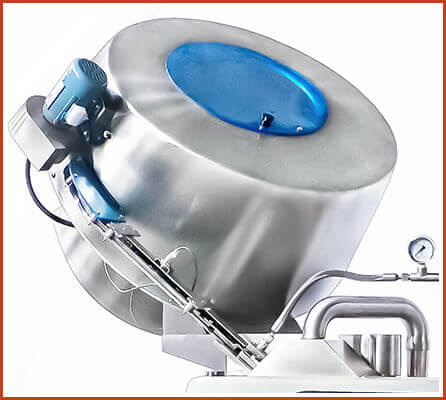

The machine operates with an electric rotation cover sorting method, resulting in lower noise and smoother cover sorting. This significantly enhances the efficiency of the machine.

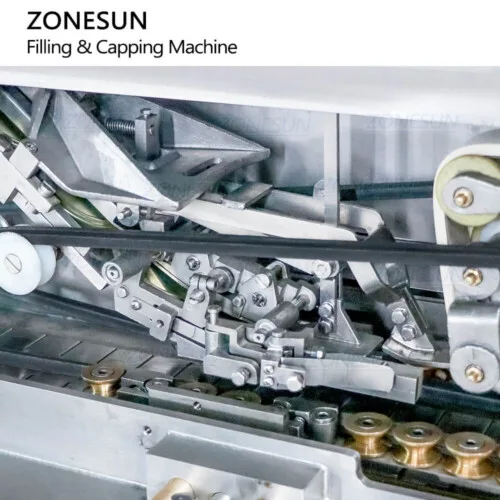

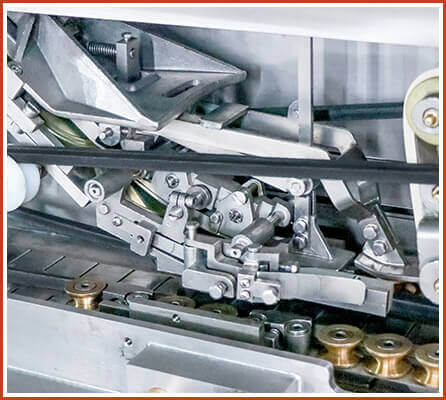

Before sealing, the bottle undergoes steam injection to replace the top space’s air with high-speed steam. The cap is then tightened by two flat belts, ensuring both efficiency and packaging quality.

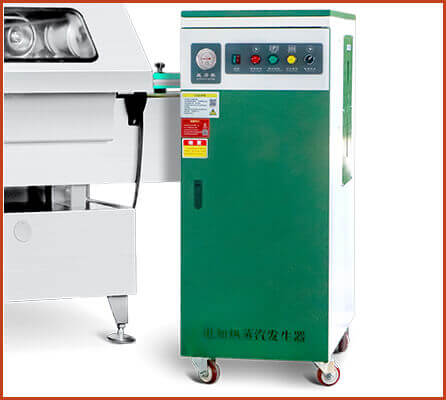

This vacuum capping machine is designed to function optimally when paired with a steam generator. The generator ensures a consistent supply of steam, guaranteeing uninterrupted and stable operation of the machine.
