Scrubs Filling Machine

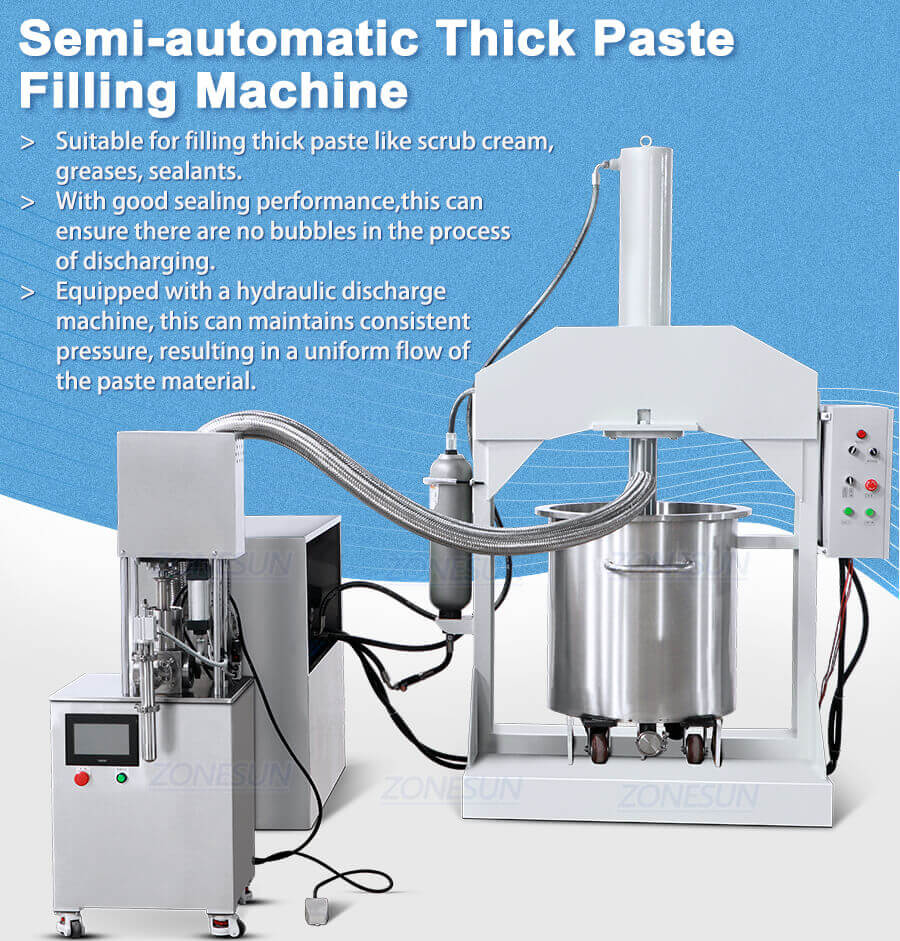

Designed for filling various pastes,greases,sealants,this filling machine is controlled by servo motor and usually work with the hydraulic discharge machine,which can supply filling material in time.It is widely used in chemical,food industries.
Share to
Description:
Designed for filling various pastes,greases,sealants,this filling machine is controlled by servo motor and usually work with the hydraulic discharge machine,which can supply filling material in time.It is widely used in chemical,food industries.
Filling Machine
| Machine Model | ZS-VGT1 |
| Power Supply | 220V/50HZ |
| Air Supply | 0.5-0.8MPa |
| Air Consume | <0.3m³/min |
| Filling Volume | Max 350ml (Can be customized) |
| Volume Precision | ≤±0.5℅ |
| Working speed | 15-45pcs/min |
| Bottle Diameters | φ30-50mm(Can be customized) |
| Machine Size | 650×600*1400mm(LxWxH) |
| Machine Weight(kg) | 150KG |
| Package Size | About 660*740*1600mm(L*W*H) |
| Package Weight | About 174kg |
Hydraulic Discharge Machine
| Machine Model | ZS-PJ60T |
| Power Supply | 380V/220V |
| Extruding Pressure | 60T(45T/80T/120T are available) |
| Material Tank Size | 200L |
| Discharging Outlet Size | DN50/DN65/DN80 |
| Oil Tank Capacity | 120L |
| Package Size | About 1440*950*2430mm+1070*650*1090mm(L*W*H) |
| Package Weight | About 766kg+165kg |
Product Details:

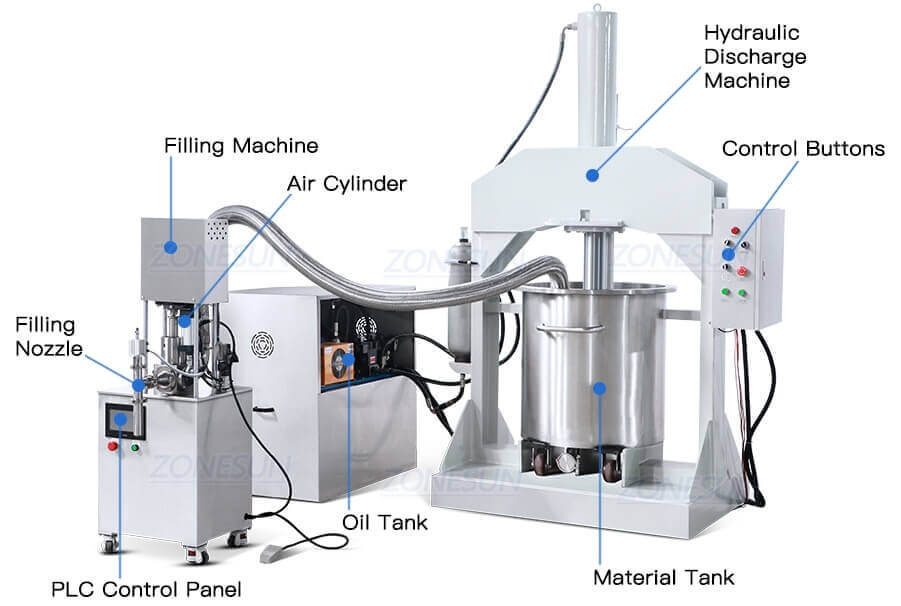

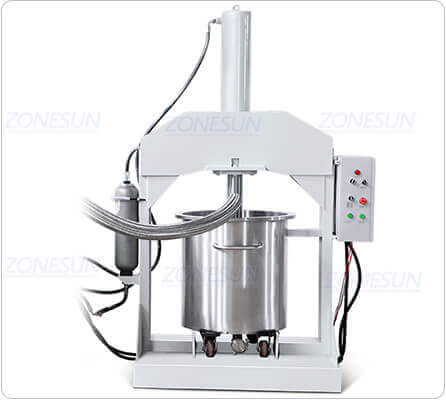

Our hydraulic discharge machine ensures stable and constant extrusion pressure, thereby maintaining the accuracy of filling measurement.

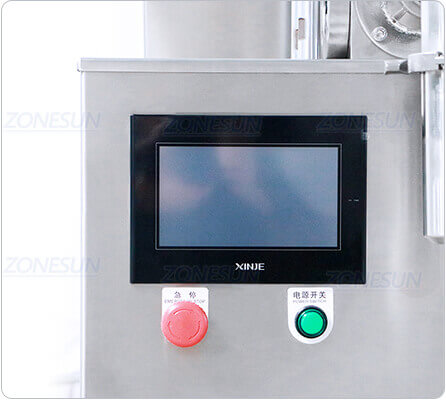

This machine is equipped with a PLC touch screen control panel, allowing for easy setting of working parameters. It is also controlled by a servo motor, ensuring high filling accuracy.

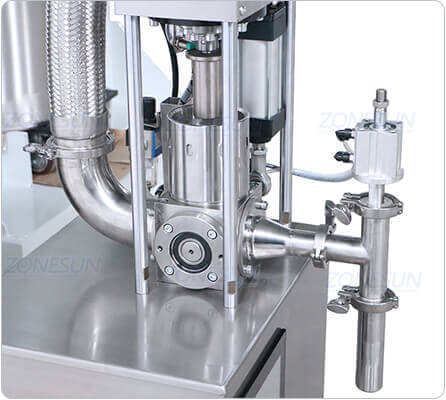

The pneumatic filling nozzle is optimized for thicker pastes, while customized valves and hoses minimize blockages. This ensures a seamless filling process.

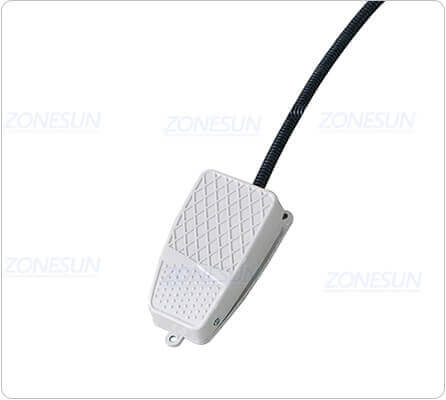

The filling machine is pedal-switch controlled, allowing you to operate it with both hands free, thereby enhancing work efficiency.
