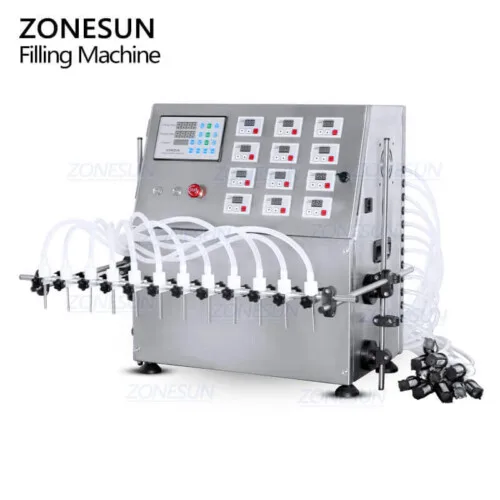

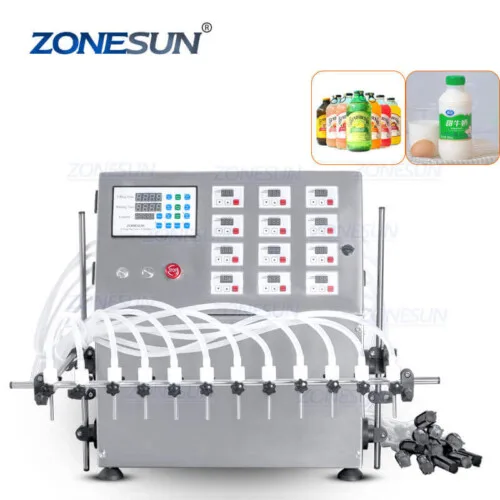

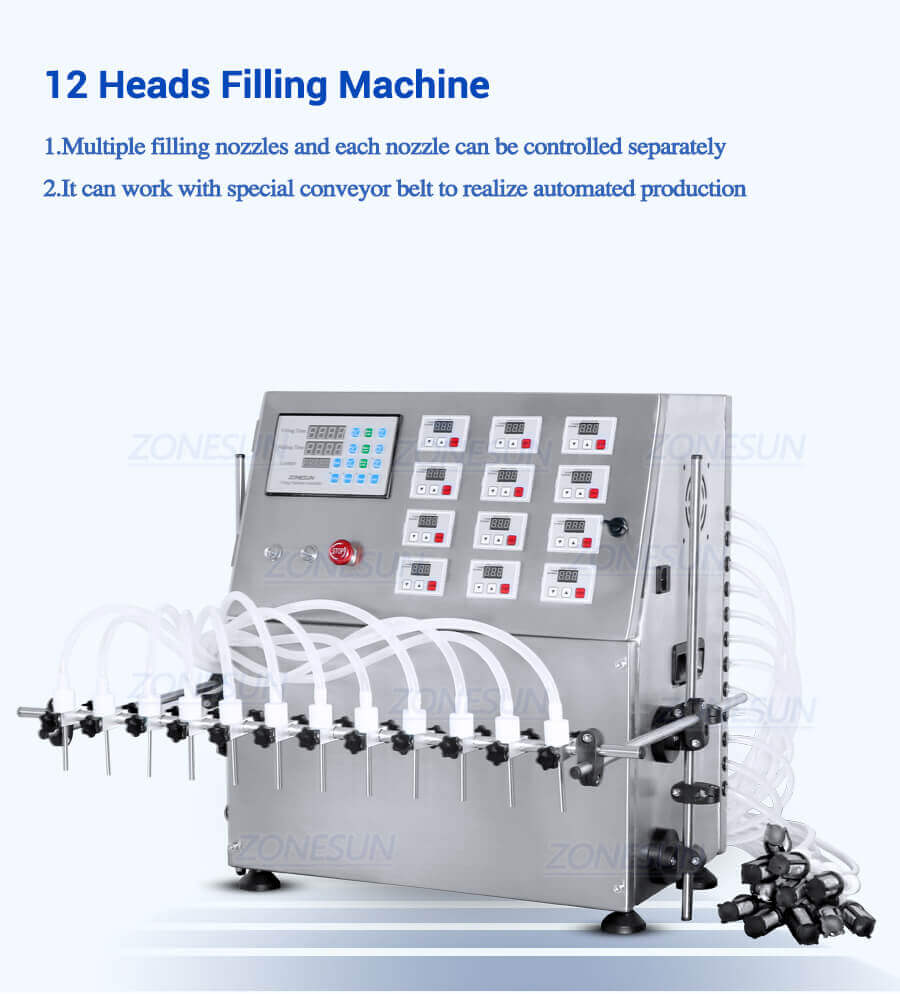

Semi Automatic 12 Heads Filling Machine
The machine is with multiple filling nozzle which can improve filling efficiency greatly.Each filling nozzle can be controlled separately.It is suitable for filling low viscosity liquid without particle like water,juice,milk perfume etc.This machine is widely used in food,beverage,cosmetics and daily chemical industries.
Share to
Description:

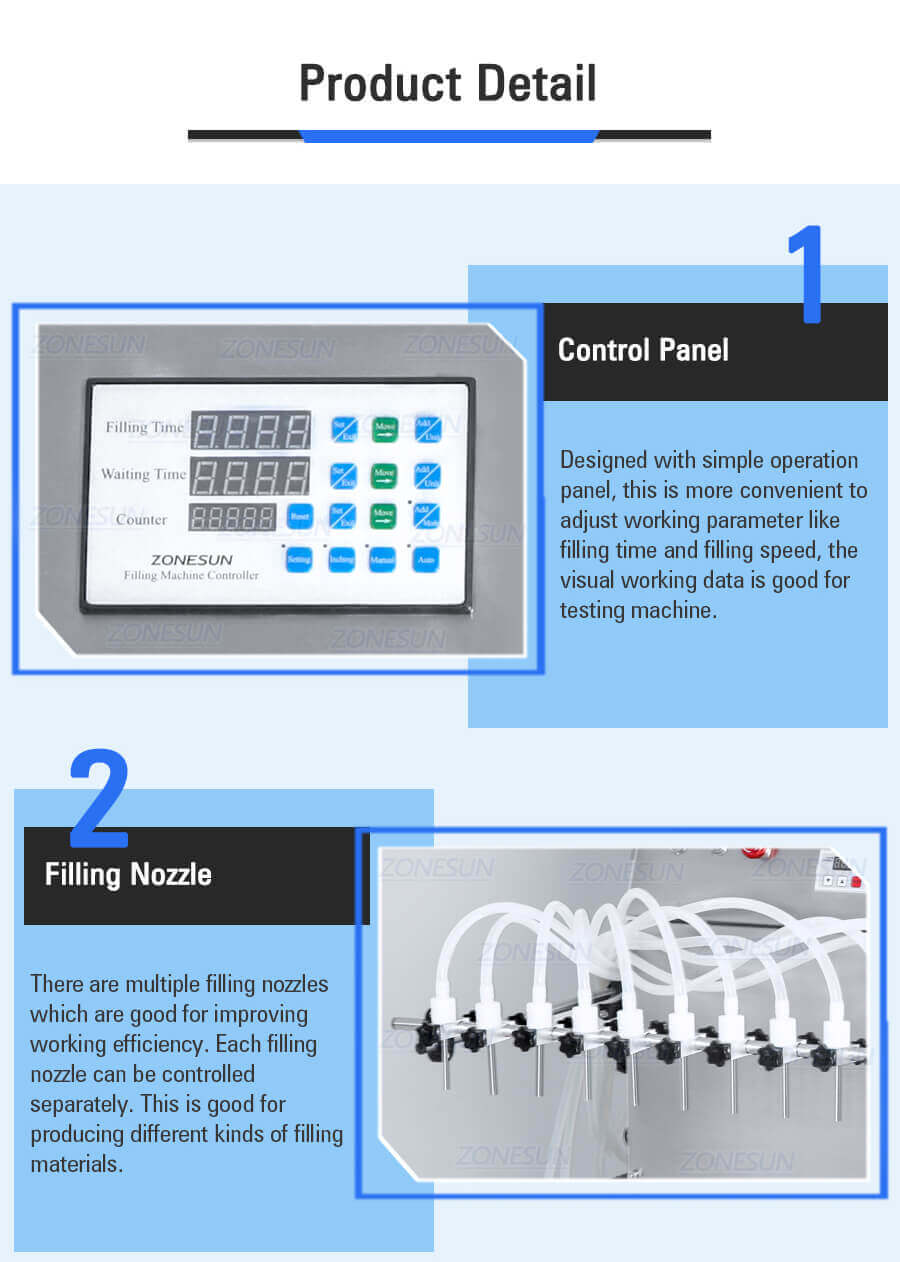

The machine is with multiple filling nozzle which can improve filling efficiency greatly.Each filling nozzle can be controlled separately.It is suitable for filling low viscosity liquid without particle like water,juice,milk perfume etc.This machine is widely used in food,beverage,cosmetics and daily chemical industries.
|
Machine model
|
ZS-DPYT12P
|
|||
|
Voltage
|
220V/110V 50-60HZ
|
|||
|
Rated power
|
300W
|
|||
|
Rated current
|
2.5A
|
|||
|
Filling range
|
30-4000ml(each pump)
|
|||
|
Maximum suction distance
|
1.5M
|
|||
|
Maximum flow rate
|
4L/MIN(each pump)
|
|||
|
Repetitive error smaller than
|
0.5% (depending on the density of product)
|
|||
|
OD of filling nozzle
|
OD 6mm
|
|||
|
Machine size
|
About 500*250*580mm
|
|||
|
Package size
|
About 690*440*780mm
|
|||
|
Machine weight
|
About 42 kg
|
|||
|
Package weight
|
About 57kg
|
|||
