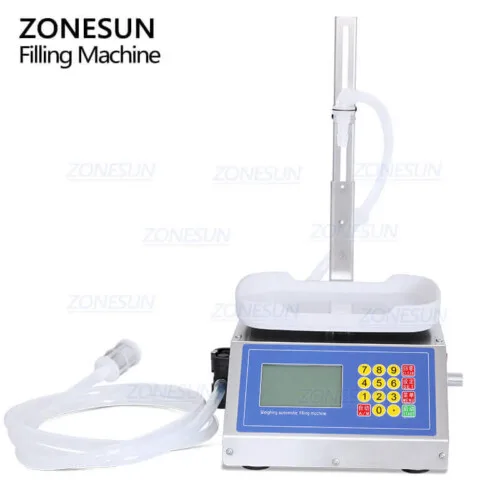

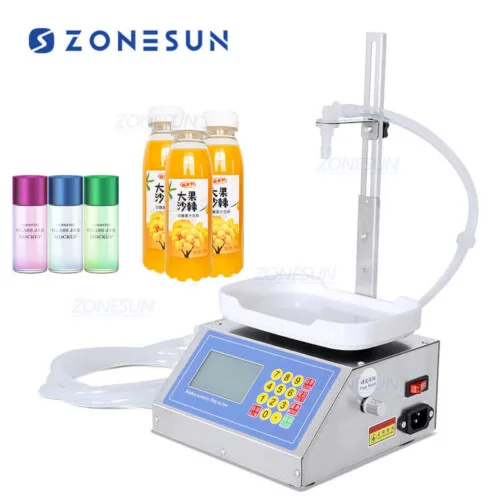

Semi Automatic Liquid Weighing Filling Machine

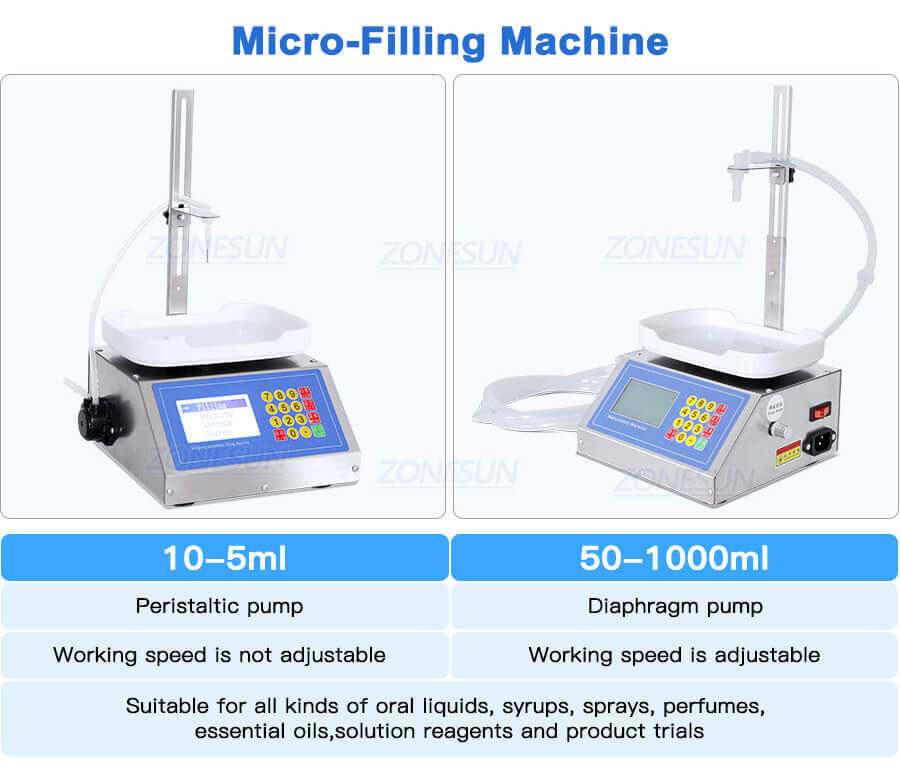

This semi-automatic filling machine is equipped with a diaphragm pump, ideal for low viscosity liquids like water, milk, juice, and perfume. It features a weighing function, where the electronic scale detects weight in real-time and sends a signal back to the system. The pump automatically stops once the set amount is reached, ensuring more accurate liquid filling.
Share to
Product Description:
This semi-automatic filling machine is equipped with a diaphragm pump, ideal for low viscosity liquids like water, milk, juice, and perfume. It features a weighing function, where the electronic scale detects weight in real-time and sends a signal back to the system. The pump automatically stops once the set amount is reached, ensuring more accurate liquid filling.
Product Parameters:
| Machine Model | ZS-M1080S |
| Voltage | 220V/110V 50-60Hz |
| Power | 30W |
| Machine Pump | Diaphragm Pump |
| Recommended Filling Range | 5-1000g |
| Max Flow | 3.2L/min(based on water) |
| Maximum Weighing | 3kg |
| Filling Nozzle Diameter | OD 8.8mm |
| Suitable Bottle Height | 85mm-250mm |
| Counting Function | Available |
| Machine Size | About 180*180*395mm |
| Machine Weight | About 2kg |
| Package Size | About 330*220*235mm |
| Package Weight | About 2.5kg |
Product Details:

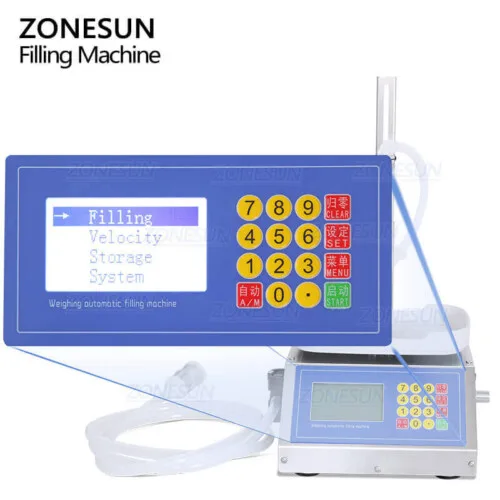

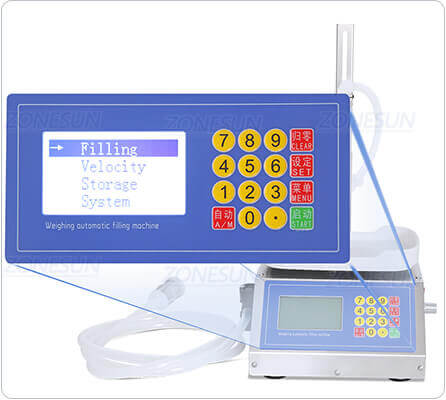

You can adjust the filling weight to control the volume, eliminating the need to tweak filling time or speed. This enhances convenience and boosts work efficiency.

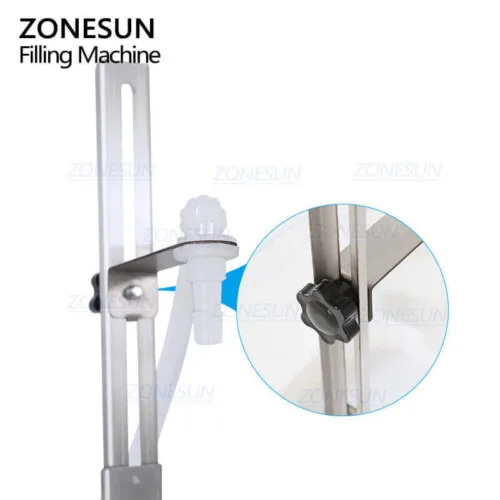

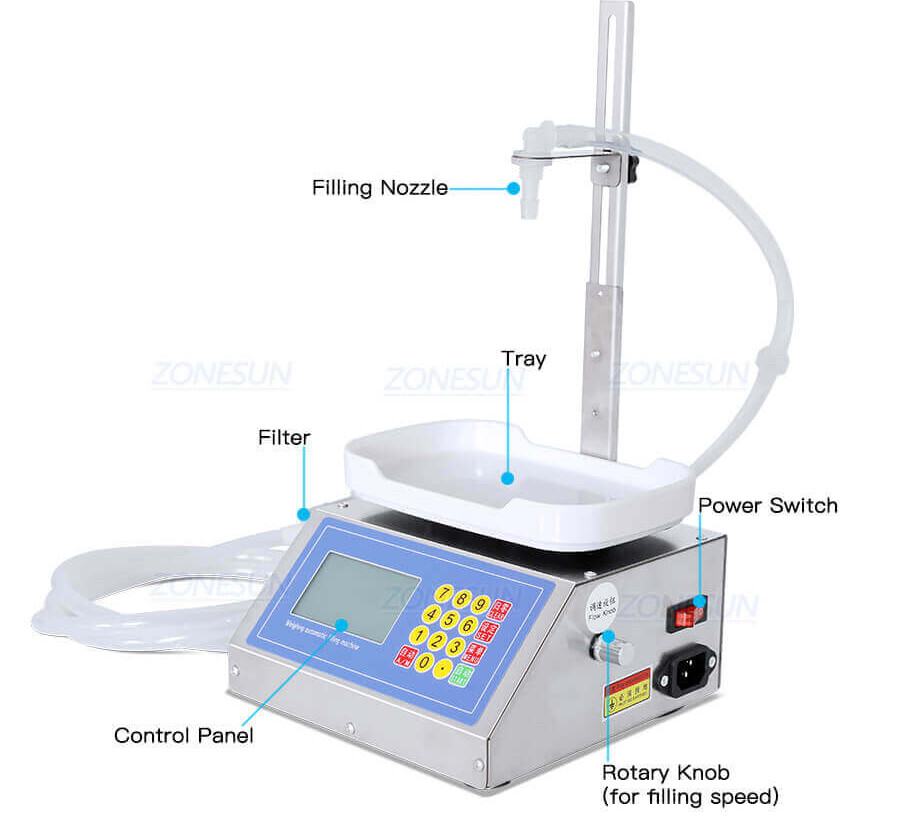

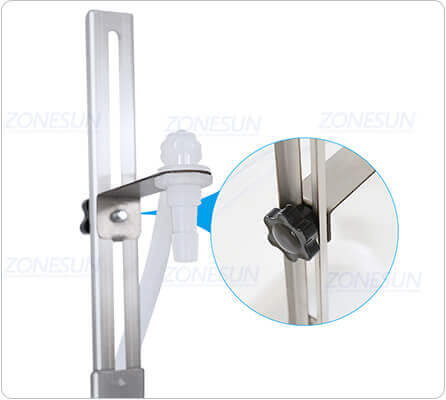

The machine is equipped with a high-quality filling nozzle and hose. The height of the nozzle can be adjusted based on the size of the bottle, ensuring that liquid doesn’t spill during the filling process.

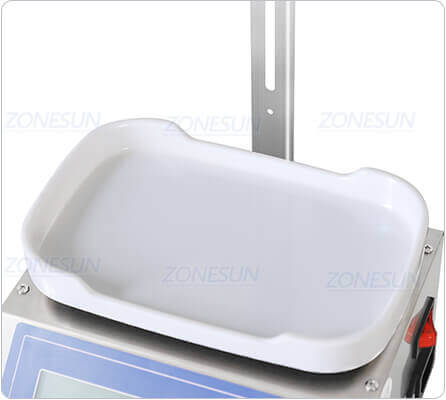

The machine is equipped with a precise scale that allows for accurate volume filling by controlling the weight. This is more efficient compared to other filling machines as it saves time on testing filling speed and filling time.

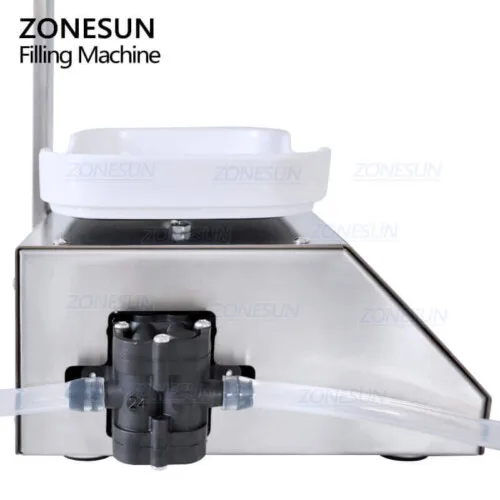

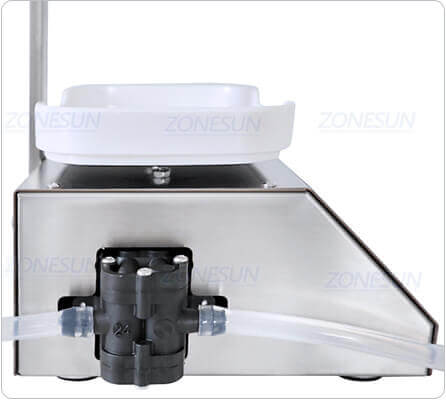

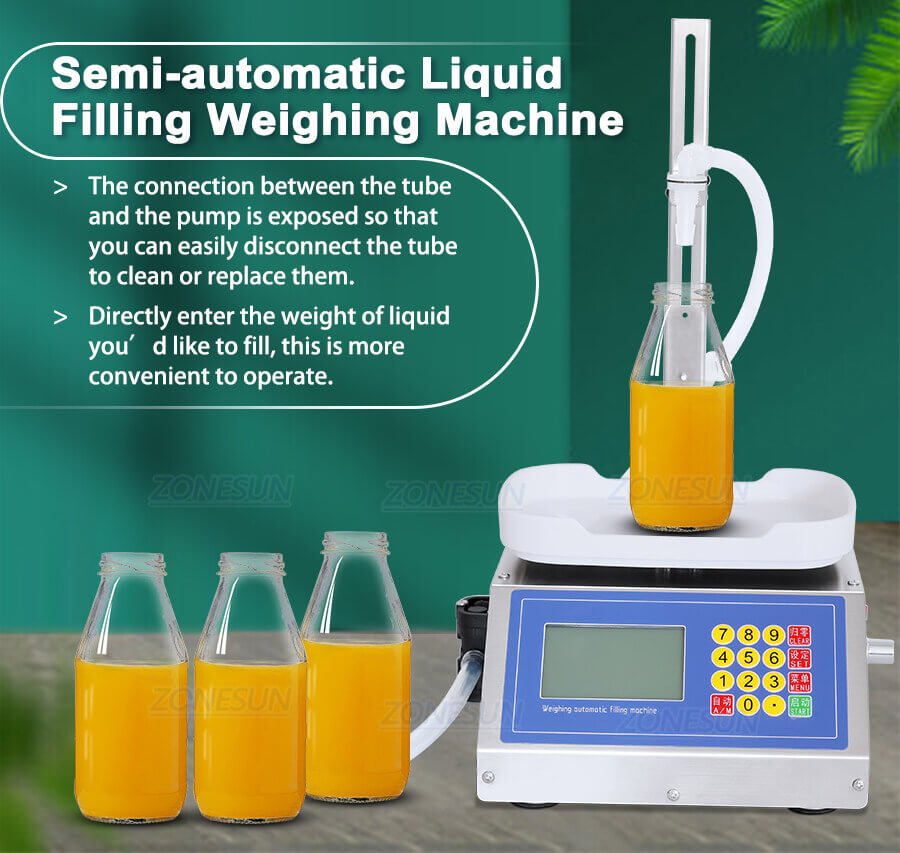

The tube and pump are connected in an exposed manner, allowing for easy disconnection to facilitate cleaning or tube replacement.
