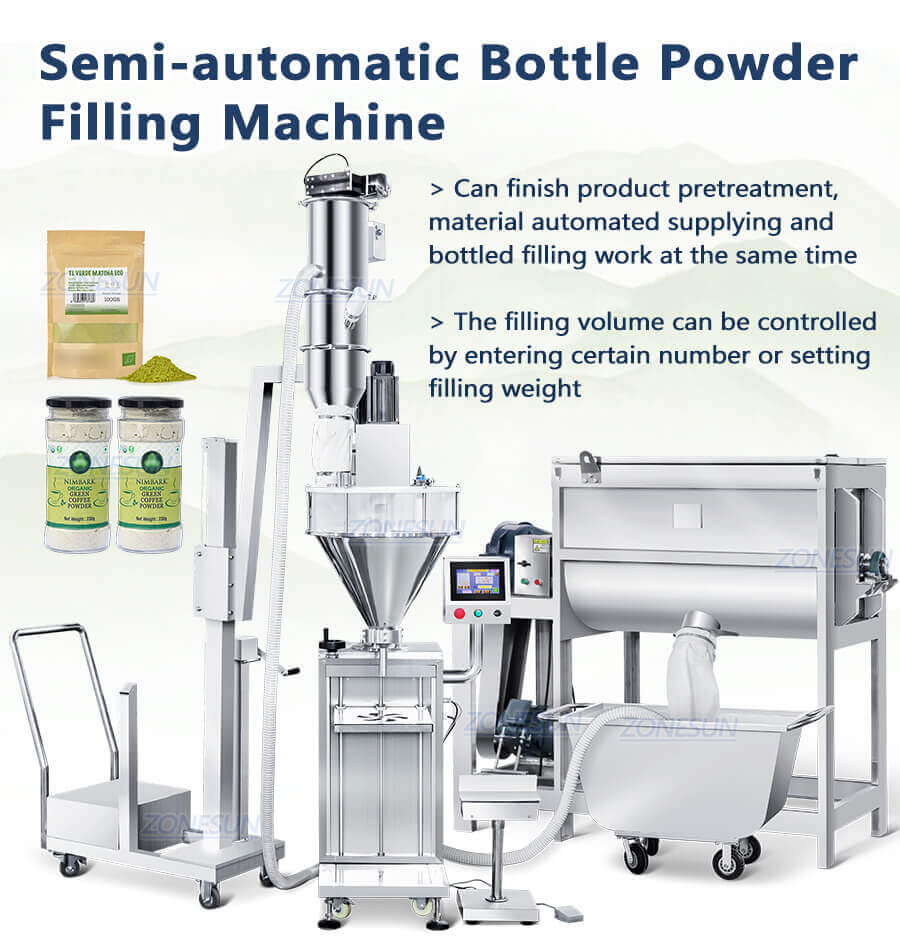

Semi Automatic Powder Filling Machine

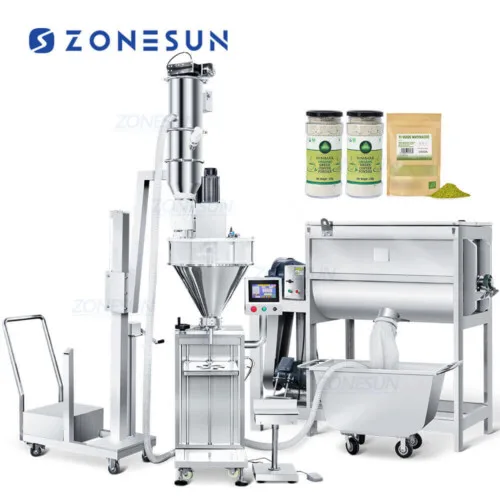

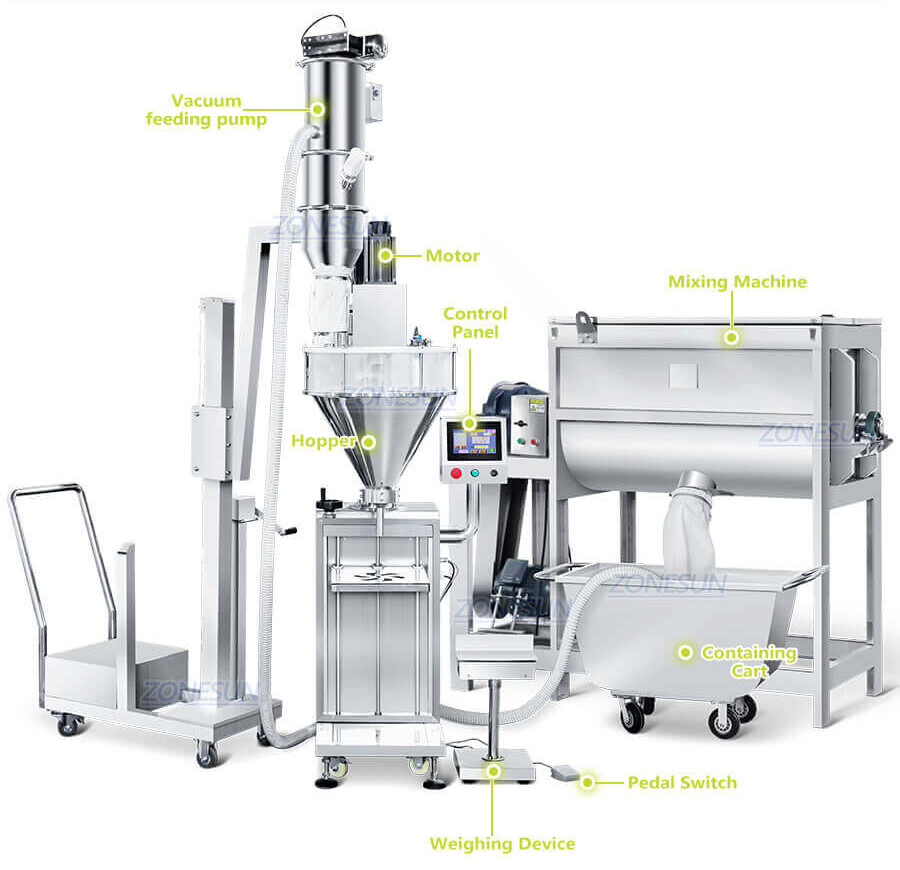

This packaging system includes the powder mixing machine, vacuum powder filling pump, automated powder filling machine.This packaging system can finish product pretreatment, material automated supplying and bottled filling work at the same time.It is good for packaging powder mixture like flour, metal powder, nutritional supplement, cornstarch etc.
Share to
Description:
This packaging system includes the powder mixing machine, vacuum powder filling pump, automated powder filling machine.This packaging system can finish product pretreatment, material automated supplying and bottled filling work at the same time.It is good for packaging powder mixture like flour, metal powder, nutritional supplement, cornstarch etc.

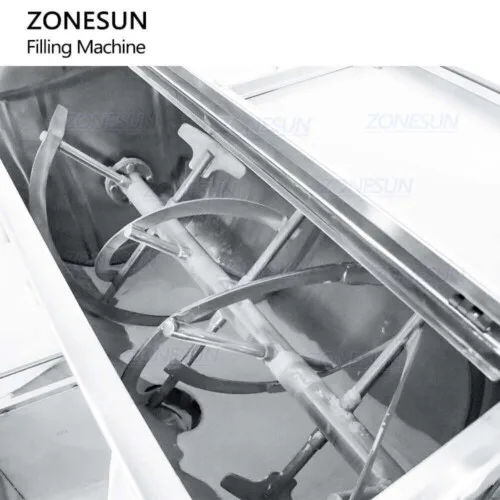

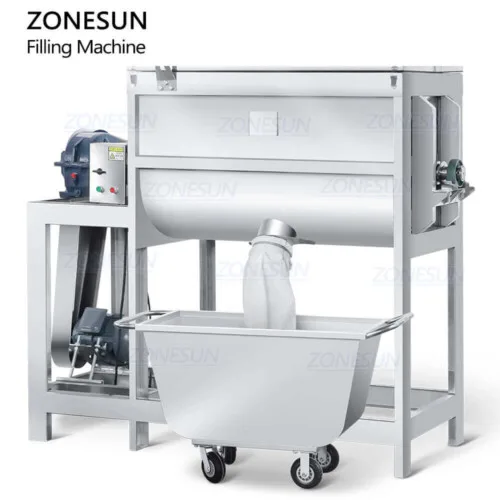

>>>MlxIng Machlne
| Machine model | ZS-BM200 | ZS-BM500 | ZS-BM1000 | |
| Voltage | 380V | |||
| Power | 2.2KW | 4KW | 7.5KW | |
|
Capacity |
200L | 500L | 1000L | |
| Due to the different specific gravity of materials, we cannot confirm the value in kilograms. If you need to know the specificparameters, please send us message. | ||||
| Rotating speed | 15rpm | |||
| Machine material | Stainless steel | |||
|
Packing size
|
About 2130*890*1860mm (500L)
|
|||
|
Packing weight
|
About 458kg (500L)
|
|||

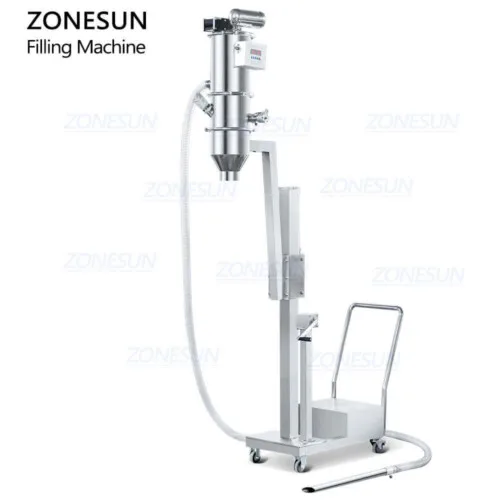

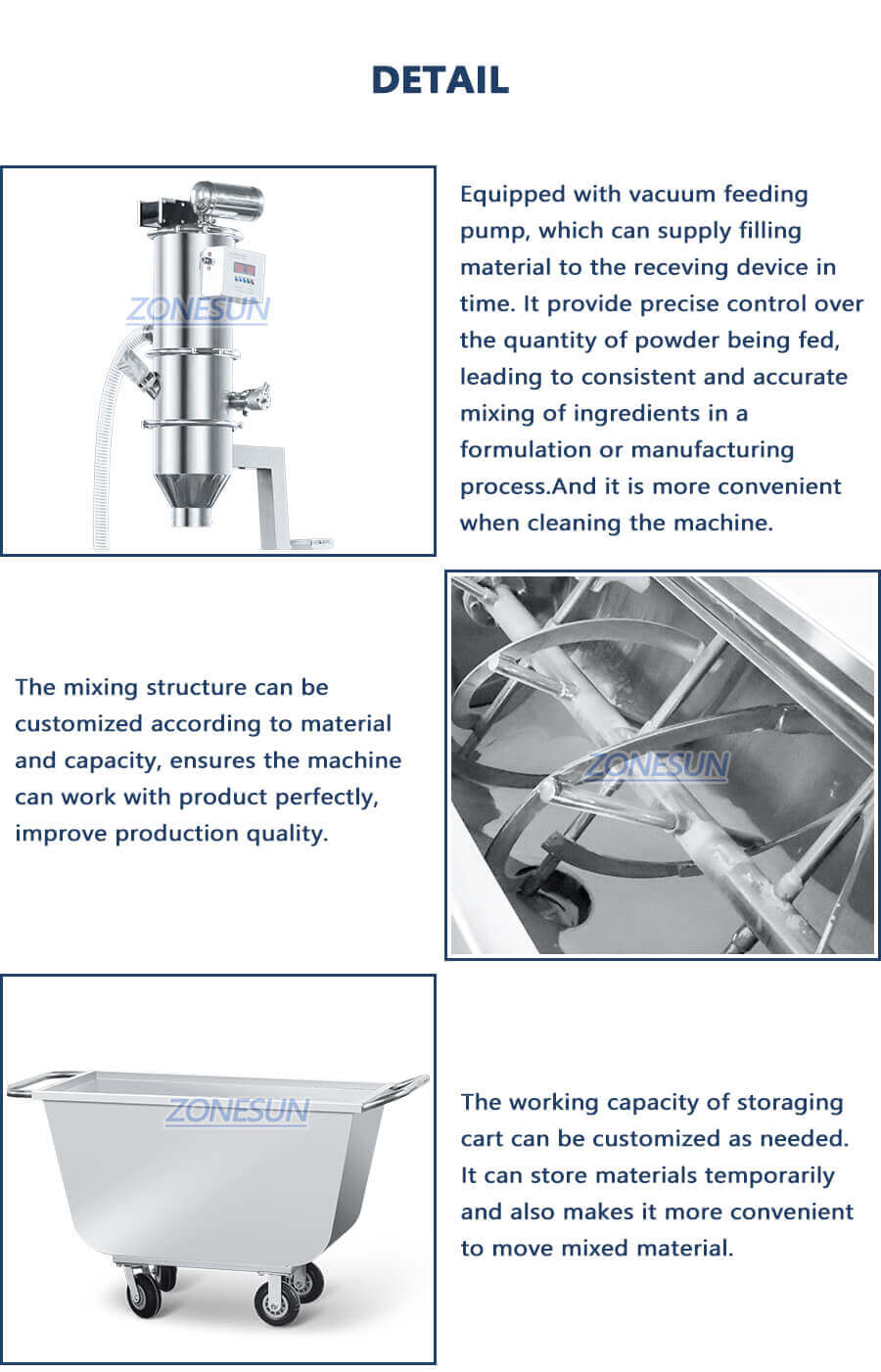

>>>Vacuum FeedIng Pump
| Machine model | ZS-VFP1 |
| Machine voltage | 110/220V 50-60HZ |
| Working capacity | 350-700kg/h |
| Hopper capacity | 4.1L |
| Suitable product | Please provide material specific gravity, horizontal and vertical transportation distance |
| Working pressure | 0.6-0.8Mpa |
| Length of sunction hose | 5m |
| Machine size | About φ213*790mm |
|
Packing size
|
About 1140*540*1840mm |
|
Packing weight
|
About 114kg |

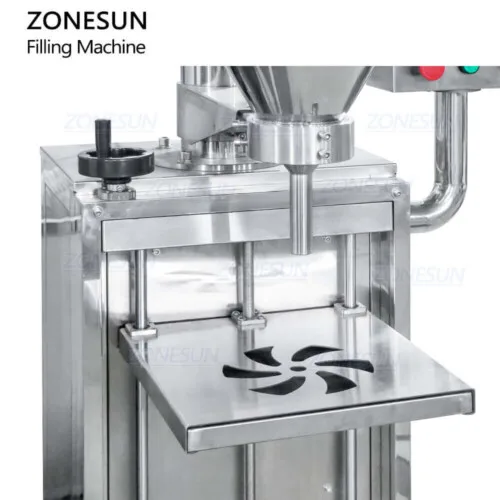

>>>FillIng Machlne
| Machine model | ZS-FM710 |
| Voltage | 110/220/380V 50-60HZ |
| Main motor power | 1.25KW |
| Filling type | Weight Control or Auger Filling |
| Filling range | About 10-2000g |
| Suitable bottle diameter | About 25-150mm |
| Suitable bottle height | About 60-300mm |
| Hopper size | About 25L |
| Working speed | About 1-30 bottles/min |
| Machine size | About 450*650*1860mm(Machine)

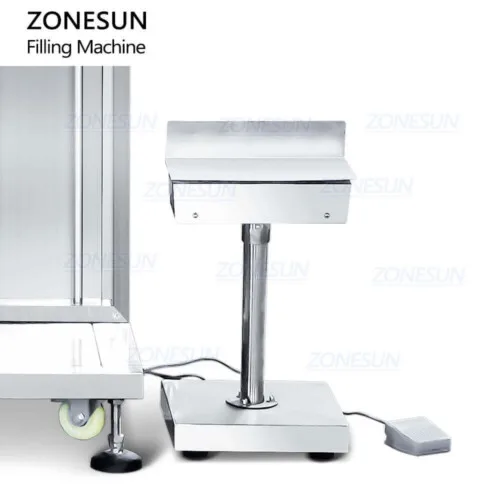

About 265*265*570mm(Weighing Device) |
| Machine weight | About 128kg |
| Package size | About 1900*2170*820mm |
| Package weight | About 171kg |
