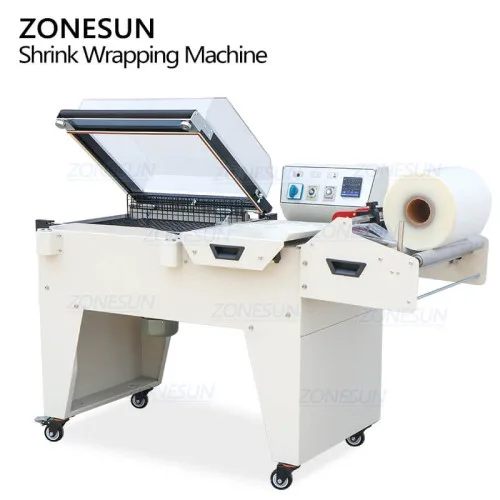

Semi Automatic Shrink Wrapping Machine

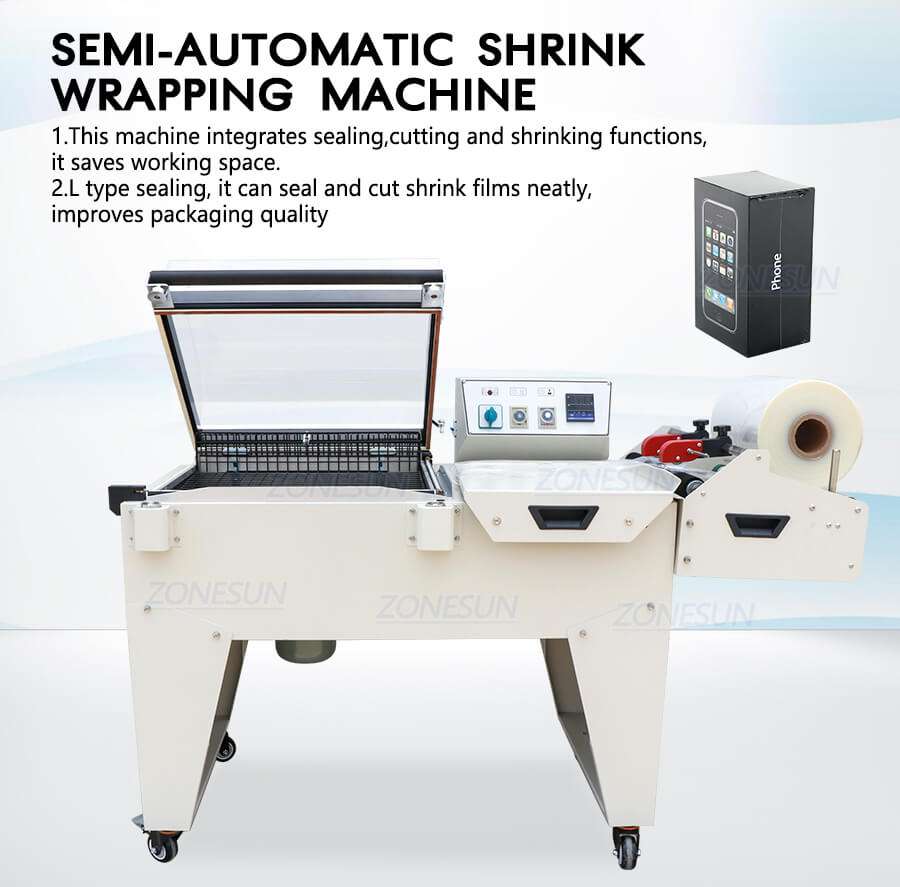

The machine integrates sealing, cutting and shrinking functions, thereby shortening the entire packaging time and space. This machine can perform continuous sealing, cutting and shrinking work for a long time, improving packaging efficiency. It is suitable for small-scale packaging production such as mobile phone boxes, earphone boxes, and perfume boxes.
Share to
Product Description:
The machine integrates sealing, cutting and shrinking functions, thereby shortening the entire packaging time and space. This machine can perform continuous sealing, cutting and shrinking work for a long time, improving packaging efficiency. It is suitable for small-scale packaging production such as mobile phone boxes, earphone boxes, and perfume boxes.

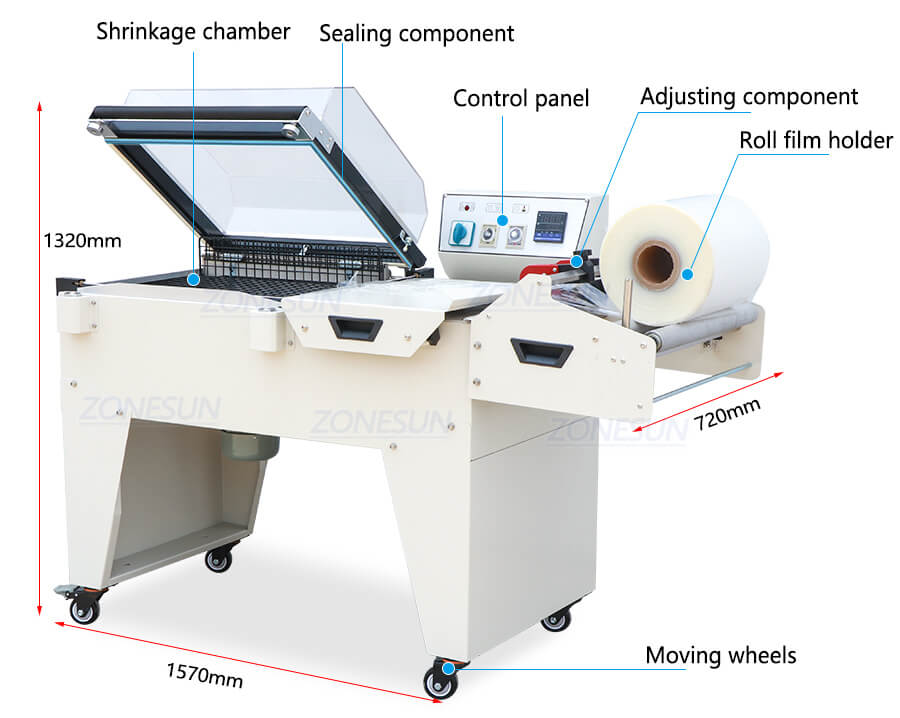

Product Parameters:
| Machine Model | ZS-SX5540 |
| Machine Voltage | AC220-240V/50-60Hz 4.57KW |
| Sealing and Cutting Time | 0-3sec |
| Shrinking Time | 0-30sec |
| Packaging Speed | 0-800 pieces/h |
| Suitable Package Film | POF PVC |
| Film Thickness | 0.015-0.08mm |
| Maximum Packaging Size | About 550*400*230mm |
| Machine Size | About 1570*720*1060(1320)mm(L*W*H) |
| Machine Net Weight | About 128kg |
Product Details:

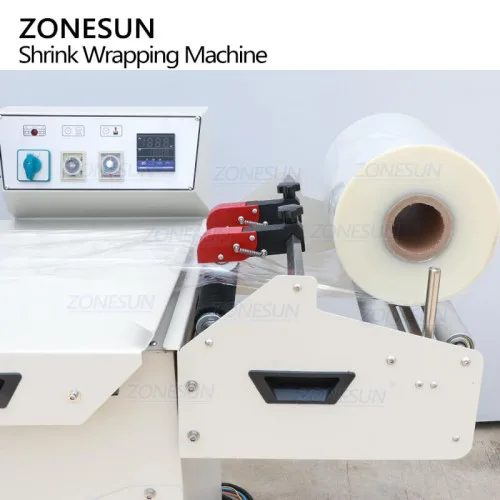

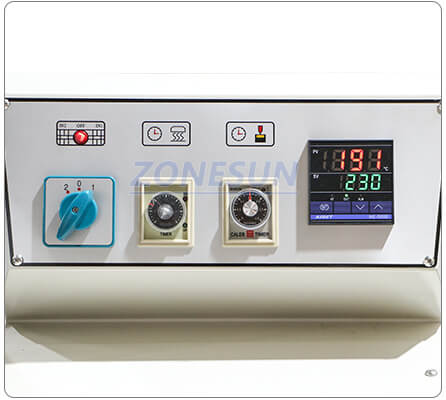

This shrink wrapping systems come with a control panel that allows operators to adjust parameters such as temperature and sealing time.

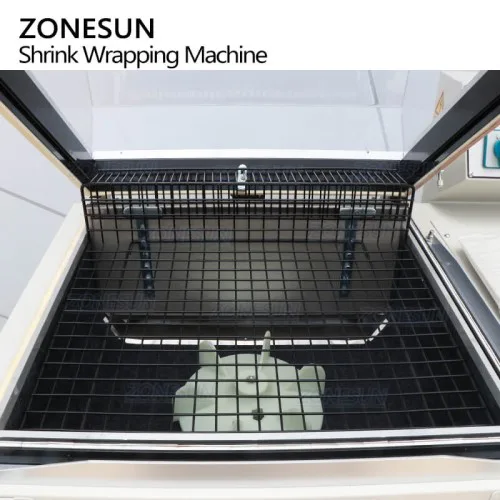

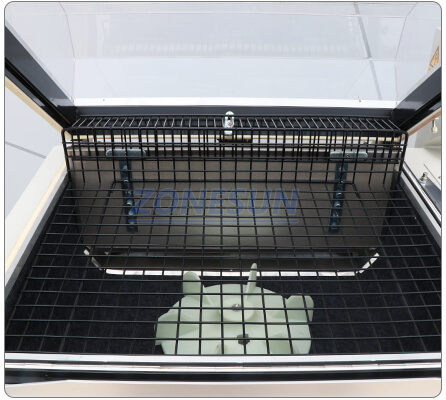

This machine is consists of a chamber where the product to be wrapped is placed. This chamber is equipped with heating elements. This machine uses heat to shrink the film tightly around the product. This improves packaging quality.

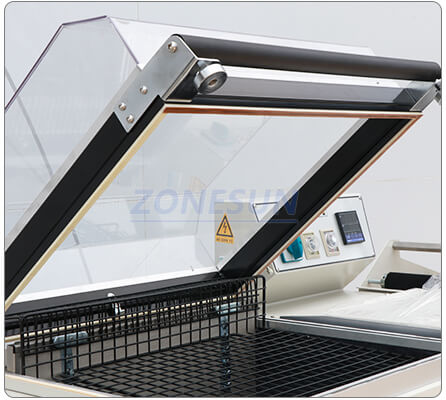

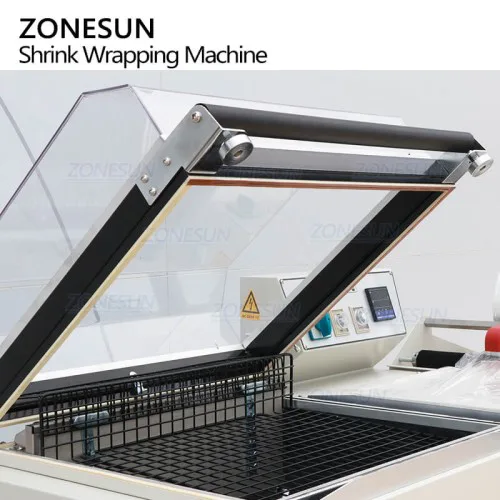

This machine is equipped with L type sealing and cutting component, it can handle a variety of products, including individual items, boxes, trays, and more. It is suitable for packaging both regular and irregular-shaped products, offering versatility in packaging applications.

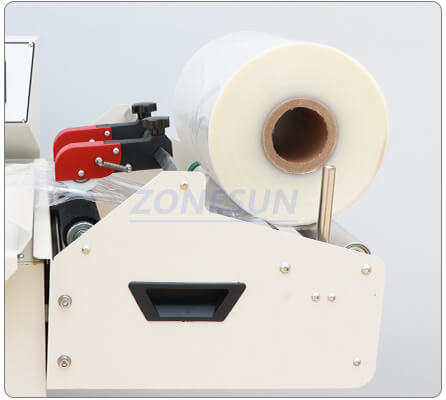

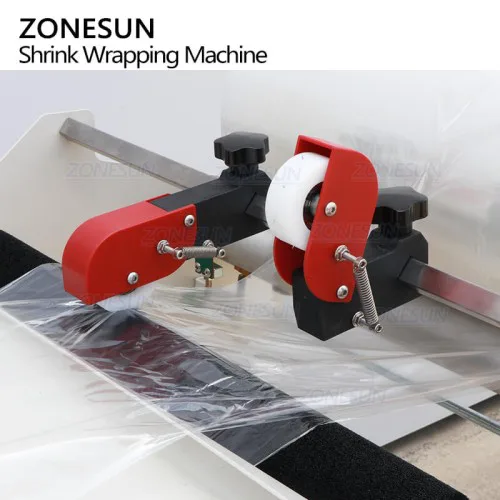

The roll film holders is designed to be user-friendly, with features such as adjustable tension control and film guides to ensure smooth and consistent film feeding. There are two adjusting components to make the packaging size more accurate.
