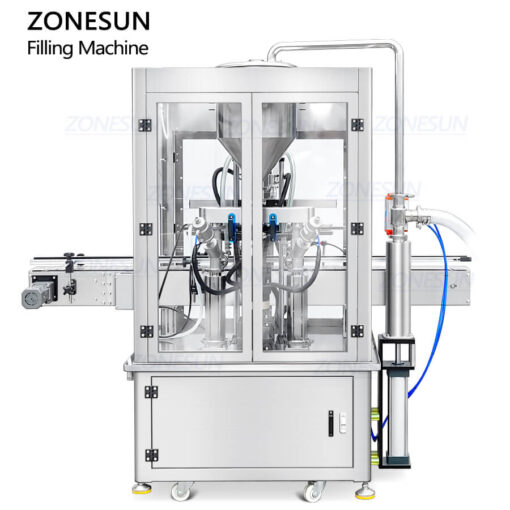

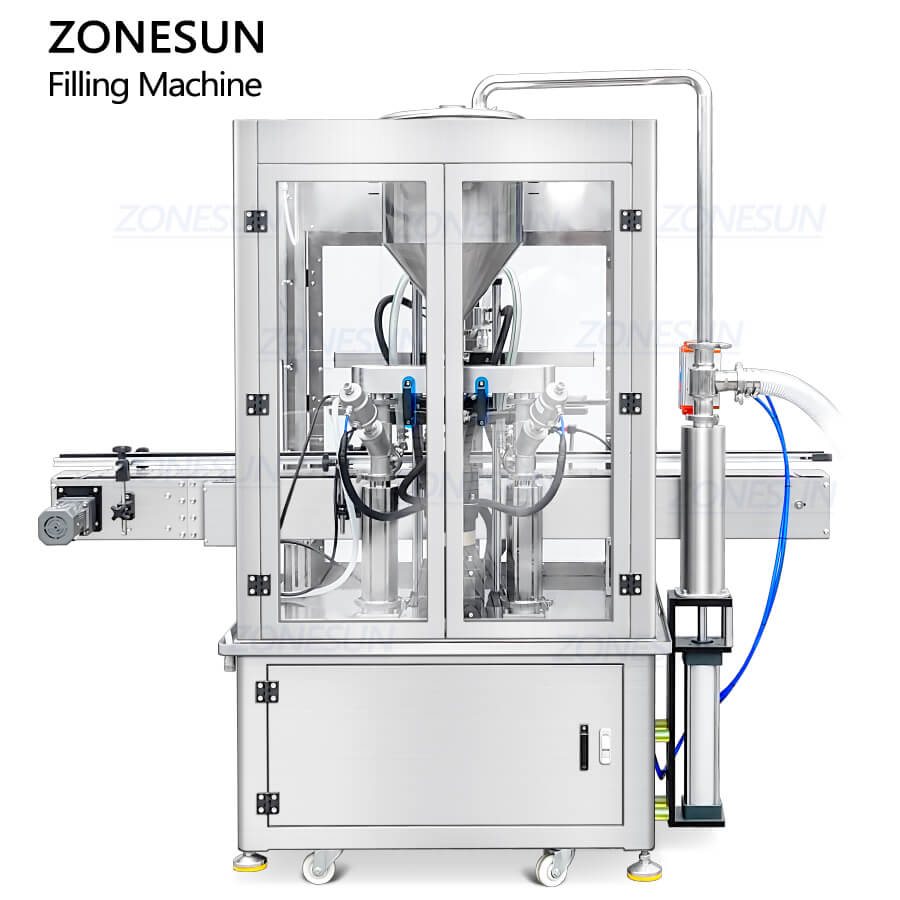

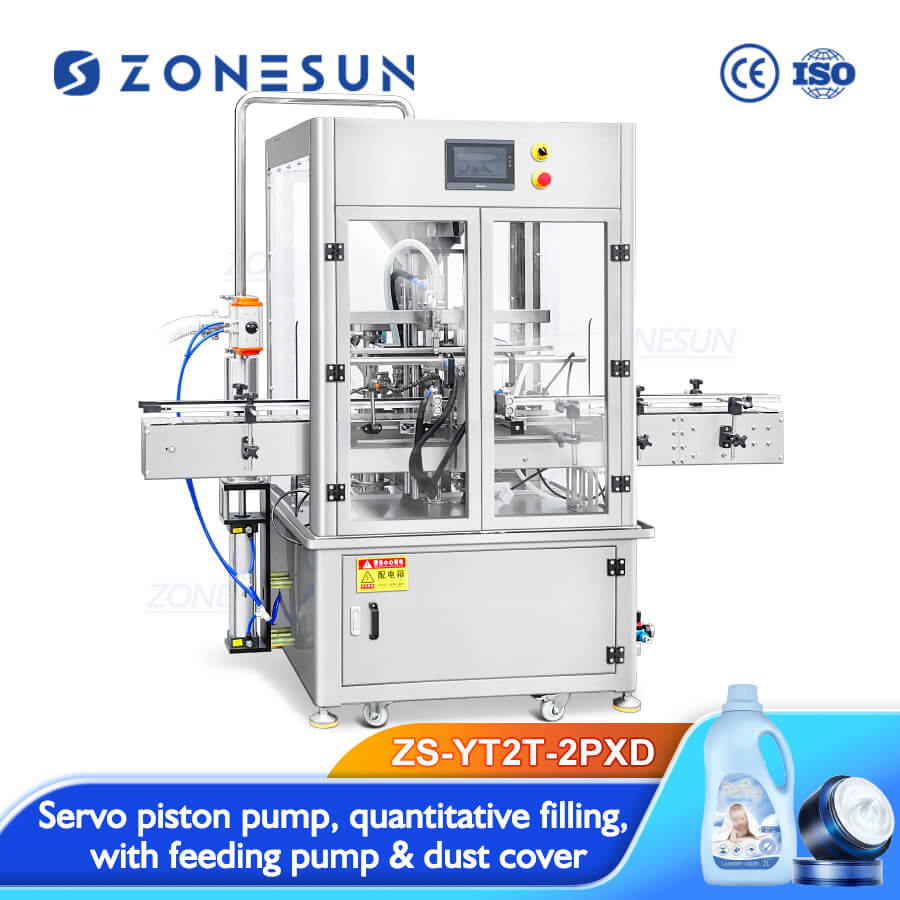

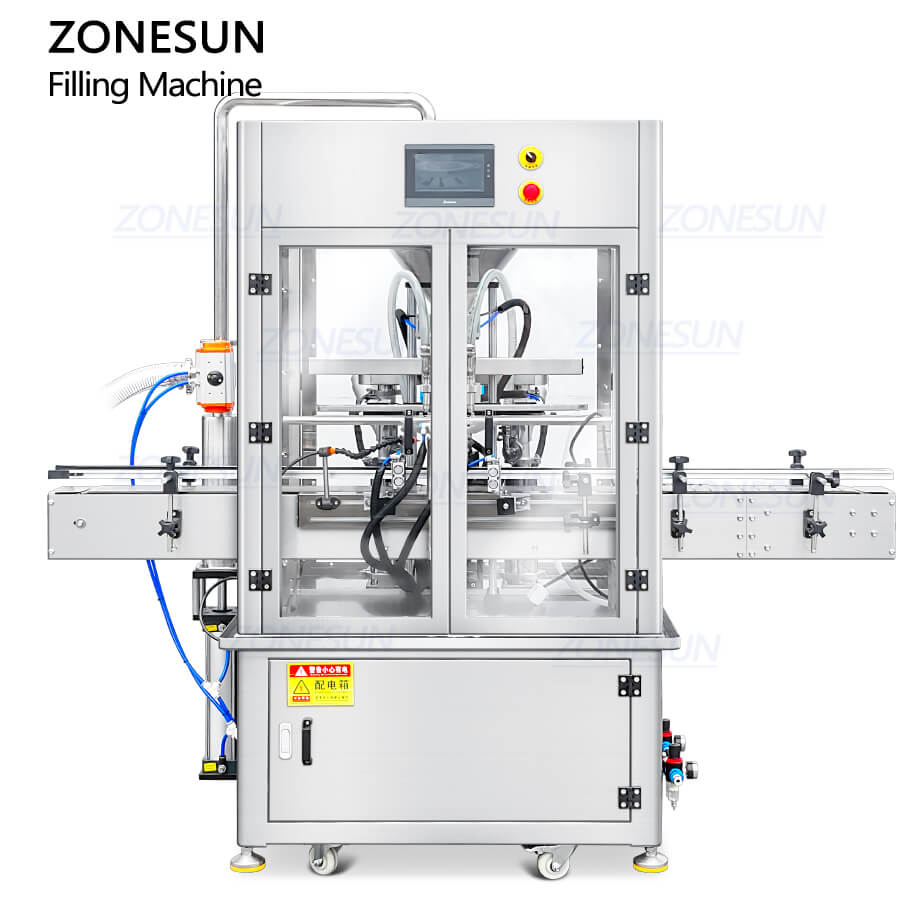

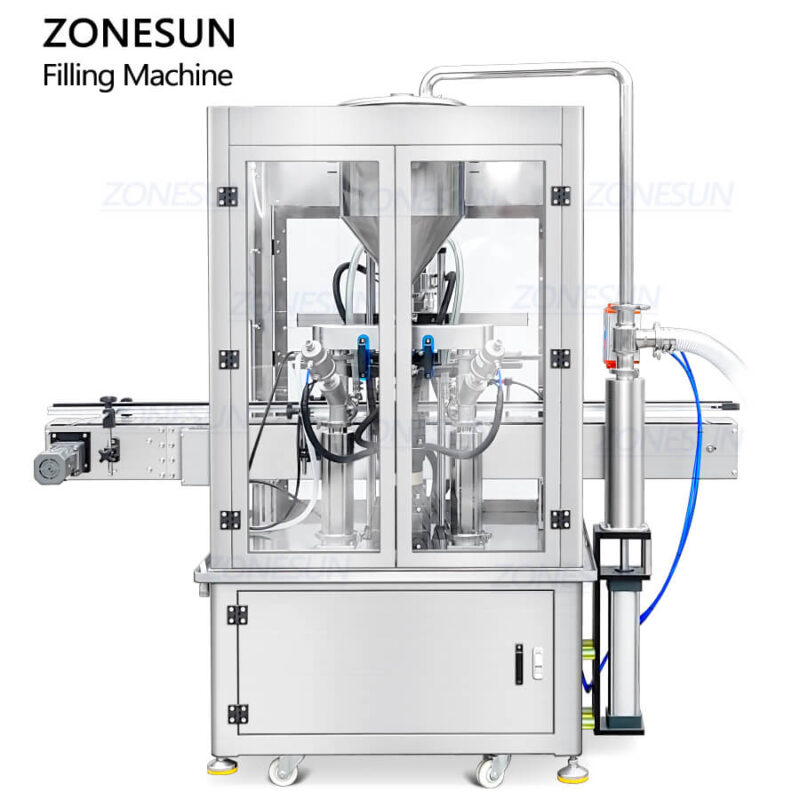

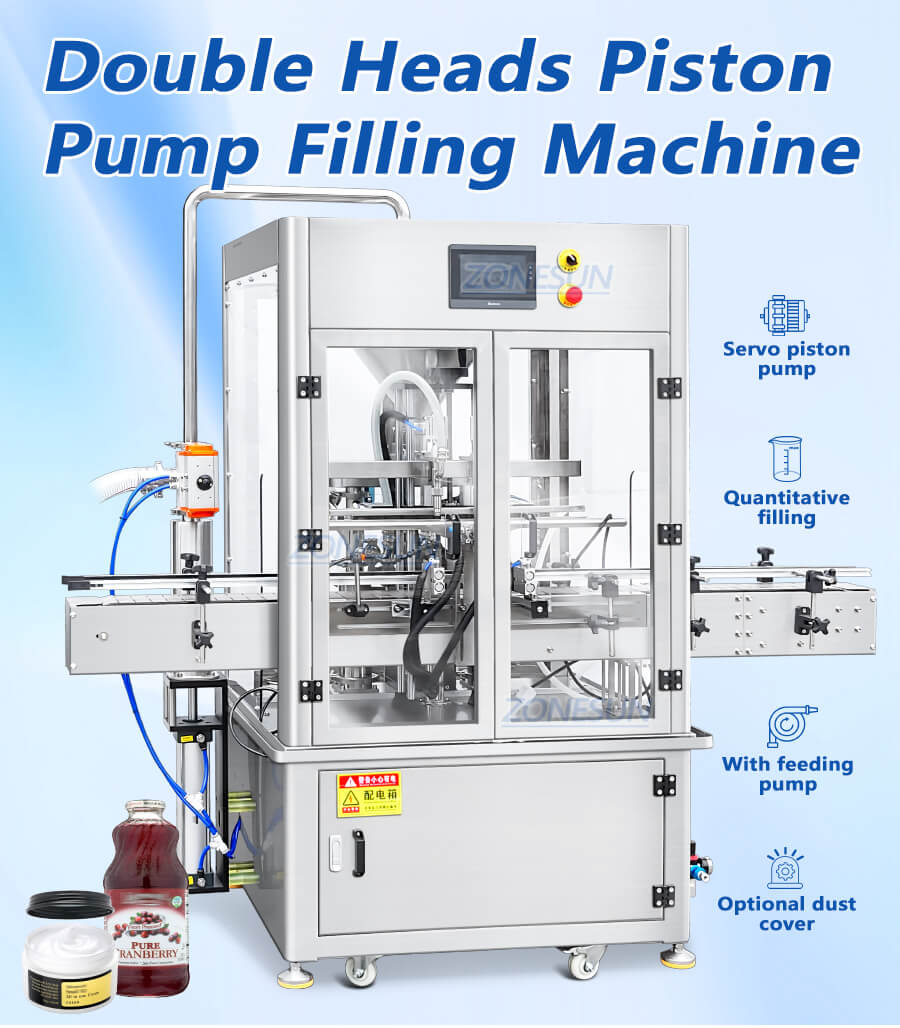

Servo Cosmetic Paste Filling Machine
Featuring servo motor control, this machine enables precise filling volume adjustment through its intuitive control panel. Designed for viscous liquids—including shampoo, lotion, and laundry detergent—it comes equipped with a dust cover and offers seamless integration with other equipment for complete production line automation.
Share to
Product Description:
Featuring servo motor control, this machine enables precise filling volume adjustment through its intuitive control panel. Designed for viscous liquids—including shampoo, lotion, and laundry detergent—it comes equipped with a dust cover and offers seamless integration with other equipment for complete production line automation.
Product Parameters:
| Machine Model | ZS-YT2T-2PXD |
| Voltage | 110/220V 50-60HZ |
| Power | 2KW |
| Filling Heads | 2 Heads(Can be customized) |
| Filling Range | 10-180 ml/30-500 ml/100-1000ml (Can be customized) |
| Filling Speed | About 20-40 bottles/min(depending on materials and bottle size) |

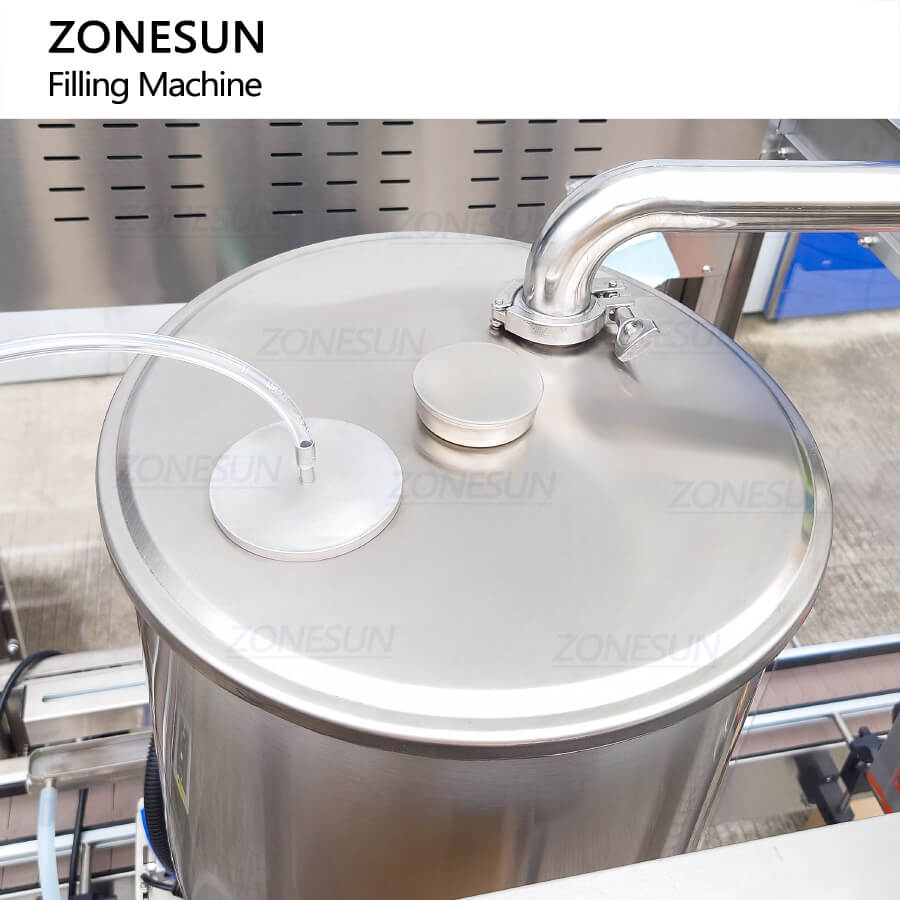

| Hopper Capacity | 20L |
| Filling Accuracy | ±1% |
| Suitable Bottle Size | Customized |
| Air Pressure | 0.5-0.8 MPa |
| Memory Function | Available |

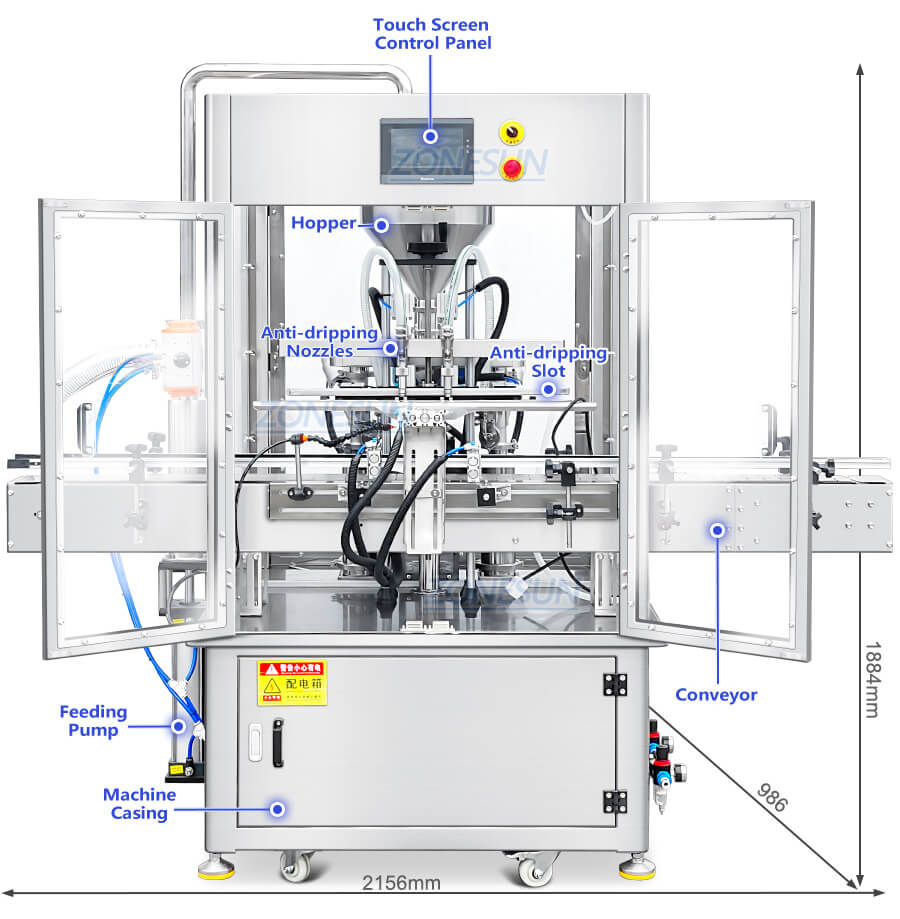

| Machine size | About 2156*986*1884mm |
Product Details:

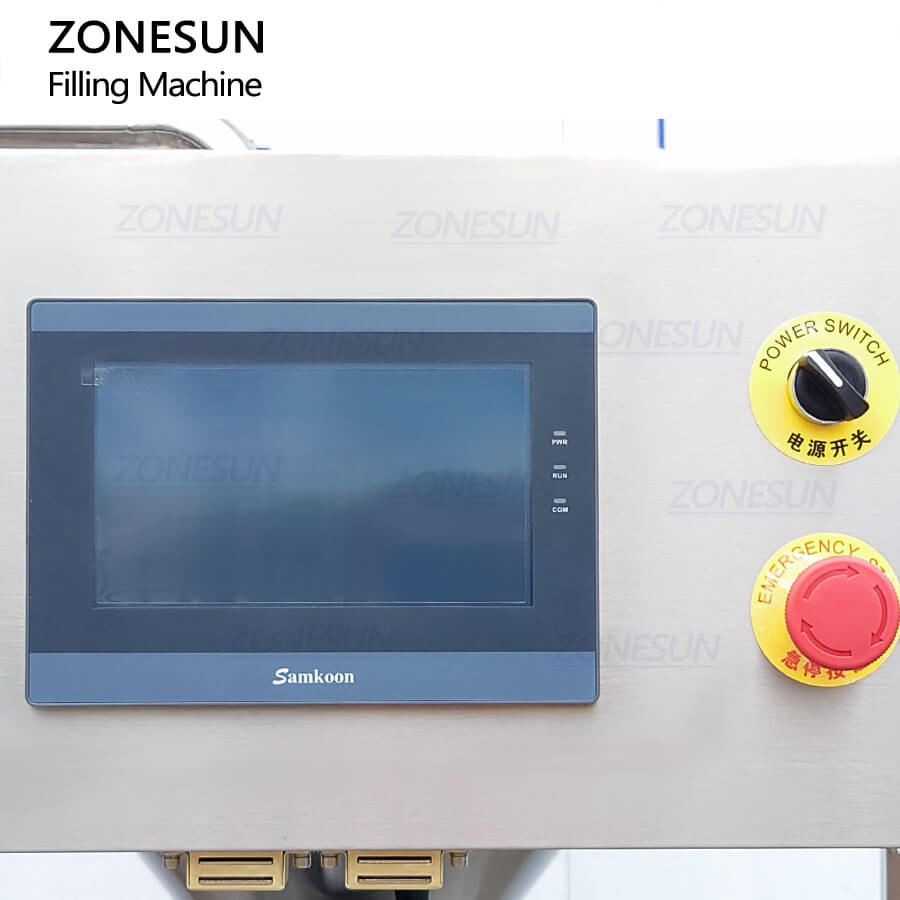

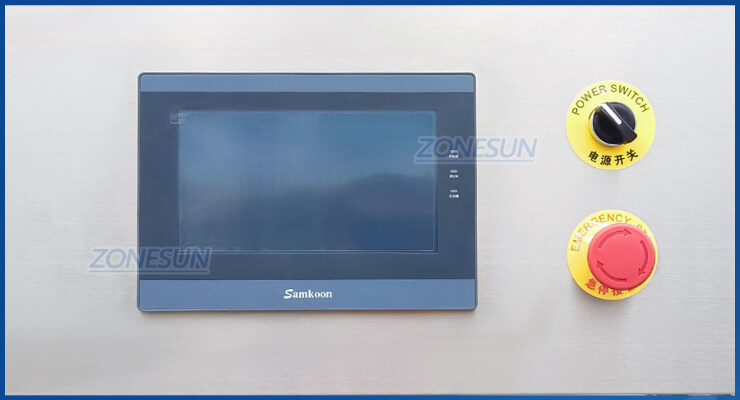

Control Panel
Touch screen control panel makes parameter setting more intuitively, filling volume can be set through control panel directly.

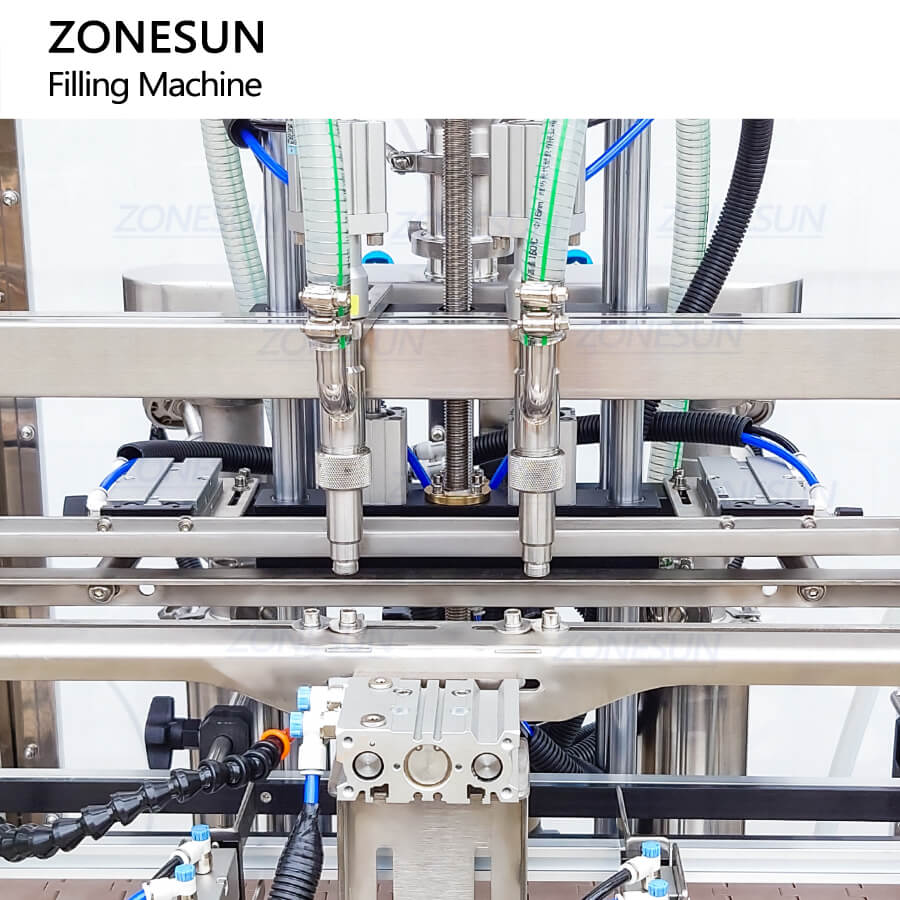

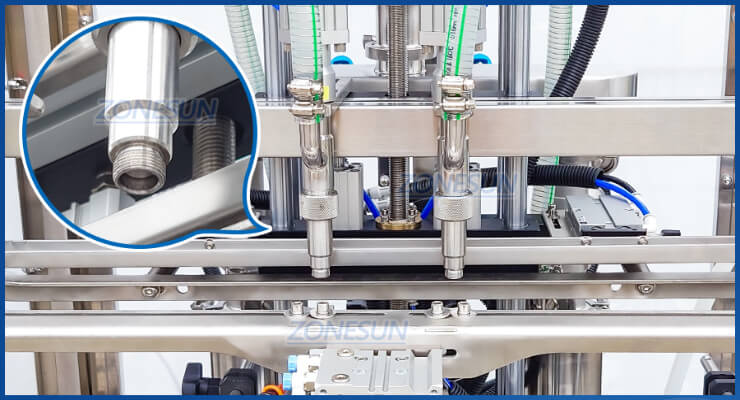

Anti-dripping Filling Nozzles
Quantity of filling nozzles are customizable, anti-dripping design improves filling accuracy.

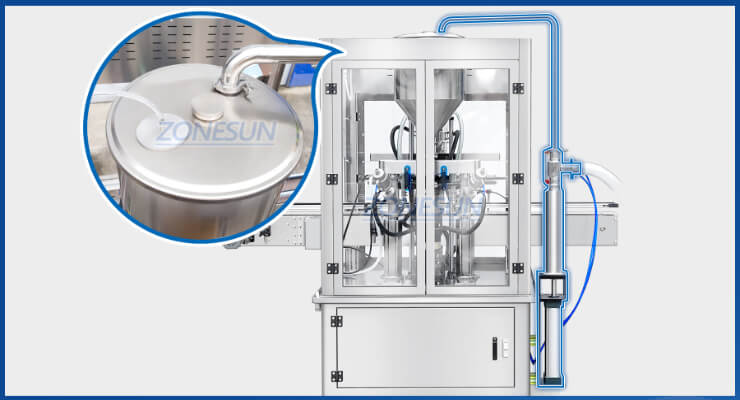

Feeding Pump
Equipped with piston pump to feed filling material in time,liquid level sensor can detect and supply filling material in time.

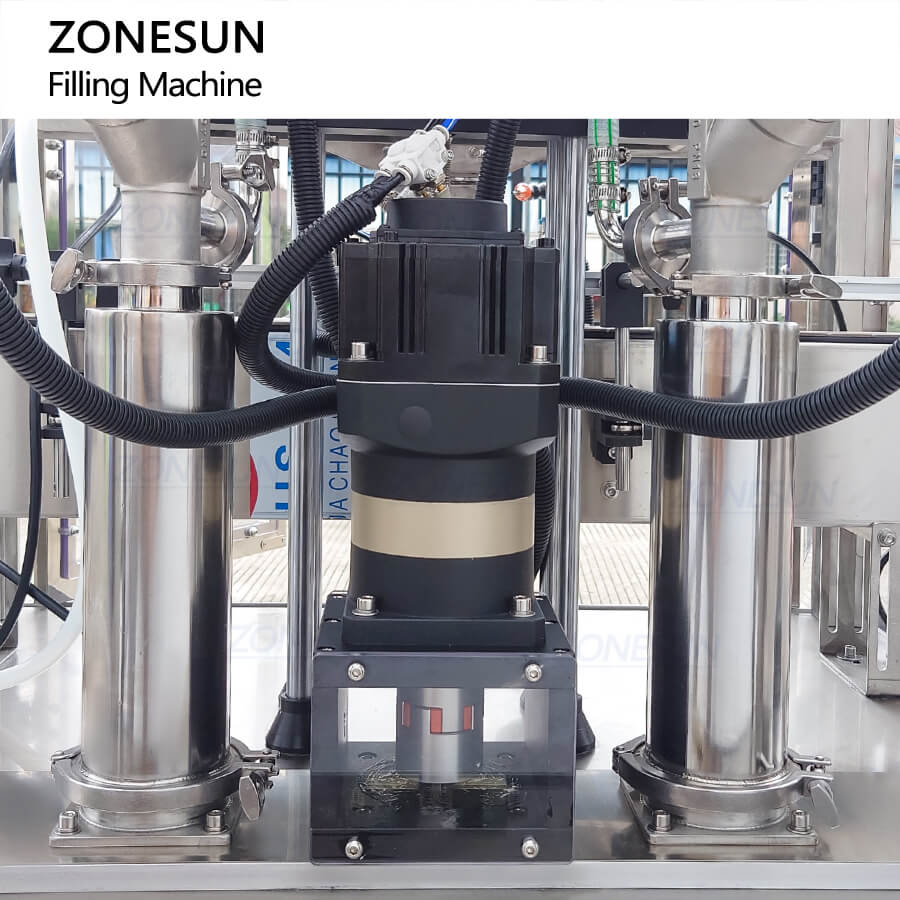

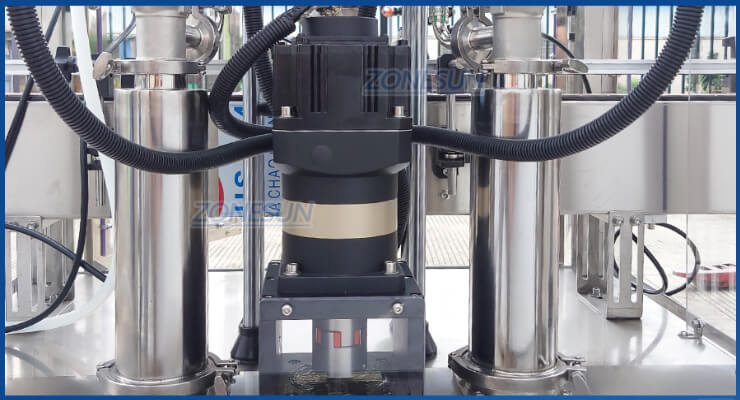

Servo Motor
Filling work is controlled by servo motor, it improves filling accuracy.

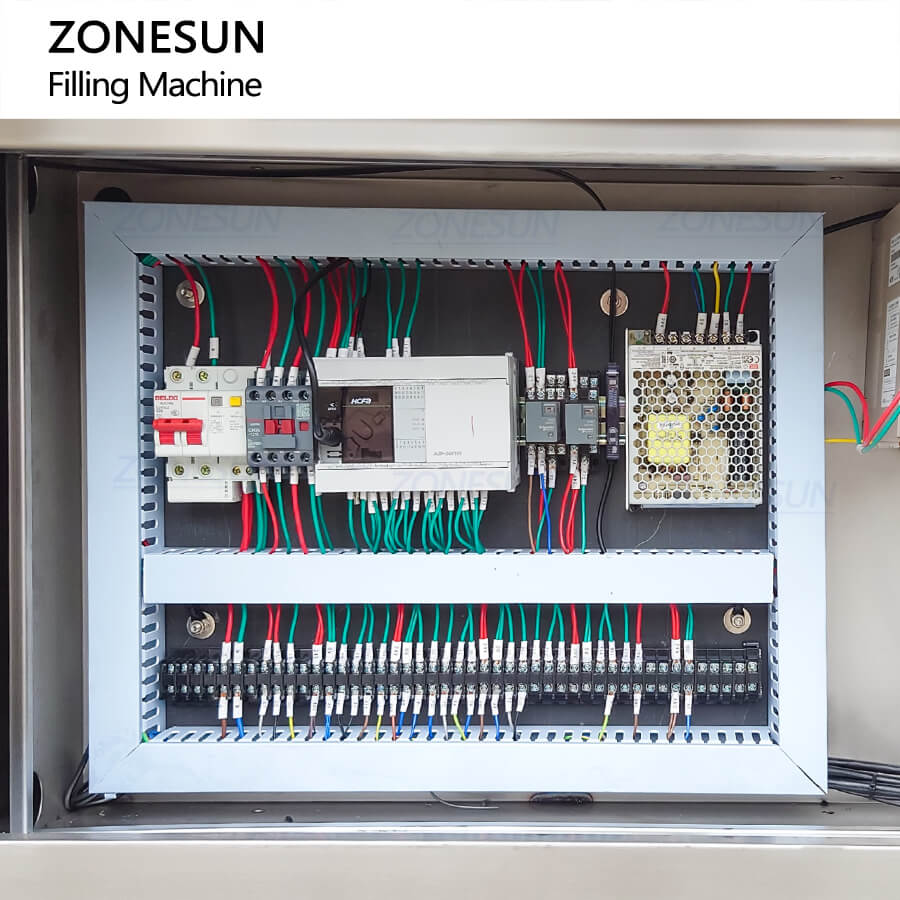

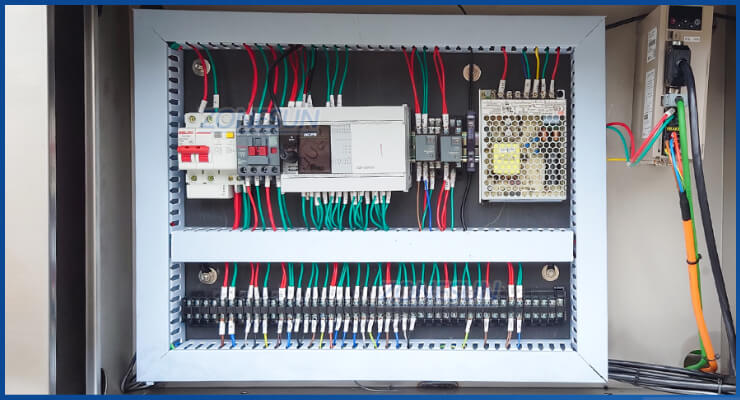

Electric Circuit
Electric circuit are arranged neatly, this ensures machine work stably and easier to maintain.

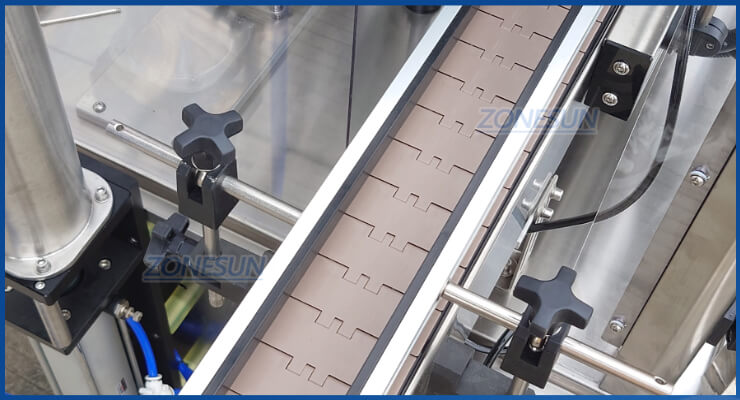

Chain Conveyor
Length and width are customizable as production need.Chain conveyor has larger weight capacity.
