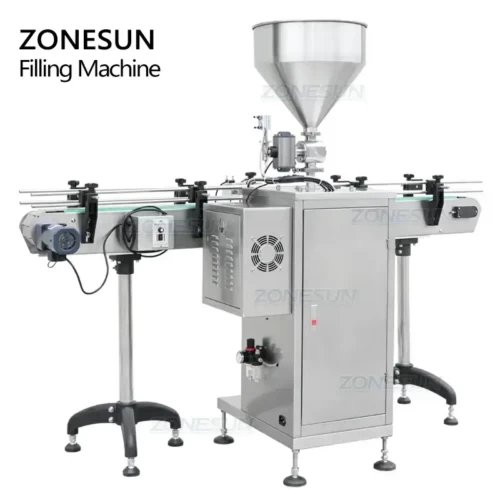

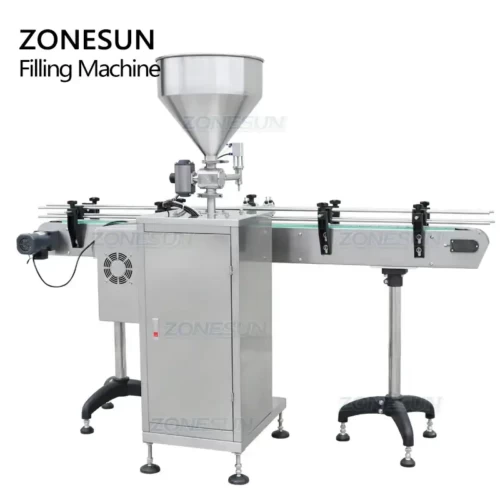

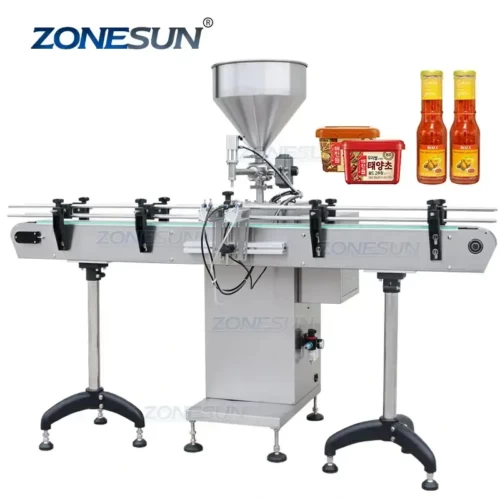

Servo Motor Automatic Filling Machine
Compared with other piston pump filling machine,this one is controlled by servo motor,and operator just need to enter certain number to control filling volume,this is more convenient and easier to operate.This machine is good for filling paste and liquid,it is widely used in food,daily chemical,and cosmetics industries.
Share to
Description:
Compared with other piston pump filling machine,this one is controlled by servo motor,and operator just need to enter certain number to control filling volume,this is more convenient and easier to operate.This machine is good for filling paste and liquid,it is widely used in food,daily chemical,and cosmetics industries.
Parameter:
| Model | ZS-GY1SM |
| Voltage supply | 220/110V 50/60Hz |
| Power | 900w |
| Filling accuracy | ≤±0.5% |
| Filling speed | 10-25 bottles/min |
| Filling volume |
5-100/10-300/50-500/100-1000ml
(choose based on your requirement)
|

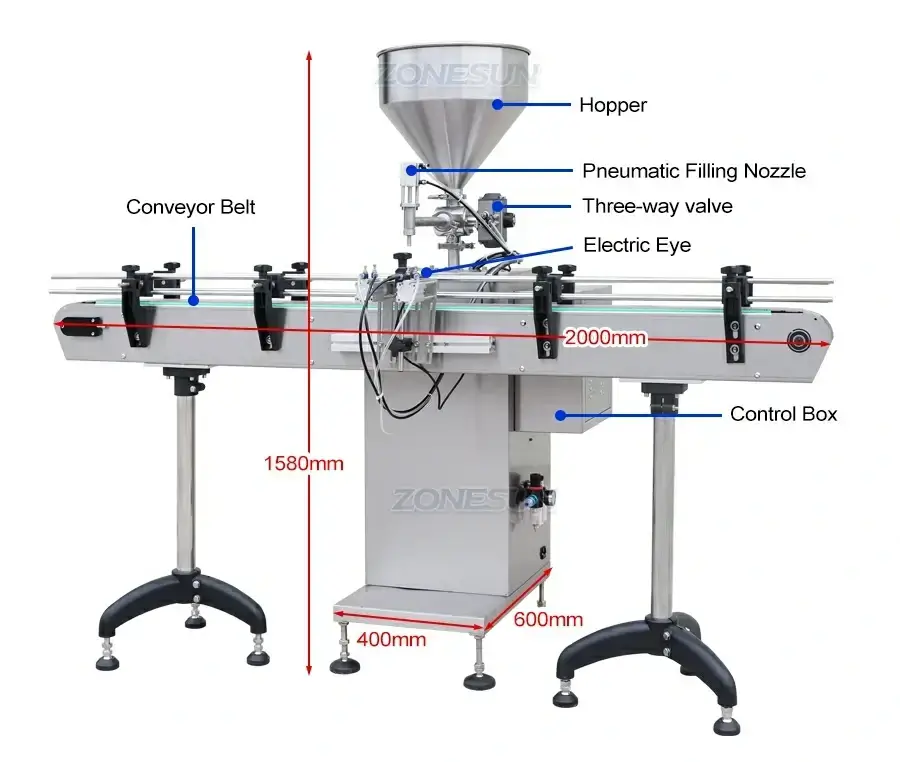

| Conveyor size | 2m*10cm(L*W) |
| Equipped with air pressure | 0.4-0.6 MPa |
| Air consumption | ≥0.1m³/min |
| Machine weight | 82kg(Filling machine)+36kg(Conveyor belt) |
| Package weight | 108kg(Filling machine)+59kg(Conveyor belt) |
| Package size |
65*70*132cm(Filling machine)
45*45*48cm(Hopper)
209*45*50cm(Conveyor belt)
|
