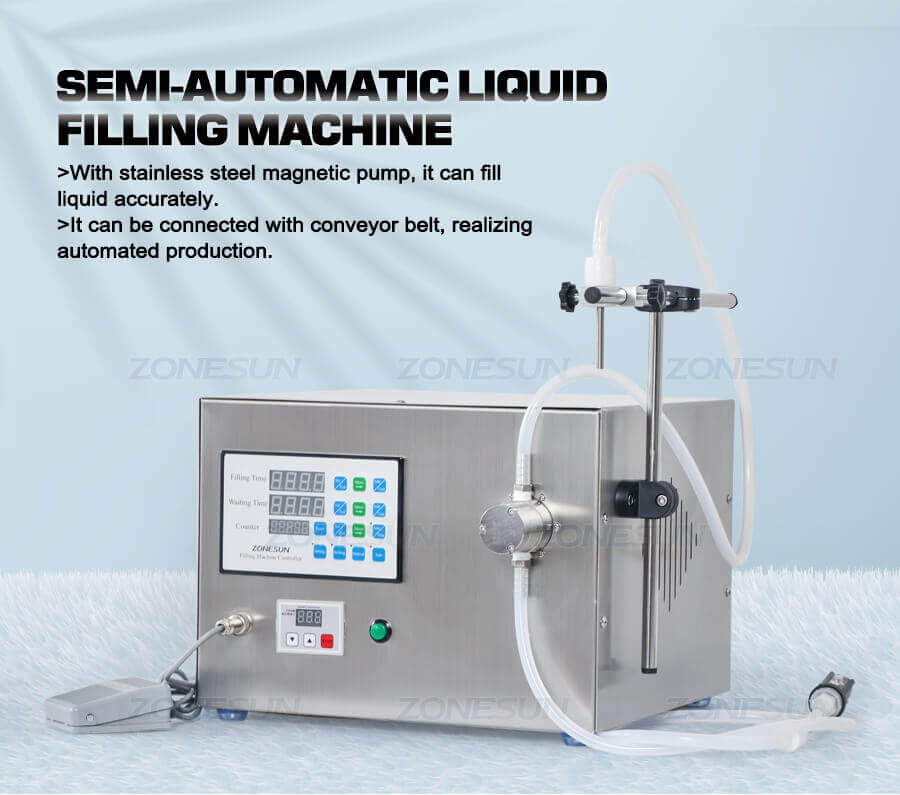

Single Head Filling Machine
This kind of semi automatic filling machine is equipped with 316 magnetic pump is suitable for filling corrosive liquid like insecticide,solution.The magnetic pump filling machine has the advantage that it can fill liquid more accurately,suitable for filling small volume products like perfume,essential oil.it is widely used in beverage,cosmetics,food,and daily chemical industries.
Share to
Description:
This kind of semi automatic filling machine is equipped with 316 magnetic pump is suitable for filling corrosive liquid like insecticide,solution.The magnetic pump filling machine has the advantage that it can fill liquid more accurately,suitable for filling small volume products like perfume,essential oil.it is widely used in beverage,cosmetics,food,and daily chemical industries.
Parameter:
| Machine Model | ZS-YTMP1S | |
| Voltage/Power | AC 220V/110V 50W | |
| Pump Material | 316 Stainless Steel | |
| Filling Range | 10-6000ML | |
| Max Flow Rate(based on water) | 6L/min | |
| Max Suck Distance | 2 meter | |
| Repetitive error smaller than | 0.5%(depending on product’s density) | |
| Anti-leaking Function | Available | |
| Memory Function | Available | |

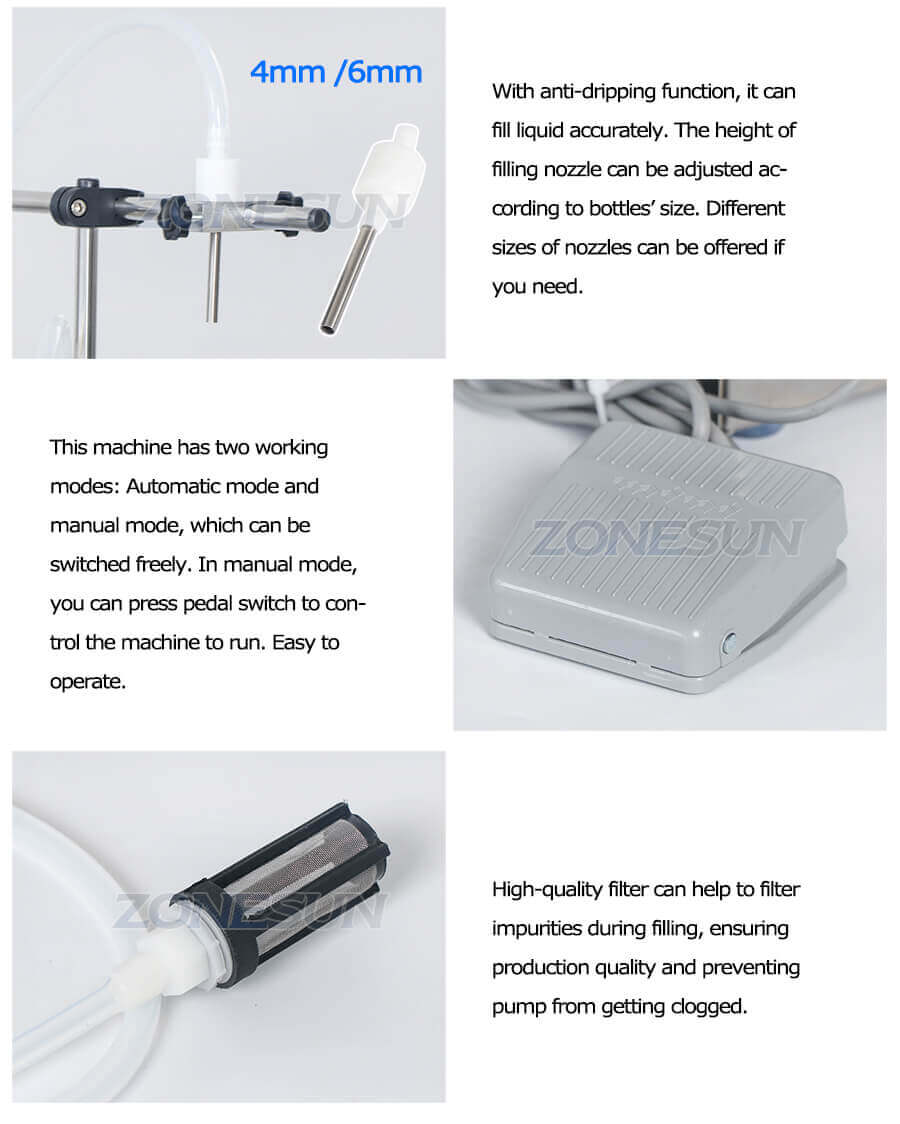

| Filling Nozzle(OD Size) | 4mm and 6mm | |
| Net Weight | About 6.8kg | |
| Machine Size | About 350mm*300mm*265mm | |
| Package Weight | About 8.2kg | |
| Package Size | About 470mm*415mm*310mm | |
