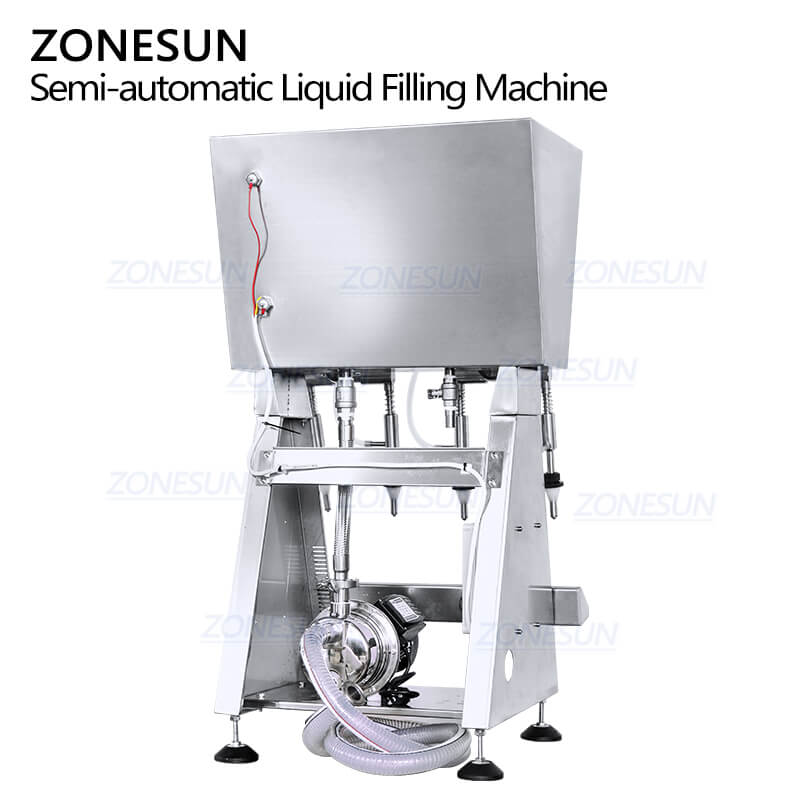

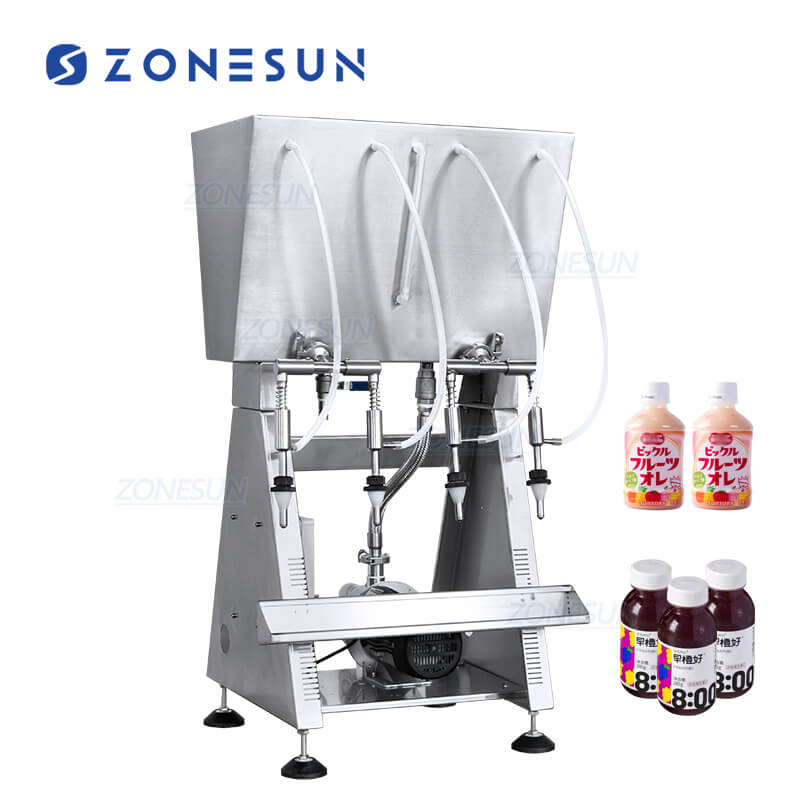

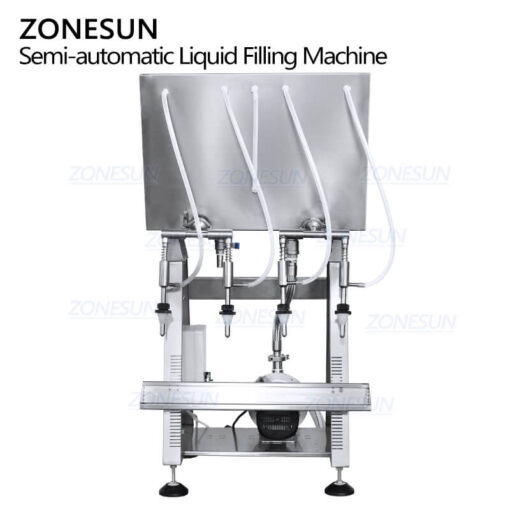

Siphon Liquid Filling Machine

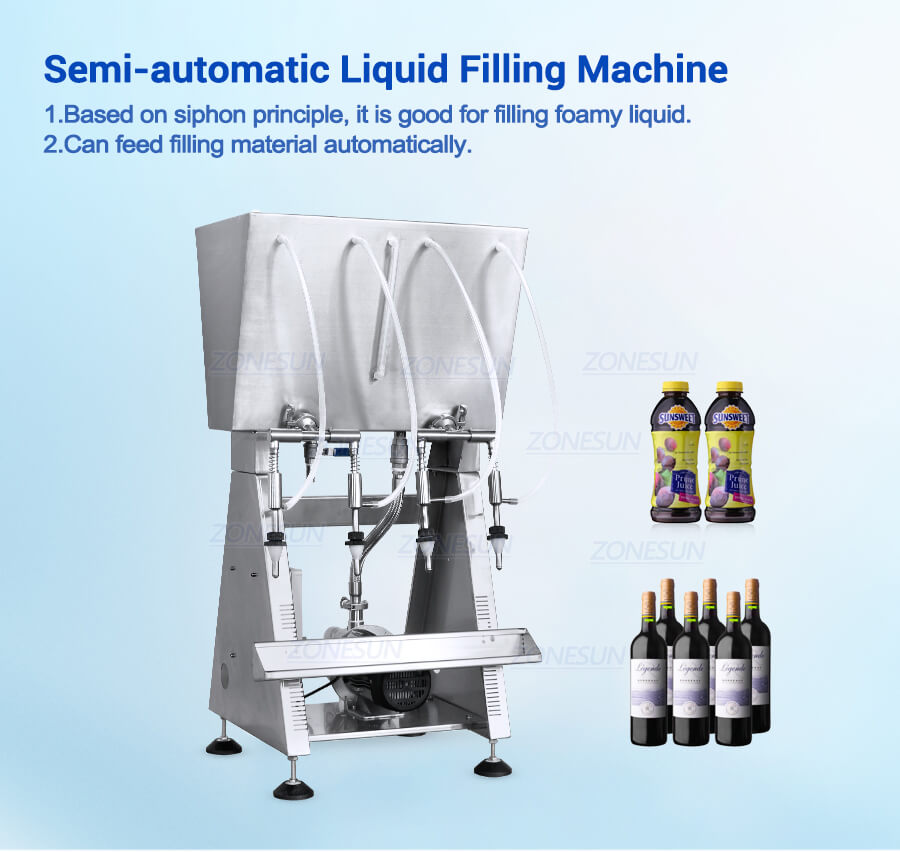

The liquid filling machine is mainly used for filling foamy liquids.It is suitable for filling liquids such as wine, soy sauce,vinegar,milk,etc.This machine adopts the principle of siphon principle,which has the characteristics of low power consumption,no noise,and equal liquid level filling.
Share to
Product Description:
The liquid filling machine is mainly used for filling foamy liquids.It is suitable for filling liquids such as wine, soy sauce,vinegar,milk,etc.This machine adopts the principle of siphon principle,which has the characteristics of low power consumption,no noise,and equal liquid level filling.
Product Parameters:
| Machine model | ZS-RWGFP4 |
| Power Power | 0.37KW |
| Working capacity | About 500-1000 bottles/hour |
| Bottle height | 160-350mm (can be customized) |
| Bottle diameter | OD 60-100mm(can be customized) |
| Hopper Capacity | About 35L |
| Bottle mouth | ID≥16mm |
| Filling accuracy | About 99.7% |
| Machine size (L×W×H) | About 610*550*1050mm |
| Machine weight | About 45kg |
| Package size | About 710*580*1160mm |
| Package weight | About 50kg |
Product Details:

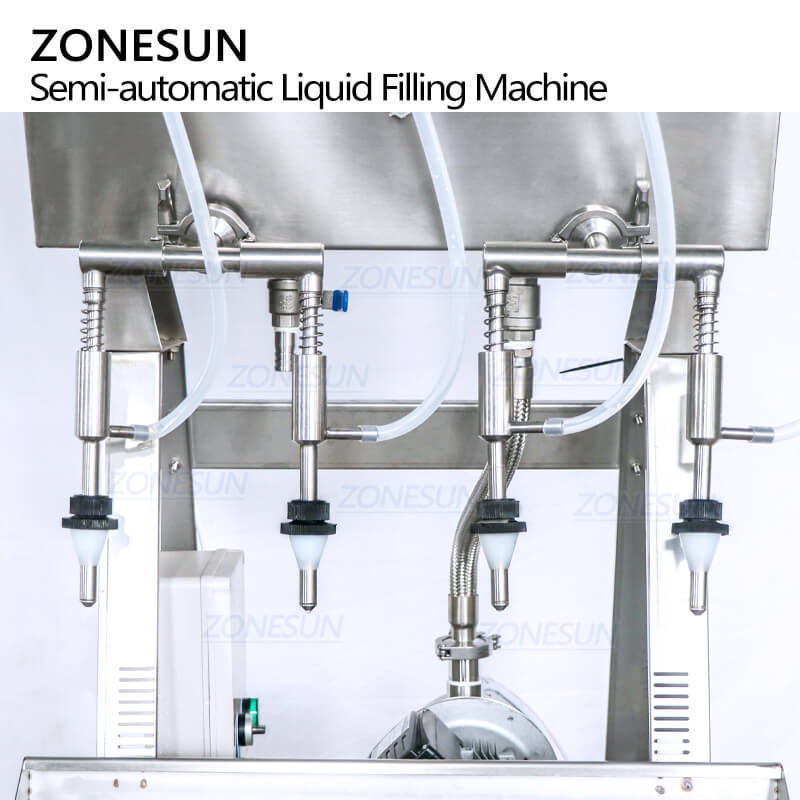

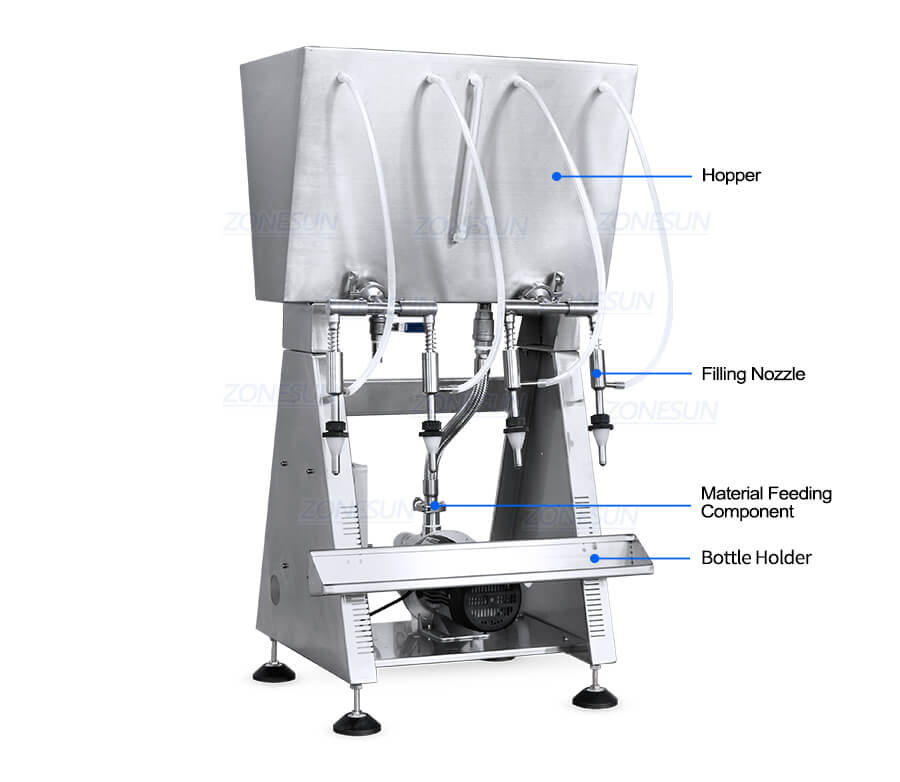

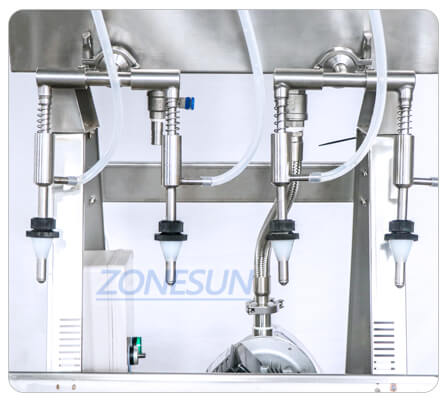

Fill liquid according to the siphon principle,it is more convenient to operate the machine,multiple filling nozzles can be customized as production need.

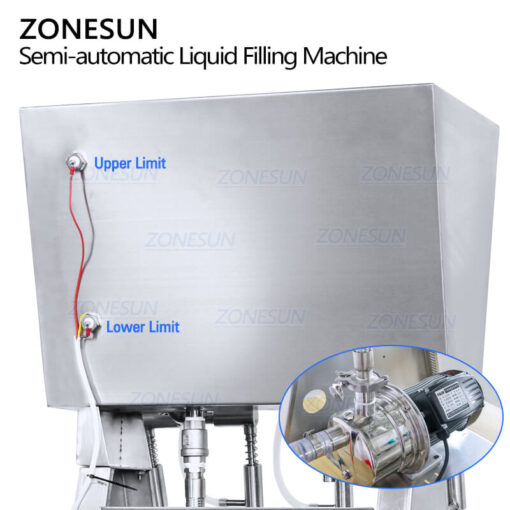

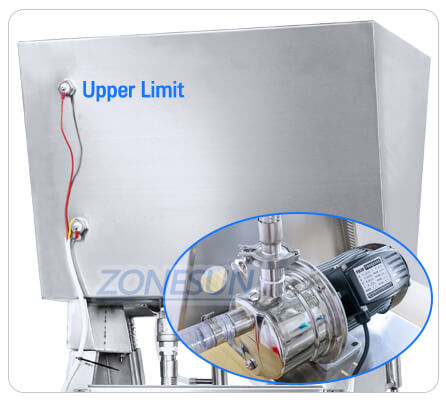

This machine can feed filling material automatically,when the filling material inside hopper reach lower limit,the feeding pump will start to feed material. When the filling material reach upper limit, the feeding pump will stop to work.

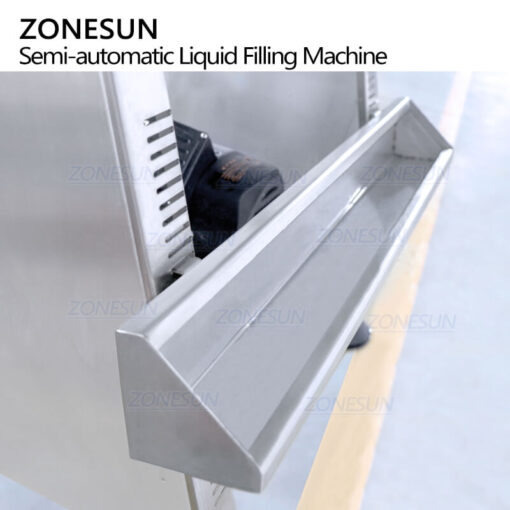

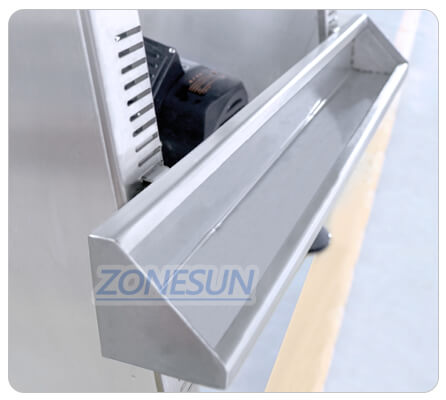

The position of bottle holder can be adjusted according to bottle height.This can be customized according to bottle height,improves filling accuracy.
