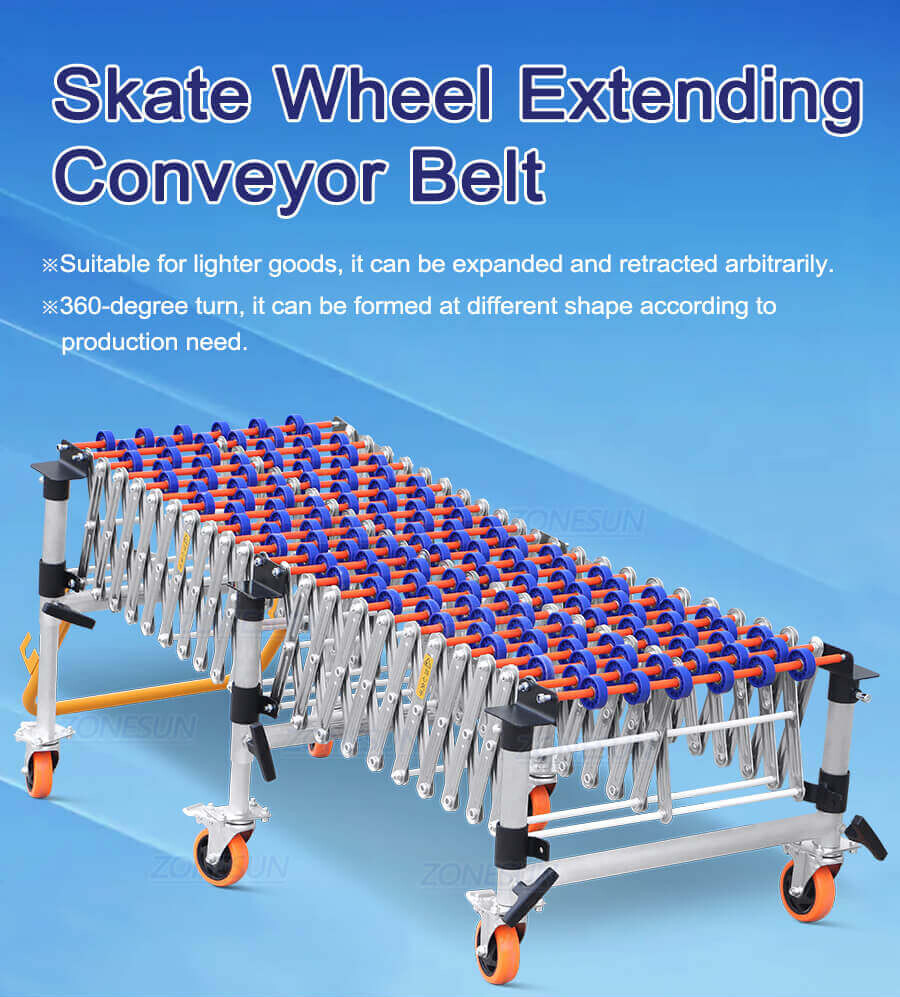

Skate Wheel V-Belt Flexible Conveyor Belt System

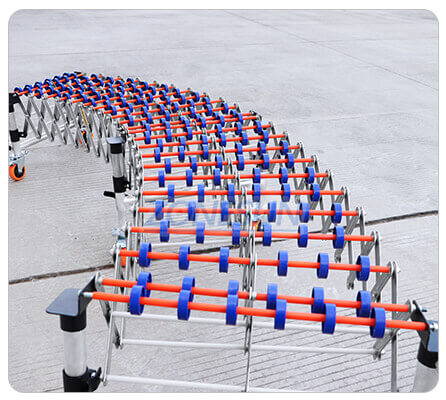

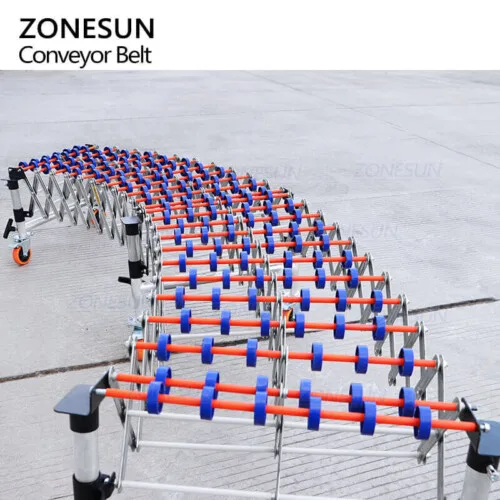

The skate wheel extending conveyor is a versatile material handling system that employs skate wheels mounted on axles to transport goods. It can be adjusted to accommodate different material lengths and is commonly used in warehouses, distribution centers, and manufacturing facilities for loading and unloading trucks, as well as for internal material movement. The smooth operation of the conveyor is facilitated by the use of skate wheels.
Share to
Product Description:
The skate wheel extending conveyor is a versatile material handling system that employs skate wheels mounted on axles to transport goods. It can be adjusted to accommodate different material lengths and is commonly used in warehouses, distribution centers, and manufacturing facilities for loading and unloading trucks, as well as for internal material movement. The smooth operation of the conveyor is facilitated by the use of skate wheels.
Product Parameters:
| Model | ZS-FCF500 | ZS-FCF600 | ZS-FCF800 |
| Roller Width | 500mm | 600mm | 800mm |
| Length/Unit | Compacted: 420mm, Extended: 2.1m | ||
| Roller/Unit | φ=48mm, ABS engineering plastics+608 bearing | ||
| Payload/Unit | 50kg | ||
| Conveying Speed | 40m/min | ||
| Height | 450mm-660mm
550mm-820mm 750mm-1200mm 900mm-1500mm (Other size can be customized as needed) |
||

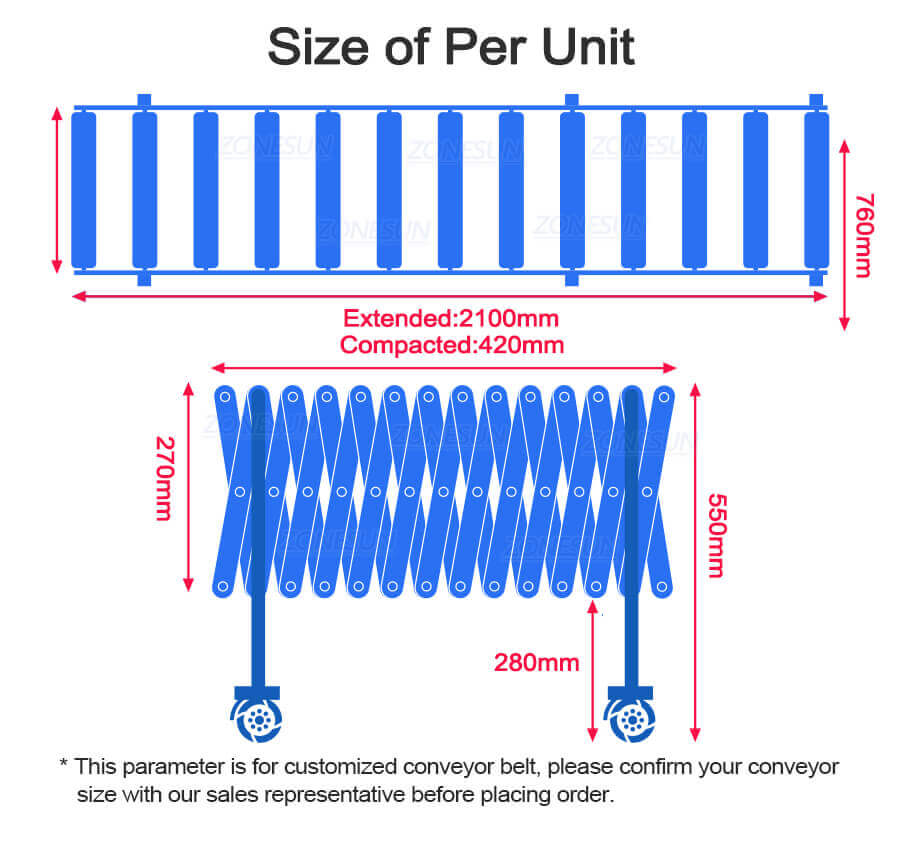

| Size/Unit | About 2100*760*550mm | ||
| Weight/Unit | About 36kg | ||
| Other Parameter | |||
| 1.There are 13rollers for per unit.

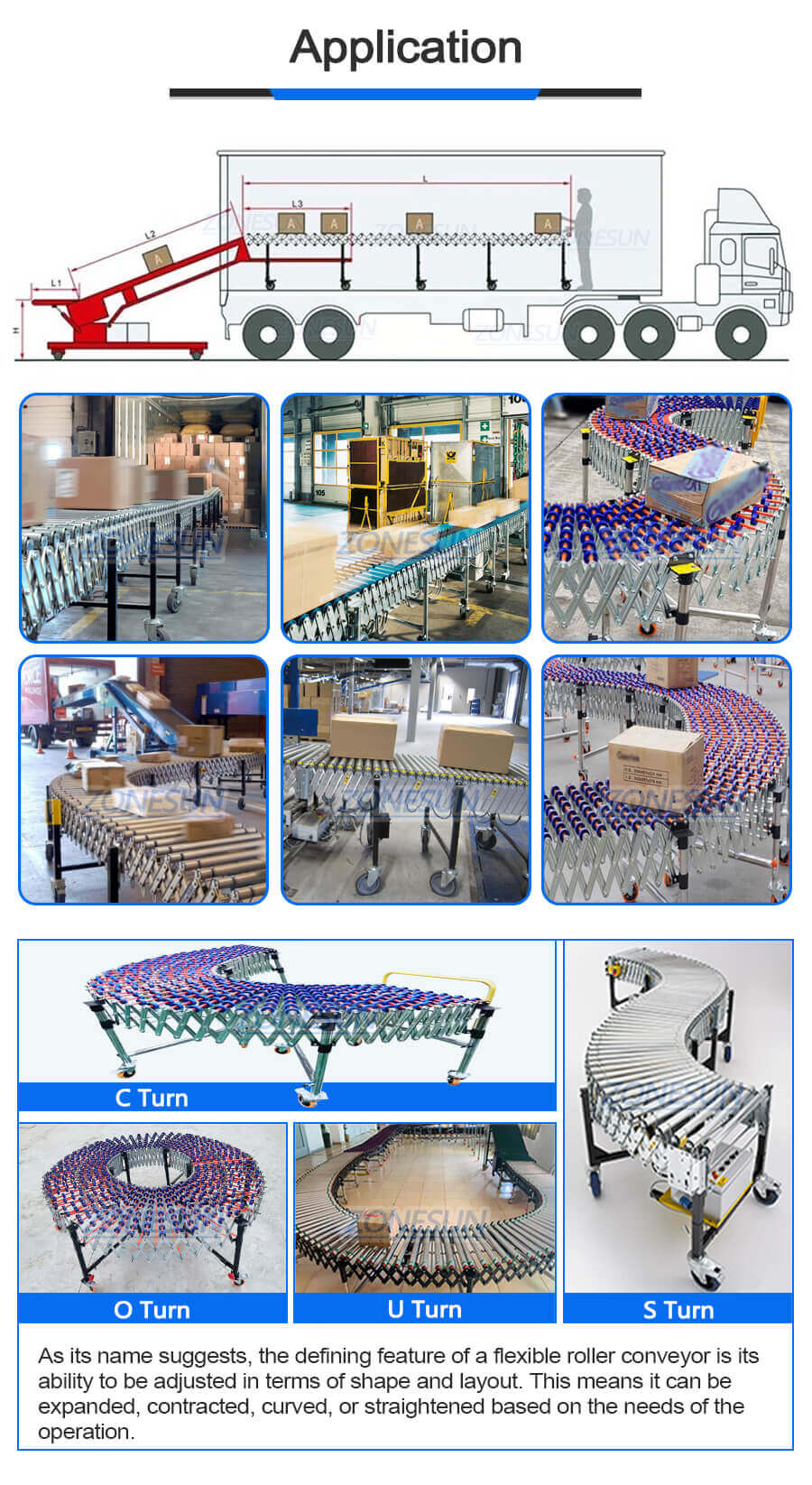

2.Distance between roller and roller is about 150mm. 3.If the conveyor belt needs to be formed at 90 degrees, we recommend purchasing 2unitsof conveyor belts. 4.If the conveyor belt needs to be formed at 180 degrees, we recommend purchasing 3unitsof conveyor belts, 4 unitsof conveyor belt will be better. |
|||
Product Details:

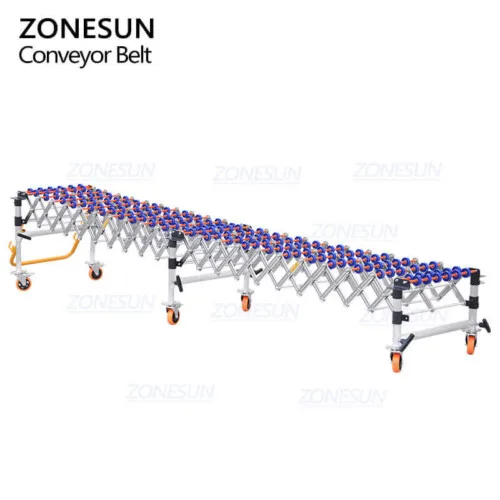

These conveyors are designed to extend and retract, providing flexibility in adapting to different material lengths and workspace requirements. This versatility makes them suitable for various applications and layouts within a facility.

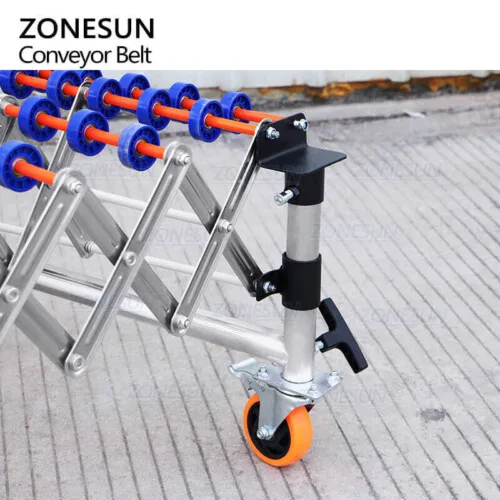

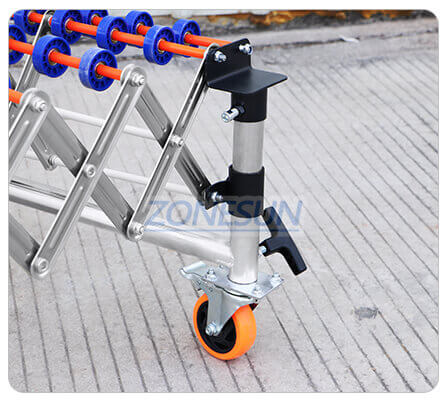

The working height of the conveyor belt can be adjusted as per production requirements, offering flexibility without the need for complex or expensive systems. It is often more affordable compared to other conveyor options.

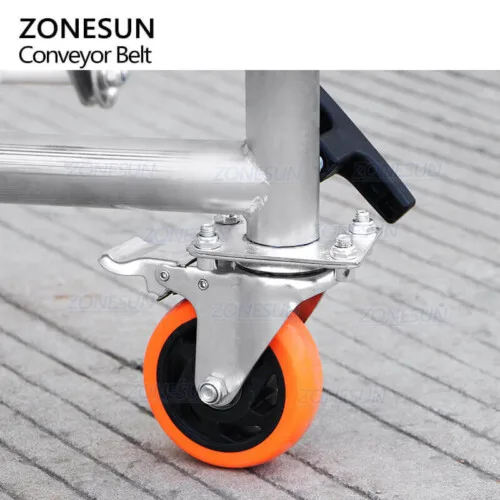

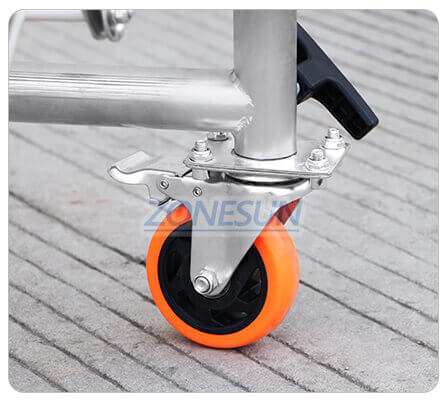

The conveyor is designed with moving wheels, allowing for easier relocation and enabling various shape configurations.

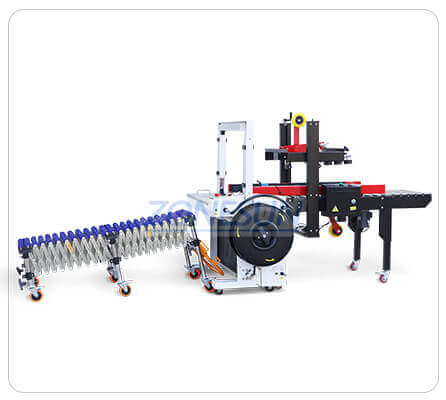

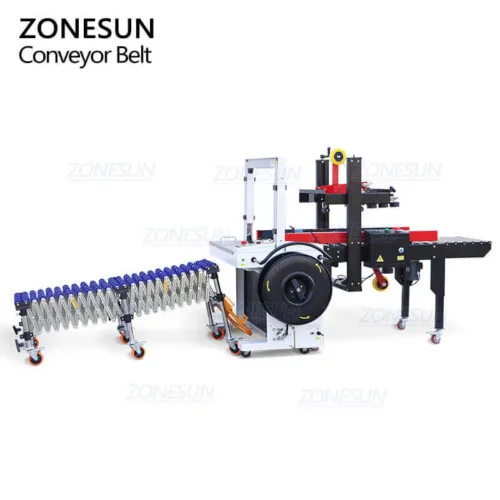

These conveyors can be seamlessly integrated into existing conveyor systems or function independently as standalone units, ensuring adaptability to various material handling setups and configurations.
