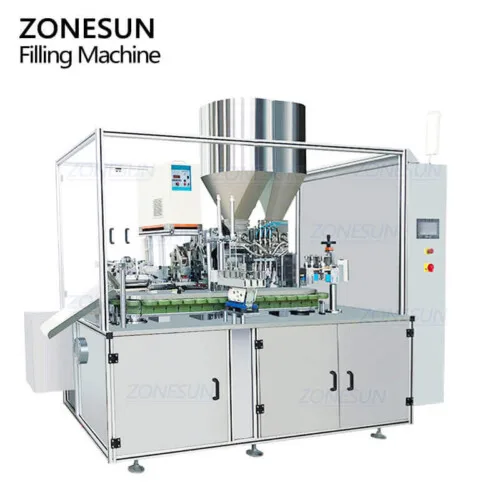

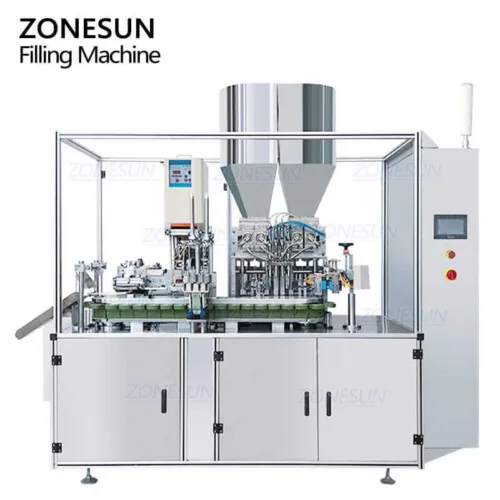

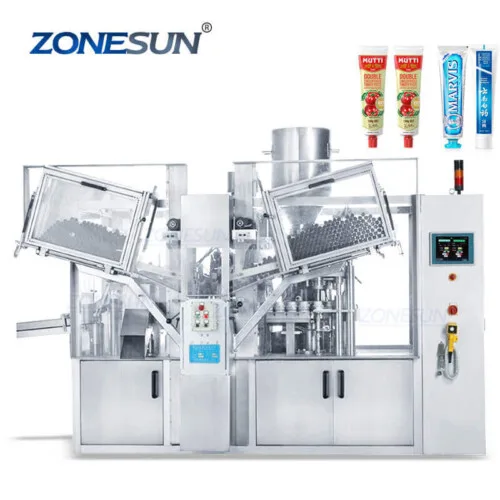

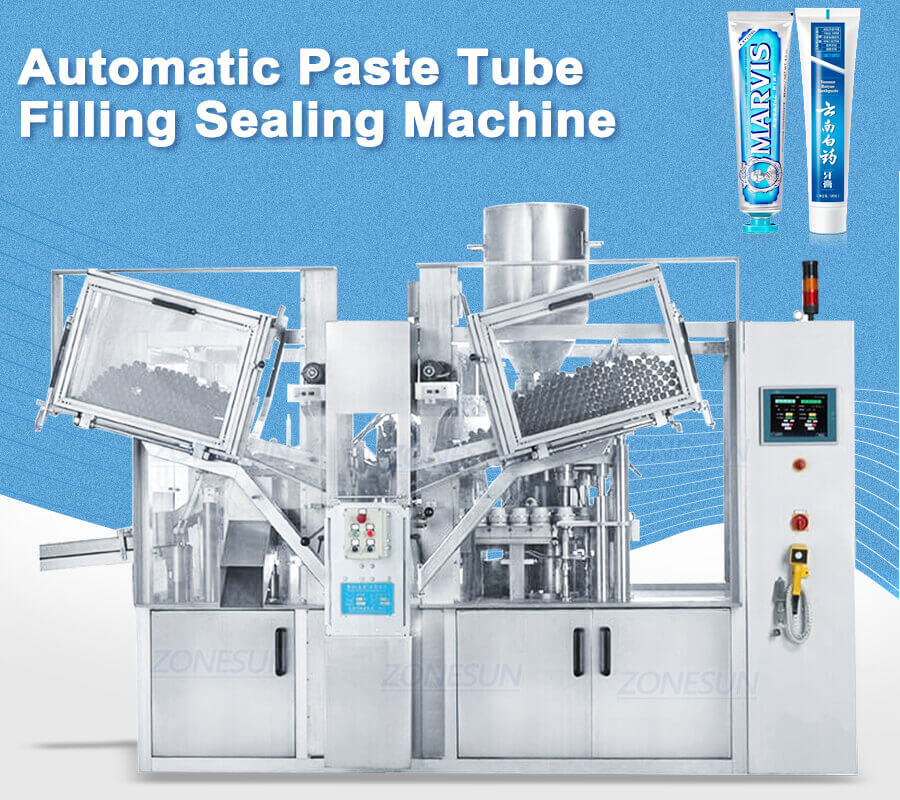

Soft Tube Filling And Sealing Machine
This is an automatic tube filling and sealing machine. It is suitable for filling, sealing, cutting, and date printing of many kinds of hoses and composite tubes. It can fill all kinds of paste, viscosity fluid, and other materials into the tube, and automatically complete the work of sealing the end, pressing the tooth pattern, and printing the date. It is widely used in daily chemical, food, chemical, and cosmetic industries.
Share to
Description:
This is an automatic tube filling and sealing machine. It is suitable for filling, sealing, cutting, and date printing of many kinds of hoses and composite tubes. It can fill all kinds of paste, viscosity fluid, and other materials into the tube, and automatically complete the work of sealing the end, pressing the tooth pattern, and printing the date. It is widely used in daily chemical, food, chemical, and cosmetic industries.
| Machine Model | ZS-FS160 | |
| Tube Material | Plastics | Aluminium |
| Seal Type | Heating | Folding |
| Maximum Power | 9.5KW | 2.3KW |
| Average Power | 6.5KW | 1.7KW |
| Air Consumption | 40-60m³/h | 10-20m³/h |
| Voltage | AC380V/220V,50Hz/60Hz | |
| Production Capacity | 110-120pcs/min | |
| Filling Capacity | 5-200ml (Change pump) | |
| Tube Diameter | 11-50mm (Customized) | |
| Tube Length | 50-230mm (Customized) | |
| Hopper Volume | 50L | |
| Filling Accuracy | ±1% | |
| Machine Size | About 3147*1555*2267mm | |
| Machine Weight | About 3800kg | |
