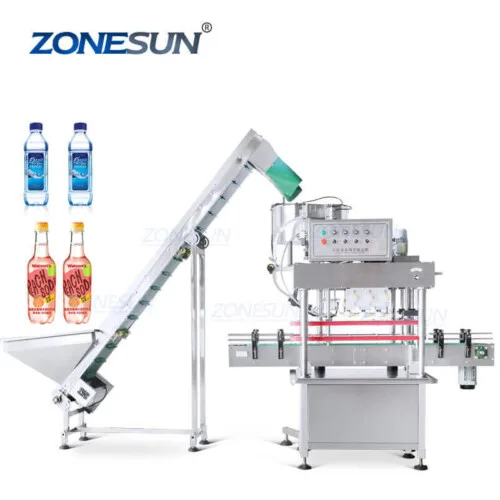

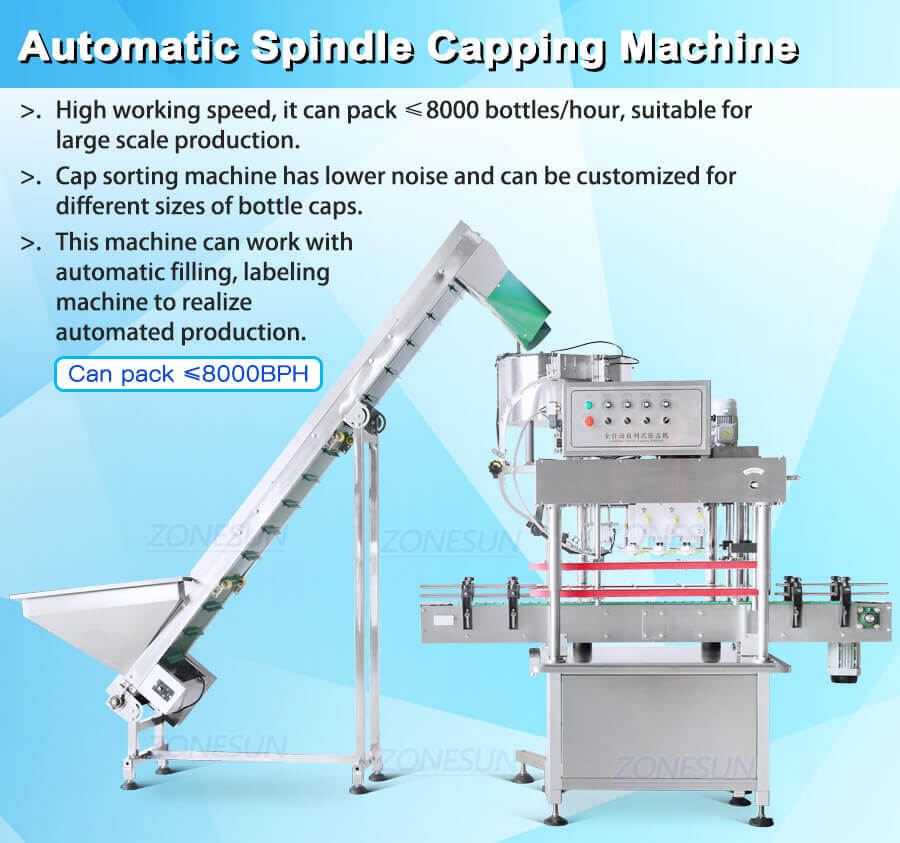

Spindle Capping Machine
This bottle capping machine is equipped with cap sorting machine,which has lower noise and faster working speed when compared with the vibrating bowl sorting machine.The capping structure is consist of multiple sets of rubber capping wheels,this makes several bottles can be tightened at the same time.It is suitable for packaging screw-on caps in food,beverage, cosmetics and dailyt chemical industries.
Share to
Description:

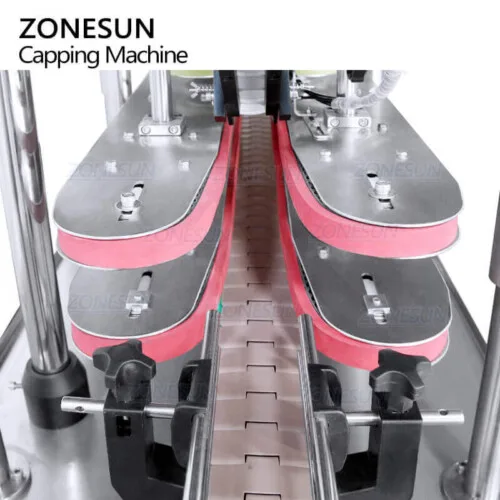

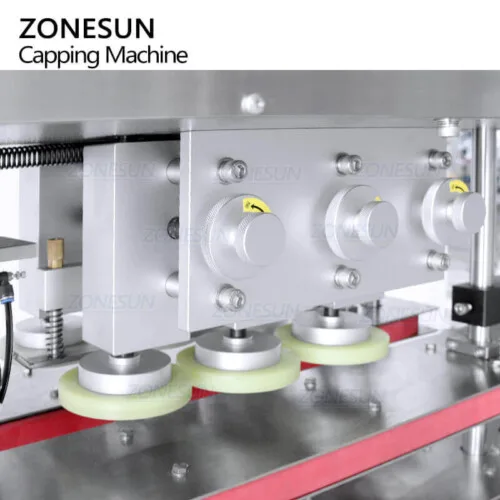

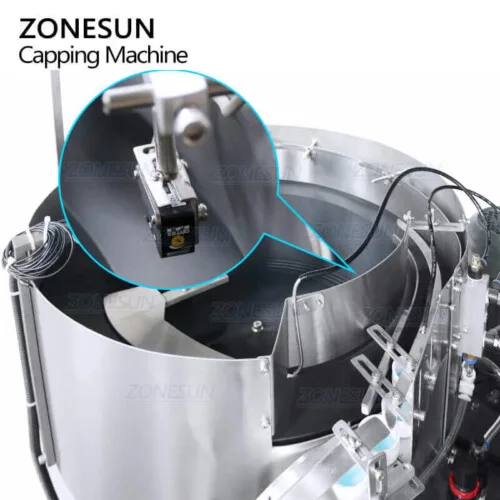

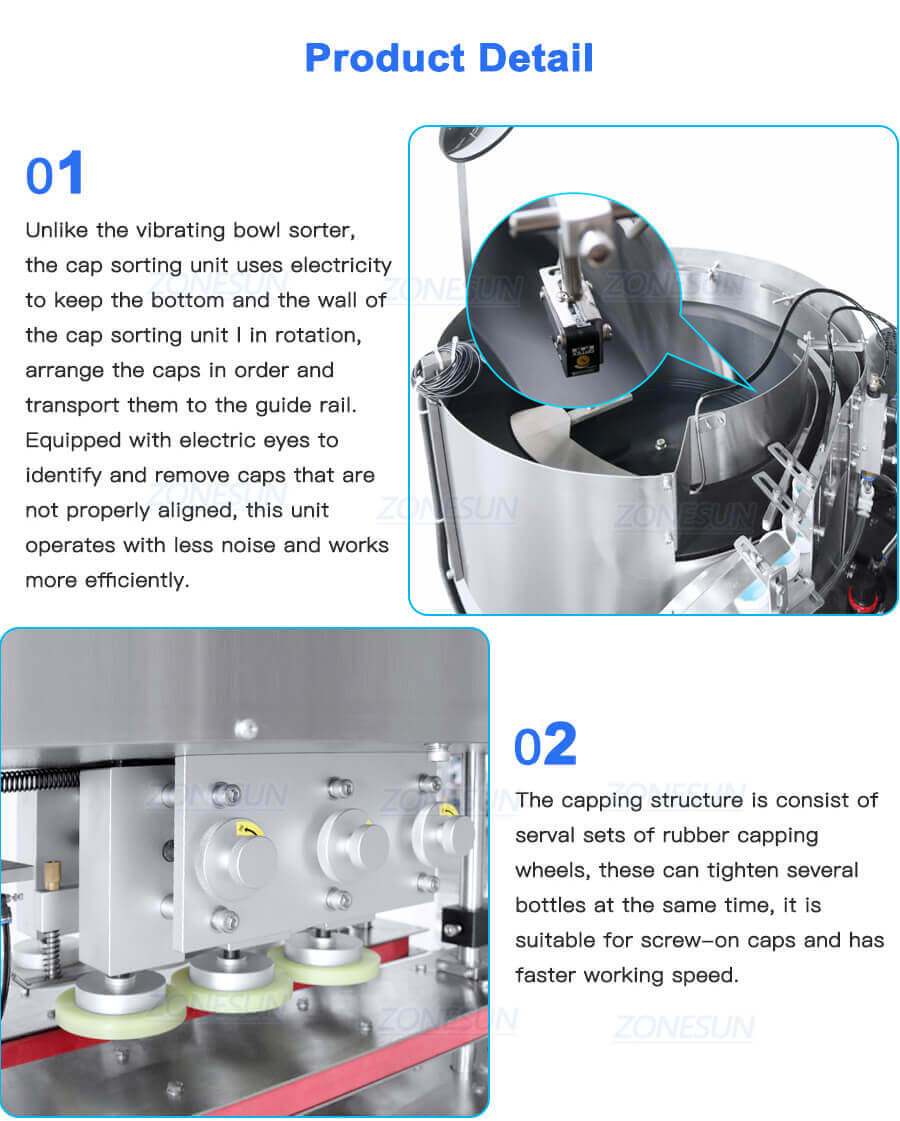

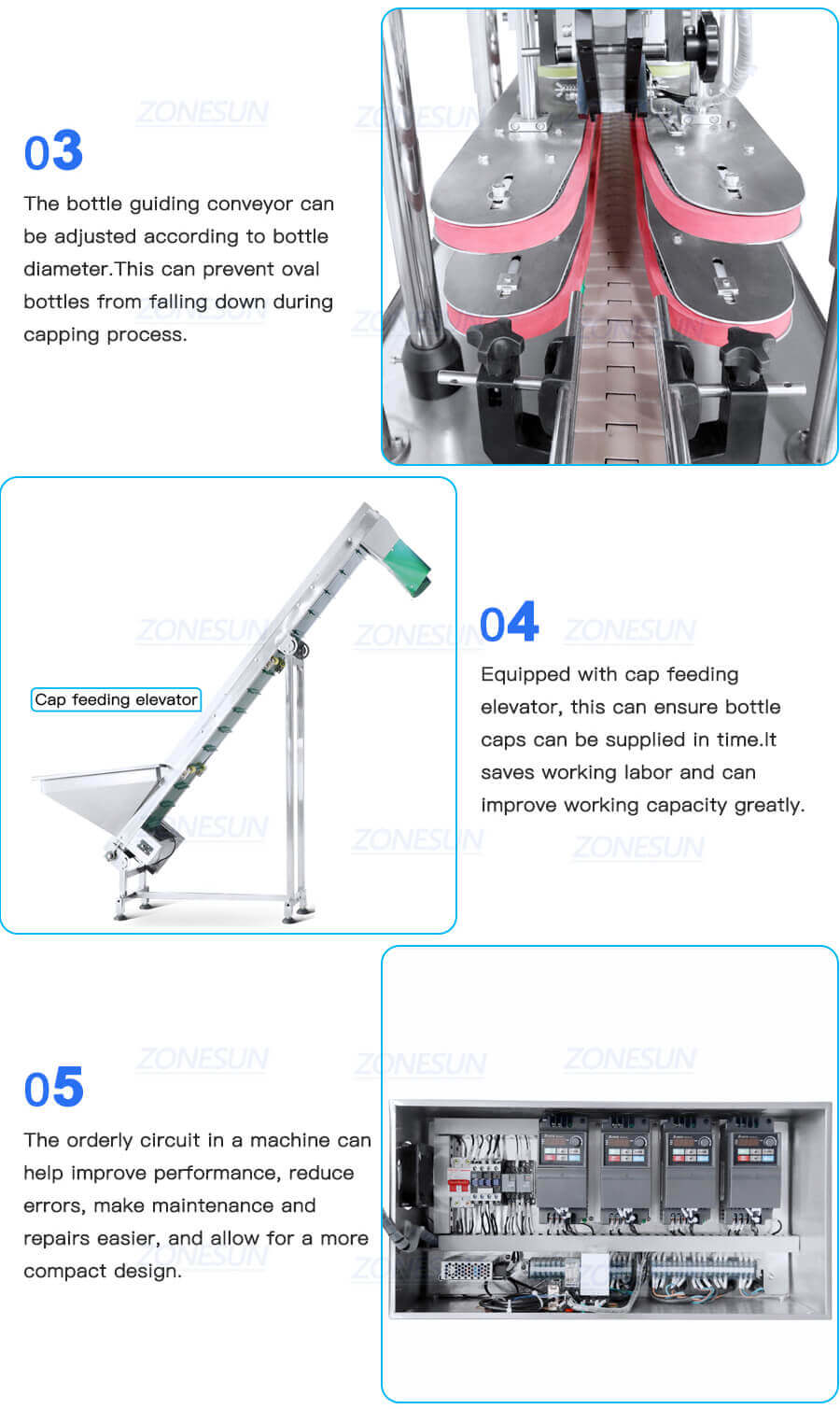

This bottle capping machine is equipped with cap sorting machine,which has lower noise and faster working speed when compared with the vibrating bowl sorting machine.The capping structure is consist of multiple sets of rubber capping wheels,this makes several bottles can be tightened at the same time.It is suitable for packaging screw-on caps in food,beverage,cosmetics and dailyt chemical industries.
Parameter:
| Machine model | ZS-FXZ101 |
| Voltage | 110/220V 50-60HZ 2KW |
| Working speed | ≤8000 bottles/hour(based on product size) |
| Bottle diameter | About φ35-96 mm |
| Bottle height | About 80-230mm |
| Bottle caps diameter | About φ12-50mm |
| Bottle caps height | About 15-40mm |
| Air pressure | 0.5-0.7MPa |

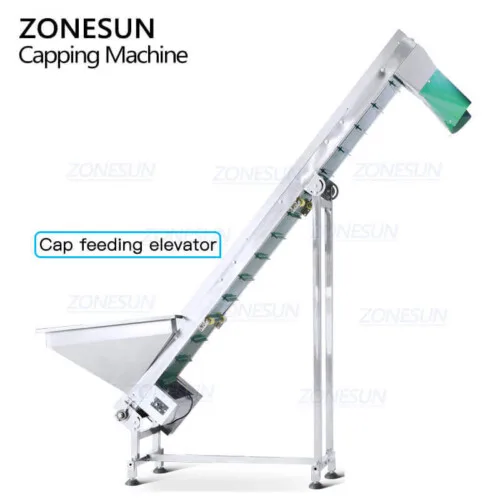

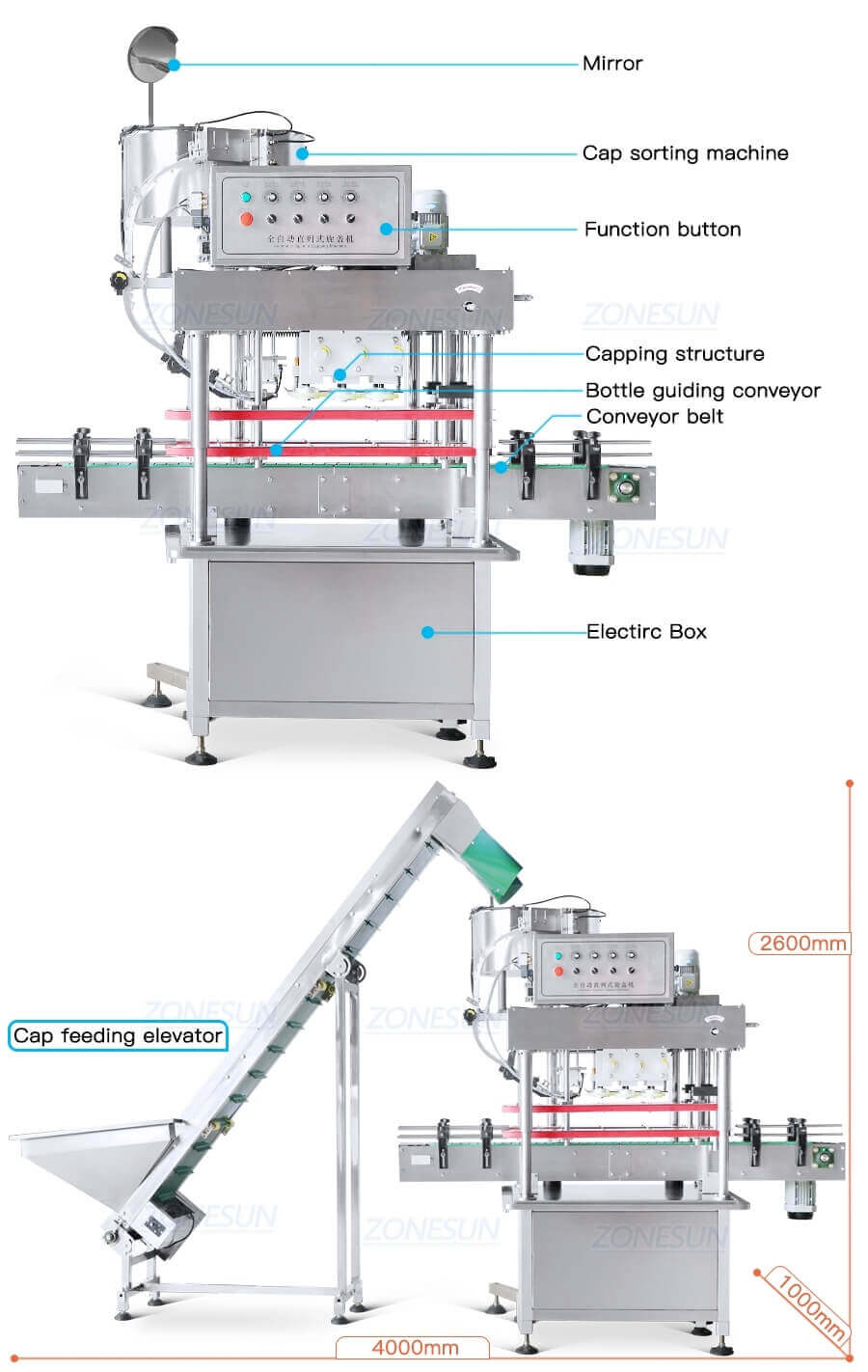

| Machine size(L*W*H) | 2000*1000*2400mm(Capper)+2420*500*2600mm(Cap feeding elevator) |
| Machine weight | About 650kg(Capper) |
