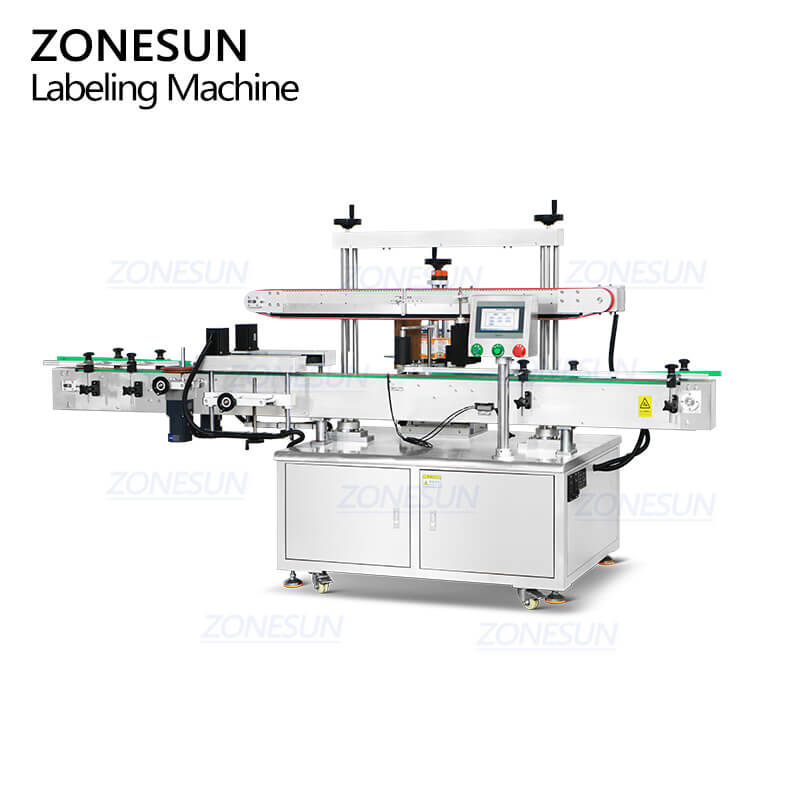

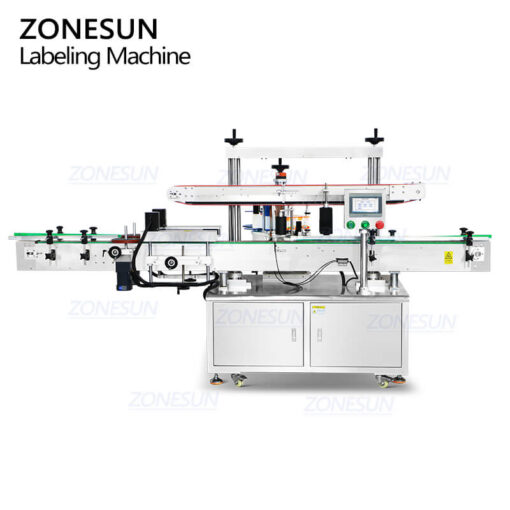

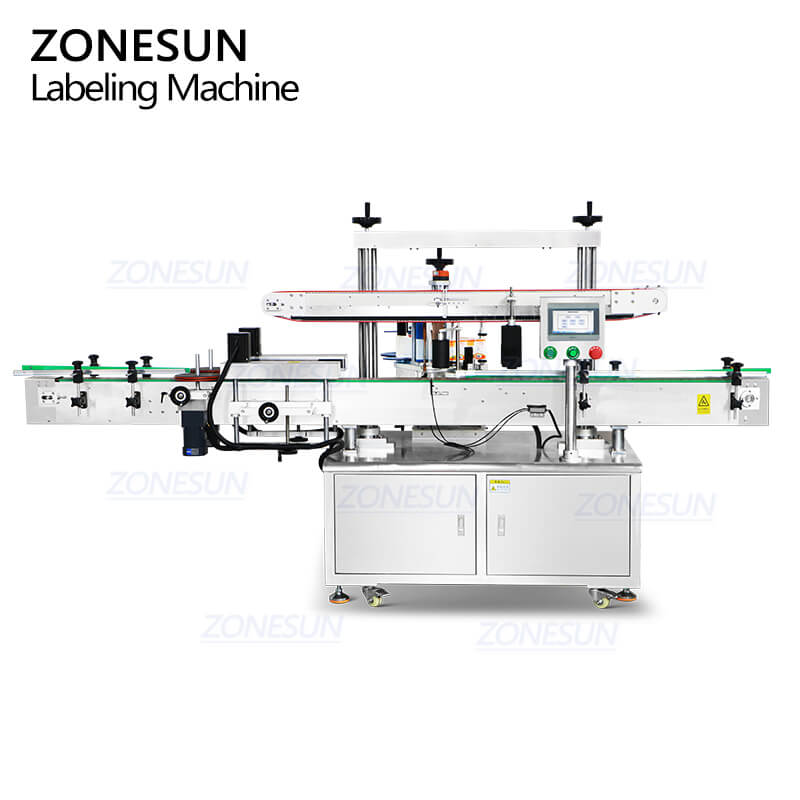

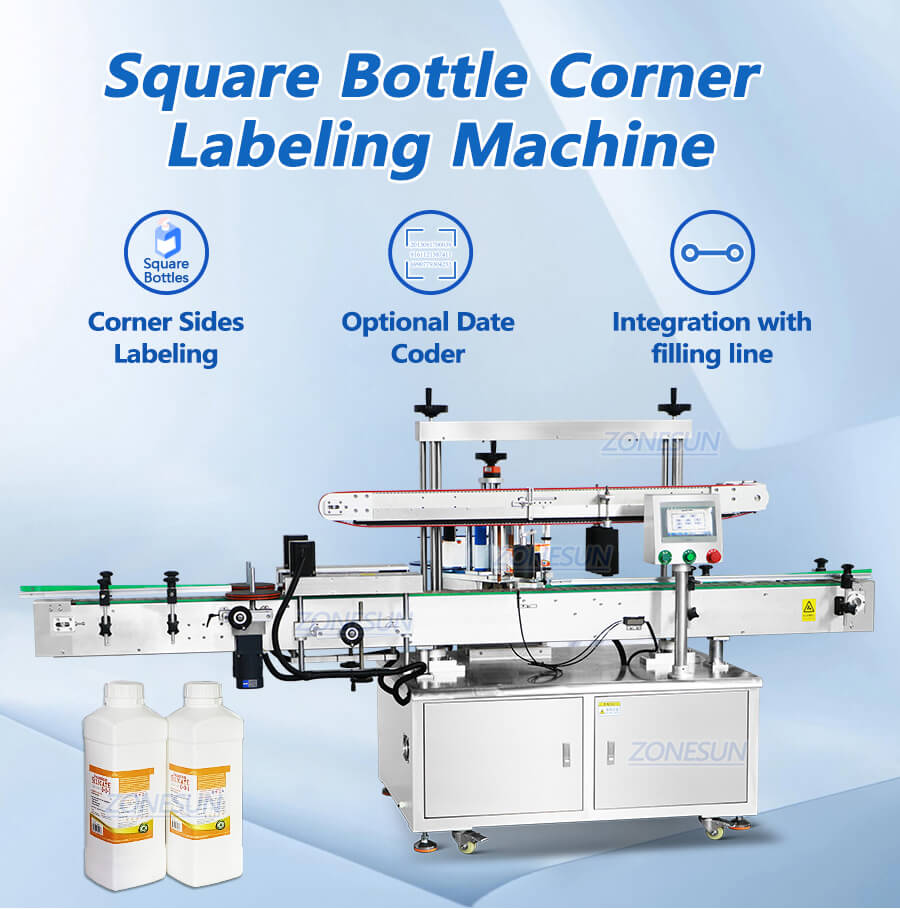

Square Bottle Corner Labeling Machine
This label applicator is used for sticking self-adhesive stickers on the corner of square bottles.It can integrate with filling and capping machine to realize automated production.It is suitable for packaging engine oil, nutritional supplements. olive oil, beverage, perfume etc.
Share to
Product Description:
This label applicator is used for sticking self-adhesive stickers on the corner of square bottles.It can integrate with filling and capping machine to realize automated production.It is suitable for packaging engine oil, nutritional supplements. olive oil, beverage, perfume etc.
Product Parameters:
| Machine Model | ZS-TB501 |
| Voltage | 110/220V 50-60HZ |
| Label Width | 20-120mm |
| Label Height | 15-160mm |
| Suitable Bottle Size | 20-100mm*30-100mm*60-280mm (L*W*H) Customizable |
| Outside Diameter Of Standard Roll | φ300mm |
| Inside Diameter Of Standard Roll | φ76mm |
| Labeling Accuracy | ±1.0mm |
| Labeling Speed | 20-60 bottles/min |

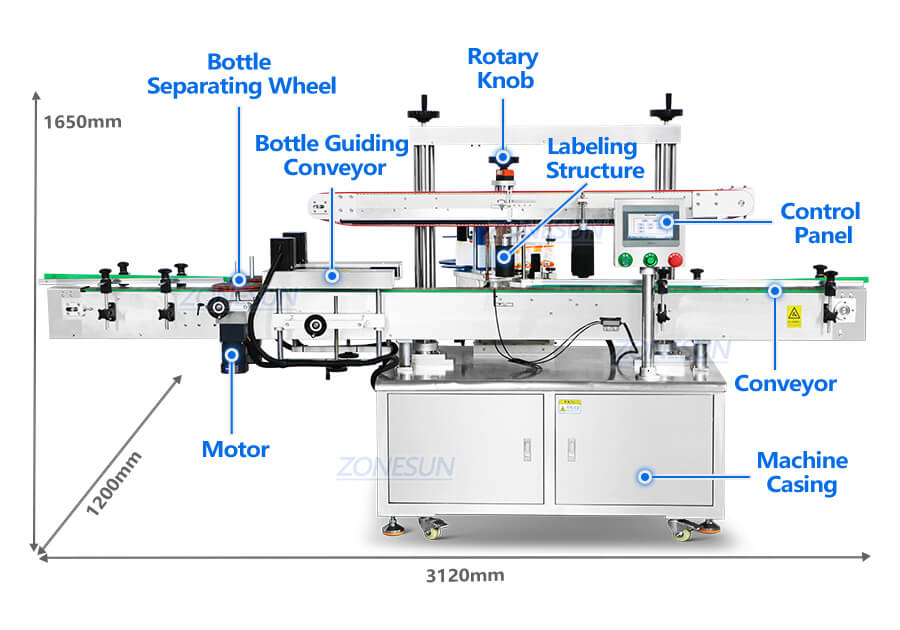

| Machine Size | About 3120*1200*1650mm(L*W*H) |
| Machine Weight | About 300kg |
| Packaging Size | About 3240*1350*1740mm(L*W*H) |
| Package Weight | About 601kg |
Product Details:

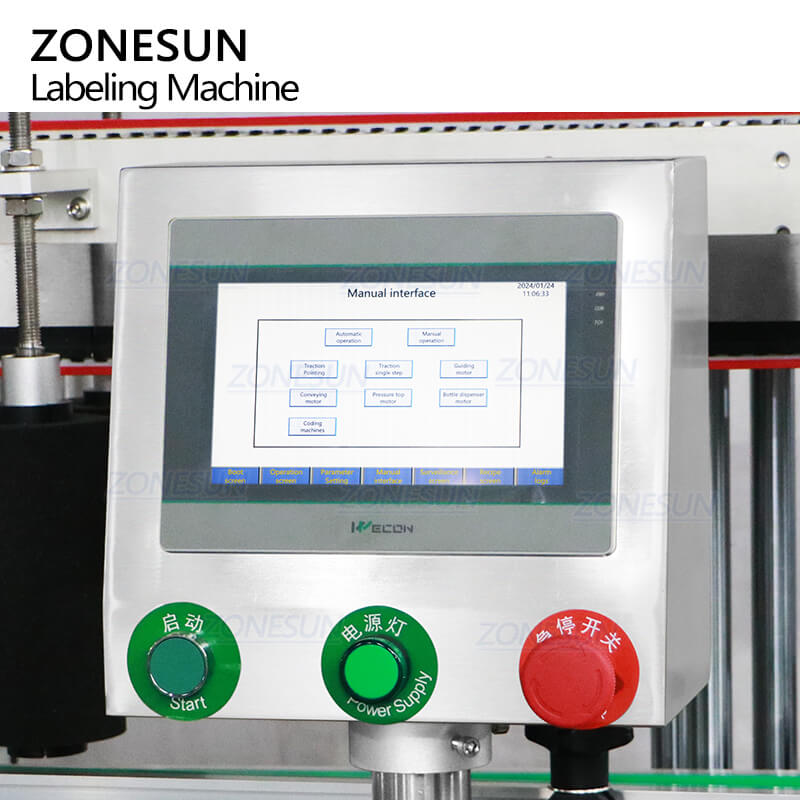

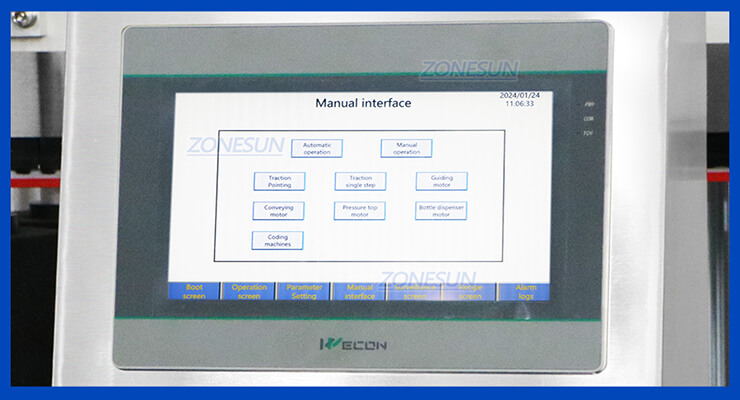

Control Panel
Customizable interface simplifies machine operation, multi operating languages are customizable.

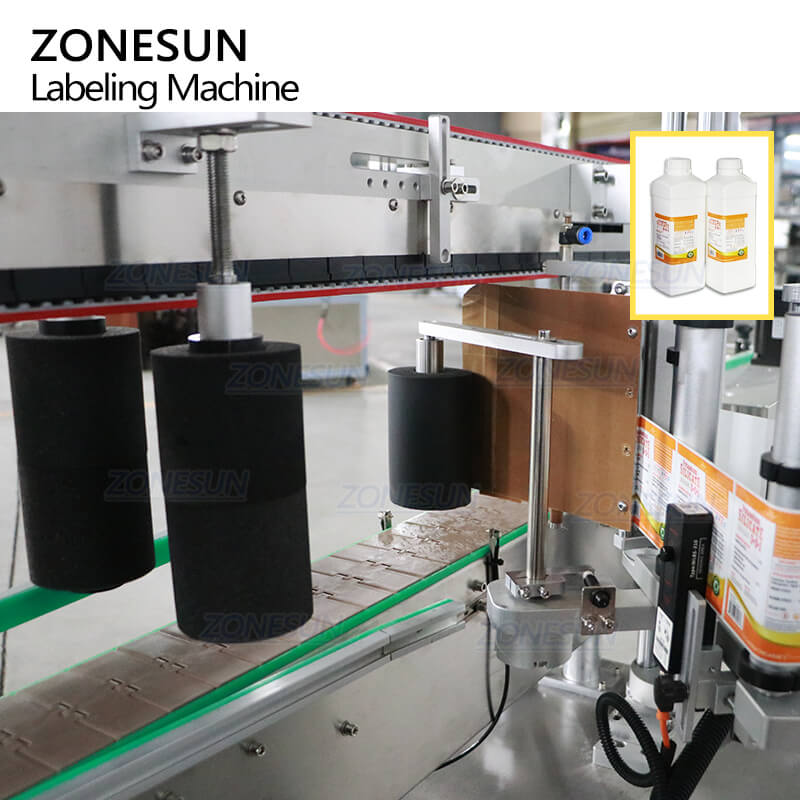

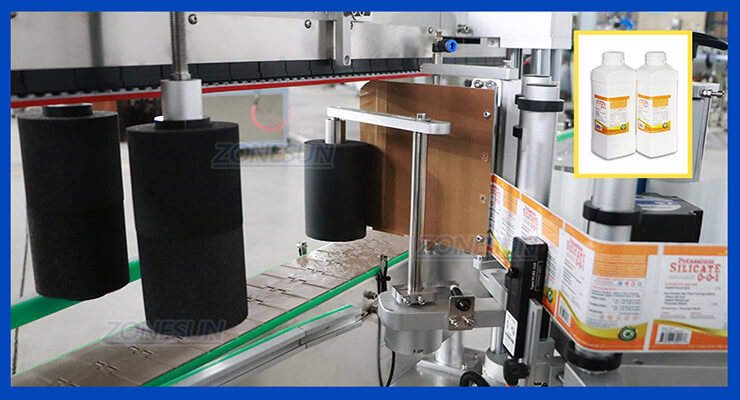

Labeling Structure
Designed for corner labeling of square bottles, top conveyor can ensures smooth labeling work.

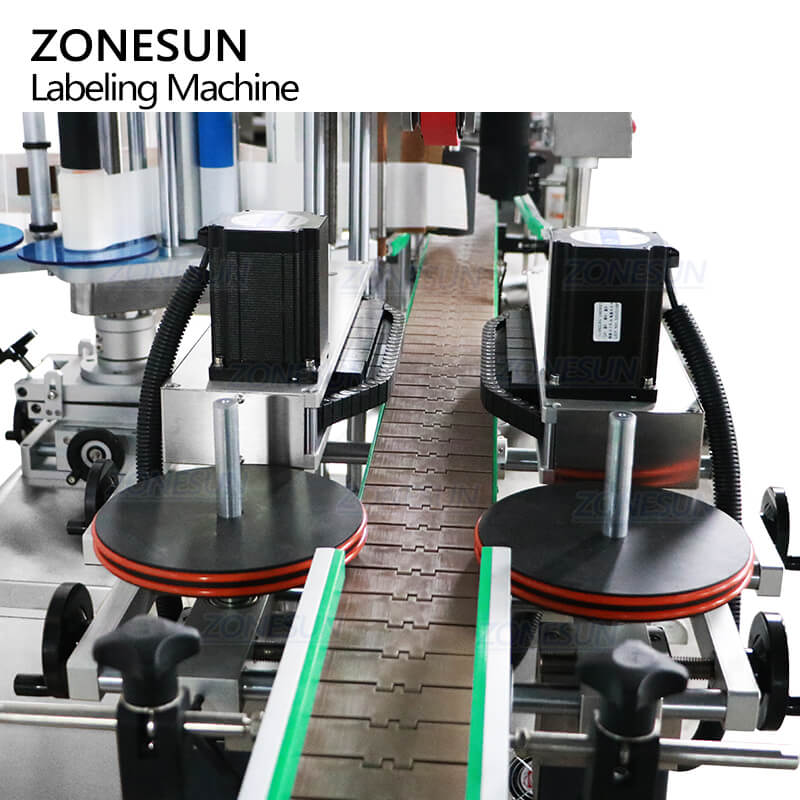

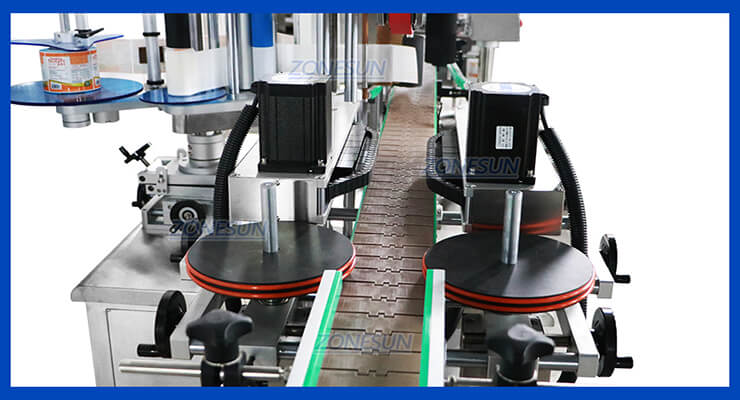

Bottle Separating Wheel
The wheel spaces out bottles evenly to ensure machine works stably.

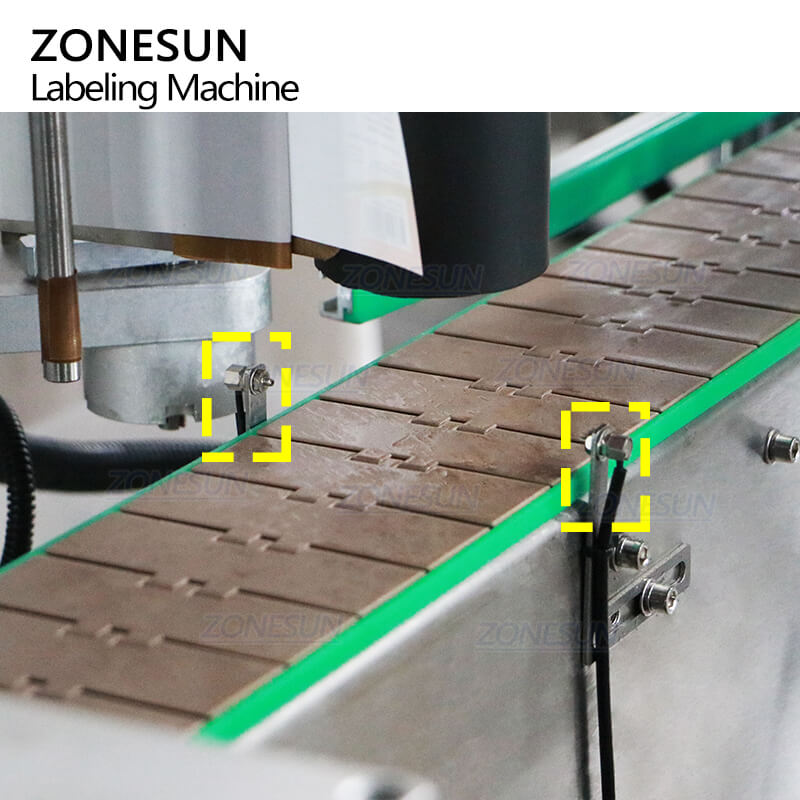

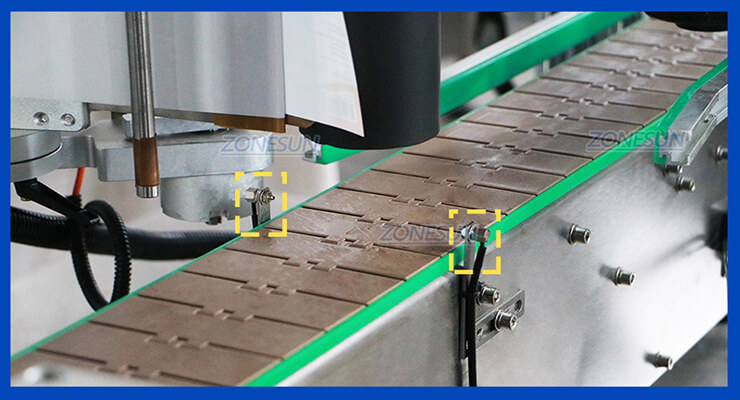

Electric Eye
Using for detecting passing by bottles to realize automated production and improves accuracy.

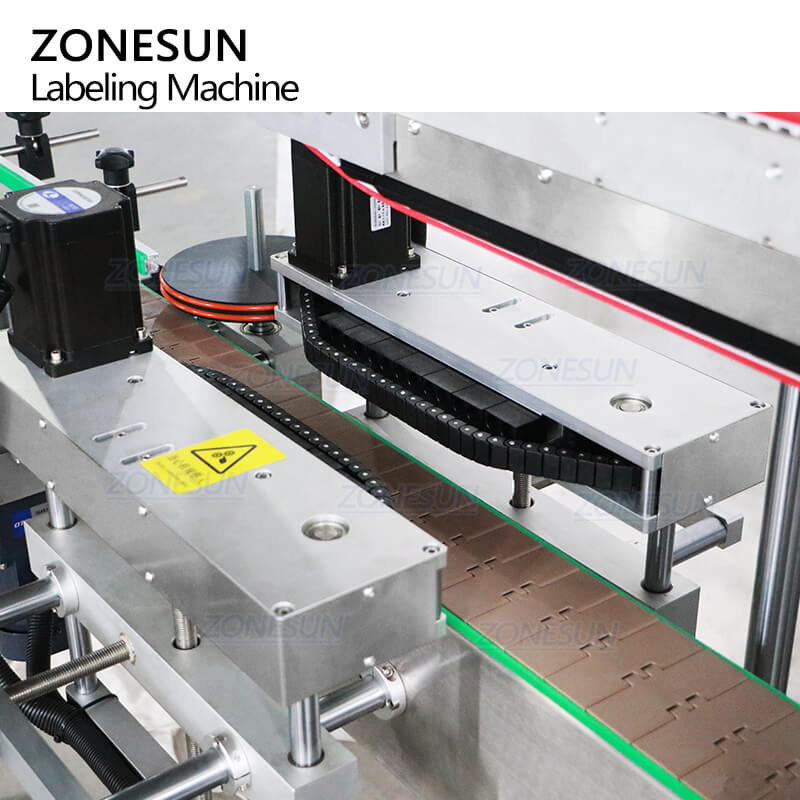

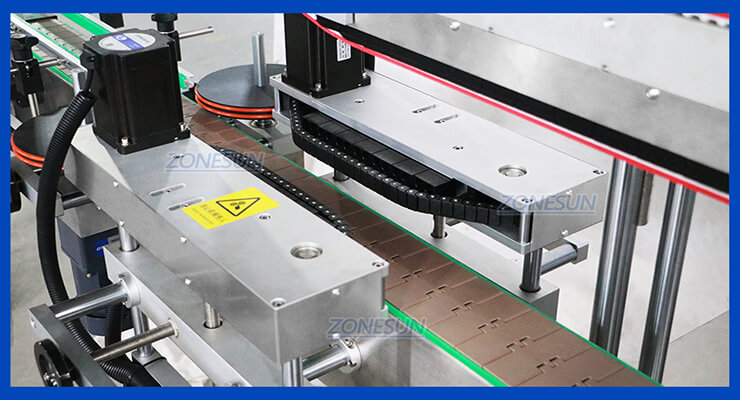

Bottle Guiding Conveyor
This can ensure bottles can be conveyed smoothly, prevent bottles from falling down.
