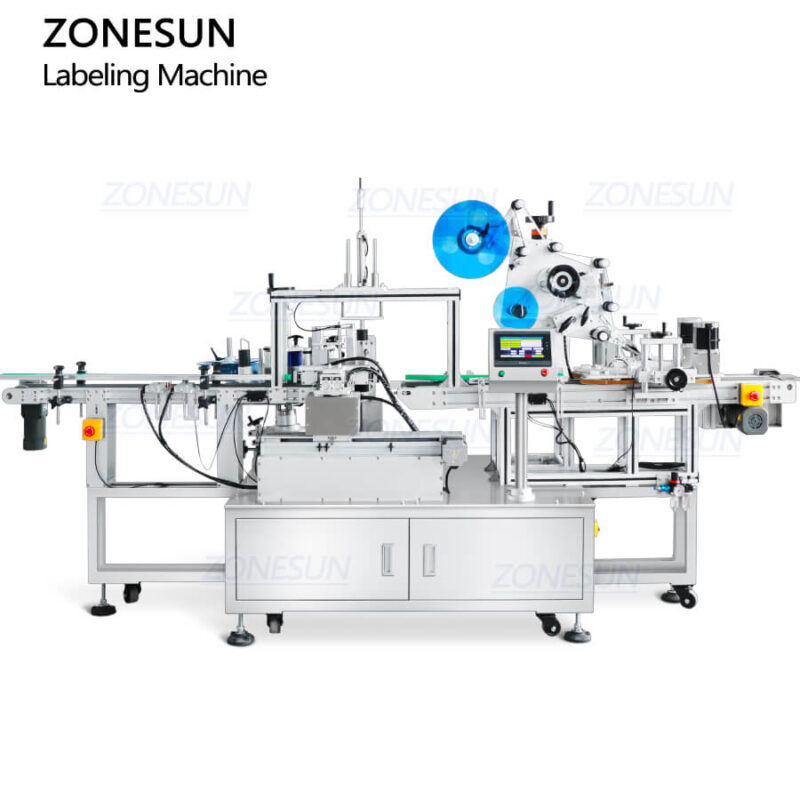

Square Bottle Top And Side Labeling Machine

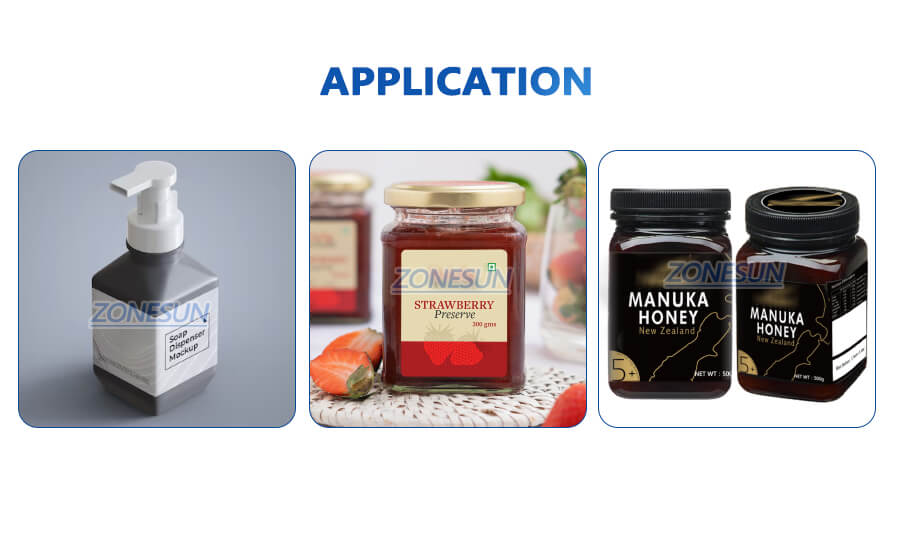

This versatile labeling system performs precision labeling on square containers, offering single-side, three-side, or full-wrap application across all four vertical surfaces and top panel. Equipped with optional thermal ribbon coding or inkjet printing modules, it enables simultaneous date/batch number imprinting during labeling operations. Ideal for cosmetics, FMCG, and beverage production lines requiring high-speed container marking.
Share to
Product Description:
This versatile labeling system performs precision labeling on square containers, offering single-side, three-side, or full-wrap application across all four vertical surfaces and top panel. Equipped with optional thermal ribbon coding or inkjet printing modules, it enables simultaneous date/batch number imprinting during labeling operations. Ideal for cosmetics, FMCG, and beverage production lines requiring high-speed container marking.
Product Parameters:
| Machine Model | ZS-TB822X |
| Voltage | 220V 50Hz 570W |
| Applicable Label Size | Customized according to product |
| Applicable Product Size | Customized according to product |
| Max. Label Roll Outer Diameter | φ280mm |
| Label Roll Inner Diameter | φ76mm |
| Labeling Accuracy | ±1mm |
| Labeling Speed | 25–45 pcs/min (stepper motor), 30–60 pcs/min (servo motor, customized) |
| Conveyor Speed (m/min) | 5–18 m/min |
| Air Pressure (Mpa) | 0.4–0.6 Mpa |

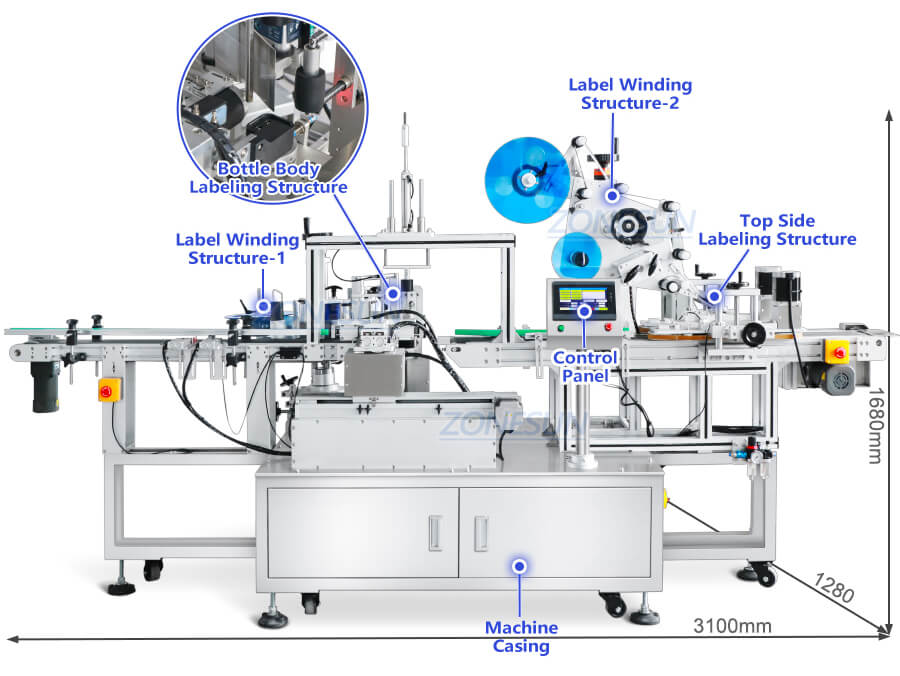

| Machine Dimensions | About 3100*1280*1680mm |
| Machine Weight | About 200kg |
Product Details:

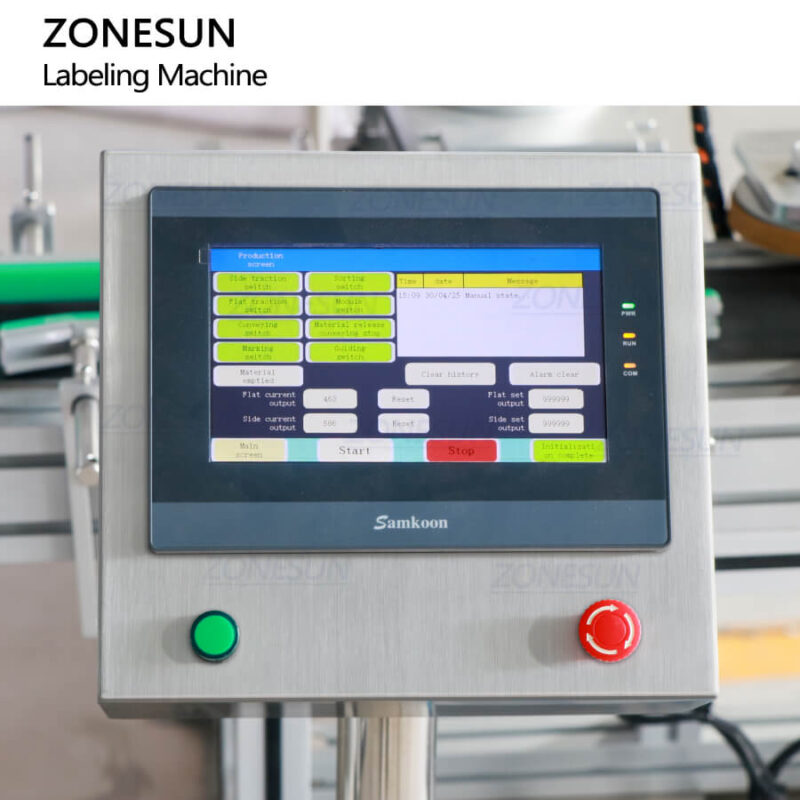

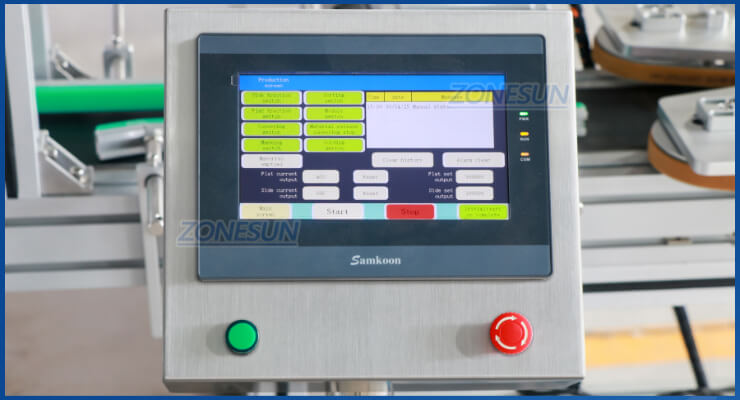

Touchscreen Interface
User-friendly touchscreen with guided operation and intuitive parameter adjustment.

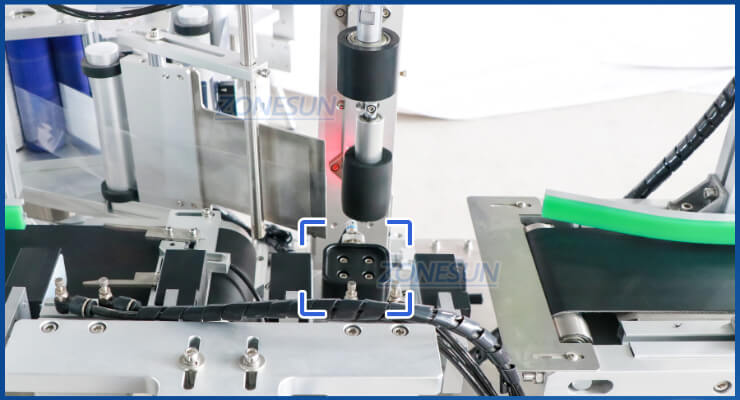

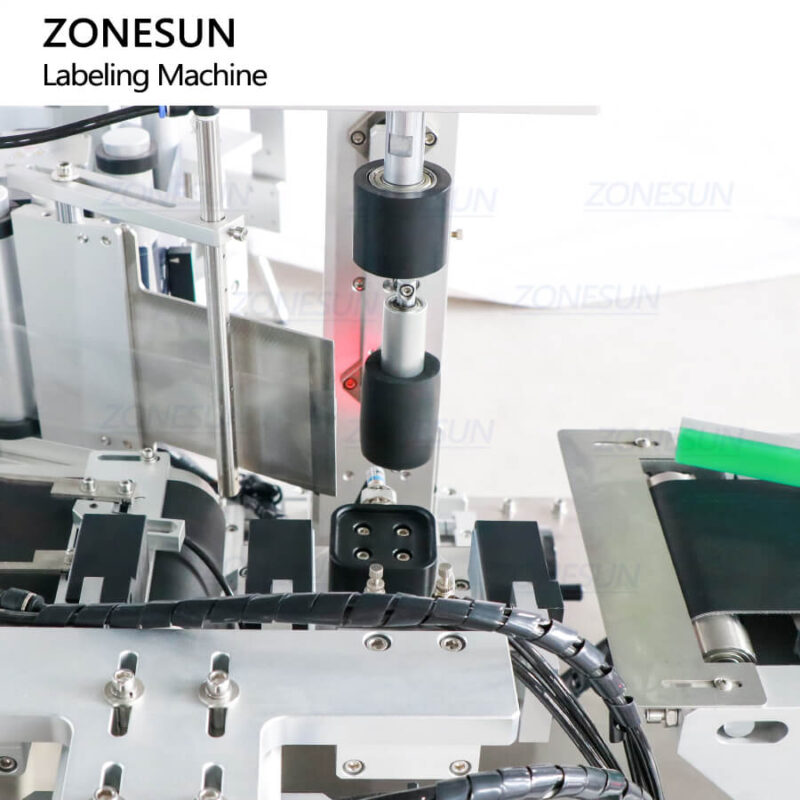

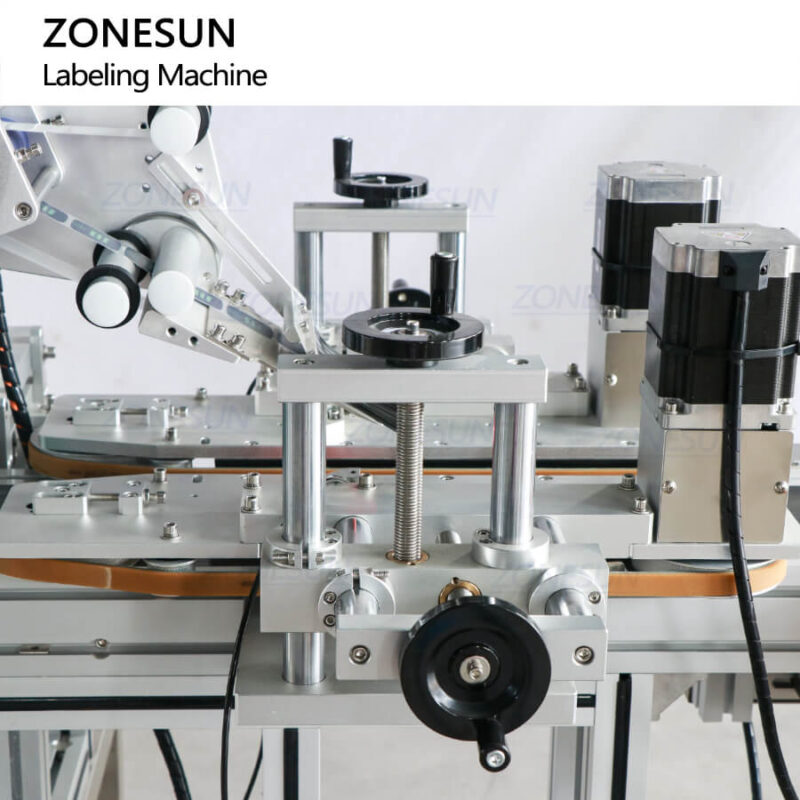

Customizable Labeling Module
Supports single-side, three-side, and wrap-around labeling with customizable mold sizes.
Top-Side Labeling with Brush
Equipped with a brush to eliminate bubbles and enhance labeling quality.

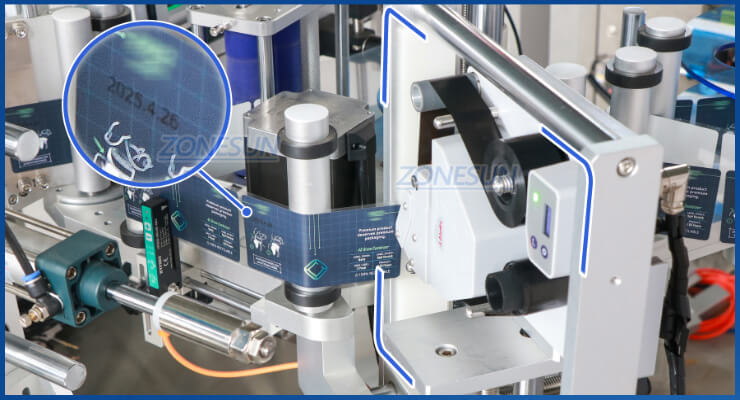

Optional Coding Device
Supports printing of production dates and batch numbers to improve efficiency.
Bottle Guiding Conveyor
Ensures bottles remain upright during transport for accurate labeling.

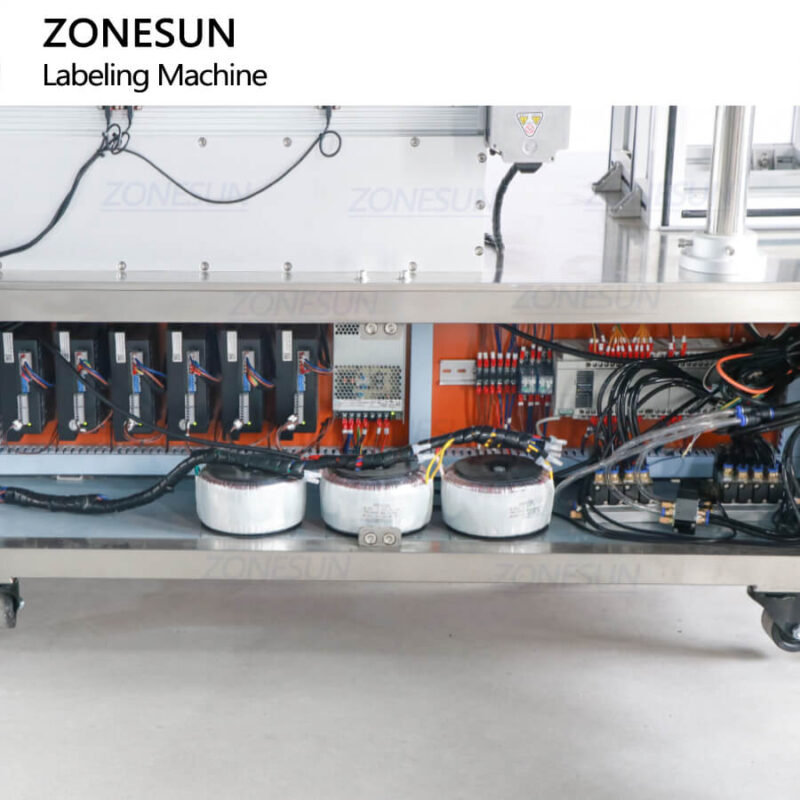

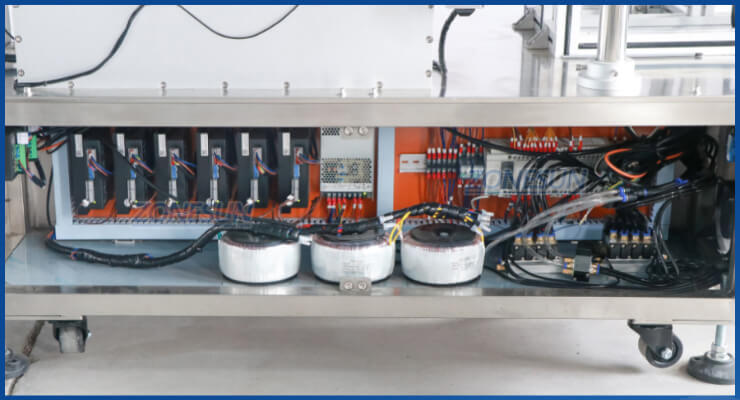

Electrical System
Neat wiring ensures stable machine performance and easier maintenance.
