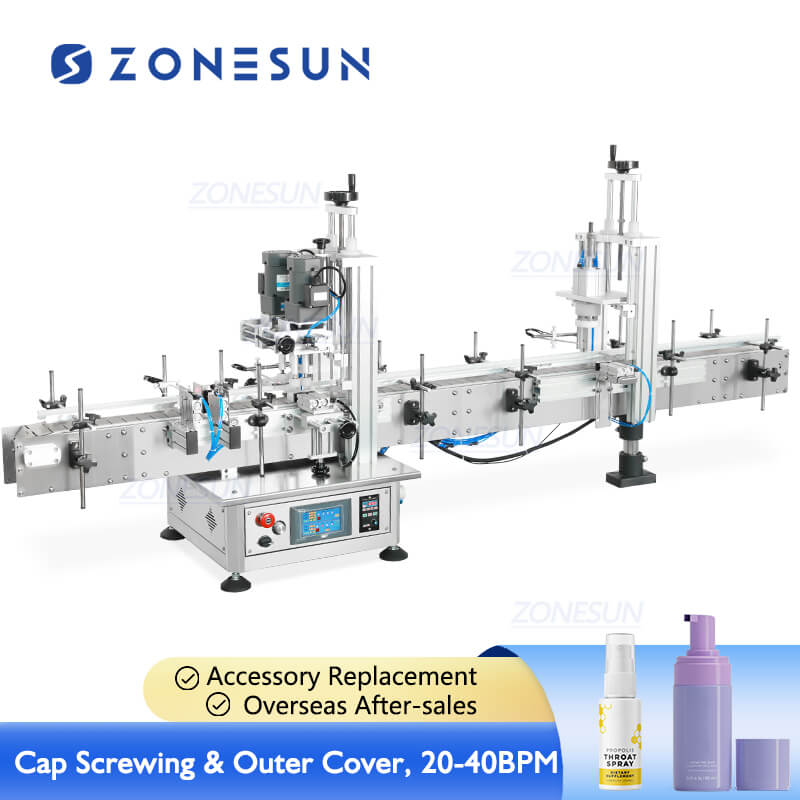

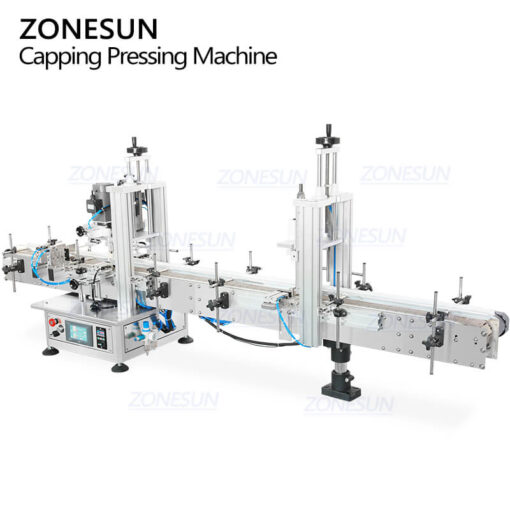

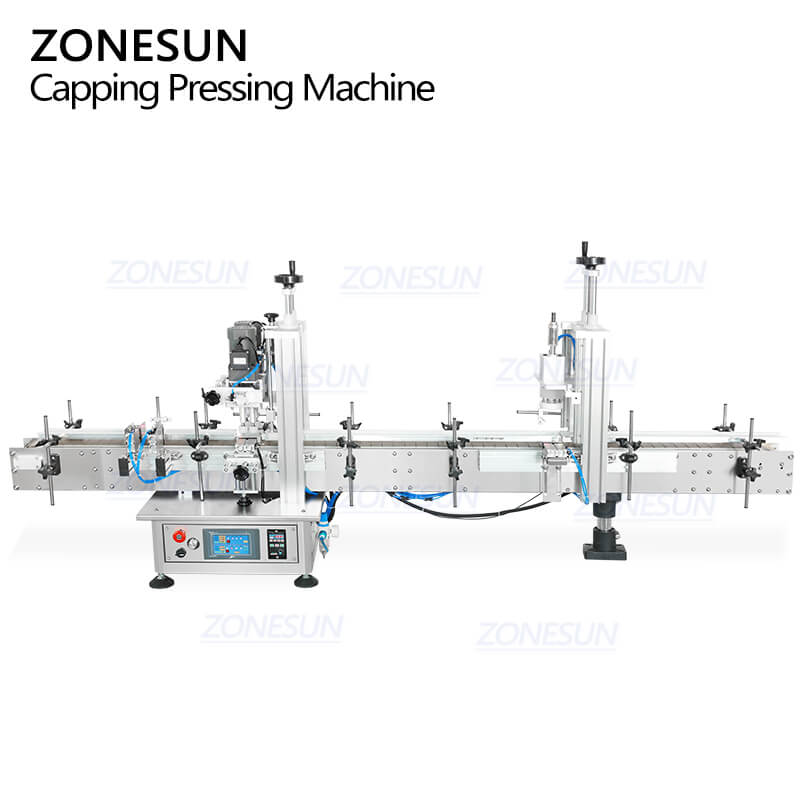

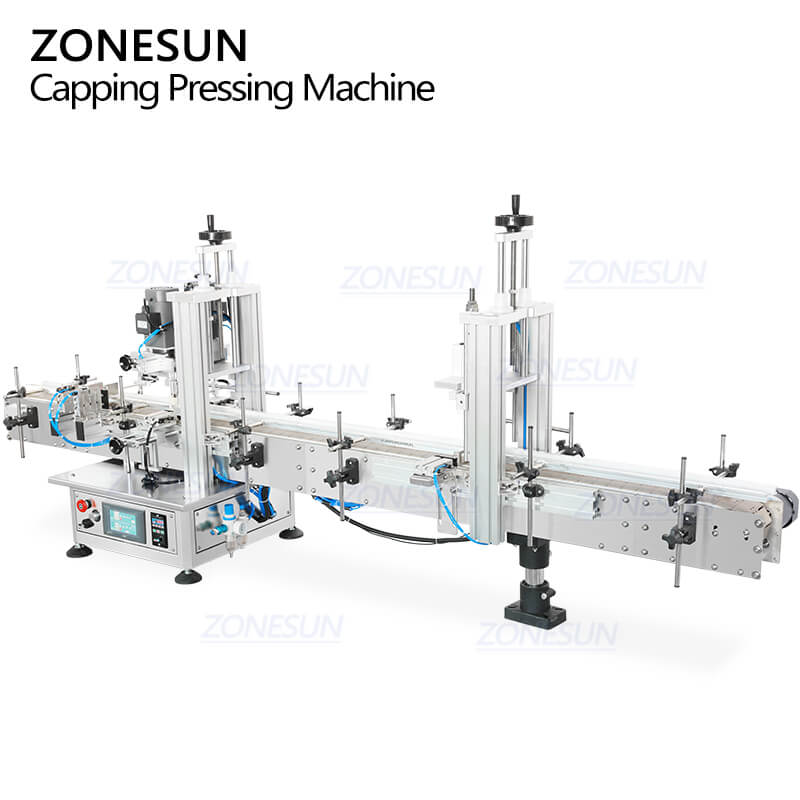

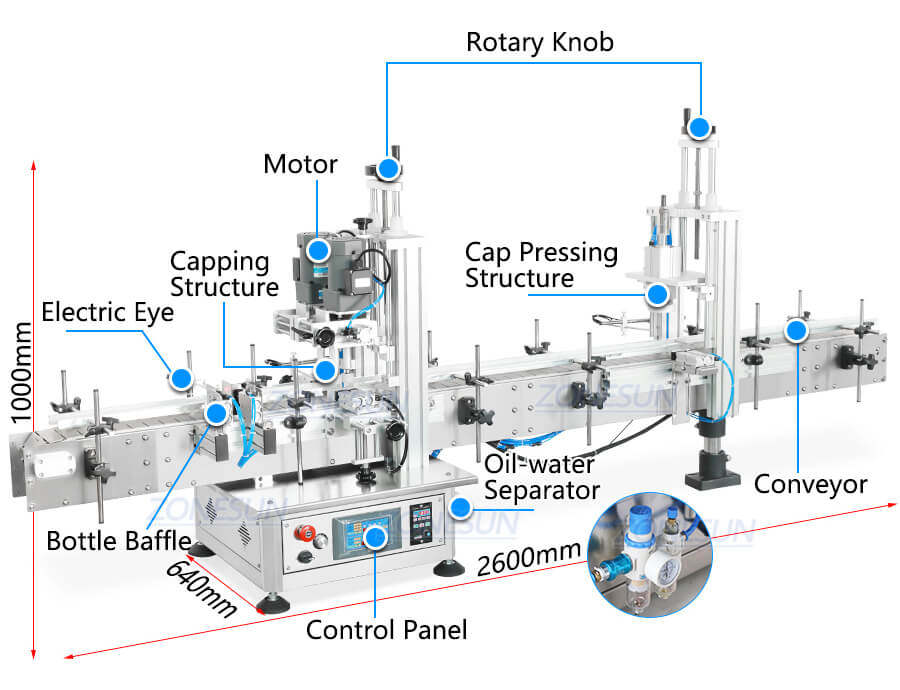

Tabletop Capping Pressing Machine
This capper machine has two working structure, one for screwing caps, one for pressing outer covers,it can connect with tabletop filling machine and labeling machine to realize automated small scale production of spray bottles.
Share to
Product Description:
This capper machine has two working structure, one for screwing caps, one for pressing outer covers,it can connect with tabletop filling machine and labeling machine to realize automated small scale production of spray bottles.
Product Parameters:
| Machine model | ZS-XG1870DV |
| Machine voltage | 110/220V 50-60HZ 500W |
| Suitable bottle height | 60-270mm |
| Suitable bottle caps diameter | 18-70mm |
| Working speed | 20-40 BPM(depending on bottle and caps) |
| Working pressure | 0.4-0.6 MPa |
| Size of air compressor connector | OD 8mm |
| Conveyor length | About 2500mm |
| Machine size | About 2600*640*1000mm |
Product Details:

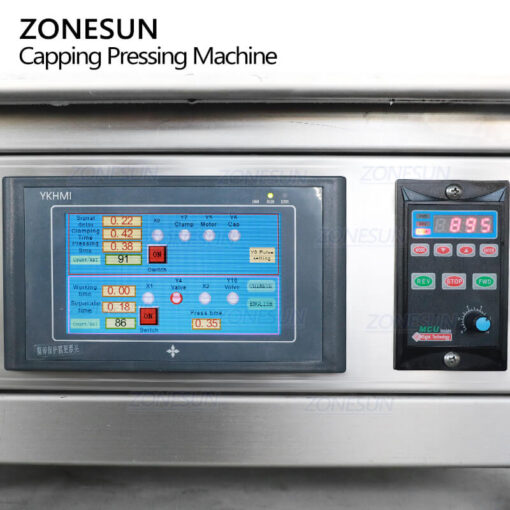

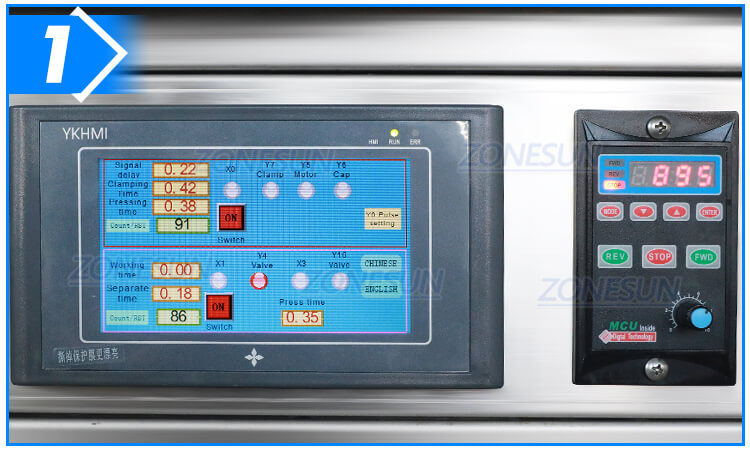

Control Panel
Touch screen control panel simplifies machine parameter setting and machine debugging.

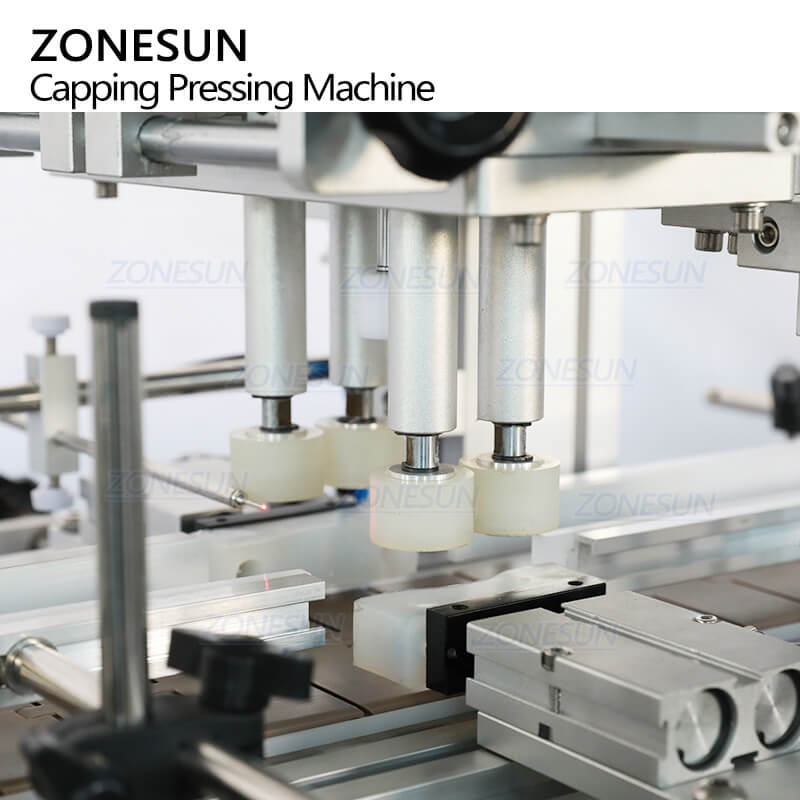

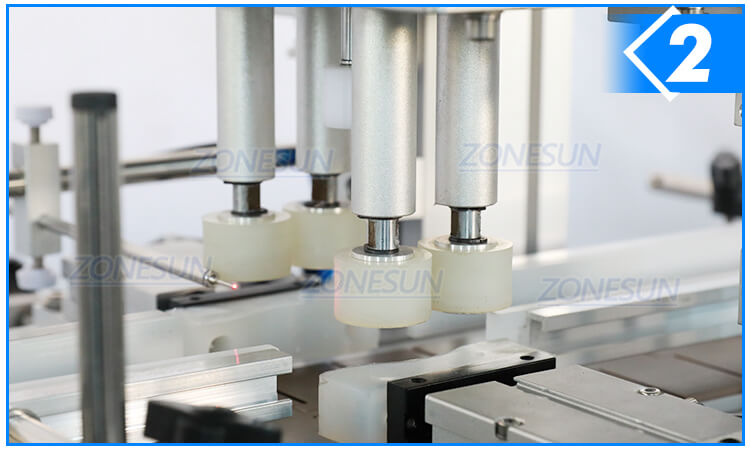

Capping Structure
Consist of four rubber wheels, it suits various screw-on caps, it is adjustable according to cap size.

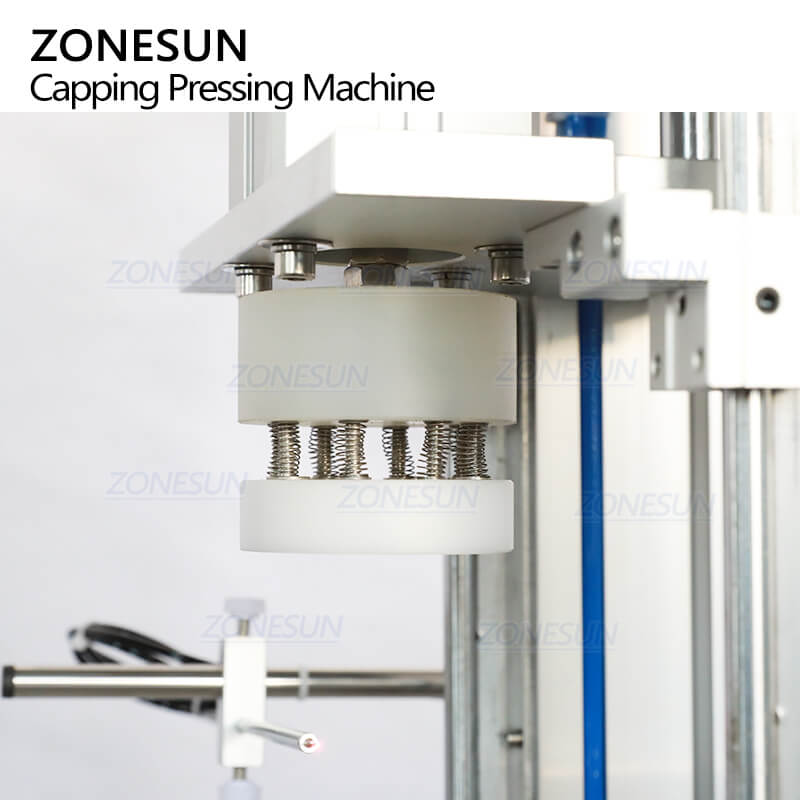

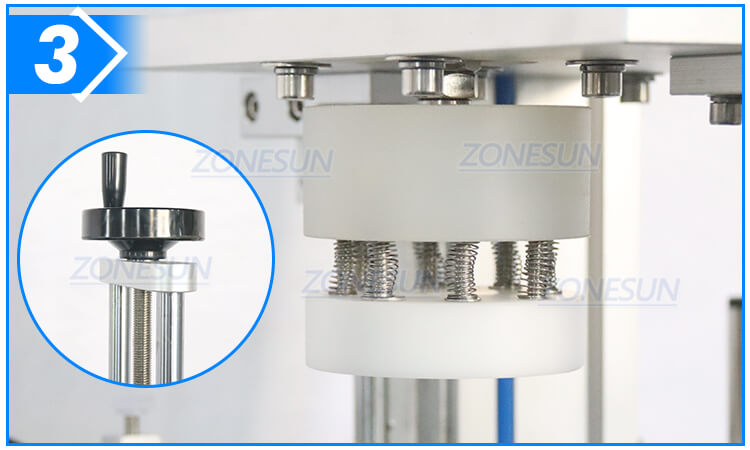

Pressing Structure
It is customizable based on outer cover size, working height is adjustable through rotary knob.

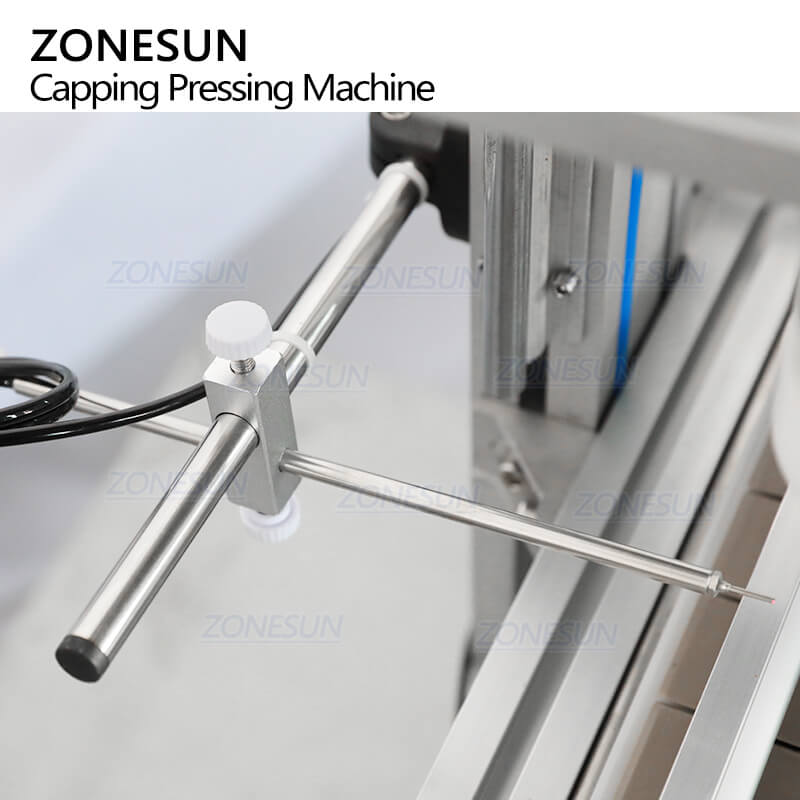

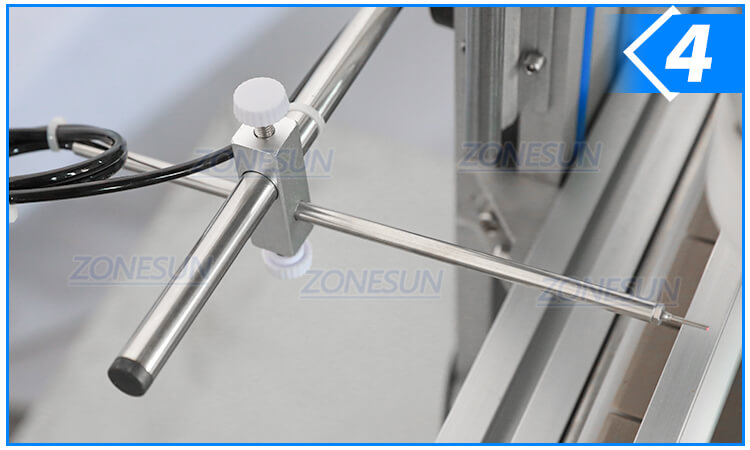

Sensor
It can detect passing by bottles and control the machine to start capping and pressing work automatically.

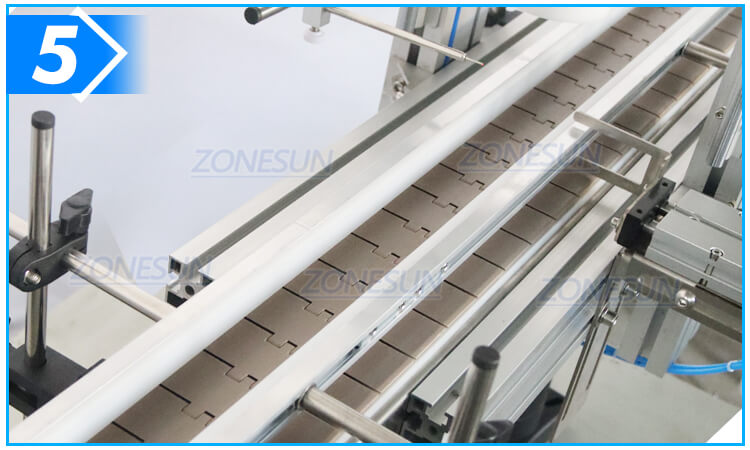

Chain Conveyor
Length and width are customizable according to product size, chain conveyor has larger weight capacity.
