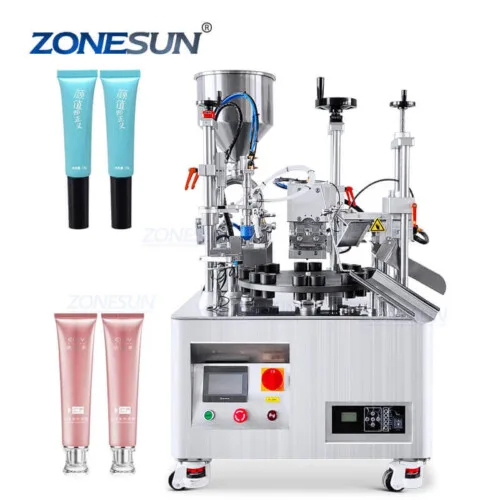

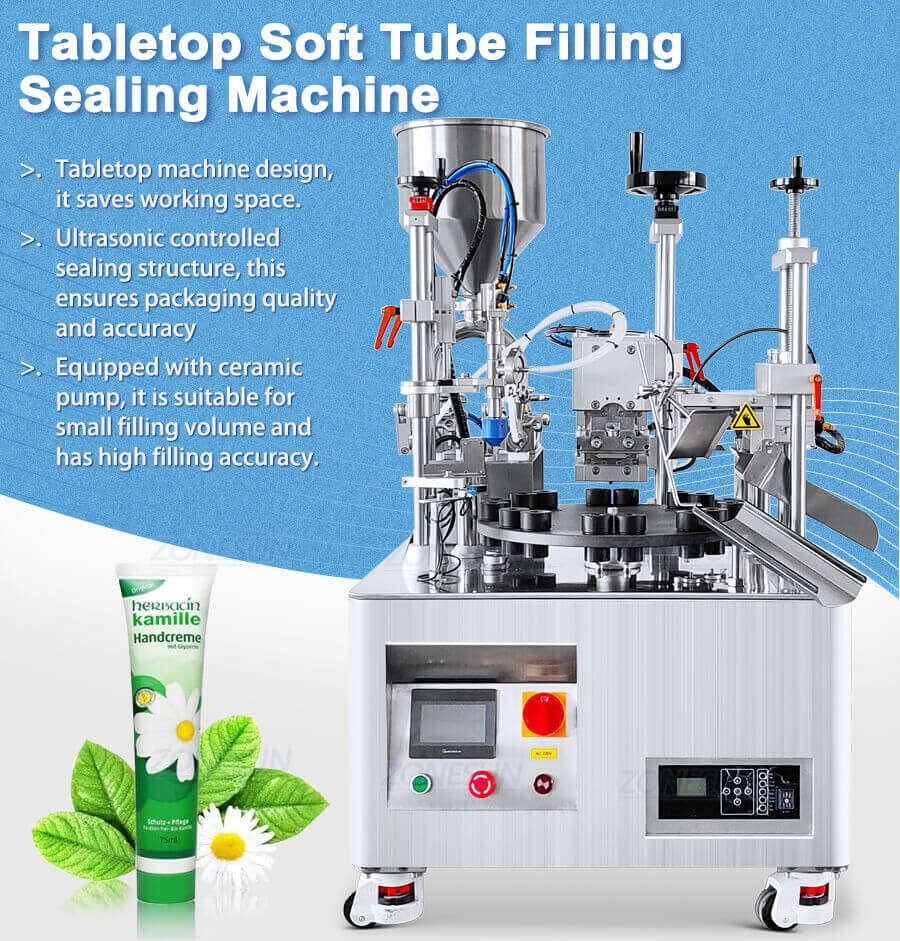

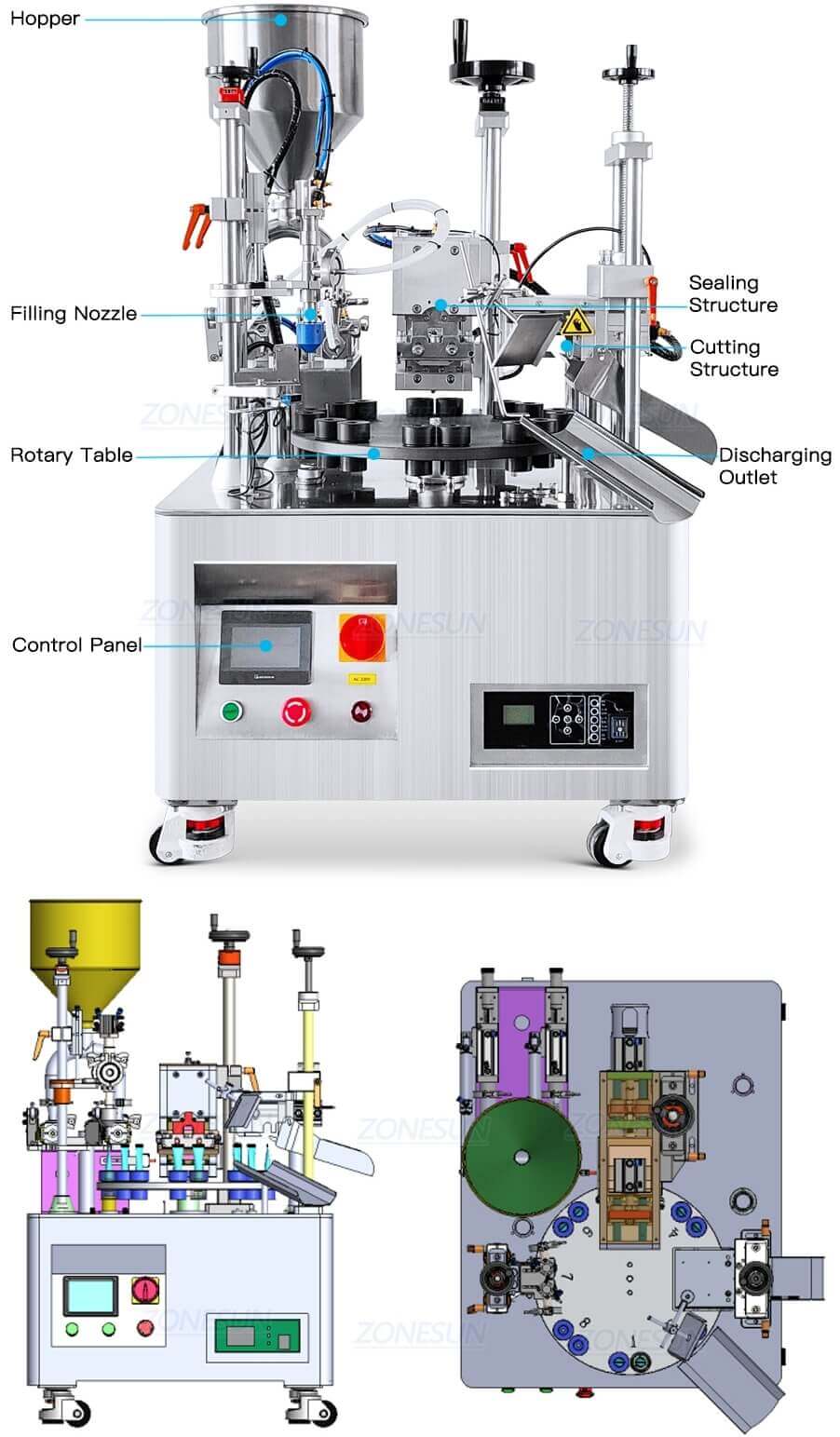

Tabletop Soft Tube Filling Sealing Machine

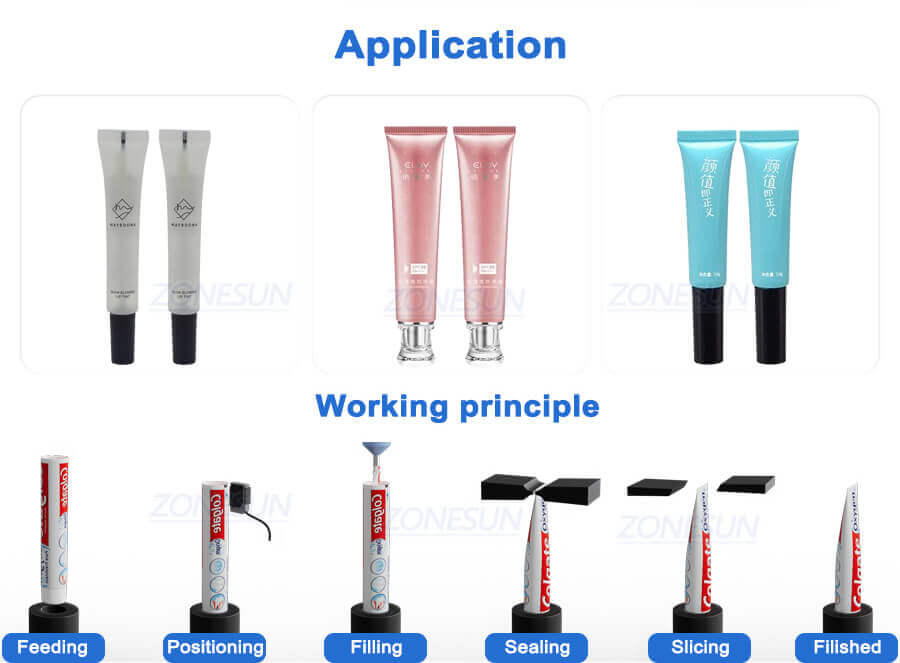

This monoblock filling sealing machine can automatically fill paste into soft tube, seal soft tube at one rotary table. Ultrasonic controlled sealing structure, this ensures packaging quality and accuracy. It is suitable for packaging hand cream, lip gloss, facial cleanser.
Share to
Description:
This monoblock filling sealing machine can automatically fill paste into soft tube, seal soft tube at one rotary table. Ultrasonic controlled sealing structure, this ensures packaging quality and accuracy. It is suitable for packaging hand cream, lip gloss, facial cleanser.
| Machine Model | ZS-AFS05 |
| Voltage | 220V/110V 50-60Hz |
| Power | 2.6KW |
| Filling Range | 3-30ml |
| Filling Pump | Ceramic Pump |

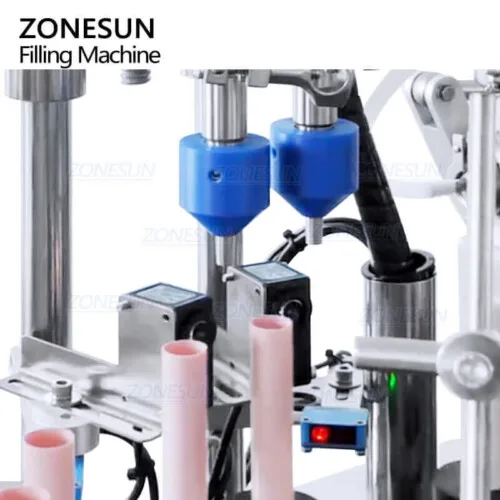

| Quantity of Filling Nozzle | 2 |
| Filling Accuracy | ±0.25-0.5ml(based on filling material and volume) |
| Sealing Speed | 40-50pcs/min |
| Sealing Diameter | 13-22mm |
| Sealing Height | 50-210mm |

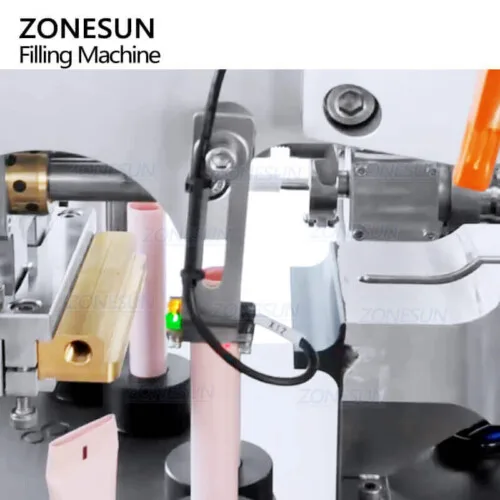

| Sealing Method | Ultrasonic Sealing |
| Ultrasonic Frequency | 20KHz |
| Air Pressure | 0.5Mpa |
| Machine Material | 304 Stainless Steel |
| Machine Weight | About 212kg |
| Machine Size | About 1070*830*1310mm |
| Labeling Machine Configuration | ||
| Machine Component | Brand | Origin |
| Solenoid Valve | AirTAC | Taiwan,China |
| Inductive Switch | SICK | Germany |
| Sensor | Panasonic | Japan |
| Relay | Omron | Japan |
| Motor | ZD | China |
| Frequency Coverter | Delta | Taiwan, China |
