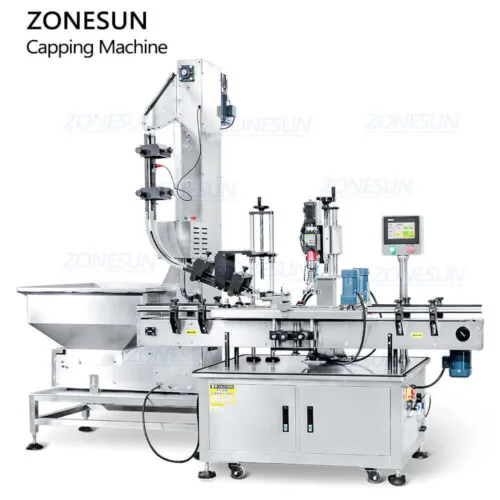

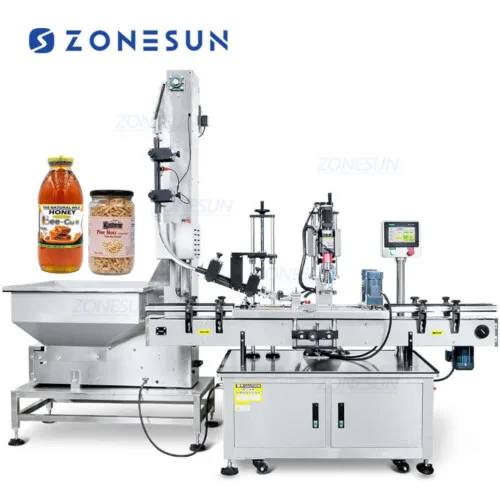

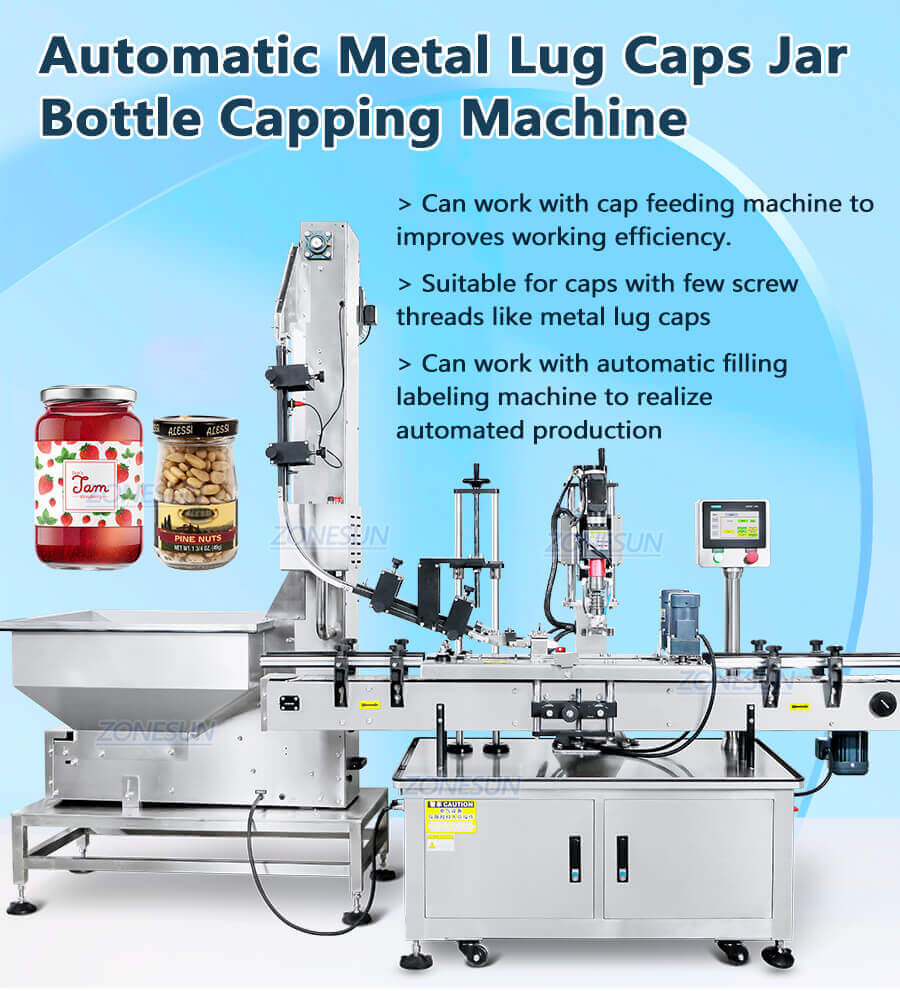

Twist Off Cap Capping Machine
This bottle capping machine is designed for bottle caps with few screw threads like metal lug caps.It is equipped with servo motor,which has high capping accuracy.This bottle capper is widely used in food,daily chemical industries.
Share to
Product Description:
This bottle capping machine is designed for bottle caps with few screw threads like metal lug caps.It is equipped with servo motor,which has high capping accuracy.This bottle capper is widely used in food,daily chemical industries.
Product Parameter:
| Machine model | ZS-XG440T |
| Machine voltage | 110/220V 50-60HZ2KW |
| Suitable capsdiameter | 140mm (customizable) |
| Working pressure | 0.5-0.7MPa |
| Working speed | 15-30 bottles/min |
| Machine size | About 3050*1230*2350mm(L*W*H) |
| Machineweight | About 250kg |
| Machine Configuration | ||
| Machine Component | Brand | Origin |
| PLC | Siemens | Germany |
| Motor | ZD | China |
| Photoelectric | Panasonic | Japan |
| Intermediate Relay | Omron | Japan |
| Touchscreen | Siemens | Germany |
| Pneumatic Element | AirTAC | Taiwan,China |
| Switch | Meanwell/CHNT | China |
| Servo Indexer | HMI | China |

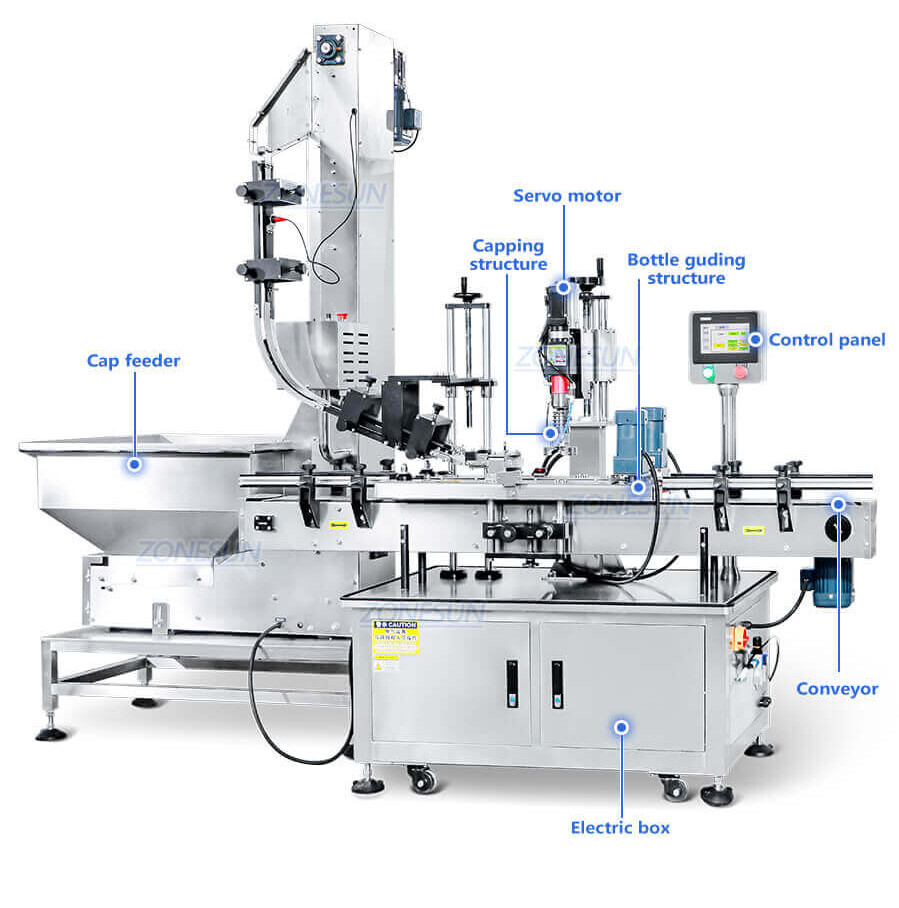

Product Details:

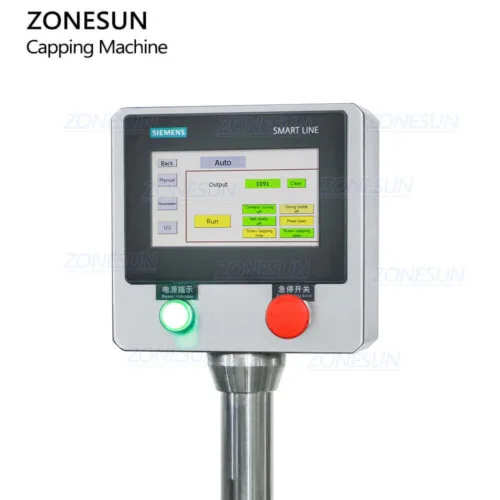

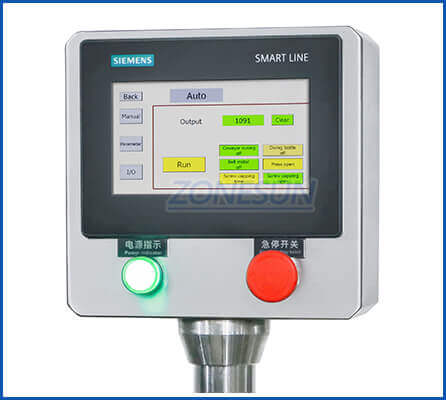

This machine is equipped with a touch screen control panel, allowing real-time visibility of working parameters. This enhances debugging convenience. Customizable operation languages cater to different operational needs.

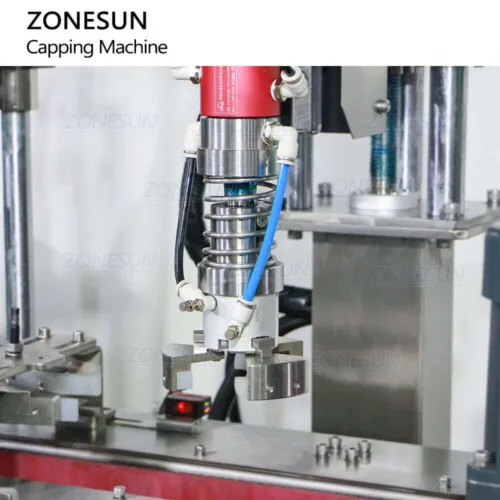

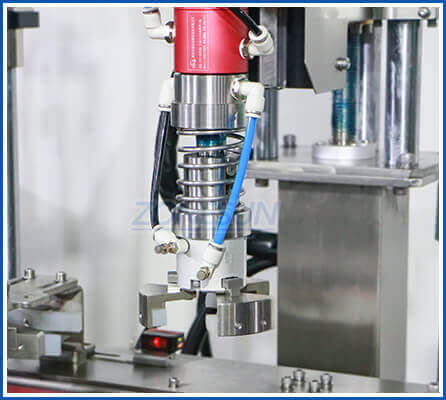

The capping process is efficiently controlled by a servo motor, ensuring high accuracy and strong torsion. We can customize it to accommodate different bottle cap sizes.

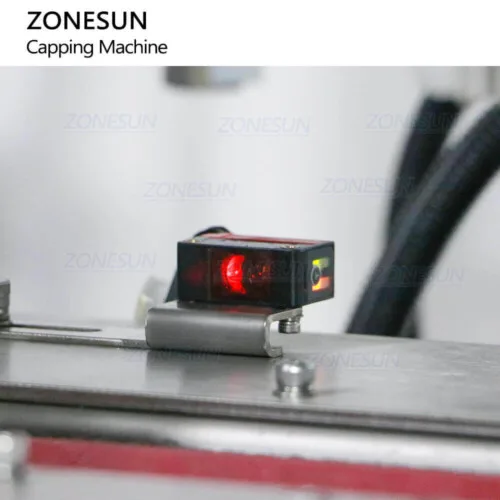

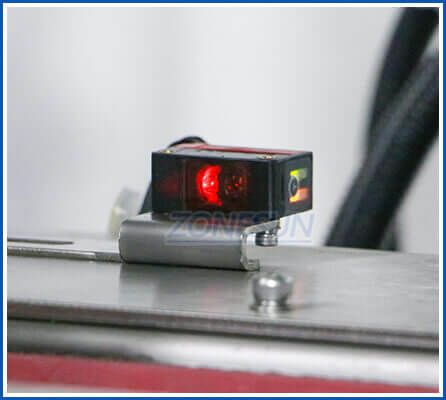

Our capping machine is equipped with a high-quality electric eye that detects passing bottles and automatically tightens their caps.

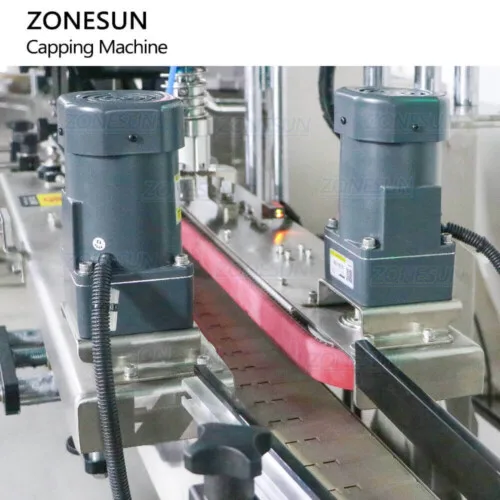

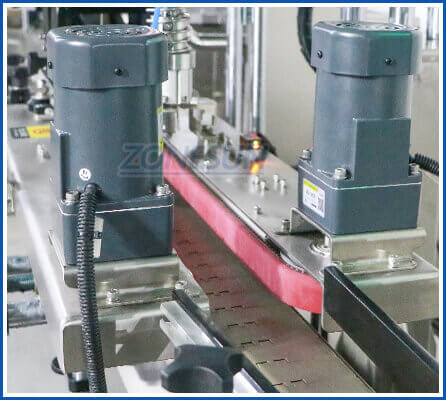

This machine is equipped with a bottle guiding conveyor, which helps to maintain a consistent distance between bottles and prevents them from falling during the capping process, thereby enhancing packaging quality.

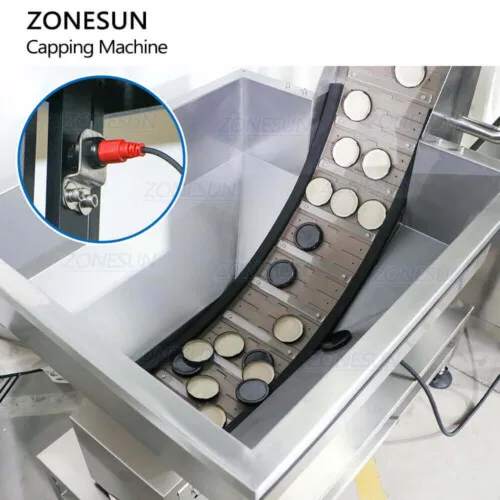

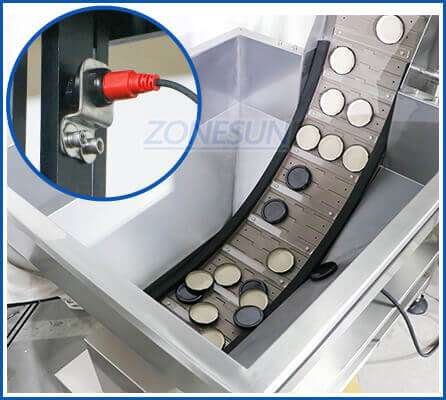

The cap feeding machine operates efficiently, reducing labor requirements. It also includes a sensor to monitor bottle caps, ensuring timely supply during the capping process.

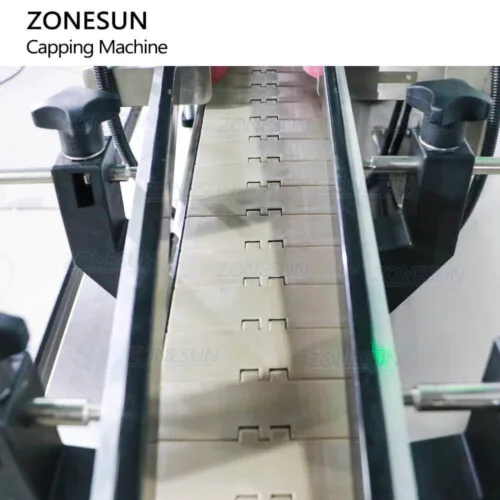

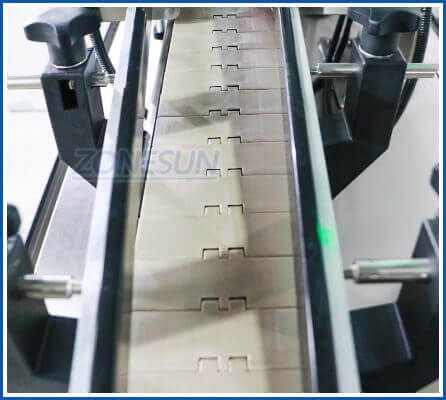

The conveyor belt is crafted from high-quality material to ensure smooth bottle transportation, minimizing production errors and boosting work efficiency.
