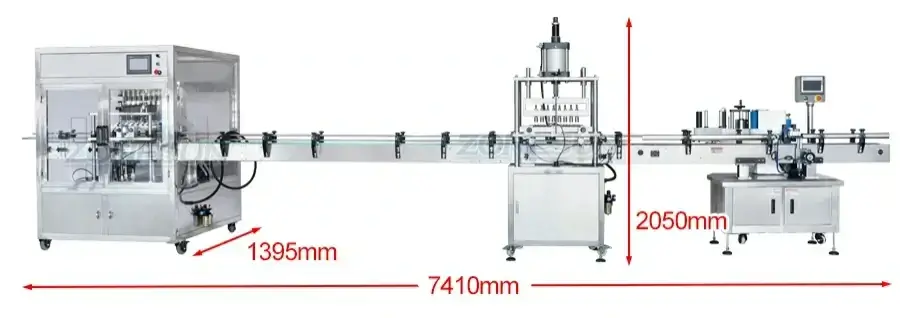

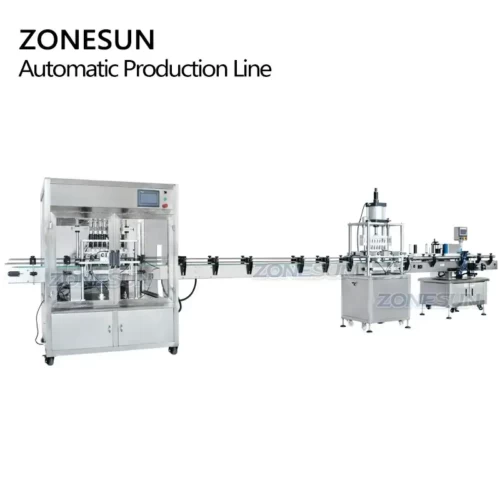

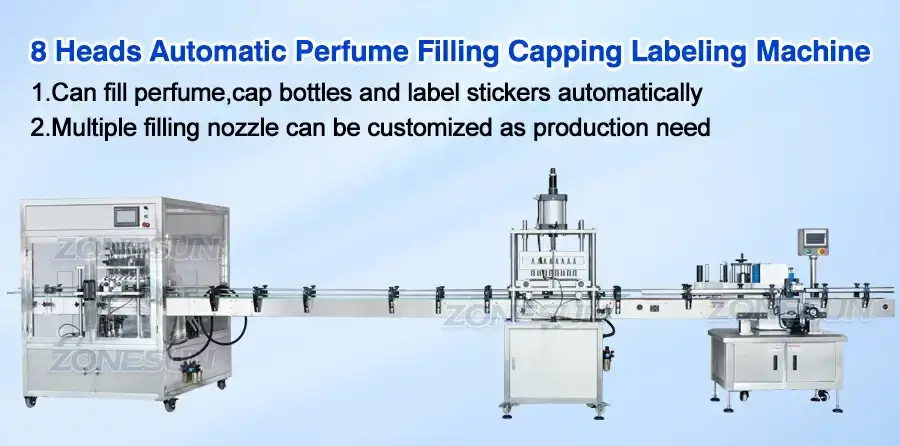

Vacuum Perfume Filling Line
The full automatic production line for producing perfume.Consisting of vacuum filling machine,bottle crimping machine and labeling machine,it can help you improve working efficiency and save production labor.
Share to
Description:

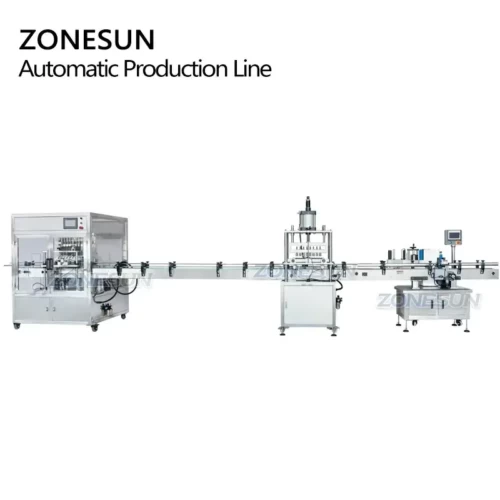

The full automatic production line for producing perfume.Consisting of vacuum filling machine,bottle crimping machine and labeling machine,it can help you improve working efficiency and save production labor.
Parameter:

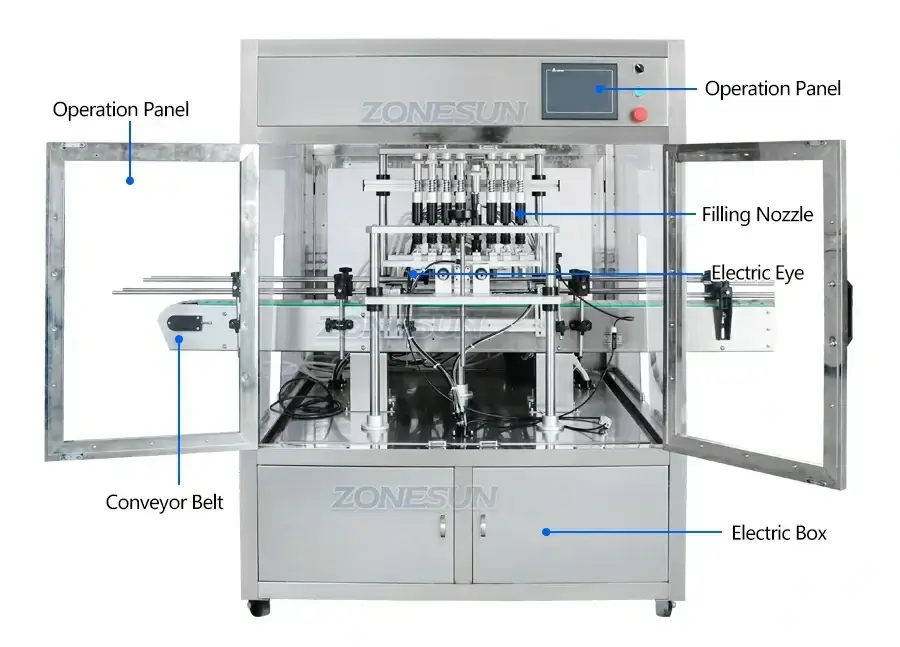

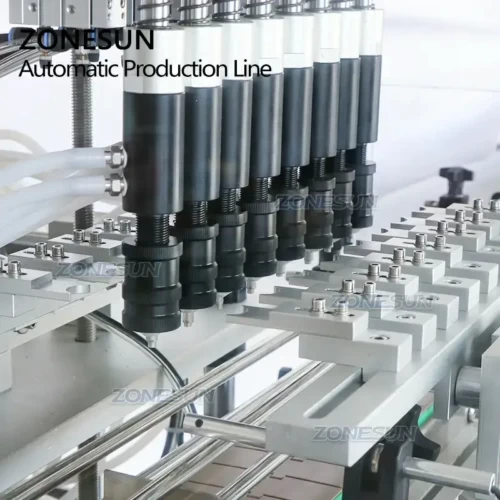

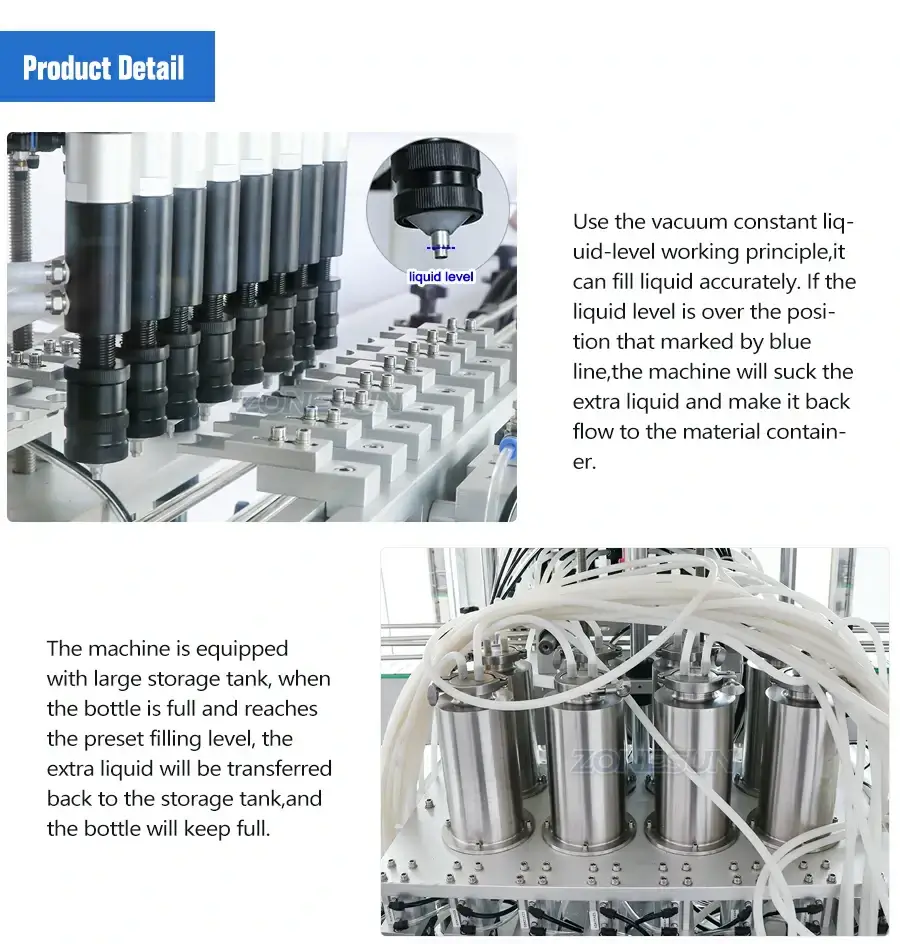

>>Filling machine:
| Model | ZS-YTZL8A |
| Filling head | 8 Head |
| Air pressure | 0.5-0.8MPa |
| Liquid level accuracy | ±1mm |
| Viscosity range | The maximum applicable viscosity is 20Cps (static viscosity) |
| Working speed | 20-60 Bottles/Minute |
| Bottle height | ≤250mm |
| Bottle opening size | ≤φ4.5mm-φ28mm |
| Adjustable liquid level (from the bottle mouth) | 15-50mm |
| Air pumping rate | 5.5L/S |
| Machine size | About 2000*1395*1715mm |
| Machine weight | About 480kg |
| Package size | About 2095*1560*1850mm |
| Package weight | About 550kg |

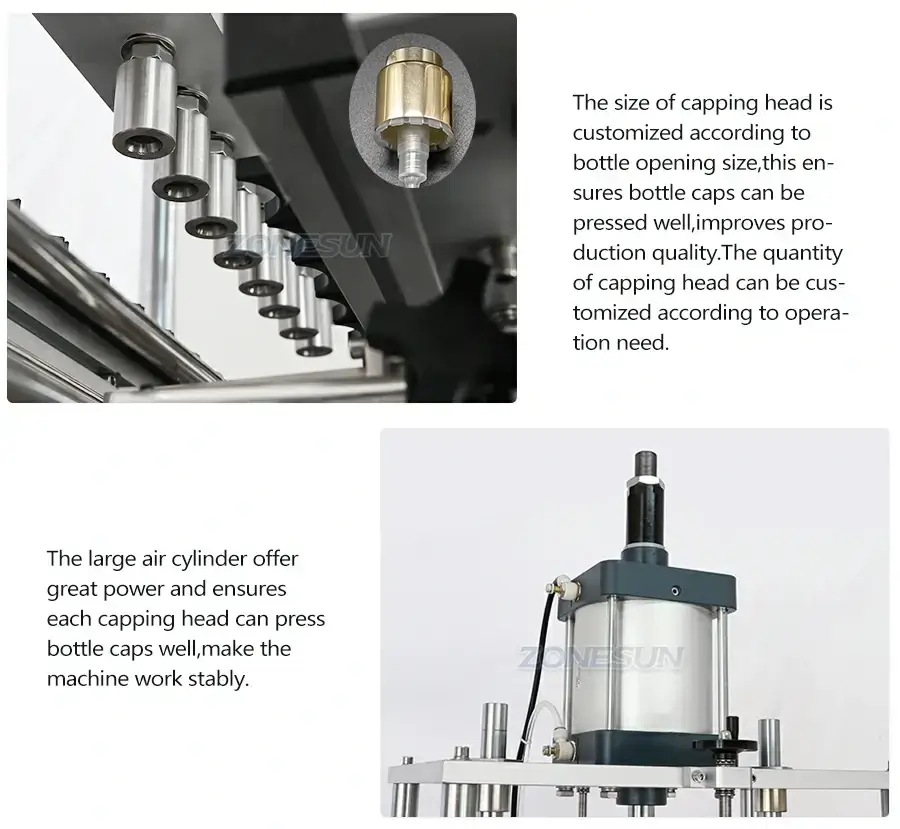

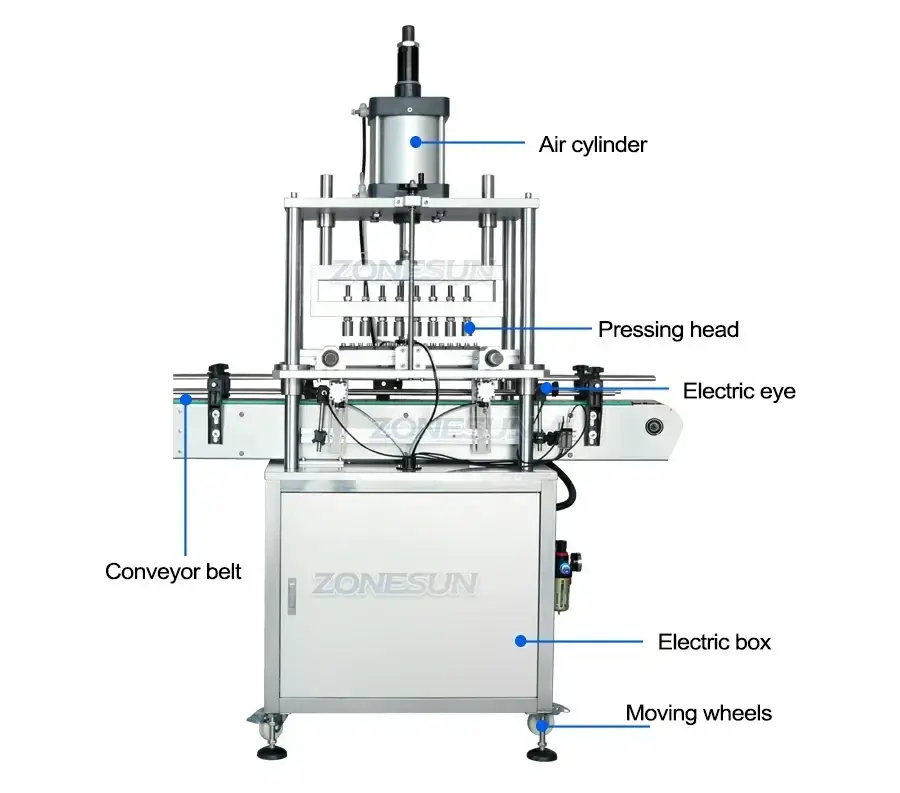

>>Capping machine:
| Machine model | ZS-YG10 |
| Bottle height | 60-200mm |
| Bottle opening size | 13/15/18/20mm(customized) |
| Bottle diameter | ≤100mm |
| Caps diameter | Customized |
| Machine size | About 750*605*2050mm |
| Machine weight | About 209kg |
| Package size | About 1560*750*2110mm |
| Package weight | About 255kg |

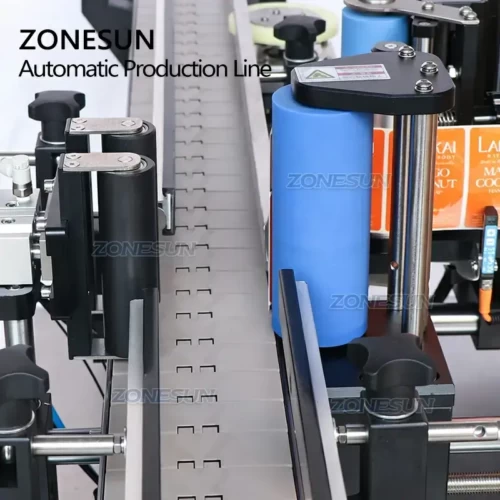

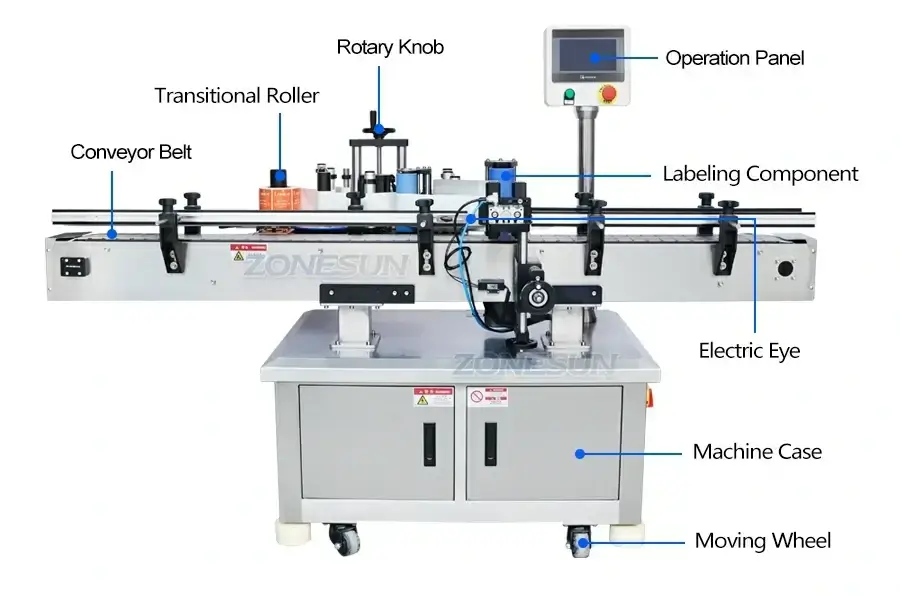

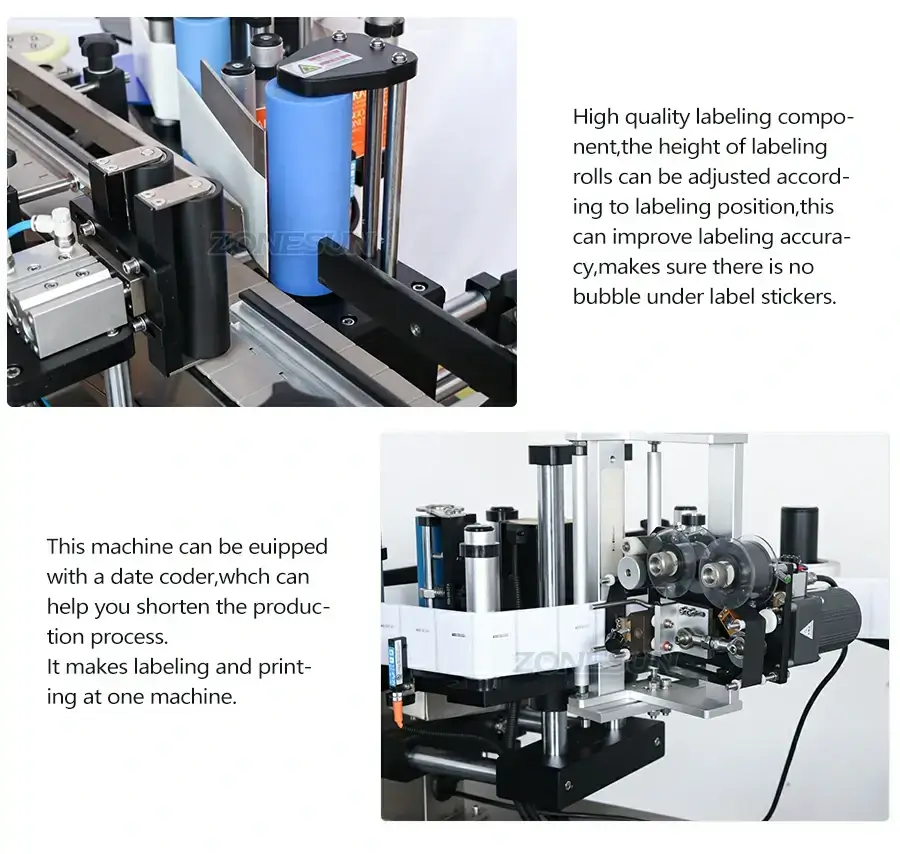

>>Labeling machine:
| Model | ZS-TB260R Labeling Machine |
| Power supply | AC220V 50Hz/60Hz 1000W |
| Labeling capacity(bottles/min) | 25-50 bottles/min(depends on bottle size) |
| Labeling accuracy(mm) | ±1.0mm |
| Suitable Bottle Diameter | φ12-100mm |
| Label size(mm) | (L)20-300mm (H)15-150mm |
| Roll inside diameter(mm) | φ76mm |
| Roll outside diameter(mm) | φ350mm |
| Conveyor Size | 112*2000mm(W) |
| Machine size | About (L)2000*(W)820*(H)1380(mm) |
| Machine weight | About 180kg |
| Packing Size | About (L)2100*(W)890*(H)1520(mm) |
| Package weight | About 250kg |
