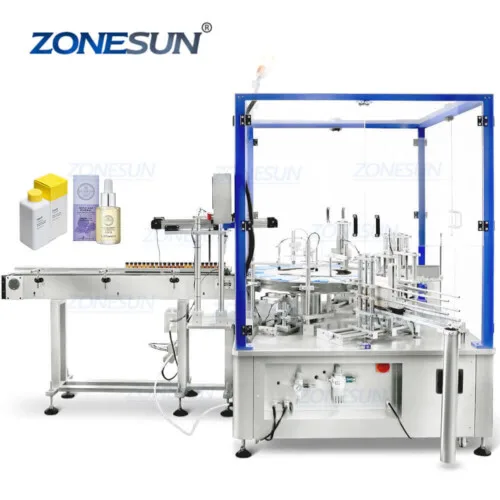

Vertical Cartoning Machine

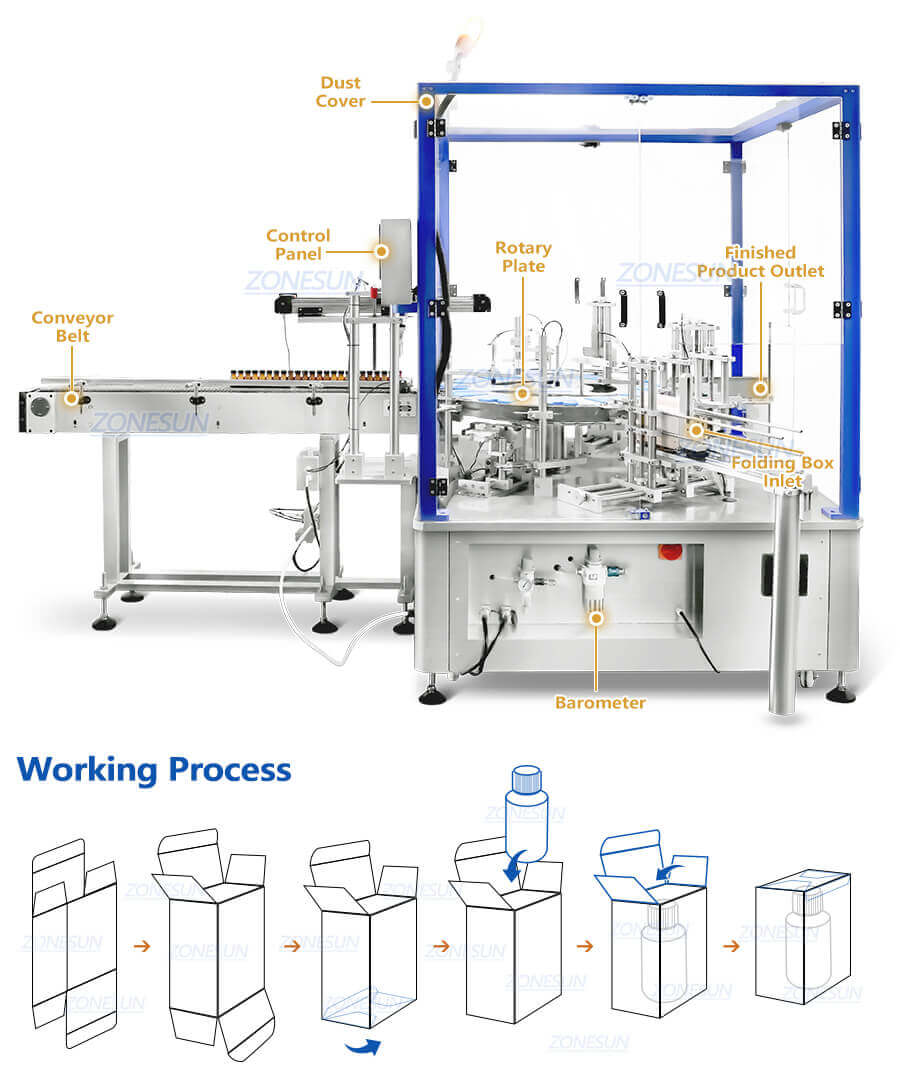

This machine is suitable for boxing and packaging of various types of products.The boxing machine has functions of box opening,filling,box folding and box sealing.It can be used separately or work with other equipment (such as Weighing machine,filling machine,sorting machine) to realize automted production.
Share to
Description:
This machine is suitable for boxing and packaging of various types of products.The boxing machine has functions of box opening,filling,box folding and box sealing.It can be used separately or work with other equipment (such as Weighing machine,filling machine,sorting machine) to realize automted production.
Parameter:
| Machine Model | ZS-MSZH50L |
| Voltage | 220V 50-60Hz Single Phase |
| Motor Power | 1.5kW |
| Working Speed | About 20-50boxes/min |
| Max Size of Box | 200*80*80mm |
| Minimum Size of Box | 60*20*20mm |
| Paper Quality of Box | 250-350g/m³ |
| Air Consumption | 260L/min |
| Air Pressure | 0.5-0.8MPa |
| Optional Functions | 1.Gluing Function
2.LeafletFeeding Function 3.Date Coding Function |
| Machine Size | About 1100*1500*1700mm(L*W*H) |
| Machine Weight | About 450kg |
| Machine Configuration | ||
| Machine Component | Brand | Origin |

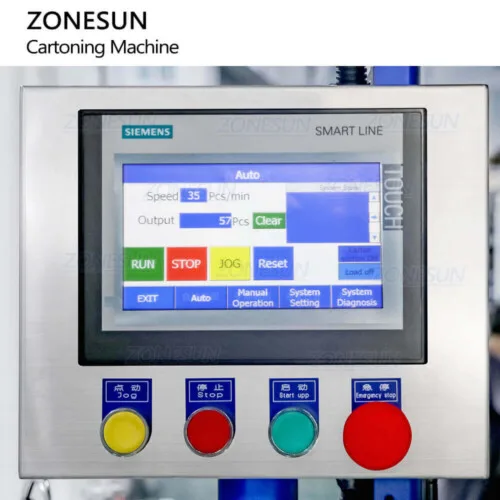

| Control Panel | SIEMENS | Germany |
| PLC | SIEMENS | Germany |
| Inverter | DANFOSS | Denmark |
| Air Cylinder | AirTac | Taiwan,China |
| Switching Power Supply | Schneider | France |
| Emergency Stop Button | Schneider | France |

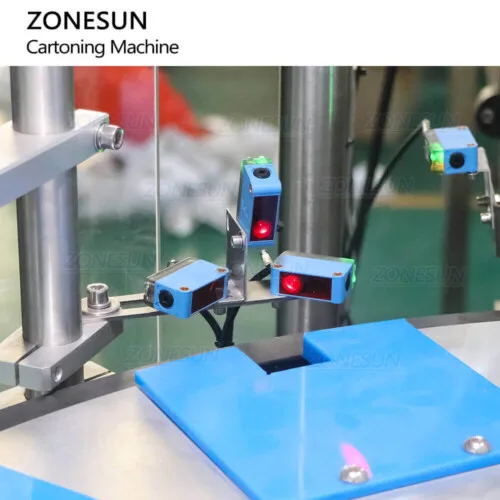

| Photoelectric Switch | Omron | Japan |
| Encoder | Omron | Japan |
