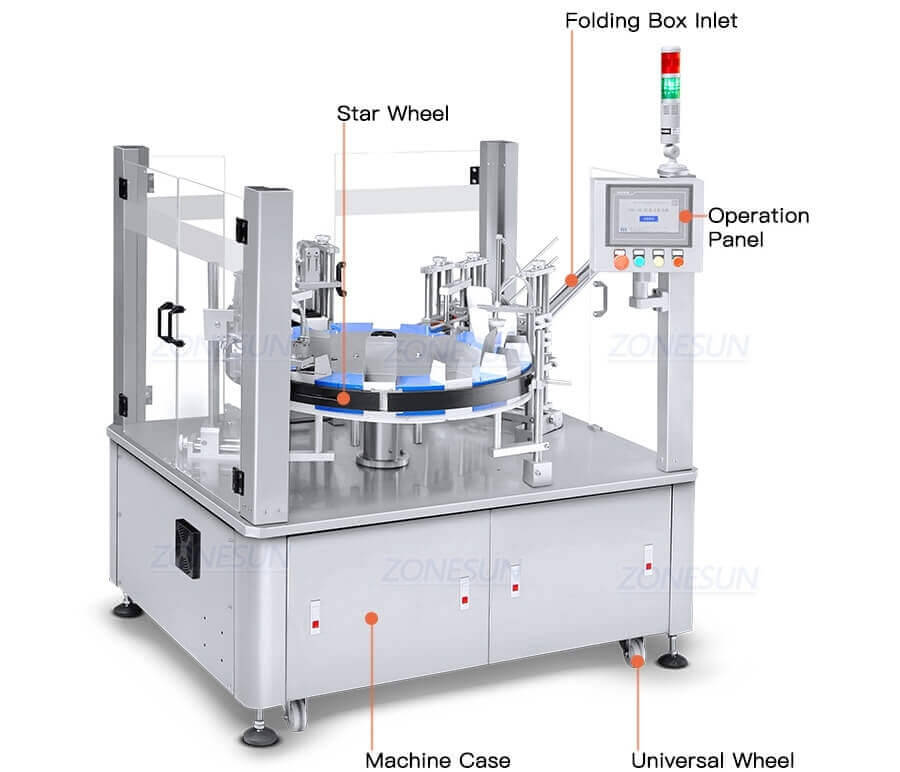

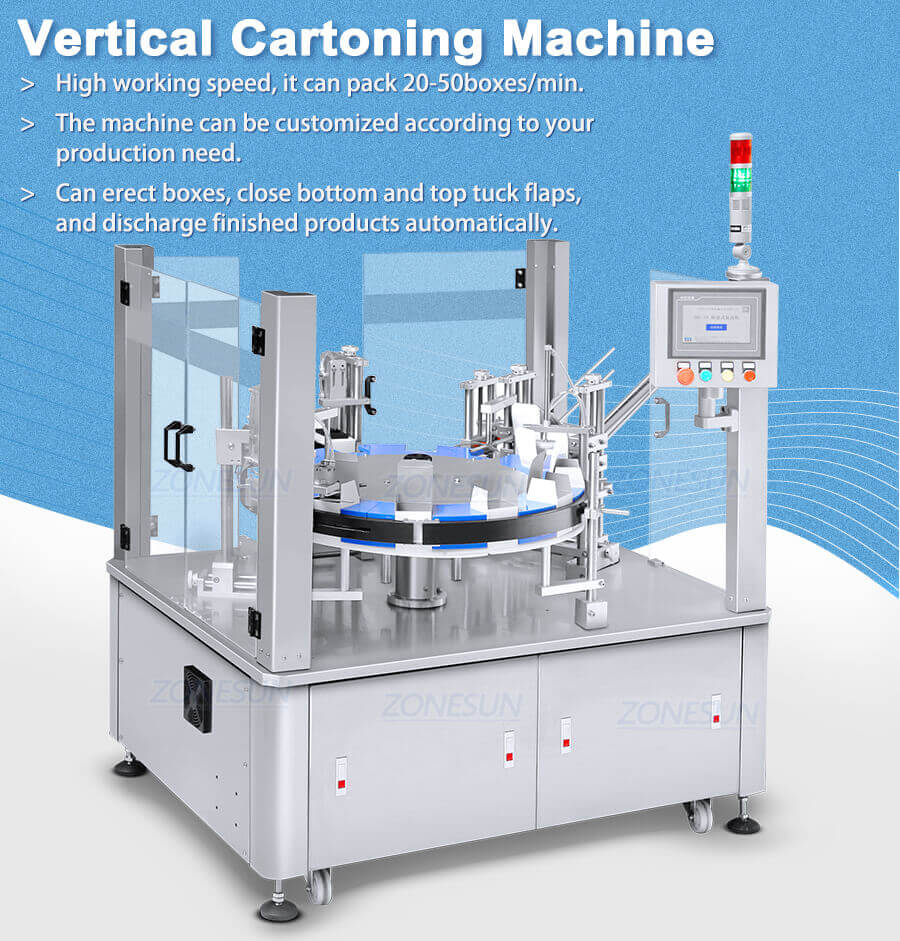

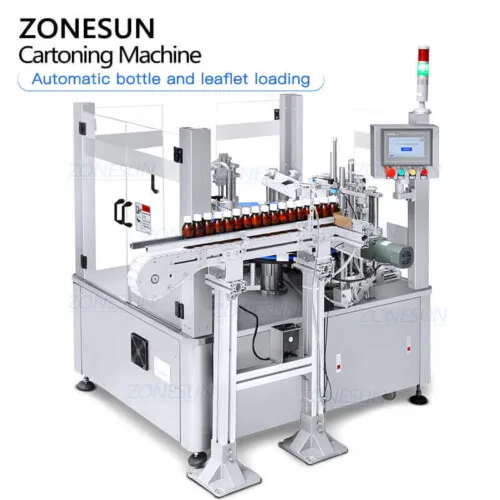

Vertical Cartoning Machine
>Can erect boxes, close bottom and top tuck flaps, and discharge finished products automatically.
>High working speed, it can pack 20-50boxes/min.
>The machine can be customized according to your production need.
Share to
Product Description:
>Can erect boxes, close bottom and top tuck flaps, and discharge finished products automatically.
>High working speed, it can pack 20-50boxes/min.
>The machine can be customized according to your production need.
Product Parameters:
| Machine Model | ZS-ZHJ50D |
| Voltage | 220V 50-60Hz |
| Power | 1.5kW |
| Production Speed | About 20-50boxes/min (depending on box size) |
| Maximum Size of Box | 200*80*80mm |
| Minimum Size of Box | 60*20*20mm |
| Paper Quality of Box | 250-350g/m³ |
| Air Pressure | 0.5-0.8Mpa |
| Air Consumption | 260L/min |
| Optional Functions | 1.Gluing function,
2.Date coding function, 3.Bottle feeding function, 4.Leaflet inserting function. |
| Machine Size | About 1100*1500*1700mm(L*W*H) |
| Machine Weight | About 450kg |
Product Details:

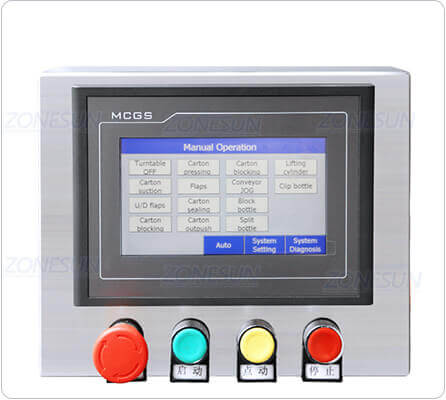

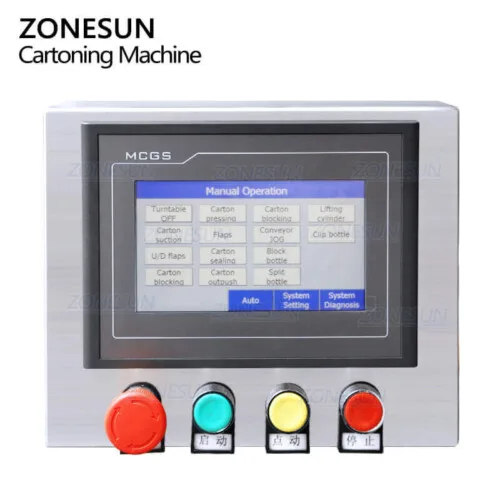

The machine is equipped with a PLC operation panel, allowing for easy setting and adjustment of working parameters. The panel language can be customized to your specific needs.

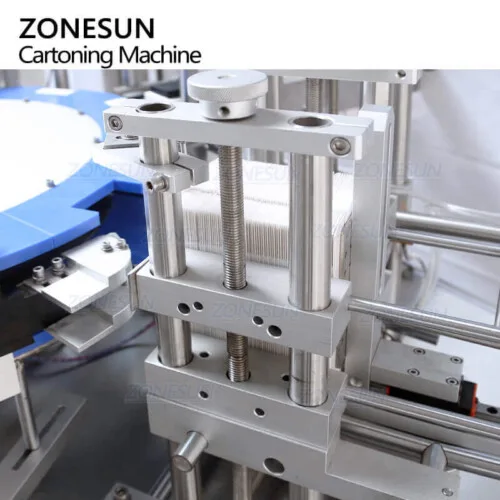

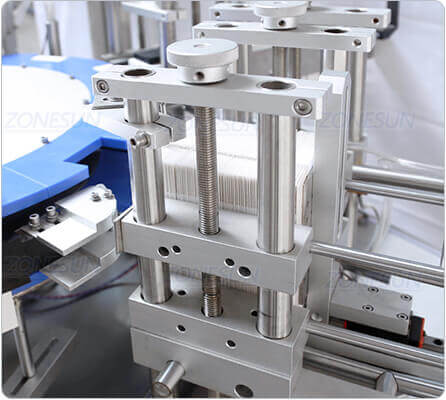

This component is specifically designed for the storage of folding boxes. It features suction cups that automatically erect the boxes, thereby reducing labor costs.

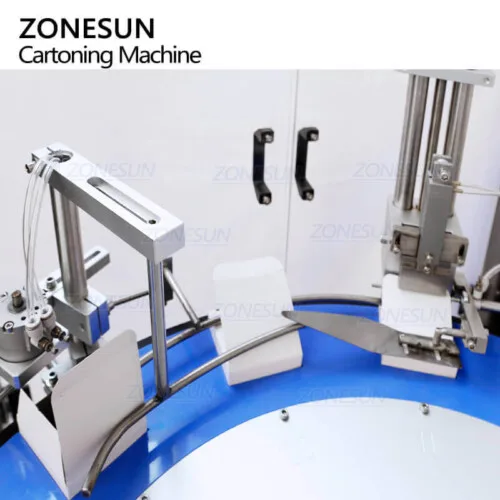

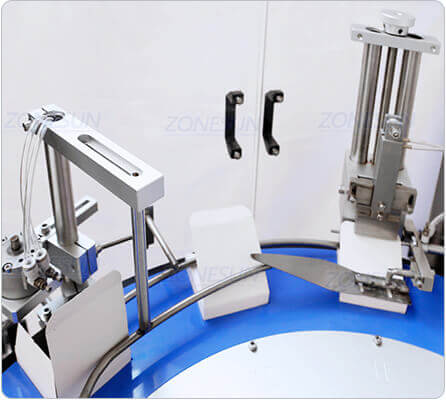

The machine is designed to close top tuck flaps and can be adjusted for various box sizes. We can customize it with a gluing function. Please reach out if you require this feature.

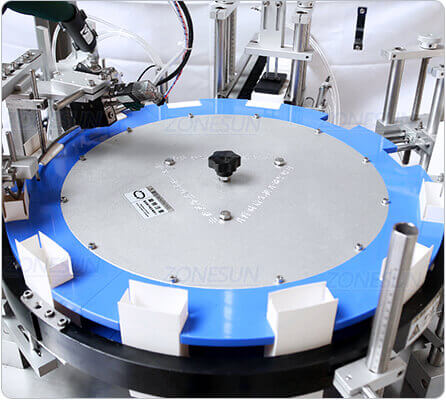

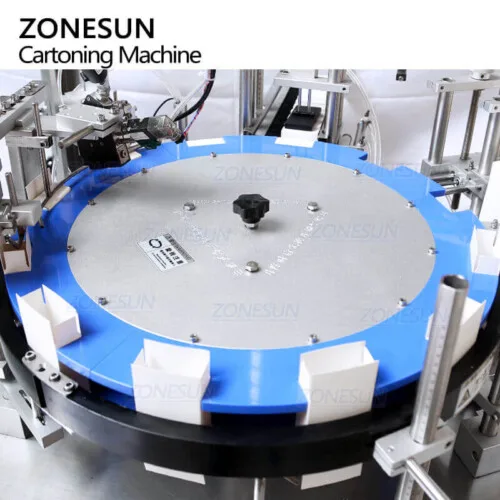

The rotary plate is designed to efficiently fix and convey boxes during production. It can be tailored to your specific product needs.
