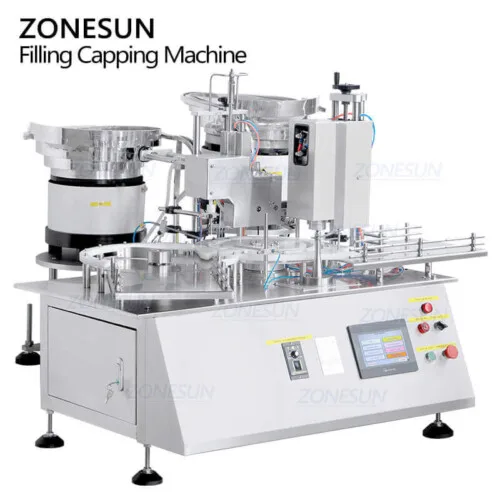

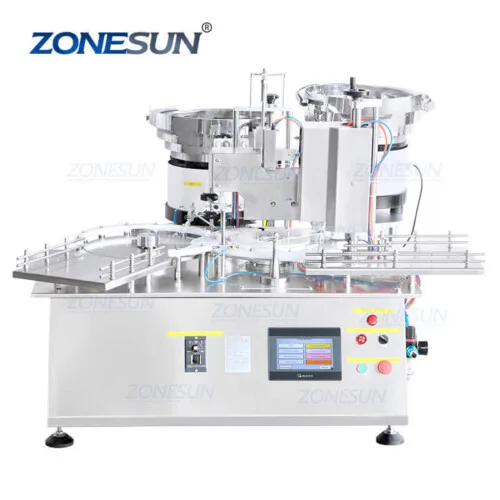

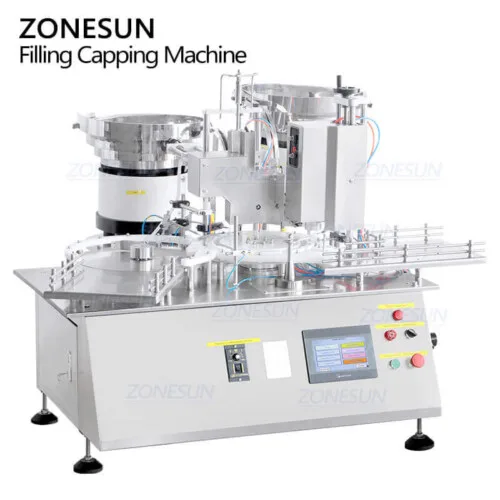

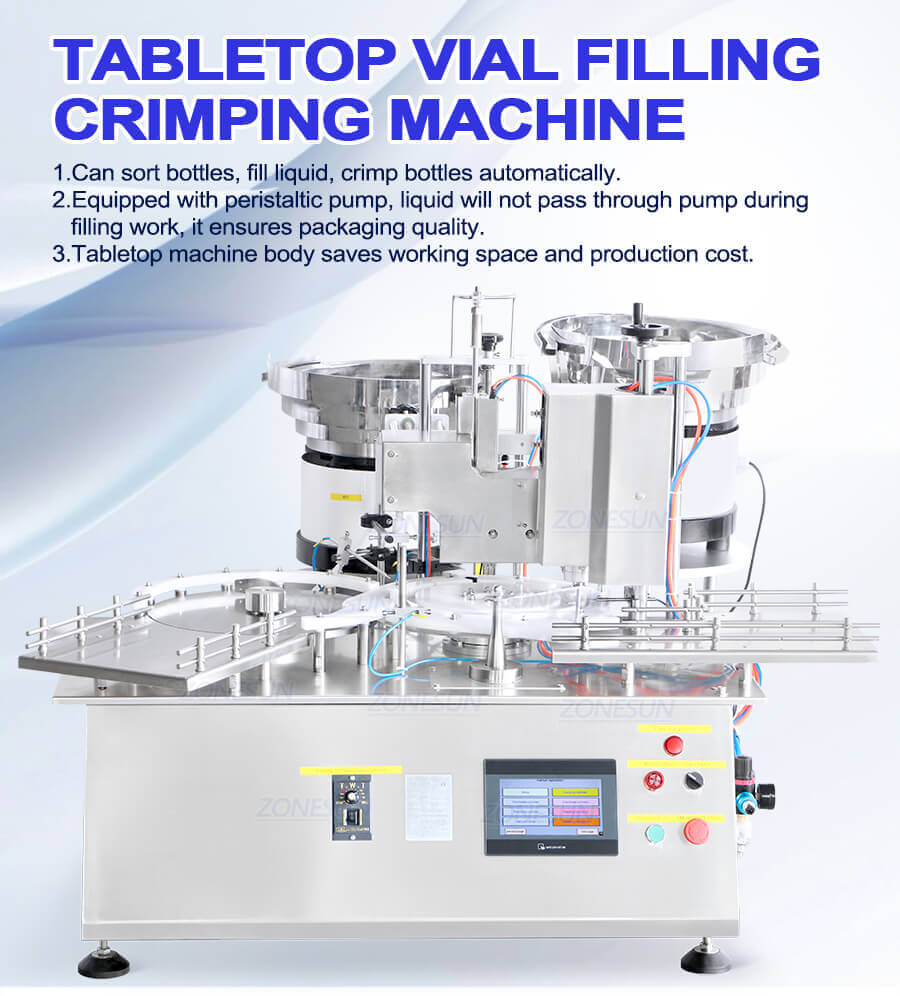

Vial Filling Crimping Capping Machine

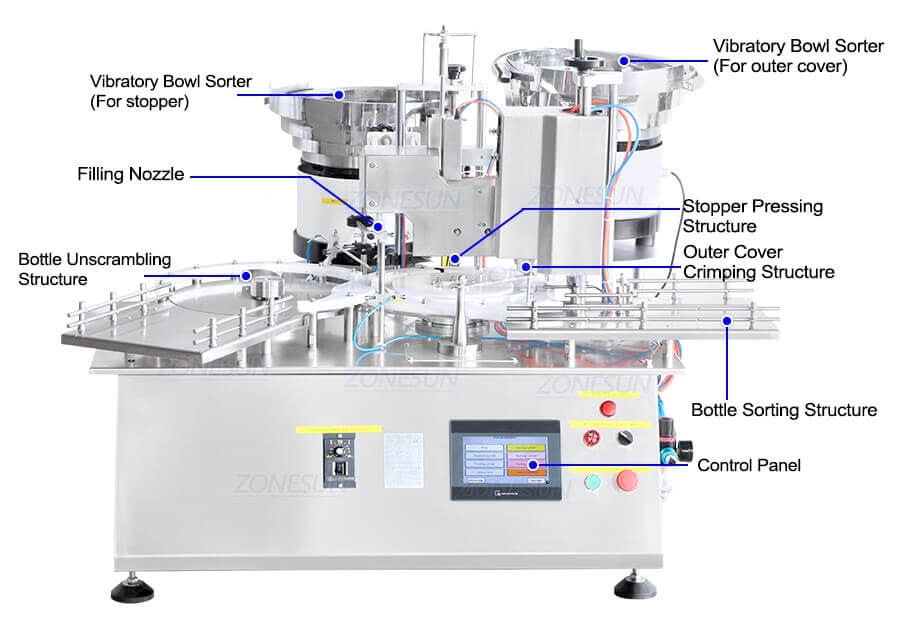

Equipped with peristaltic pump,this monoblock filling crimping machine has functions of bottle unscrambling,liquid filling and bottle crimping.It has high filling accuracy and suitable for chemical and pharmaceutical industry.
Share to
Description:
Equipped with peristaltic pump,this monoblock filling crimping machine has functions of bottle unscrambling,liquid filling and bottle crimping.It has high filling accuracy and suitable for chemical and pharmaceutical industry.
Parameter:
| Machine model | ZS-AFC20 |
| Machine power | 110/220V 50-60HZ 1kW |

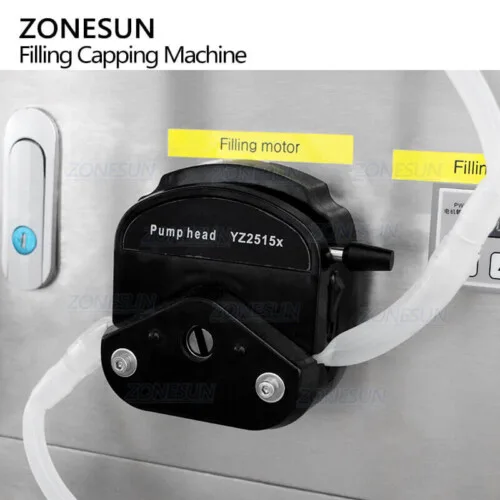

| Filling pump | Peristaltic Pump |
| Max flow rate | 2.5L/min |
| Recommend Filling Volume | 20-50ml(Customized) |
| Working capacity | 20-30bottles/min |
| Suitable bottle height | About 45mm-60mm(Customized) |
| Suitable bottle diameter | About 22mm(Customized) |
| Suitable bottle mouth | About 19.5mm(Customized) |
| Suitable cap size | H=10mm*φ=22mm(Customized) |
| Machine size | About 1450*850*1050mm(L*W*H) |
| Machine weight | About 195kg |
| Package size | About 1190*990*1120mm(Main Machine)
About 880*500*570mm(Vibratory Sorter) |
| Package weight | About 196kg(Main Machine)
About 124kg(Vibratory Sorter) |
